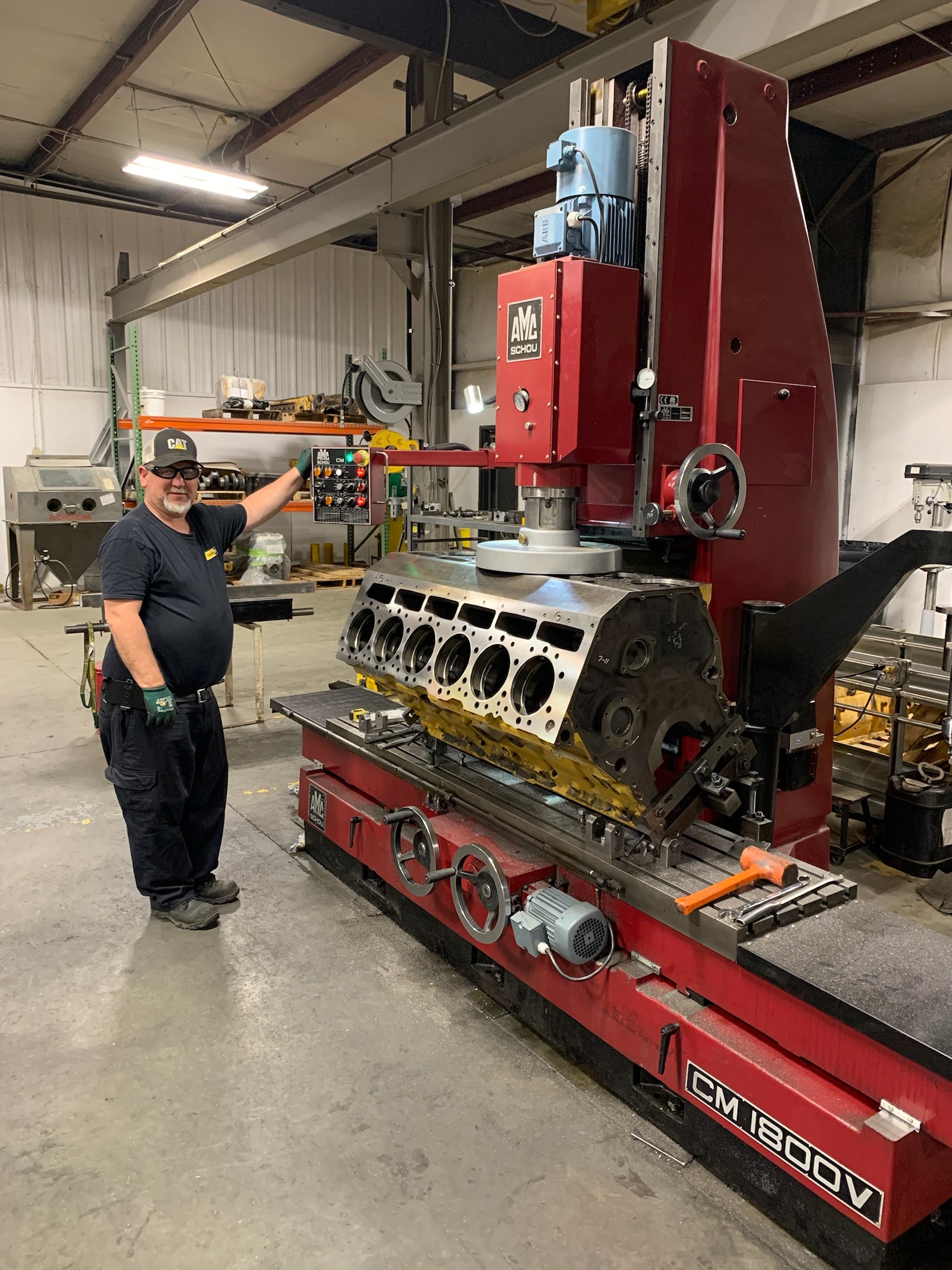

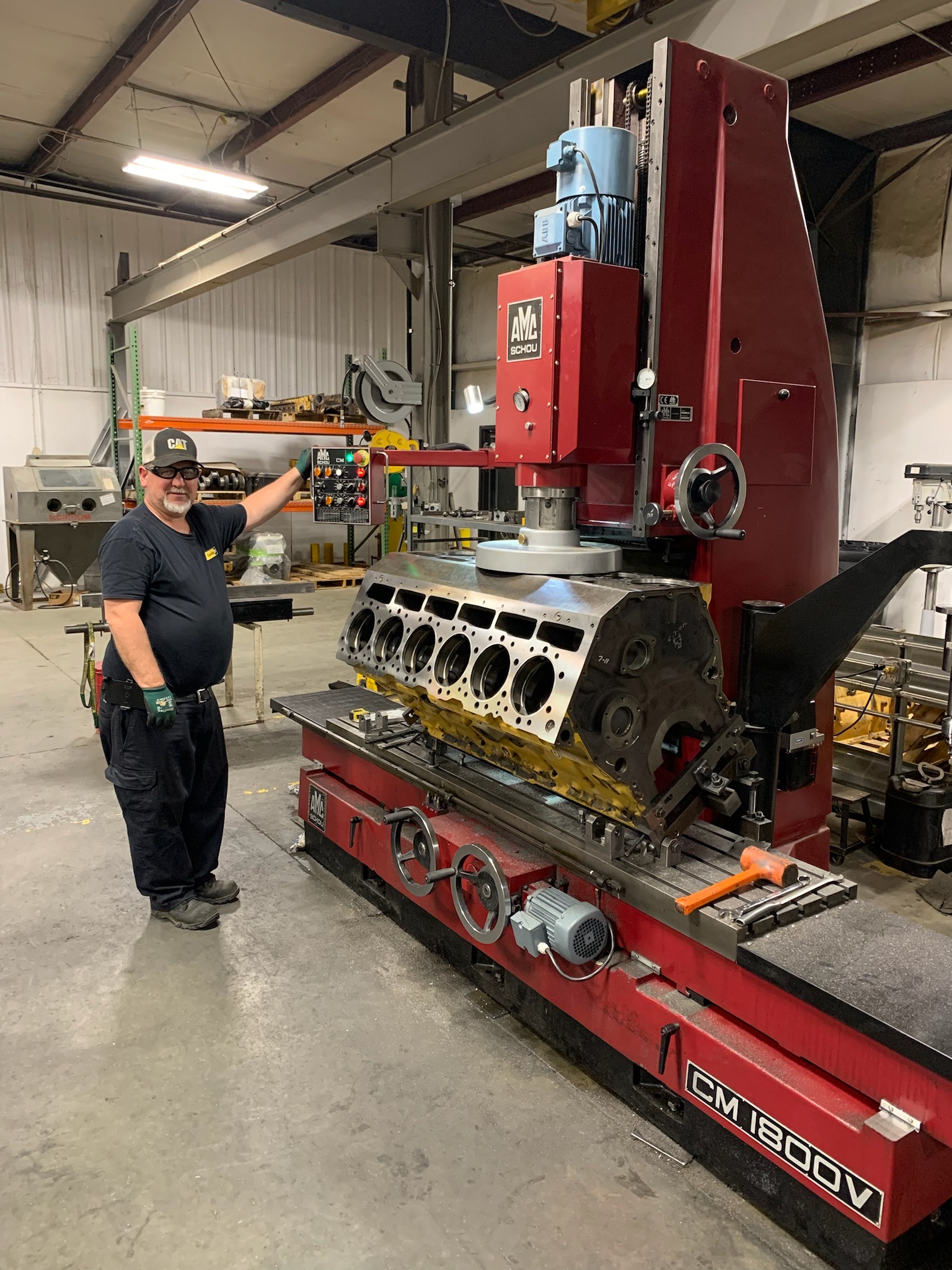

AMC-Schou CM-1800V Cylinder Block Boring & Milling Machine at CAT

Presenting the Amc-Schou Cylinder Block Boring and Milling program. Backed by more than 50 years of experience, Amc-Schou can supply all your needs for fast and easy milling and cylinder block re-boring up to 350 mm/13.8 inch in diameter. All machines are equipped with a powerful 5-1/2 hp motor for infinitely variable spindle speed and feature 1 motor for infinity variation of boring feeds. Fast retraction of the spindle from the cylinder, greatly increased productivity. CM machines feature both.

FEATURES

• Control Panel: The machine is operated by means of an easy-to-use control panel which is mounted on a swivel arm, allowing the operator to stand in the best possible working position. The controls are located conveniently in sections for spindle rotation, boring slide movement and table movement.
• Table Movement: The guide-ways are protected by telescopic guards. Stop dogs on the bed control movement of the table to the next cylinder for faster floor to floor time.
• Milling Operations: Featuring infinitely variable table traverse, are equipped with a 300 mm/11.8” milling head complete with 2 CBN cutters.

EXTRA EQUIPMENT

• Tool Grinder: Tool Grinder Model TG-1 with its 150 mm/6” grinding and diamond lapping wheels secures that correct angles are ground on carbide tipped boring tools.
• Quick Acting Clamps: These clamps are indispensable when re-boring in-line blocks.
• Universal Boring Stand: For 60° and 90° V-blocks.
• Adjustable Rollover Fixture
• Adjustable Angle Fixture
• Boring Spindles: 1.25" - 13.75"
• Spindle Storing & Loading Fixture

SPECIFICATIONS

• Boring range 1.25” - 13.75”
• Max. boring head travel 30.7”
• Distance spindle center to column 16.1”
• Max. distance boring slide to table 57.5”
• Spindle speed 50 - 1200 rpm
• Boring feed 0.8 - 59 inch/min
• Table surface 83.9” x 17.7”
• Table traverse lengthwise 79.7”
• Max. milling length 68”
• Table speed 3.9 - 47.2 inch/min
• Table movement crosswise 5.5”
• Max. work piece on machine 2640 lbs.
• Milling width 11.8”
• Optional milling width 15.7"
• Max. distance between outer cylinder centers 70.9”

MOTORS

• Spindle motor 5-1/2 hp
• Motor for boring feed 1 hp
• Motor for table feed 3/4 hp

DIMENSIONS

• Work height required 118.5”
• Height of column 112”
• Total length of machine 131.1”
• Total width of machine 67.7”
• Working space required 211.8” x 67.7”
• Net. weight (approx.) 9900 lbs.

We are engaged in a continuous process of improving our machines. The details associated with any descriptions, specifications and illustrations shown may thus vary without further notice.

Standard Equipment: All machines are equipped with stepless motors, central lubrication, tool setting micrometers, setting-up blocks with bolts and spanners, depth control dial indicator, operating manual and more.

Extra Equipment: 7 boring spindles each with carbide tool holders and high-speed inserts (including centering and chamfering tools), carbide tipped boring tools (a tool grinder is also available), storage and loading fixture (for rapid spindle exchange), boring stands (universal and adjustable), roll-over fixtures for V-blocks, quick acting clamps, extra setting-up blocks and more.

· Powerful 4 kW (5.5 HP) motor for variable spindle speed
· Spindle rotation to 1200 r.p.m.
· motor for variable boring feeds
· 1500 mm/min (60 inch/min) fast spindle retraction from cylinder
· Table speed variable from 0-1200 mm/min (0-47 inch/min)
· Heavy-duty design


AMC-SCHOU cylinder block boring and milling machines are equipped with a new powerful motor for spindle rotation, and with throw-away inserts for the carbide tool holders which allow extremely fast re-boring of cylinders up to 350 mm (13.75"). All machines are equipped with automatic central lubrication. The spindles, dimensioned for life-long quality service, and the extremely sturdy machine construction are your guarantee of fast floor to floor times for many years - The Benefits of Precision.

•

  Control Panel
  Swivelling control panel with easy access controls for easy
  operation. Allows the operator to work in the best possible
  position.

•

  Milling Operations
  On all CM machines the milling head, complete with CBN cutters,can be easily adapted for milling operations.

•

   Milling Heads with CBN cutters
  CM machines, featuring infinitely variable table traverse, are equipped with milling head complete with 2 CBN cutters. By using only 2 CBN cutters speed & feed rates can be dramatically increased, resulting in great time savings on each milling operation. Lifting the guard gives access to easy replacing of the cutters.

  	Standard	Optional
  CM 1200V	300 mm/ 11.8 inch	400 mm / 15.75 inch
  CM 1800V	300 mm / 11.8 inch	400 & 500 mm /  15.75 & 19.7 inch
  CM 2500V	400 mm / 15.75 inch	500 mm / 19.7 inch



•

  Boring Spindles
  A complete range of spindles allows boring from 32-350 mm (1.25"-13.75"). All spindles feature constant pre-loaded bearings and are sealed and greased for life.
