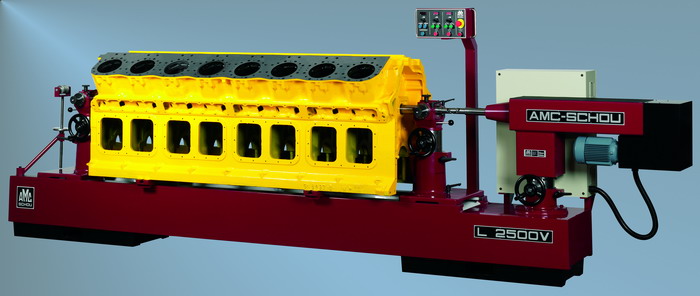

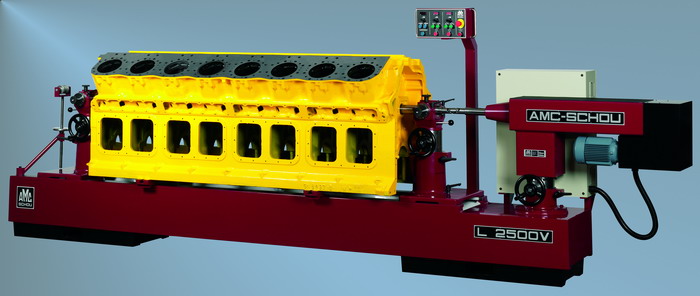

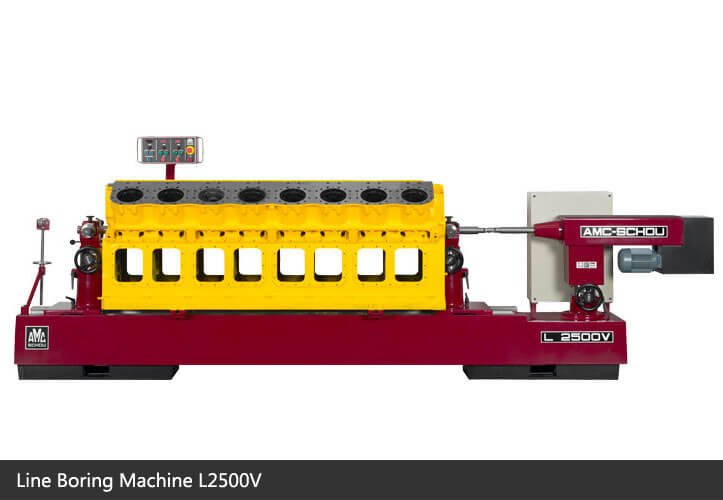

AMC-Schou L-2500V Line Boring Machine

L-2500V Line Boring Machine
The Amc-Schou Line Boring Machine Model L-2500V is typified by the long tradition in the engine rebuilding business. Rugged design, long lasting and accurate. 5 different boring bar sizes are available, with easy loading using the boring bar support. Easily adjustable columns ensure rapid rough positioning. Operation is fast - rough centering with a cone is followed by final centering using the Amc-Schou centering tool with dial gauge.
Stock #831New Machine; Call for Pricing

FEATURES

• 5 difference boring bars available allowing boring up to 4.33”
• Large selection of cutter tools as standard equipment
• Roughing and finishing feeds
• Machine lengths 98.4”
• Spindle speeds up to 750 rpm

SPECIFICATIONS

• Max. block length 100”
• Spindle speeds 0 - 750 rpm
• Max. boring bar travel 26.8"
• Fast feed 0.3 - 39.4 inch/min
• Feed jog high speed 39.4 inch/min
• Total travel with extension bar 39.9"
• Feed jog adjustable 0.3-39.4 inch/min
• Max. distance from built-in parallels to boring bar 33.5”

MOTORS

• Drive motor for spindle 2 hp
• Drive motor feed 1/2 hp

DIMENSIONS

• Height of machine 86.6”
• Total length of machine 206"
• Total width of machine 41.7"
• Working space required 299.2” x 31.5”
• Shipping weight (approx.) 6908 lb
