Blast Cabinet Model 3636-7PM2DC
General Information

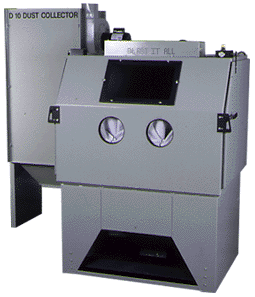

3636P Cabinet with Reclaimer and Dust Collectors
| Model Number | Reclaimer/CFM | Dust Collector | Estimated Shipping Weight (lbs) | Floor Area Required (W) | Floor Area Required (D) |
| 3636-7P | 700 | Bag | 700 | 105″ | 96″ |
| 3636-7PDC | 700 | D10 DC | 1100 | 105″ | 102″ |
| 3636-7PM2DC | 700 | M2DC | 1150 | 105″ | 108″ |
| 3636-9P-3 | 900 | 2 Bags | 1250 | 105″ | 108″ |
| 3636-9PDC-3 | 900 | D20 DC | 1450 | 105″ | 108″ |
| 3636-9P-M4DC-3 | 900 | M4DC | 1550 | 105″ | 108″ |
| 3636-9P-RPJ2 | 900 | RPJ(Dust Drawer) | 1550 | 105″ | 108″ |
| 3636-9P-RPJH2-3 | 900 | RPJ(Dust Hopper) | 1550 | 105″ | 108″ |
Door Opening:
| A | B | C | D | E |
| 33″ | 40″ | 19″ | 15″ | 25″ |
Floor Area Required Shown with 700 CFM Reclaimer
Reclaimer And Dust Collector
Cabinet Construction:
14 Gauge Reinforced Continuously Welded
High Angle Sump
Finish:
Durable Enamel
Primed and Painted. Corrosion Resistant
Working Chamber:
Dimensions: 48″W x 36″D x 42″H
Double Walled Doors
Safety Door Interlocks
Self Adjusting Door Latches
Knife Edge, Self Sealing, Full Gaskets
Full Length Hinges
Viewing Window:
12.5″H x 21″W
Quick Change, Square Cornered,
Tempered Glass
Mylar Protector
Lighting:
Single, Two-Tube, 24″ Fluorescent Fixture Low
Temperature, Shielded, Externally Located
120 V 60 Hz
Full Width Foot Valve:
For instant Changing From Right to Left Foot
On/Off Air Logic Controls
Blasting Nozzle:
Tungsten Carbide, 1/4″ standard
Pressure Pot:
ASME Coded, one cu. ft. capacity
air pressure, remote controlled
Automatic Refilling
Heavy screen drawer
| Air Requirements (CFM) | 40 PSI | 60 PSI | 80 PSI |
| 3/16″ nozzle | 21 | 32 | 41 |
| 1/4″ nozzle | 41 | 56 | 72 |
| 5/16″ nozzle | 64 | 88 | 113 |
Gloves:
Abrasive Resistant, Cloth Lined, Full Length Snap-In, Static Resistant Gauntlet
Hoses:
1/2″ ID. Lightweight, Flexible, Abrasive Resistant
Blow-Off Gun:
Fingertip Control Blow Off Nozzle
Specifications
Reclaimer
Cyclone
Centrifugal Type
Removable Screen
Basket
All Steel Construction
Adjustable Air Wash
700 CFM System:
1 Hp 20 Amp Service
D10 Pull Through:
For (700 CFM) Reclaimer
42″w X 25″d X 80″h
1 Hp Motor
Manual Pneumatic Bag Shaker
25 Dust Bags
M-2 Collector:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
206 Sq Ft Filter Area
Dampered Inlet
RPJ2 (Dust Drawer):
Auto Pulse Cleaning
70” X 30” X 93”
Dampered Inlet
D20 Dust Collector:
900 CFM
52” W X 33” X 80” H
2 Hp Motor
Manuel Pneumatic Shaker
49 Dust Bags
M4dc:
Reverse Pulse Cleaning
3 Gal Dust Drum
Auto On/line Cleaning
(2) Cartridges
412 Sq Ft Filter Area
Dampered Inlet
RPJH2 (Dust Hopper):
Auto Pulse Cleaning
70” X 30” X 12’ 6”
(2) 36” Cartridges
480 Sq Ft Dampered Inlet
