Comec AC200 Cylinder Boring Machine

AC200
Stock #1415New Machine; Call for Pricing

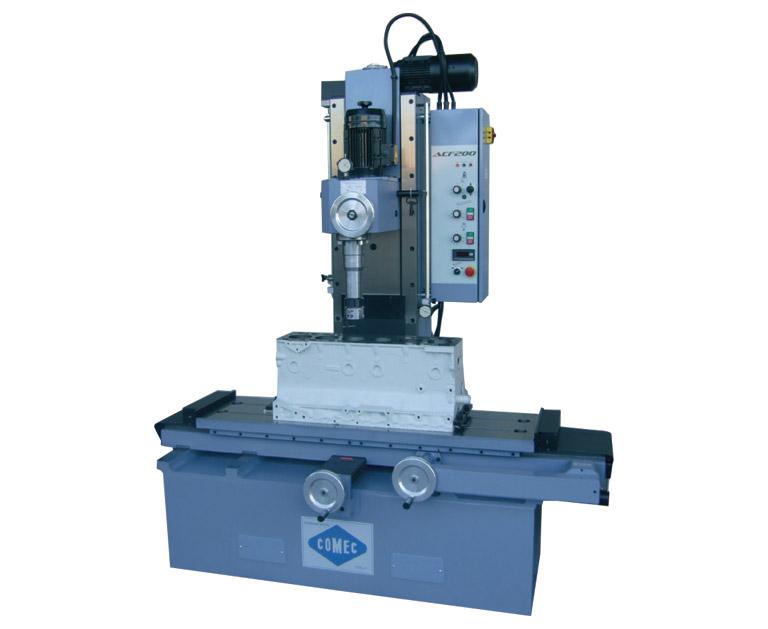

The AC200 boring machine has been manufactured to recondition cylinder blocks of motor cars and trucks with a diameter of 1.2" to 6.7" (30÷170 mm). The excellent qualities of finishing and precision are ensured by the combination of a tested mechanic structure with new innovative technical solutions, which enhance the performance and versatility of the machine. All machine parts supplied with the standard equipment, such as the fast cylinder centering device with scanning level on the boring bar and the centesimal dial indicator, the clear and straightforward control panel, as well as the depth of boring control dial gauge, can ease and speed up the work. Moreover, the adjustable boring bar's rotation speed provide for the best finishing.

Browse other cylinder boring machines.

Images may show the product equipped with optional accessories

BROCHURE



Standard equipment

Including standard equipment as follows:
MNF200 Single phase version (220V/60Hz/1ph)
Variable spindle speed with digital display
Variable head feed speed
Head power feed
Ball screw drive on head and table
Boring depth device with dial gauge
Precision centering device with dial gauge
Adjustable stroke-end switches
Motorized traverse table with variable feed speed
C06085-P Dia. 2.362”÷3.346” (60÷85 mm) boring spindle with accessories
C85170-P Dia.3.346”÷6.693” (85÷170 mm) boring spindle with accessories
PF0350 Dia.14” Milling plate
UT1330 1/2” CBN/PCD Toolholder
UT1355 1/2" CBN insert for cast iron
TSTP10 Depth indicator complete of dial gauge
PV0160 Pair of parallel supports
Oil for slides (1 lt.)
Wrench set
Instruction manual





Specifications

Boring range: 1.2"÷ 6.7" /  30÷170 mm

Max head vertical travel:  26.4" /  670 mm

Min-Max distance from head to table:  14.6"÷ 40.2"  / 370 ÷1020 mm

Distance between spindle C/L and column:  11.4"  / 290 mm

Table surface:  52.8" x 14.6" / 1340x370 mm

Max table longitudinal travel:  47.2" / 1200 mm

Max table transverse travel:  7.9" / 200 mm

Adjustable spindle rotation speed:  75 ÷ 850 rpm

Adjustable boring bar feed:  0÷175 mm/min.

Adjustable table feed:  0 ÷6.9" in/min / 0÷460 mm/min.

Spindle motor power:  2 Hp/ 1.5 kW

Rapid feed motor power: 0.5 Hp / 0.37 kW

Table feed motor power:  0.75Hp / 0.55 kW

Power Supply: 220V/60Hz/1Ph

Dimensions:  (LxWxH)  73" x 45" x 86" /1860 x 1150 x 2170 mm

Weight:  3,042 lbs. / 1,380 Kg

Power Requirements: 220 Volt/ 1 Phase / Full Load AMPS: 13.6A

Shipping information:  81.9" x  48.4" x  88.2"

Shipping weight: 3,640 lbs  / 1,651 kg



Accessories and spare parts

PV1516
PV1516 60° - 90° V-block blueprinting mounting fixture

PV0025
PV0025 Pair of fast clamping column

PV0007
PV0007 Pair of parallel supports  H=49mm

PV0160
PV0160 Pair of parallel supports

Comec B03560 boring spindle

B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment

Comec B06085 boring spindle

B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment

Comec C03560 boring spindle

C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system

Comec C06085 boring spindle

C06085
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system

Comec C85170 boring spindle

C85170
Ø 85÷170 mm L= 360 mm boring kit with pre-setting system

Comec B85170 boring spindle

B85170
Ø 85÷170 mm L = 360 mm boring kit dial gauge adjustment

PF0320 1/2” CBN or PCD milling plate dia. 320 mm (available only for ACF)

SSR200
Spindle storage rack

PVB015
V-block adjustable universal fixture
