Comec ACF170 Cylinder Boring Milling Machine

ACF170
Stock #1450New Machine; Call for Pricing

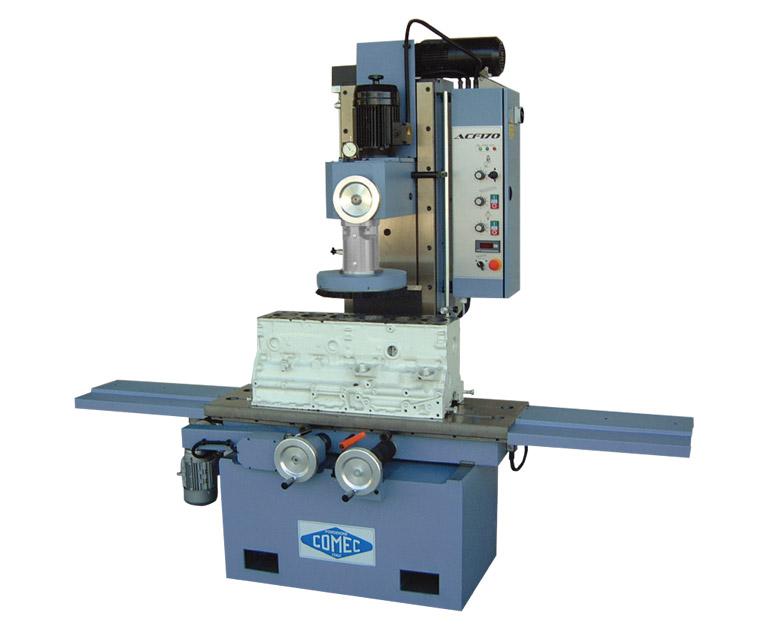

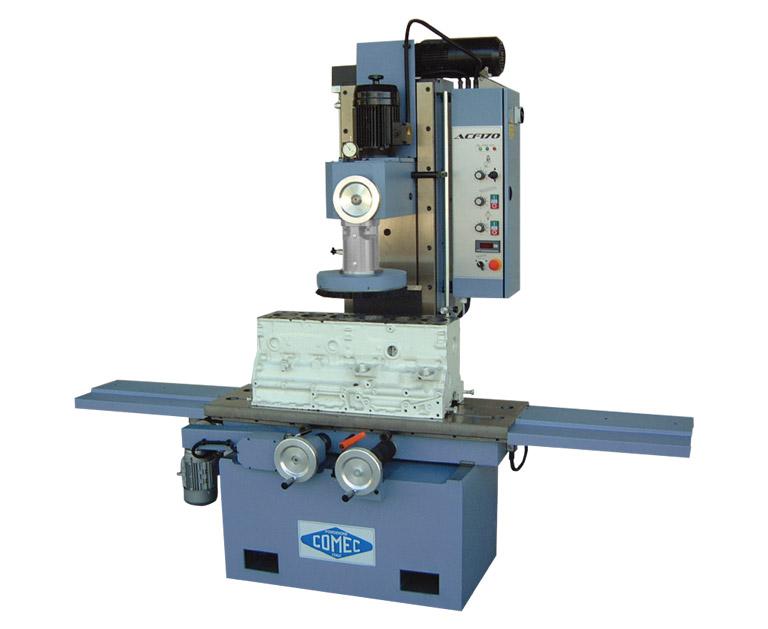

The cylinder boring/resurfacing machine ACF170 includes both main reconditioning operations of automotive and truck cylinder blocks - boring and resurfacing - in one single machine, with performances that are usually available only on higher level models. Despite its compact dimensions, the technical features of this machine ensure considerable work capacities, thanks to the wide longitudinal and transverse table feed and to the vertical feed of the head. The excellent qualities of finishing and precision are obtained by combining a tested mechanical structure with innovative technical solutions, which improve the performance and versatility of the machine.

Browse other cylinder boring machines.

Images may show the product equipped with optional accessories

BROCHURE



Standard equipment

Including standard equipment as follows:
MNF200 Single phase version (220V/60Hz/1ph)
Variable spindle speed with digital display
Variable head feed speed
Head power feed
Ball screw drive on head and table
Boring depth device with dial gauge
Precision centering device with dial gauge
Adjustable stroke-end switches
Motorized traverse table with variable feed speed
C06085-P Dia. 2.362”÷3.346” (60÷85 mm) boring spindle with accessories
C85170-P Dia.3.346”÷6.693” (85÷170 mm) boring spindle with accessories
PF0350 Dia.14” Milling plate
UT1330 1/2” CBN/PCD Toolholder
UT1355 1/2" CBN insert for cast iron
TSTP10 Depth indicator complete of dial gauge
PV0160 Pair of parallel supports
Oil for slides (1 lt.)
Wrench set
Instruction manual



Specifications

Boring range 1.18"-6.69" / 30-170 mm
Max Vertical travel of the Head 26.38 /"670 mm
Max distance from head to table 37"/ 940 mm
Distance from spindle center to column 11.41" /290 mm
Spindle rotation speed (adjustable) 75÷700 rpm
Spindle feed 0÷175 mm/min.
Table surface 40.9"x 14.57" /1040x370 mm
Max longitudinal table travel 39.37" /1000 mm
Max transverse table travel 7.87" / 200 mm
Spindle motor power 1.5 kW
Rapid feed motor power 0.37 kW
Dimensions (LxWxH) 40.55"x 40.16"x 78.74" /1030x1020x2000 mm
Net weight 2,535 lbs. /150 Kg
Gross weight 2,932 lbs. /1330 Kg



Accessories and spare parts

PV1516
PV1516  60° - 90° V-block blueprinting mounting fixture

PV0025
PV0025 Pair of fast clamping column

PV0007
PV0007 Pair of parallel supports  H=49mm

PV0160
PV0160 Pair of parallel supports

UT1320
3/8” CBN/PCD insert tool holder


CBN insert Comec

UT1355
1/2” CBN Insert for cast iron

UT1356

1/2” PCD Insert for aluminium

Comec B03560 boring spindle

B03560
Ø 35÷60 mm L = 330 mm boring kit with dial gauge adjustment

Comec B06085 boring spindle

B06085
Ø 60÷85 mm L = 320 mm boring kit with dial gauge adjustment

Comec C03560 boring spindle

C03560
Ø 35÷60 mm L = 330 mm boring kit with pre-setting system

Comec C06085 boring spindle

C06085
Ø 60÷85 mm L = 320 mm boring kit with pre-setting system

Comec C85170 boring spindle

C85170
Ø 85÷170 mm L= 360 mm boring kit with pre-setting system

Comec B85170 boring spindle

B85170
Ø 85÷170 mm L = 360 mm boring kit dial gauge adjustment

PF0320

1/2” CBN or PCD milling plate dia. 320 mm (available only for ACF)

UT1330
1/2”CBN/PCD insert tool holder

UT1345
3/8” CBN Insert for cast iron

UT1346
3/8” PCD Insert for aluminium

PVB015
V-block adjustable universal fixture
