Comec BST860 Work Station for Cylinder Head Valves

Stock #1419New Machine; Call for Pricing

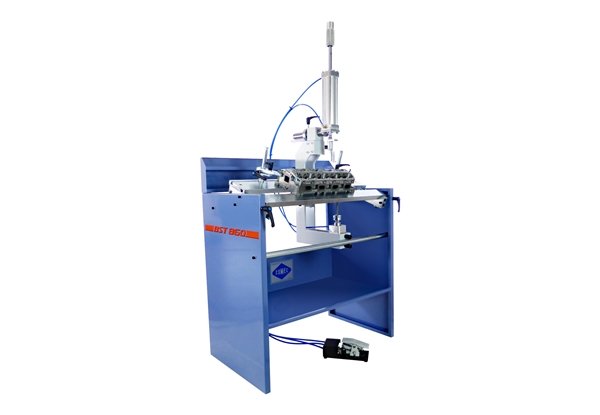

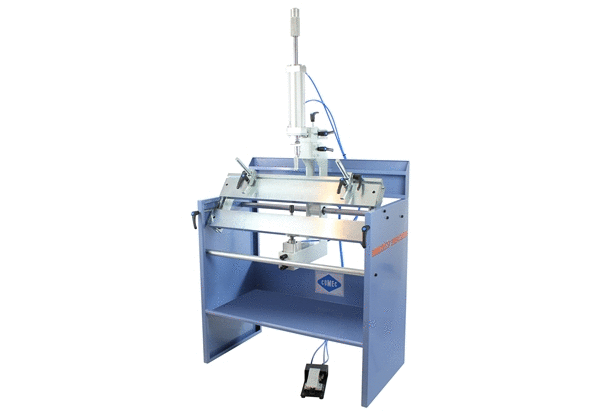

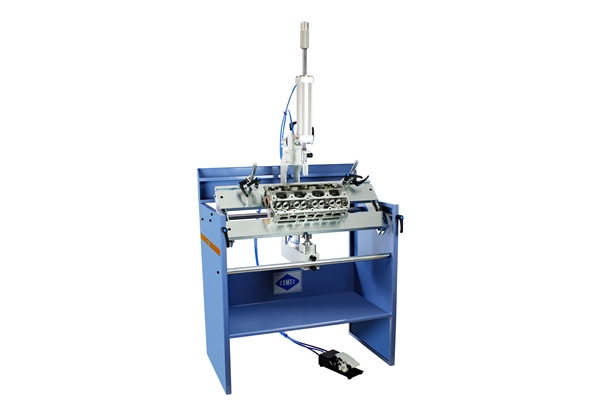

BST860 valve spring compressor bench and cylinder head work station allows all kind of operations on cylinder heads as disassembling, reassembling and their all-around control in an efficient, practical and safe manner.

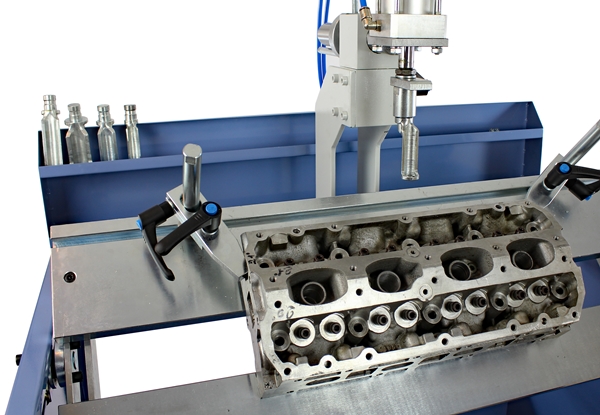

The head is securely locked by a rapid system of clamps on the table that can rotate 360° and, therefore, allows convenient access to all the points on which you want to work.

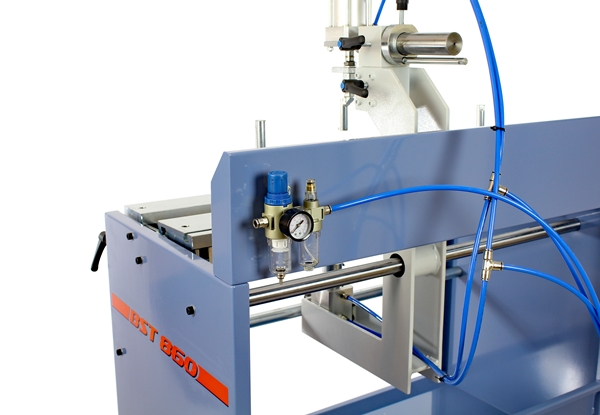

A regulator complete of a filter allows to adjust the working pressure.

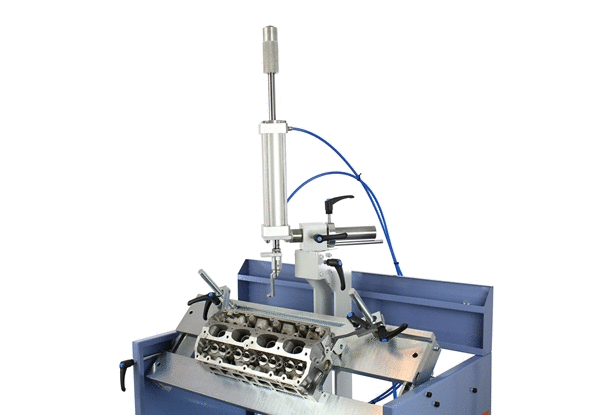

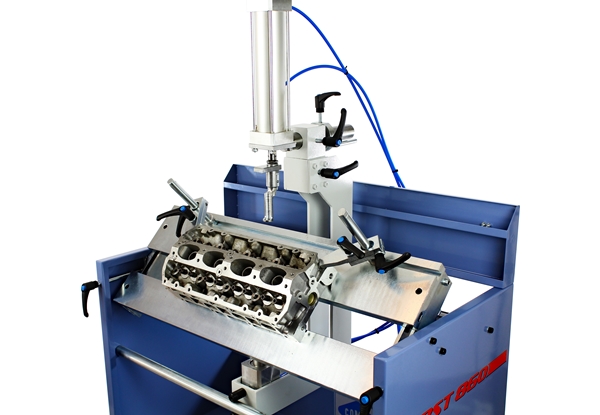

The bench is equipped with an adjustable pneumatic cylinder for operations on the engine valves that adapts to all the heads; in addition, it is operated by a foot pedal, leaving the hands free to work.

Discover more Cylinder heads equipment
Contact us for more information. Watch the video and download the brochure






Standard equipment

  • Upper adjustable pneumatic cylinder
  • Lower retainer pneumatic cylinder
  • Pneumatic foot control
  • Filter-lubricator unit with pressure adjuster and manometer
  • 360° roll-over table
  • Quick clamps for cylinder heads
  • Set of different sizes retaining tips
  • Wrench set
  • Instruction manual



Table dimensions:   875x350 mm

Useful table surface:   850 mm

Air pressure:   6÷8 bar

Dimensions (LxWxH):   970x680x1680mm

Weight:   130 kg / 362 lbs.


Shipping information:

Skid Dimensions: 47.2" x 31.5" x 59"

Shipping weight: 362 lbs.
