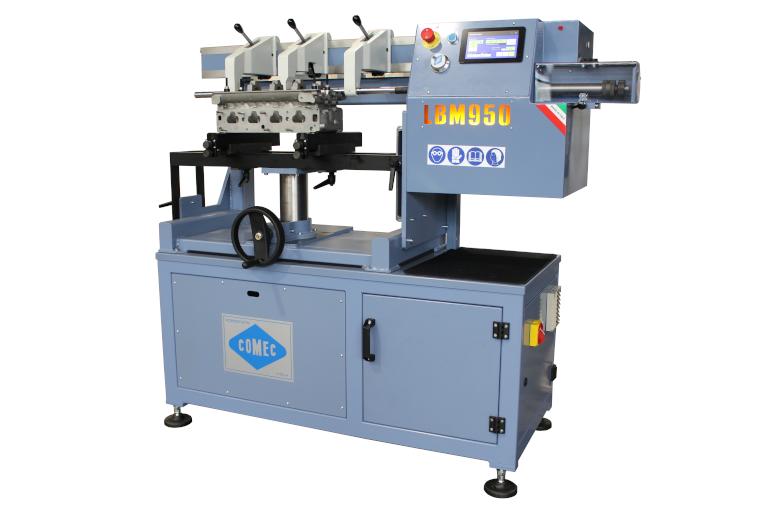

Comec LBM950 Line Boring Machine for Cylinder Heads and Blocks
The Line Boring Machine LBM950 allows the reconditioning of housing holes either of camshaft cylinder heads and crankshaft blocks of cars and light trucks as well.

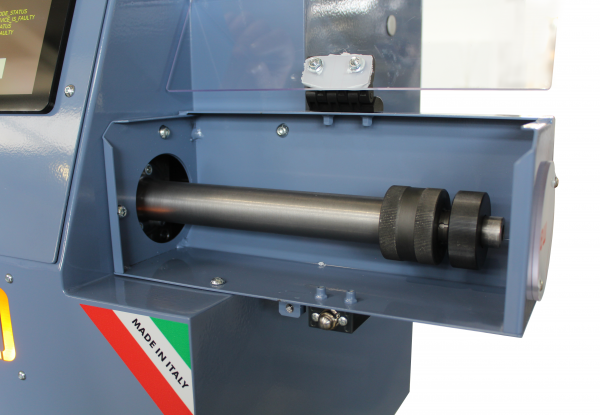

The innovative chrome bar drive system combines the two boring feed and rotation movements and consists of a linear ball bearing unit that ensures smooth and precise movement and a belt actuator that provides controlled rotation of the bar tool holder.

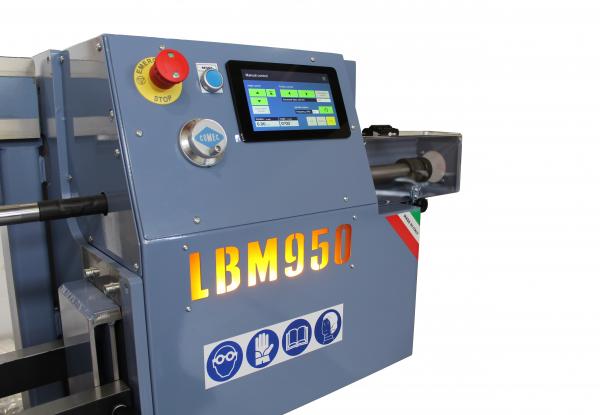

All the operations related to the bar such as the manual movements, the setting of the working parameters and the automatic cycles are managed by touch screen panel that, combined with an electronic handweel, makes the the use of the LBM950 extremely intuitive, simple and very productive.

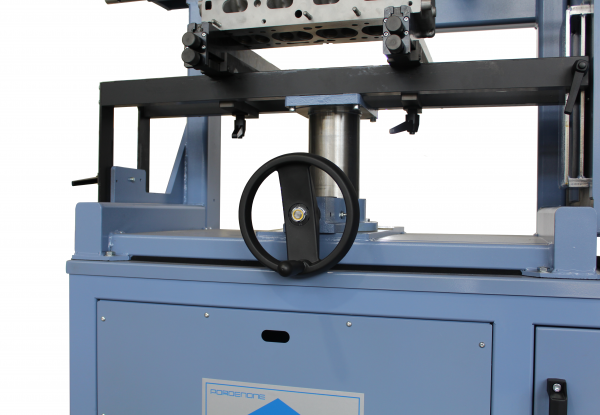

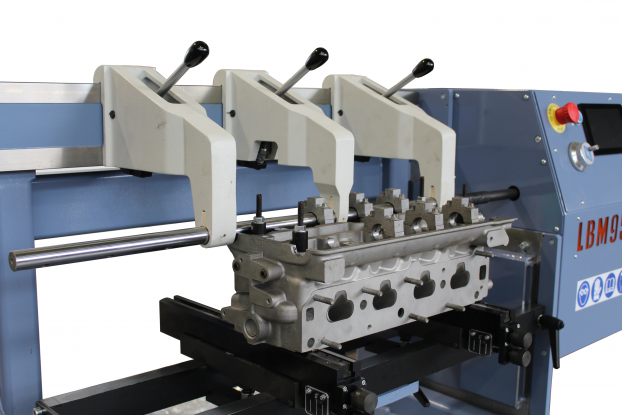

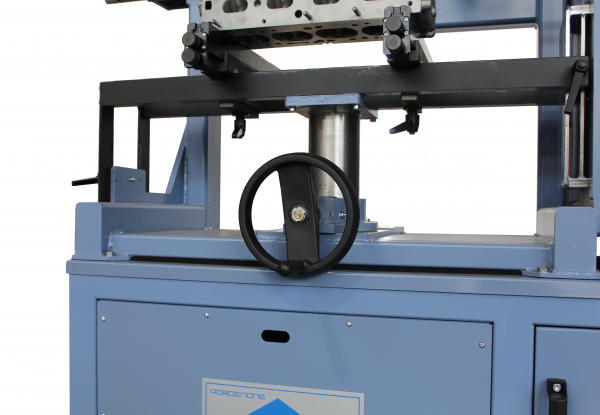

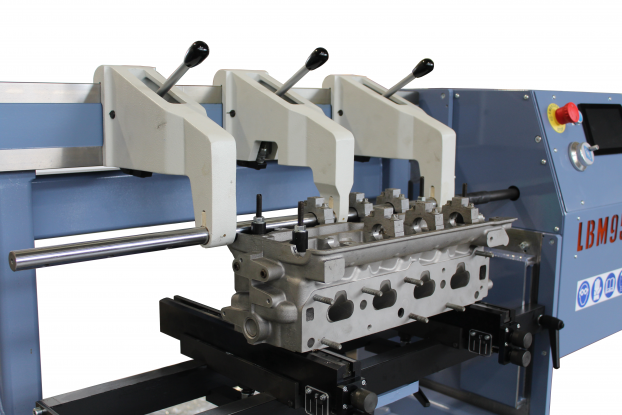

The boring bar is hold by three sturdy, movable arms which offer high rigidity while machining, whilst perfect and quick centering of the workpiece respect to the boring seats is allowed thanks to fine adjustment knobs, either in height and cross movements, assisted by a pair of centering devices complete of dial indicators.

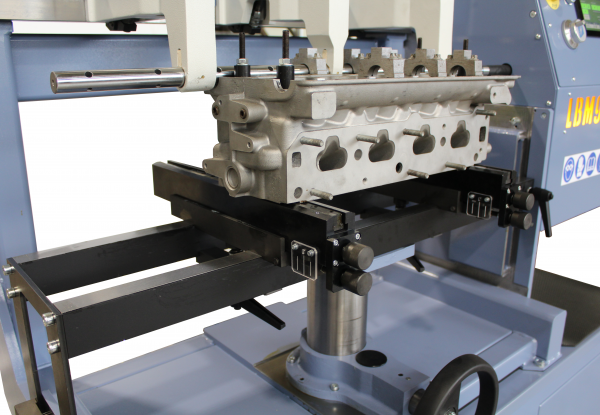

The versatile and useful fixture simplify and speed-up the clamping operation of any kind of cylinder heads and blocks.
Scope:
Standard equipment
| Including standard equipment as follows: |
| Single phase version (220V/60Hz/1ph) |
| Bar displacement on linear guideways with ball screw drive system |
| Bar displacement/rotation acted by brushless motors |
| Touch screen control panel |
| Operating software for manual and automatich working process |
| Electronic handwheel for manual displacement (fast-medium-fine speeds) |
| Basement with equipment tray |
| Boring bar support arms |
| Universal head clamping fixture |
| BC0800 Dia. 24-85 mm chromed tool holder bar L=800 mm |
| AP0800 Dia. 50-85 mm toolholder ring for blocks |
| Set of boring tools |
| DC0200 Centering device with dial gauge AC0093 (2 pieces) |
| DT0100 Tool setting device complete of dial gauge with micrometer |
| Set of fixing screws for cylinder heads |
| Wrench set |
| Instruction manual |
Specifications
Boring capacity: 24 ÷ 85 mm
Max boring bar travel: 190 mm
Min-Max distance height supports-bar C/L: 100 ÷ 376 mm
Max cylinder head and block length: 810 mm
Max cylinder head and block width: 300 mm
Variable spindle rotation speed: 0 ÷ 400 rpm
Spindle traverse rate: 0 ÷ 5000 mm/min
Feed motor power: 1,27 Nm
Spindle rotation motor power: 0,68 Nm
Dimensions (LxWxH): 1780x800x1385 mm
Weight: 375 kg
Accessories and spare parts
BC0300
Blind holes boring bar dia. 23 mm L = 300 mm
BC0304
Blind holes boring bar dia. 18 mm L = 300 mm
PR0305
L = 300 mm extension for dia. 18/23 mm boring bars
DC0300
Blind holes centering device
UT0040
Dia. 8x25 mm boring tool
UT0041
Dia. 8x30 mm boring tool
SVB690
V-block setup fixture
KB0018
Dia. 18 mm (19÷47 mm) boring kit with arms and centering devices
