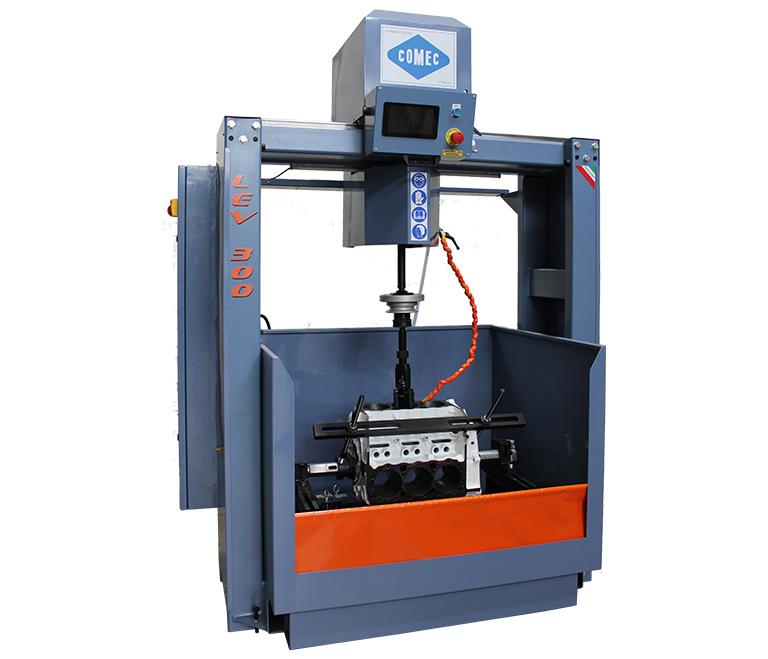

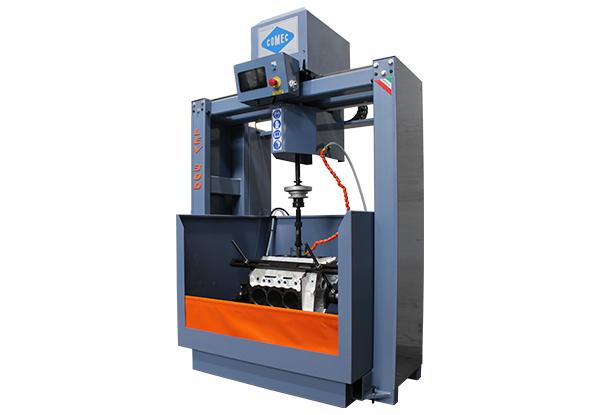

Comec LEV300 Cylinder Honing Machine
The LEV300 is a machine specifically engineered for cylinder honing of cylinder blocks, as well as for all other kind of precise industrial applications where such operation is requested.
The sturdy construction of the machine offers a high structural rigidity, thereby assuring an extremely accurate finishing.

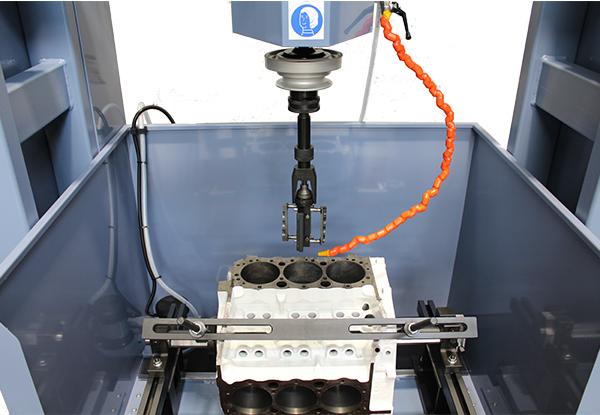

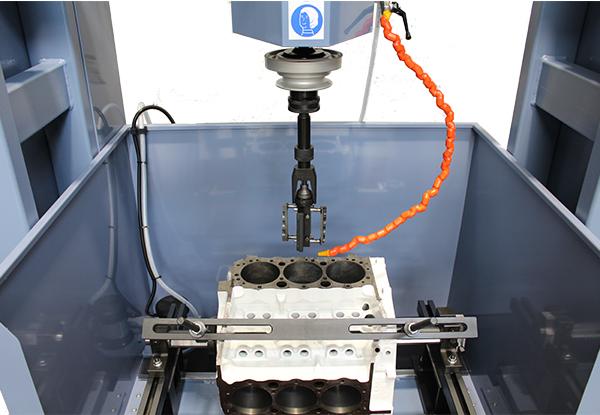

The honing head feed system is carried out through a recirculating ball screw, and the rotation is activated by a powerful electrical motor.

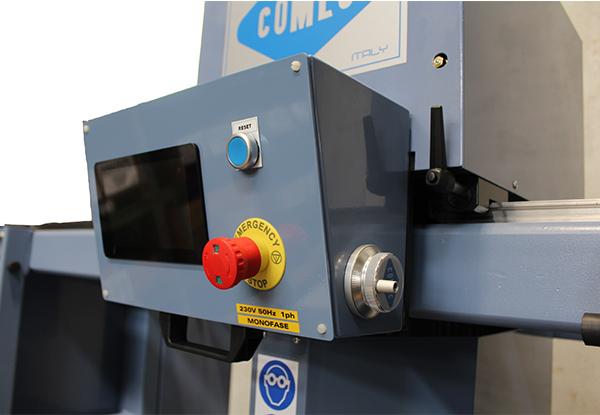

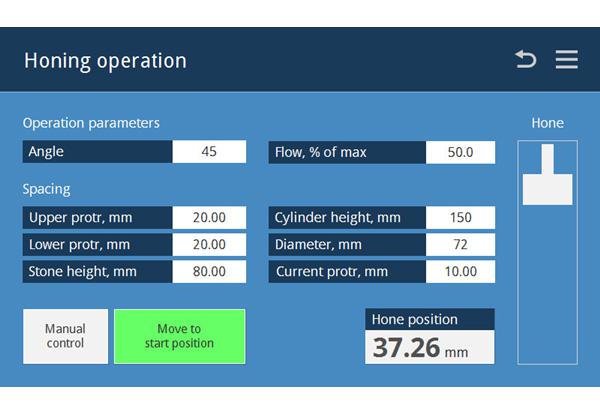

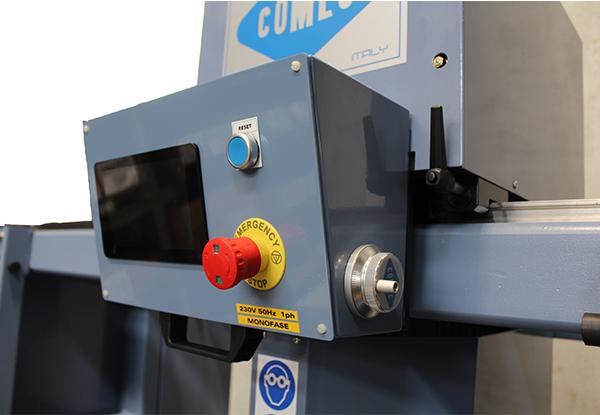

Thanks to the touch screen control system, which is located in front of the operator, it is possible to enter the work parameters to be calculated by the integrated software, thus speeding up the operation and increasing the honing head's rotation speed.
Discover more Cylinder honing machines
Images may show the product equipped with optional accessories
Standard equipment
| Including standard equipment as follows: |
| MNF300 Single phase version (220V/60Hz/1ph) |
| Head movement on linear guideways |
| Vertical Honer stroke by ball screw drive system |
| Touch screen control panel |
| Operating software for manual and automatic working process |
| Double effect expanding/retracting honer feed unit |
| LVS133 Dia. 63÷140 mm honing head |
| LV0175 Dia. 63,5÷68,5 mm Replacement set of stones |
| LV0176 Dia. 68,5÷104 mm Replacement set of stones |
| LV0177 89÷140 mm Replacement set of stones |
| Coolant plant with Magnetic filtering system |
| Universal cylinder blocks support attachment |
| Splash and safety guard |
| Wrench set |
| Instruction manual |
Specifications
| Min-Max honing diameter | .98"-19.69" /25÷500 mm |
| Max spindle travel | 11.8" / 300 mm |
| Spindle rotation speed | 0÷170 rpm |
| Max distance table-honing head | 23.6" /600 mm |
| Max longitudinal head travel | 30.7" / 780 mm |
| Max workpiece dimensions | 35.4"x31.5"x21.7" /900x800x550 mm |
| Spindle motor | 0,75kW |
| Honer Feed motor | 1,5 kW (7Nm) |
| Cooling pump motor | 0,15kW |
| Dimensions (LxWxH) | 61.4"x 40.2" x 85" /1560x1020x2160 mm |
| Net weight | 1,323 lbs. /600 Kg |
Power Requirements: 220 Volt/ 1 Phase/ Full Load AMPS: 10A
Shipping information: 67.7" x 44.1" x 92.5"
Shipping weight: 1,670 lbs.
