Comec RP1000.CNC Cylinder Head and Block Resurfacing Machine

RP1000.CNC
Stock #1241New Machine; $29,380

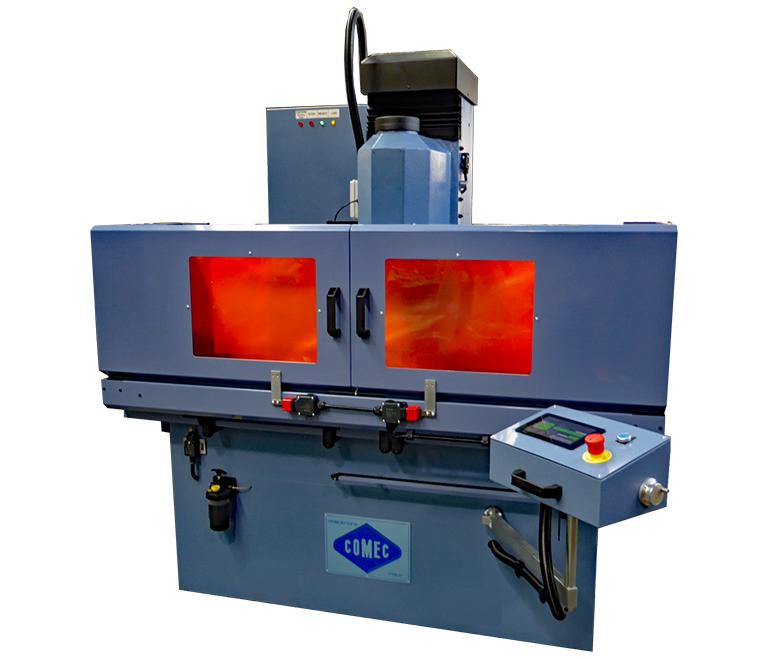

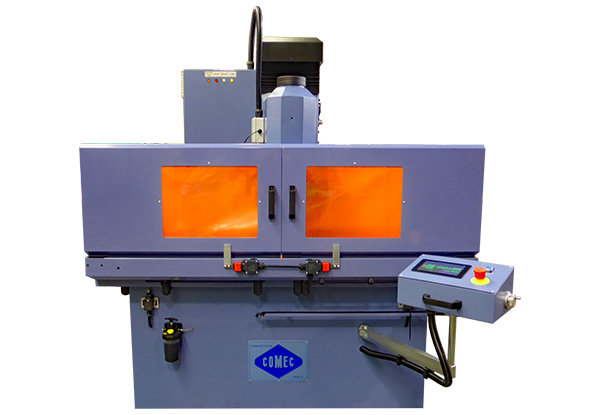

The RP 1000 CNC is a resurfacing machine for cylinder heads and engine blocks of cars and trucks as well as for all flat surfaces which require a maximum accuracy of the contact surfaces.



BROCHURE



Standard equipment

  • Ball screw drive feed of table and head complete of speed adjuster
  • Ø 358 mm milling plate with CBN insert

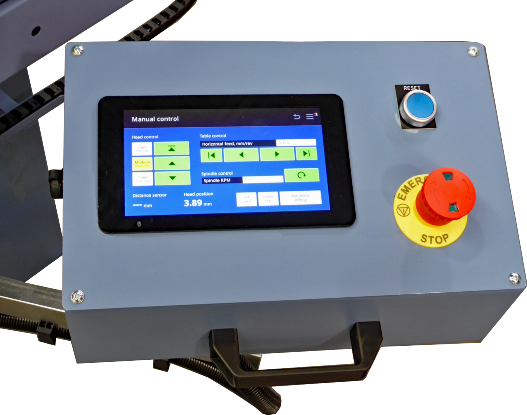

  • Touch screen CNC control panel

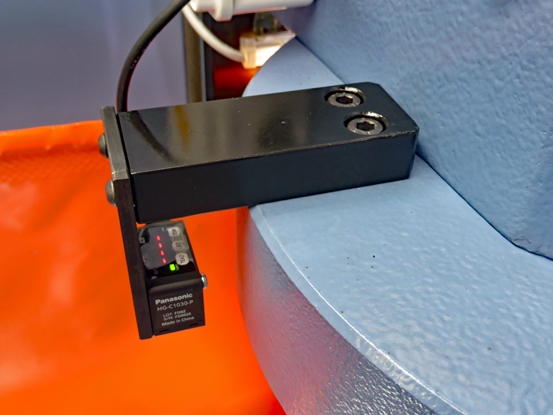

  • Laser sensor for scanning workpiece

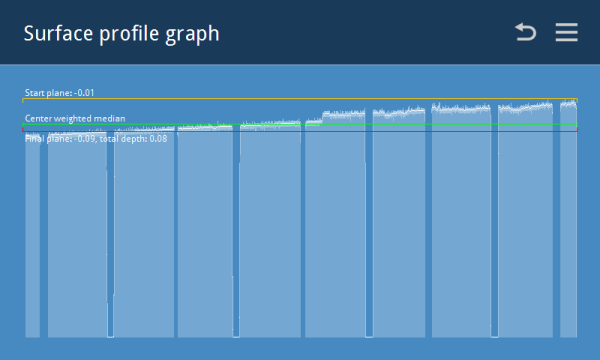

  • Surface profile graph

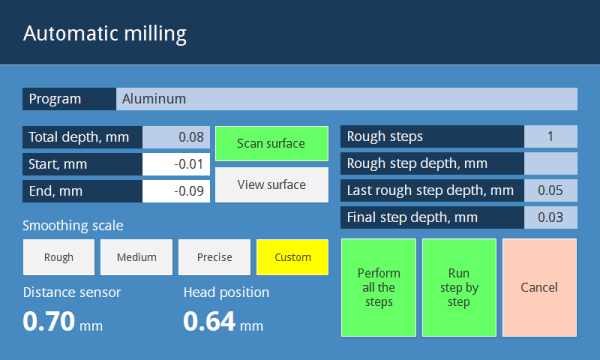

  • Fully automatic cycle

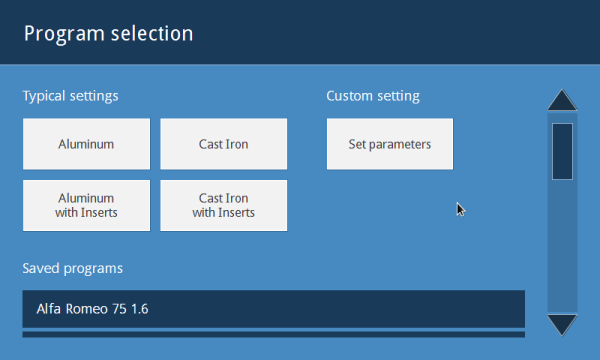

  • Database with preloaded working cycles and possibility to personalize them
  • Estimated cycle time
  • Safety guard with sliding doors
  • Pair of parallel supports
  • Large clamps (2 pcs.)
  • Small clamps (4 pcs.)
  • Oil for slides
  • Wrench set
  • Instruction manual



Specifications

Table travel 1070 mm
Max working length 895 mm
Max working width 355 mm
Min - Max working height 920x210 mm
Useful table surface 358 mm
Milling plate diameter 0÷1500 mm/min
Spindle rotation speed 2,2 kW
Variable table feed speed 0.75 kW
Spindle motor 1.27 Nm
Table motor 1680x1140x1850 mm
Feed torque motor 1015 Kg



Accessories and Spare Parts

Comec RP1000CNC resurfacer

PVA015  Adjustable universal fixture wit parallels

Comec RP1000CNC resurfacer

PV0015  Adjustable universal fixture with mounting plate

Comec-machines-UT1320

UT1320  3/8” CBN/PCD insert tool holder

Comec machines UT1355

UT1355  1/2” CBN Insert for cast iron

Comec machines UT1356

UT1356  1/2” PCD Insert for aluminium

Comec machines UT1390

UT1390  ALP insert tool holder for UT1392

Comec machines UT1392

UT1392  ALP insert for aluminum with prechambers

Comec machines UT1330

UT1330  1/2”CBN/PCD insert tool holder
