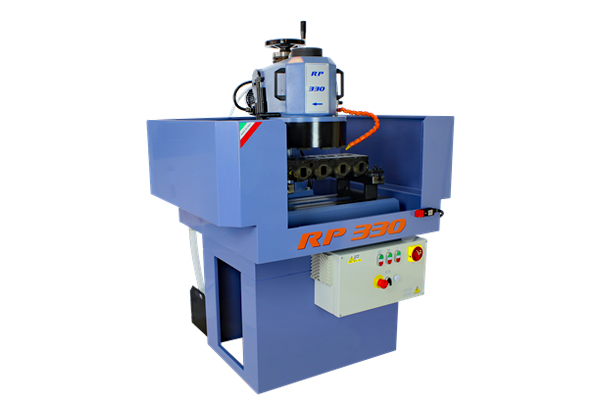

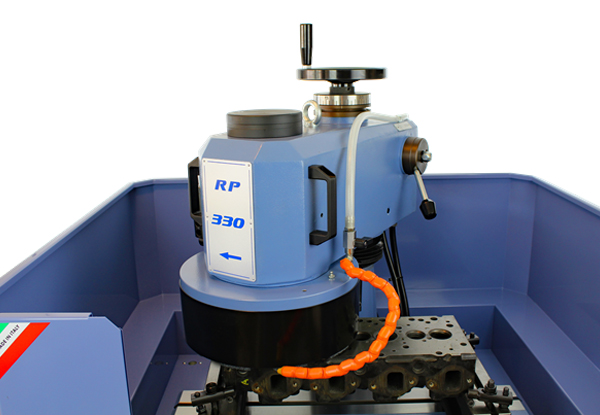

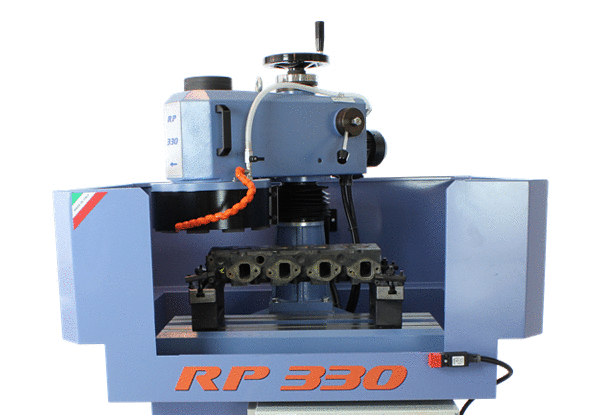

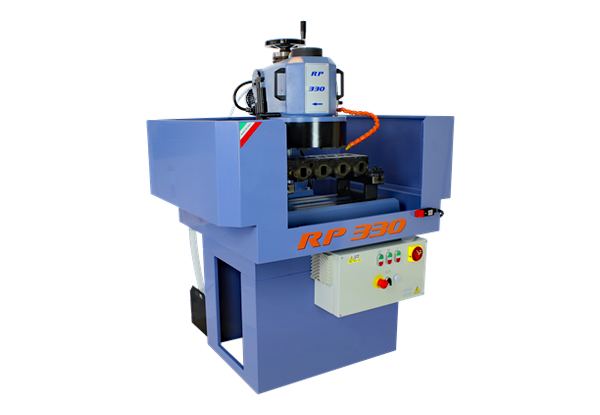

Comec RP330.M Cylinder Head Resurfacing Machine

RP330.M
Stock #1240New Machine; $11,800

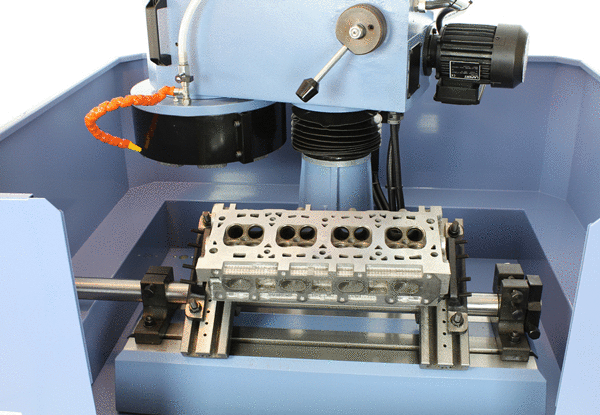

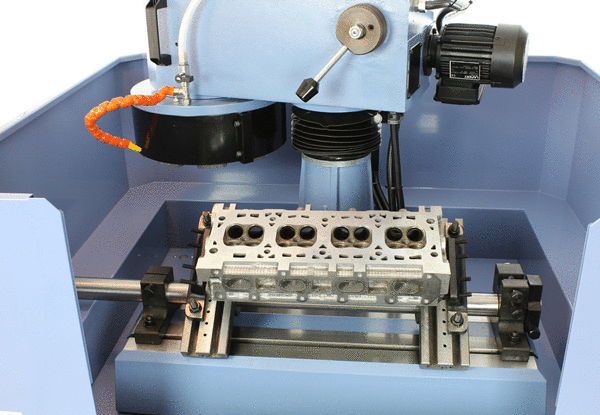

The RP1300 is a resurfacing machine designed for cylinder heads and blocks of cars and trucks but also for all those flat surfaces that require an extremely precised side contact.

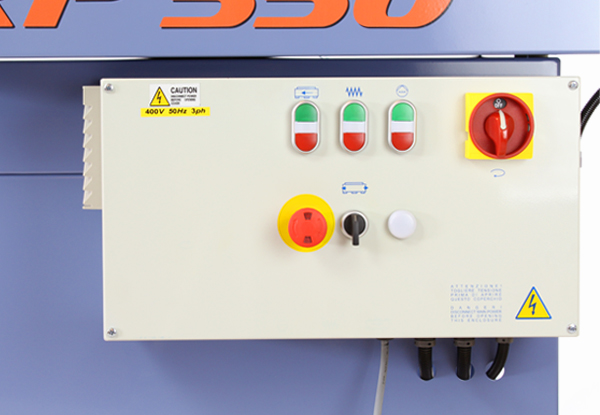

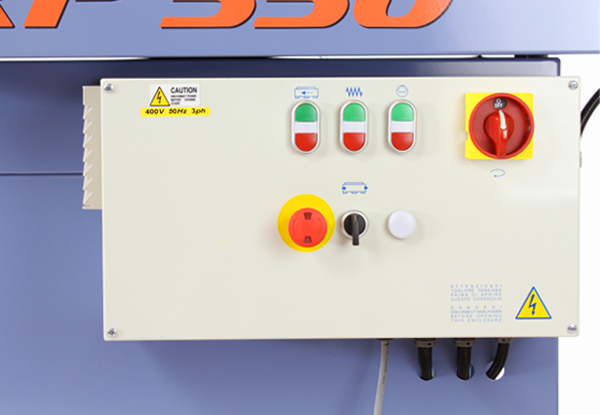

This model combines tested solutions, such as  the flat and V-shaped lubricated slides on the base (which guarantee an excellent run fluidity), with other more innovative features, like the table feed through a recirculating-ball screw with a wide range of regulation or an inverter for the spindle speed regulation.  Moreover, RP1300 has an efficient cooling system consisting in a tank on wheels and a grinding wheel dresser. For a convenient and safe use of the machine, all control commands are located on a swing arm control panel adaptable to every operator;

The standard version includes, a segmented grinding wheel for cast iron or aluminium and pre-chamber cylinder head resurfacing and brazed tool for aluminium machining.
Available as optional a CBN-PCD toolholder plate for the reconditioning at high speed of cast iron and aliminium heads

Consult the brochure or contact us for more information.

Images may show the product equipped with optional accessories



BROCHURE



Standard equipment

  • Base cabinet
  • Cooling plant complete of pump and settling tank
  • Segmented grinding wheel complete of grinding segments for cast iron
  • Splash and safety guard
  • Grinding wheel dresser
  • Wheel dressing diamond
  • Head resurfacing tool
  • Pair of parallel supports
  • Locking clamps
  • Wrench set
  • Instruction manual

Specifications

Table surface 670x270 mm
Maximum distance table to grinding wheel 390 mm

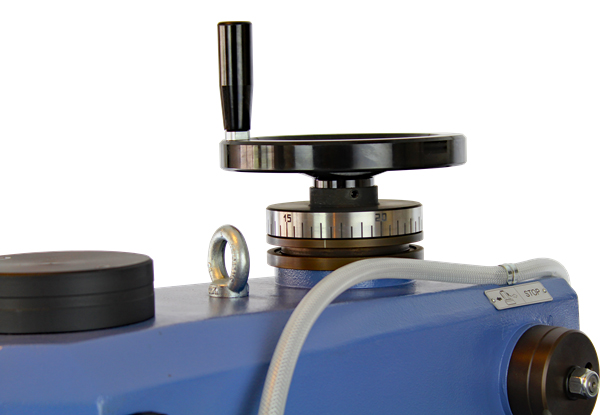

Grinding wheel vertical travel 210 mm
Diameter of grinding 330 mm
Spindle speed 1400 rpm
Feed speed (on both directions) 145 mm/min
Wheel head motor power 2.2 Kw
Feed motor power 0.15 Hp
Coolant pump motor Mod 0.15 Hp
Dimensions (LxLxH) 1220x1080x1670 mm
Weight 445 kg



Accessories and spare parts

Comec machines PVA015

PVA015
Adjustable universal fixture wit parallels

Comec machines - UT0017

UT0017
Insert tool holder with UT0014

Comec machines - UT0014

UT0014
Replacement insert for UT0017 (10 pcs)

Comec machines - RP0099

RP0099
Grinding segments for cast iron

Comec machines - RPA099

RPA099
Grinding segments for steel

Comec machines - RPB099

RPB099
Grinding segments for aluminium

Comec machines - VMV330

VMV330
Variable head spindle speed 700 ÷ 1400 rpm

Comec machines - VTV330

VTV330
Variable head feed

Comec machines - DIM330

DIM330
Automatic inversion of head feed

Comec machines - UT0003

UT0003
Head resurfacing tool

Comec machines - MT0013

MT0013
Wheel dressing diamond

Comec machines - UT0100

UT0100
Wrench for UT0017

Comec machines - UT0150

UT0150
Screw for insert for UT0017
