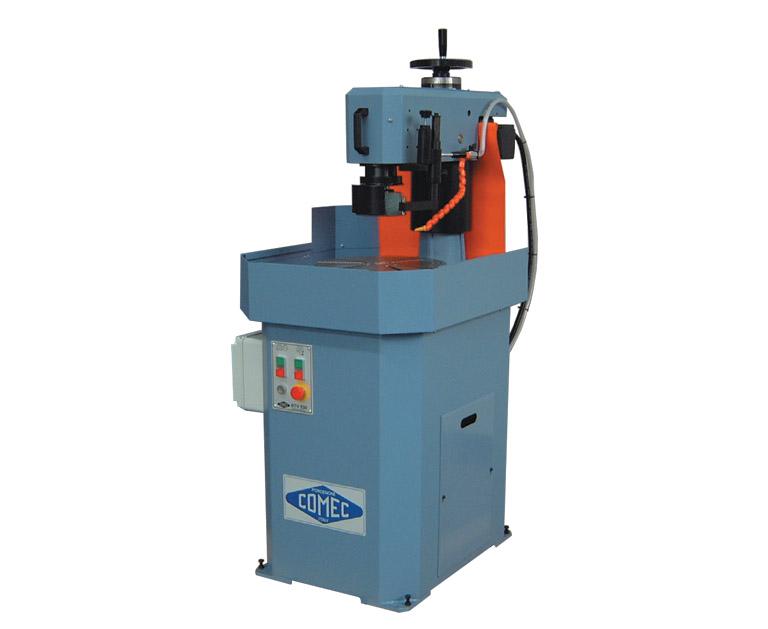

Comec RTV530 Flywheel Clutch Pressure Plate Grinder

RTV530
Stock #1422New Machine; Call for Pricing

The RTV530 has been engineered specifically for resurfacing flywheels and clutch friction plates with a maximum diameter of 510 mm (20”).
The sturdy structure of some elements, like the base, the column and the rotary table, ensure the maximum level of rigidity and work precision.

The clutch pressure plate and flywheel grinder is equipped with an efficient cooling system, complete with a pump and an easy-to-clean settling tank. The complete standard equipment ensures an extremely fast and accurate set-up of the workpieces. Moreover, the RTV530 is suitable for grinding brake discs of cars and trucks for which this kind of machining is required.

Images may show the product equipped with optional accessories



Scope:



BROCHURE



Standard equipment

Including standard equipment as follows:
MNF530 Single phase version (220V/60Hz/1ph)
Cooling plant complete with pump and settling tank
Splash and safety guard
PL0016 Cup grinding wheel for cast iron
Grinding wheel dresser
MT0013 Wheel dressing diamond
RTV21S Set of centering cones (4 pcs.)
RTV54S Set of supporting rings (5 pcs.)
Blocking screws and centering nut
Emulsifiable liquid (1 lt.)
Wrench set
Instruction manual



Specifications

Maximum grinding diameter:   20" / 510 mm

Rotary table diameter:  15.35" / 390 mm

Maximum distance between - wheel:   6.89" /175 mm

Cup grinding wheel diameter:   5.9" /150 mm

Table rotation speed:   16 rpm

Wheel rotation speed:   2800 rpm

Table motor power:   0.75 kW

Head motor power:   2.2 kW

Dimensions (LxWxH):   27.6"x 38.19" x 66.14" /700x970x1680 mm

Weight:   838 lbs. /380 kg



Accessories and spare parts

Comec - RTV581 ΓΈ 350 mm Magnetic table

RTV581
ø 350 mm Magnetic table

Comec - RTV580 Pressure plate clamping device

RTV580
Pressure plate clamping device

Comec - RTV591 Small hole flywheel adapter M12/M16

RTV591
Small hole flywheel adapter M12/M16

PV0909
Corner cutting tool for recessed flywheels

PL0CBN
CBN Cup grinding wheel
