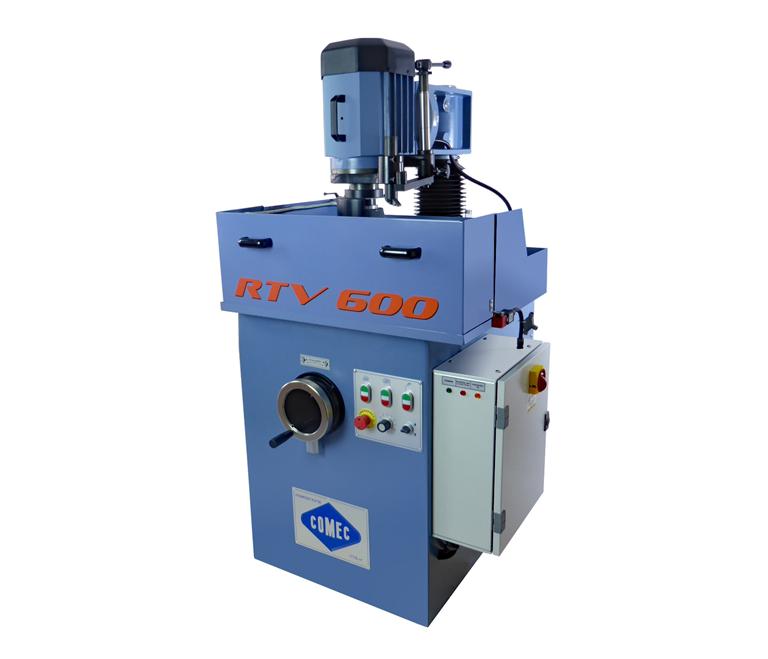

Comec RTV600 Flywheel Clutch Pressure Plate Grinder

RTV600
Stock #1423New Machine; $14,740

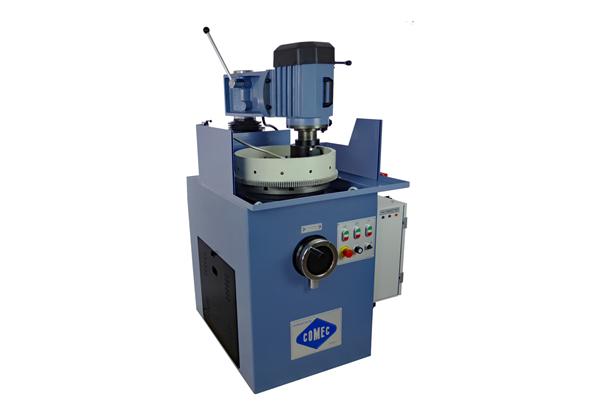

The grinding machine RTV600 represents the best and most advanced solution in terms of reconditioning of flywheels, clutch friction plates and pressure plates in industrial vehicles. RTV600 it is also suitable for fine grinding of any other circular piece lke discs, rings or flanges.

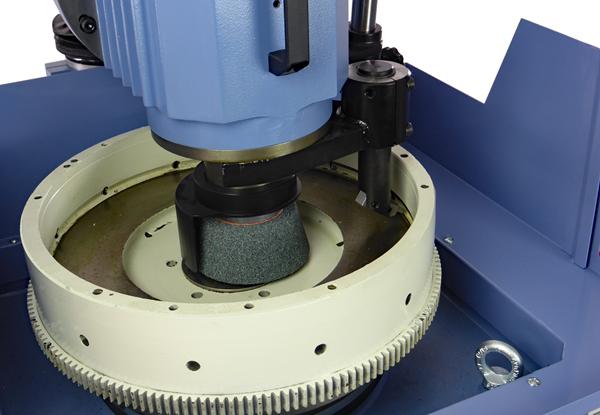

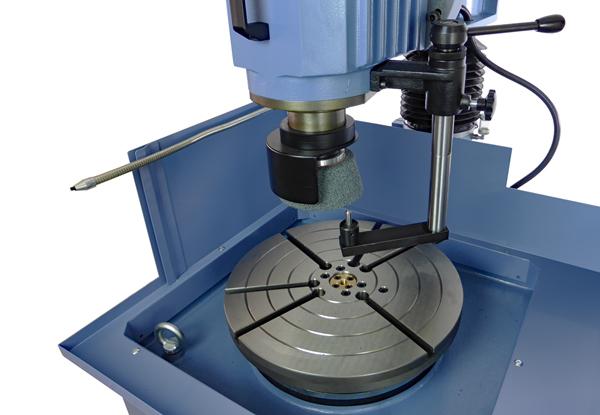

The flywheel surface grinder offers a high rigidity torsion, thanks to the use of cast iron for the base. The rotary table lies on a surface constantly lubricated with oil that helps in reducing the friction and preserving the machine at the same time and it can also be supplied with a magnetic plate.
The 4 kW motor grants a sufficient power to work any kind of material with high depths of cutting. For all these reasons the RTV600 meets the requirements of the most demanding mechanincs.

Consult the brochure, watch the video and contact us for any other inquiry.



Scope:



BROCHURE



Standard equipment

  • Head power feed
  • Splash and safety guard

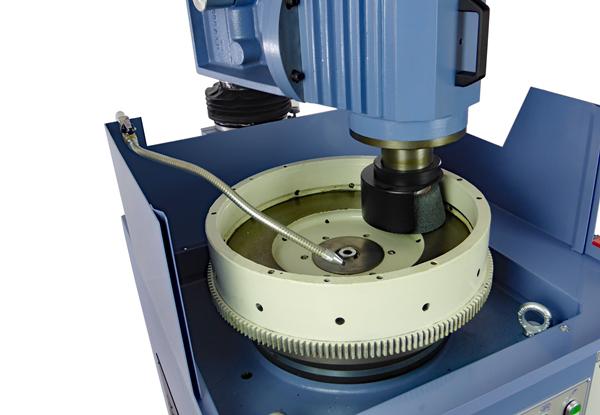

  • Cooling plant complete with pump and settling tank

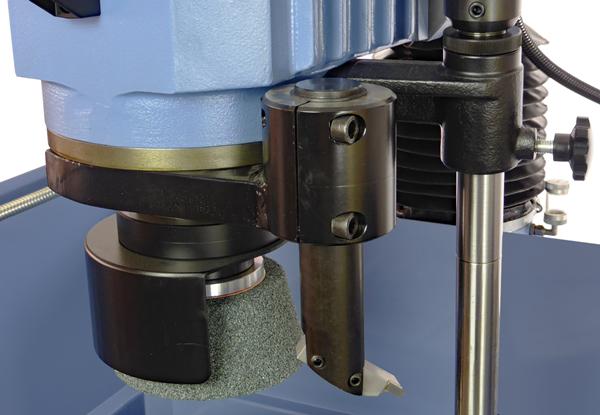

  • Grinding wheel dresser
  • Wheel dressing diamond
  • Cup grinding wheel for cast iron
  • Set of centering cones
  • Set of supporting rings
  • Dial gauge with support
  • Blocking screws
  • Lubricant for slides
  • Emulsifiable oil
  • Wrench set
  • Instruction manual



Specifications

Maximum grinding diameter:   630 mm

Rotary table diameter:   450 mm

Max distance table-wheel:   220 mm

Taper grinding wheel diameter:   150 mm

Grinding wheel speed:  2800 rpm

Rotary table speed:   5÷30 rpm

Head motor power (RTV612):   4 kW (9 kW)

Table motor power:   0,55 kW

Rapid feed head motor power:   0,18 kW

Dimensions (LxWxH):   1200x900x1600 mm

Weight:   710 Kg



Accessories and spare parts

Comec - RTV581 ΓΈ 350 mm Magnetic table

RTV581
ø 350 mm Magnetic table

Comec - RTV580 Pressure plate clamping device

RTV580
Pressure plate clamping device

Comec - RTV591 Small hole flywheel adapter M12/M16

RTV591
Small hole flywheel adapter M12/M16

Comec RTV577 - Motorized cutting assembly

RTV577
Motorized cutting assembly

Comec - RTV574 Corner cutting tool for recessed flywheels

RTV574
Corner cutting tool for recessed flywheels

Comec RTV590 - Pressure plate clamping device

RTV590
Pressure plate clamping device

Comec - RTV594 Conical sector type grinding wheel

RTV594
Conical sector type grinding wheel

Comec - MT0008 Grinding stone for cast iron

MT0008
Grinding stone for cast iron

Comec - MTA008 Grinding stone for steel

MTA008
Grinding stone for steel

Comec - PL0016 Cup grinding wheel for cast iron

PL0016
Cup grinding wheel for cast iron

Comec - PLA016 Cup grinding wheel for steel

PLA016
Cup grinding wheel for steel

Comec - UT0050 Corner cutting tool

UT0050
Corner cutting tool

PL0CBN
CBN Cup grinding wheel
