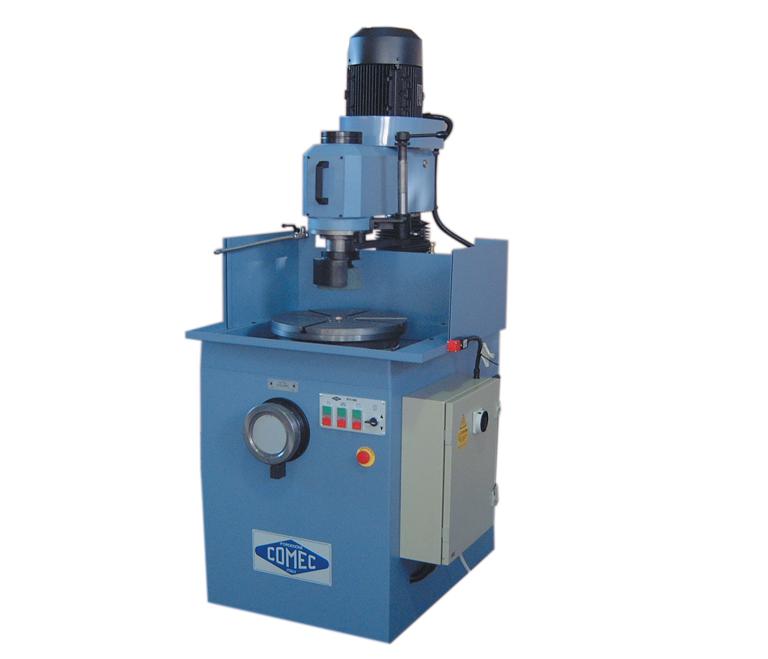

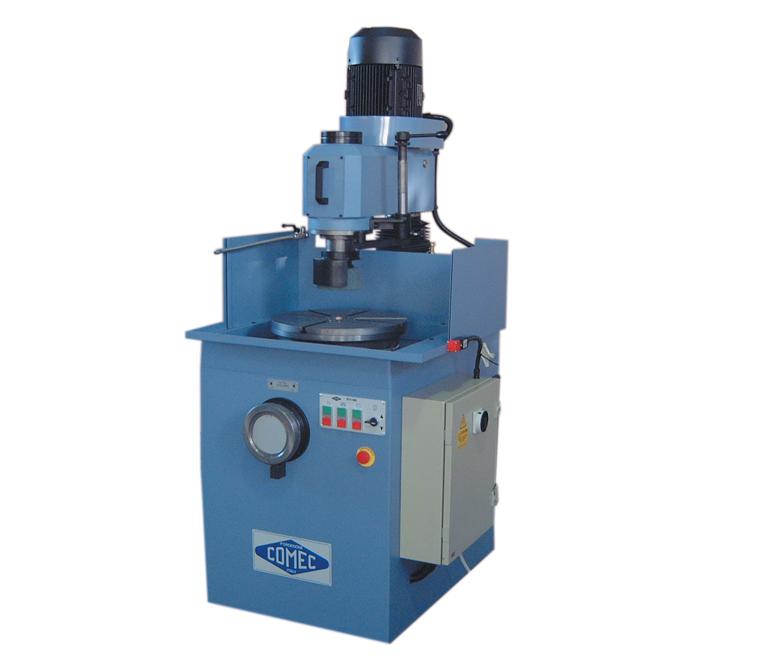

Comec RTV612 Flywheel Clutch Pressure Plate Grinder

Stock #1523New Machine; $15,640

The RTV600 grinding machine represents the most advanced solution in terms of reconditioning of flywheels, clutch friction plates and pressure plates in industrial vehicles. Thanks to its flexibility, this flywheel surface grinder is also suitable for the fine grinding of any other circular piece like discs, rings or flanges.
It differs from the RTV600 because of its 9Kw motor, which gives more power on the grinding wheel axis and widens the range of working.

Images may show the product equipped with optional accessories






Standard equipment

  • Head power feed
  • Splash and safety guard
  • Cooling plant complete with pump and settling tank
  • Grinding wheel dresser
  • Wheel dressing diamond
  • Cup grinding wheel for cast iron
  • Set of centering cones
  • Set of supporting rings
  • Dial gauge with support
  • Blocking screws
  • Lubricant for slides
  • Emulsifiable oil
  • Wrench set
  • Instruction manual



Maximum grinding diameter:   630 mm

Rotary table diameter:   450 mm

Max distance table-wheel:   220 mm

Taper grinding wheel diameter:   150 mm

Grinding wheel speed:   2800 rpm

Rotary table speed:   5÷30 rpm

Head motor power (RTV612):   4 kW (9 kW)

Table motor power:   0,55 kW

Rapid feed head motor power:   0,18 kW

Dimensions (LxWxH):   1200x900x1600 mm

Weight:   710 K
