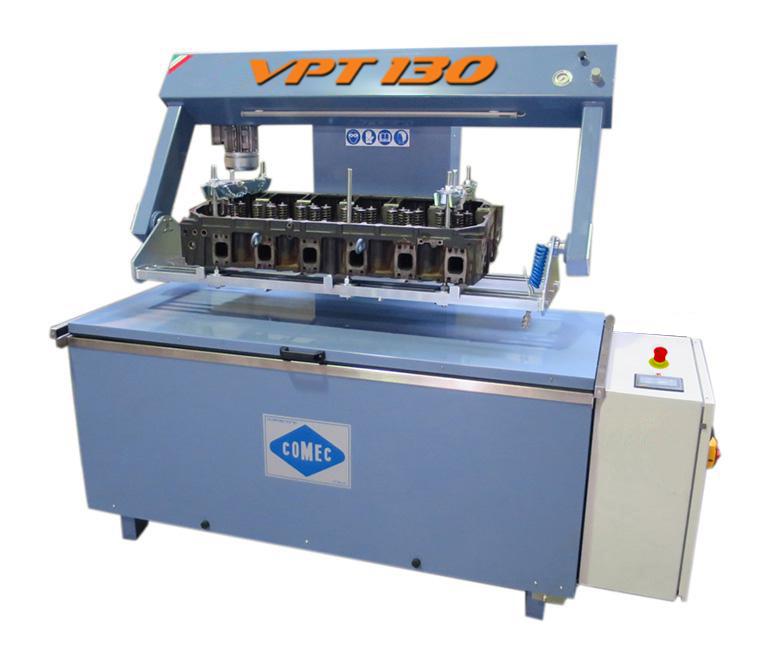

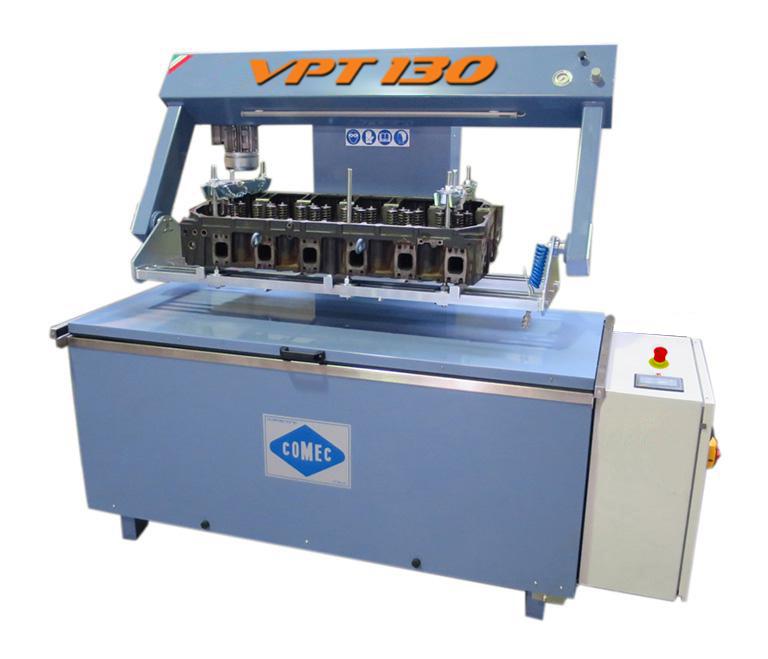

Comec VPT130 Pressure Tester for Cylinder Heads and Blocks

VPT130
Stock #1418New Machine; Call for Pricing

The VPT130 is a tester tank allowing to easily and precisely detect any failure and wear on cylinder heads and blocks through their immersion in hot water.

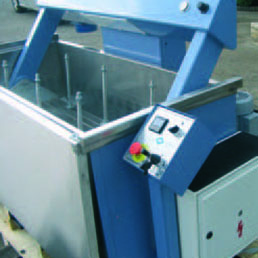

The tank, complete with its cover, is manufactured in stainless steel and perfectly insulated to avoid heat dispersion. It is filled with water that is heated by two powerful independent heating elements controlled by an automatic timer, which includes heating programmes to reduce electric consumptions.

Discover more Cylinder heads equipment
Images may show the product equipped with optional accessories



Scope:



BROCHURE



Standard equipment

Including standard equipment as follows:
Three phase version (220V/60Hz/3ph)

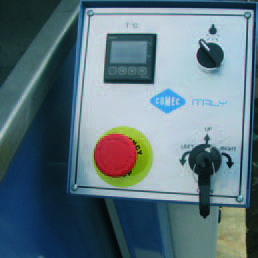

Touch screen control panel
ABT180 Cylinder heads support parallels
ABT195 Adjustable parallels for inclined cylinder heads
ABT190 Plexiplate fastening set with clamping tie rods and cross bars
ABT128 Metal side plate (Set of 6 pcs.)
ABT525 500x250x30 mm Plexiglas plate
ABT825 800x250x30 mm Plexiglas plate
ABT558 500x500x8 mm sheet of caoutchouc
ABT553 500x500x3 mm sheet of gasketing rubber
ABT580 1/4” M quick coupling
ABT581 1/4” F quick coupling
Instruction manual





Specifications

Maximum cylinder head capacity 47.2"x 13.78"x 11.8" /1200x350x300 mm
Tank capacity 490 l
Maximum cradle travel 21.65" / 550 mm
Heating elements 2 x 4.5 kW
Adjustable work temperature 30 - 90° C
Cradle rotation speed 4 rpm
Cradle up-down speed 2.36" sec/ 60 mm/sec
Hydraulic station motor 0,75 kW
Cradle gearmotor 0,25 kW
Dimensions (LxWxH) 70.9x x"41.3"x 66.9" / 1800x1050x1700 mm
Weight 882 lbs. /400 Kg
