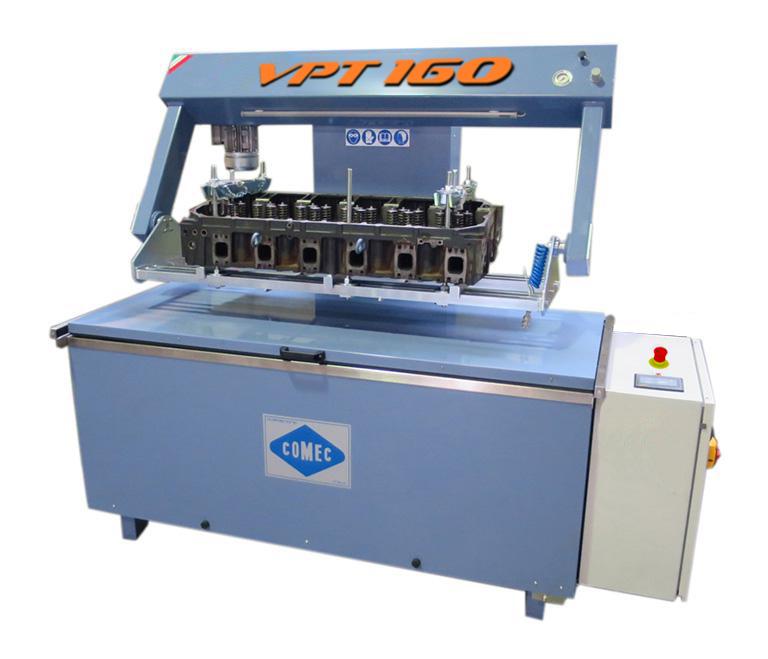

Comec VPT160 Pressure Tester for Cylinder Heads and Blocks
VPT160 is a hydraulic pressure tester that allows, with precision and ease, detection of possible cracks and leakage of cylinder heads and blocks by immersion in hot water.
The tank, complete with its cover, is manufactured of stainless steel and perfectly insulated to avoid heating dispersion. The water is heated by two powerful heating elements that operate independently and are controlled by an automatic timer which includes heating programs to optimize and reduce the electric usage.
This machine can contain heads and blocks up to 1340 mm of length.
The head is clamped on a cradle actuated by an hydraulic power unit that can move particularly heavy heads and blocks. This cradle also revolves of 360°, allowing the visibility of the whole head, even if when totally submerged, for an easy and prompt detection of leakage.
Contact us for more information, watch the video and download the brochure.
Discover more Cylinder heads equipment
Images may show the product equipped with optional accessories
Scope:
Standard equipment
Including standard equipment as follows: | |
Three phase version (220V/60Hz/3ph) | |
Touch screen control panel | |
ABT181 Cylinder heads support parallels | |
ABT197 Adjustable parallels for inclined cylinder heads | |
ABT191 Plexiplate fastening set with clamping tie rods and cross bars | |
ABT128 Metal side plate (Set of 6 pcs.) | |
ABT525 500x250x30 mm Plexiglas plate | |
ABT825 800x250x30 mm Plexiglas plate | |
ABT558 500x500x8 mm sheet of caoutchouc | |
ABT553 500x500x3 mm sheet of gasketing rubber | |
ABT580 1/4” M quick coupling | |
ABT581 1/4” F quick coupling | |
Instruction manual |
Specifications
Maximum cylinder head capacity | 53.15"x 16.14" x16.14 /1350x410x410 mm |
Tank capacity | 590 l |
Maximum cradle travel | 21.65" / 550 mm |
Heating elements | 2 x 4.5 kW |
Adjustable work temperature | 30 - 90° C |
Cradle rotation speed | 4 rpm |
Cradle up-down speed | 2.36"/sec / 60 mm/sec |
Hydraulic station motor | 0,75 kW |
Cradle gearmotor | 0,25 kW |
Dimensions (LxWxH) | 76.8" x 43.3" x 70.86 /1950x1100x1800 mm |
Weight | 1,345 lbs. /610 Kg |
