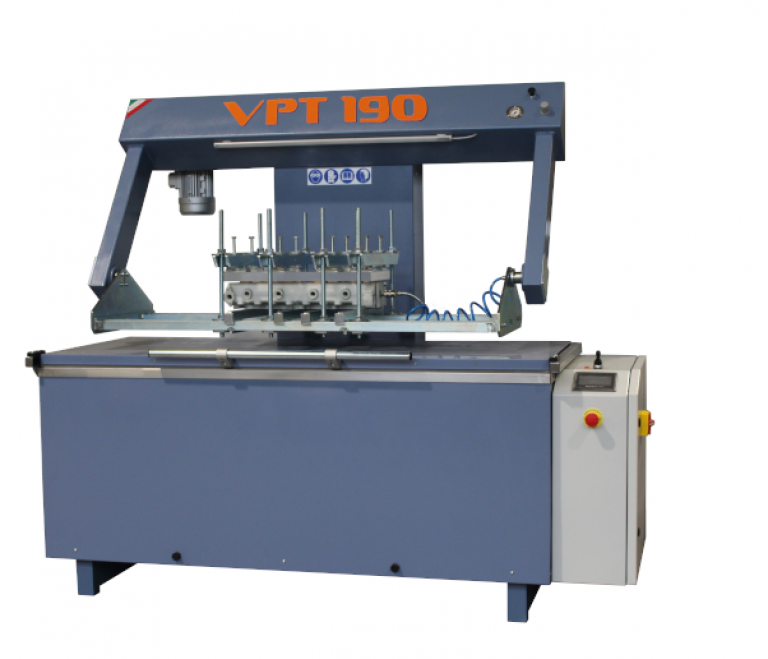

Comec VPT190 Pressure Tester for Cylinder Heads and Blocks

VPT190
Stock #1618New Machine; Call for Pricing

The VPT190 is a tester tank allowing to easily and precisely detect any failure and wear on cylinder heads and blocks through their immersion in hot water.
The tank, complete with its cover, is manufactured in stainless steel and perfectly insulated to avoid heat dispersion. It is filled with water that is heated by two powerful independent heating elements controlled by an automatic timer, which includes heating programmes to reduce electric consumptions. This brand new model enables the operator to work heads of up to 53"/ 1350mm of width.

Discover more Cylinder heads equipment
Images may show the product equipped with optional accessories



Scope:



BROCHURE



Standard equipment

Including standard equipment as follows:
Three phase version (220V/60Hz/3ph)
Touch screen control panel
ABT182 Cylinder heads support parallels
ABT199 Adjustable parallels for inclined cylinder heads
ABT193 Plexiplate fastening set with clamping tie rods and cross bars
ABT128 Metal side plate (Set of 6 pcs.)
ABT525 500x250x30 mm Plexiglas plate
ABT825 800x250x30 mm Plexiglas plate
ABT558 500x500x8 mm sheet of caoutchouc
ABT553 500x500x3 mm sheet of gasketing rubber
ABT580 1/4” M quick coupling
ABT581 1/4” F quick coupling
Instruction manual



Specifications

Maximum cylinder head capacity:  53"x 18"x  16" /1350x460x410 mm

Tank capacity:  710 l

Maximum cradle travel:  21.65" /550 mm

Heating elements:  2 x 4,5 kW

Adjustable work temperature:  30 - 90° C

Cradle rotation speed:  4 rpm

Cradle up-down speed:  2.36"/sec / 60 mm/sec

Hydraulic station motor:  0,75 kW

Cradle gearmotor:  0,25 kW

Dimensions (LxWxH):  76.77"x 43.3" x 68.9" /1950x1100x1750 mm

Weight:  1345 lbs. / 610 Kg

Power Requirements: 220 Volt/ 3 Phase/ Full Load AMPS: 45,5A

Shipping information: 85.8" x 49.6" x 55.1"

Shipping weight: 1,410 lbs. /639 kg
