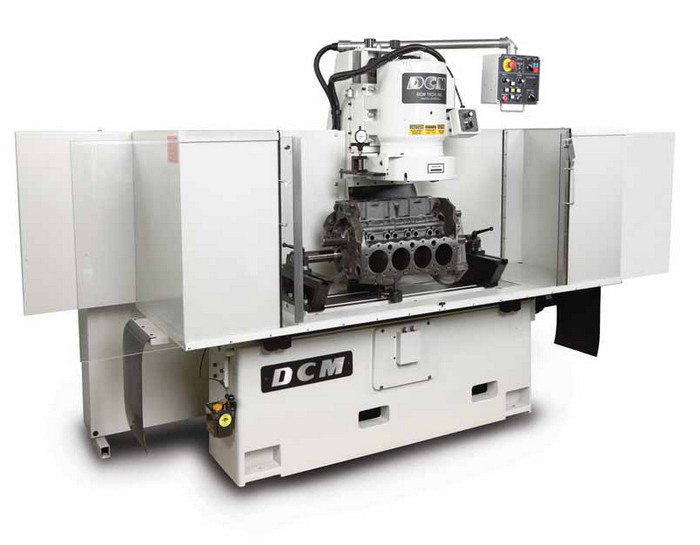

DCM HB 3810 Head and Block Resurfacer

HB 3810 Head and Block Resurfacer
Stock #917New Machine; Call for Pricing

SPECIFICATIONS

• Table travel 46–1/2”
• Table traverse speed variable 0-100” per minute
• Max. Ht. table to CBN tool (mill only mach.) 25–1/4”
• Max. work piece length 38” at maximum mill width
• Max. work piece width (table at center) 14"
• Physical dimensions (table at center) 90”L x 42”W x 74”H
• Min. required floor space (operator not included) 42”x140”
• Spindle motor 7.5 hp 3 phase
• Motor RPM standard, 1200 RPM (optional, 500-1800 variable speed)
• Standard machine power 230v, 3 phase
• Machine net wt. 3050 lbs.
• Machine shipping weight 3300 lbs.
