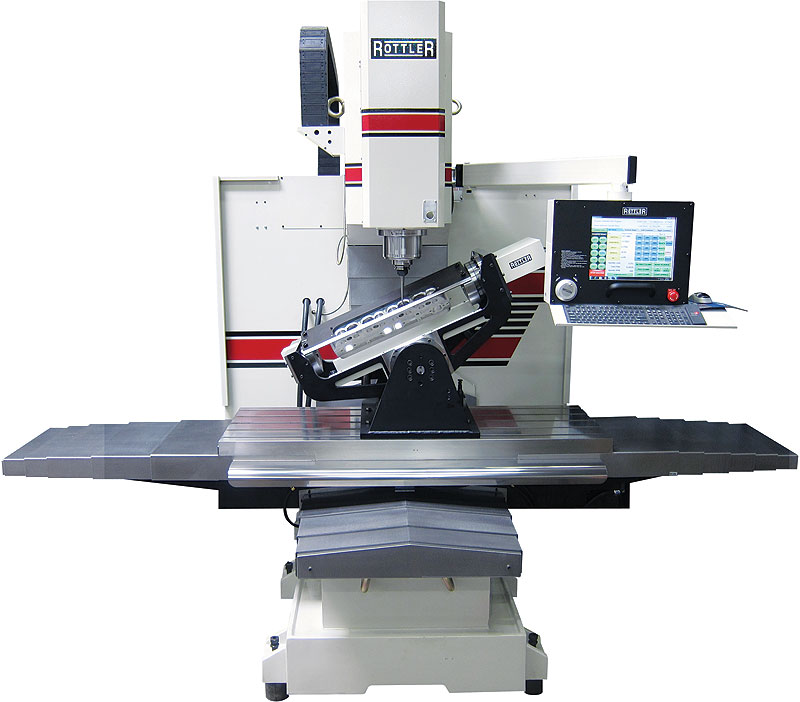

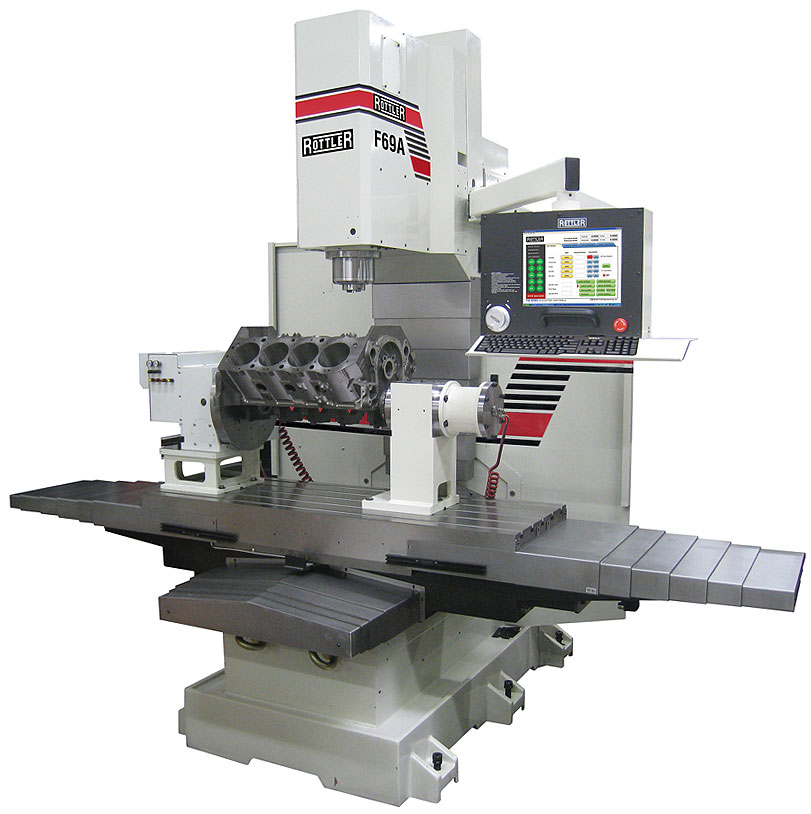

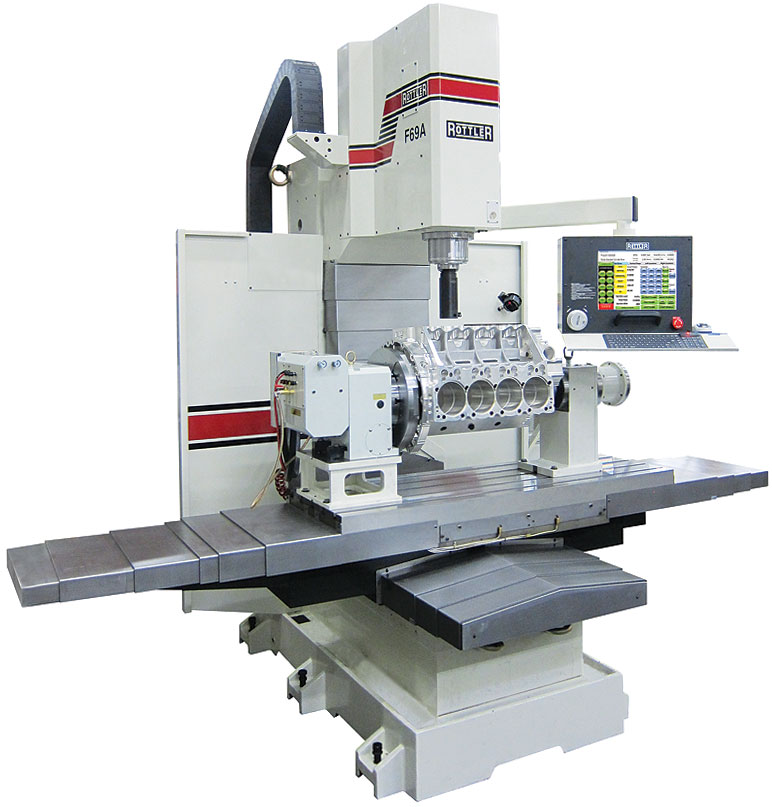

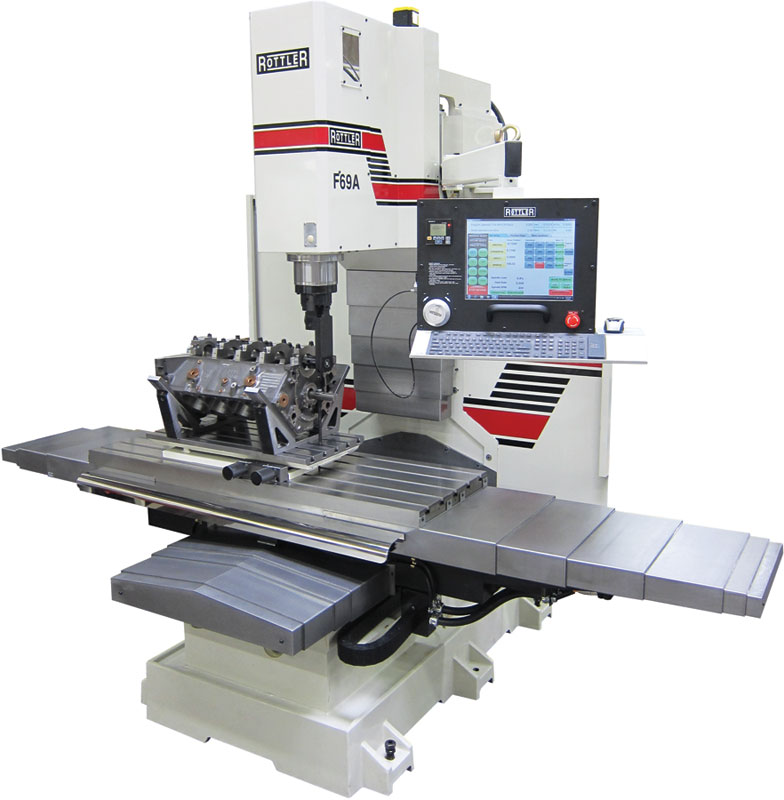

Rottler F69A Programmable Automatic Machining Center
The F69A is a truly amazing machining center. Blueprint bore, line bore, deck blocks, surface heads, true lifter bores, automatic milling to size — all in “set it and forget it” fully automatic operation. Better yet, they’re all set in operations tabs on the touch screen that any shop hand can understand.
You also have the power to write your own programs without any CNC G code experience. The control system, available exclusively from Rottler, allows the operator to easily program machining functions without becoming a computer expert.
The F69A interface offers windows with easy read screens that don’t require G code for fundamental machining operations. For the more advanced operators/programmers, G code files can also be uploaded and run in the controller.
The system also comes equipped with Rottler PATH Powered by 4C for easy CAD/CAM part design and CNC tool path creation.
- Block Surfacing
- Blue Print Boring
- Boring & Sleeving
- Circular Interpolation
- Connecting Rod Boring

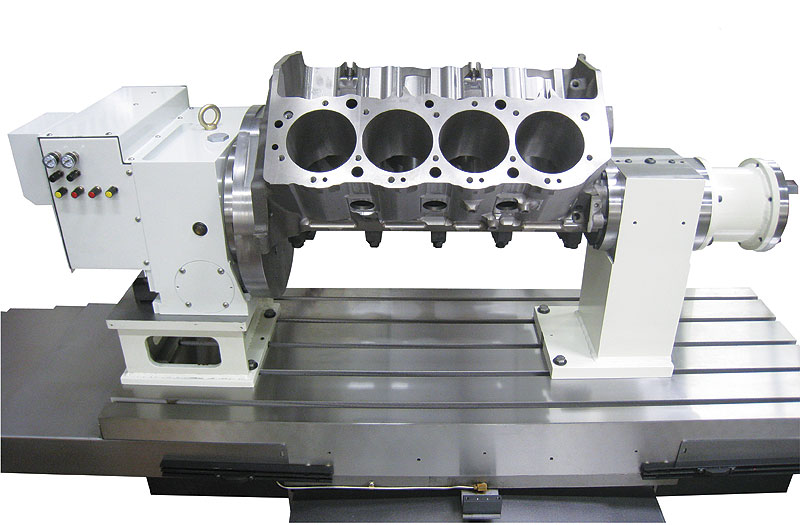

- Cylinder Boring

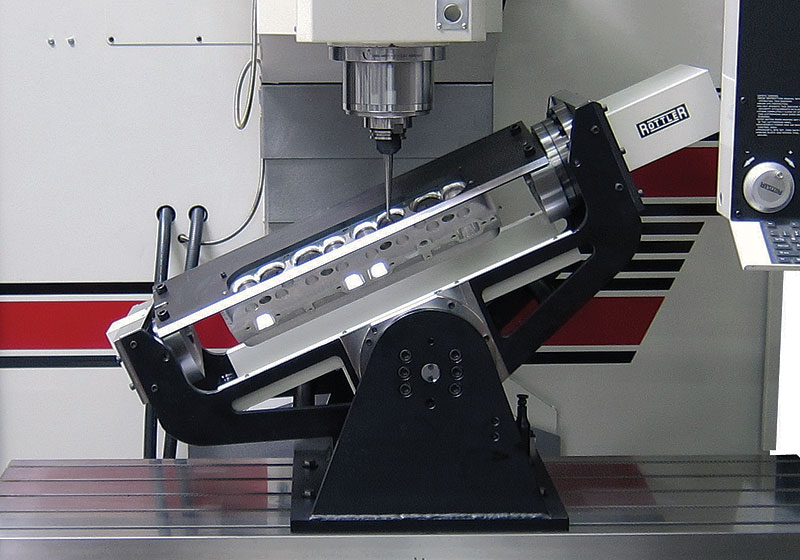

- Cylinder Head Resurfacing
- Lifter Boring
- Line Boring
- Multi Purpose CNC (Custom Parts)
- Thrust Cutting
F69A Features
Windows Touch Screen Operating System
Rottler uses Microsoft Windows touch screen technology on a 19″ touch panel. Windows software has many advantages including a common user interface known worldwide..
Instant Live Online Support
Rottler offers cutting edge internet support direct from your machine to the factory. Skype is installed for internet support. This feature gives you instant, direct contact with Rottler right on the machine without even making a phone call.
Hard Chrome Spindle
Super hard finish resists wear for years of operation.
Hardened Box Way Column
Ensures exceptional rigidity for accurate machining of parts and long life.
Cat 40 Taper
Industry standard for worldwide versatility.
T-Slot Table
Allows operator to clamp or fixture any job quickly and easily.
AC Servo Motors
Offer maximum torque and performance throughout the RPM range for precises accuracy and increased productivity.
Power Drawbar
Offers fingertip changing of cutting tools for fast machining of blocks, heads or parts.
Ball Screws
Large diameter 40mm (1.58″) precision ground Direct Drive Ball Screws for rapid feed rates, accurate positioning and repeatability.
Turcite Coated Box Ways
Reduces friction or smooth movement, long life and accuracy.
Vertical Box Ways
Precision ground, hardened box way slideways are 28″ (700mm) wide for increased rigidity and years of heavy duty high production machining.

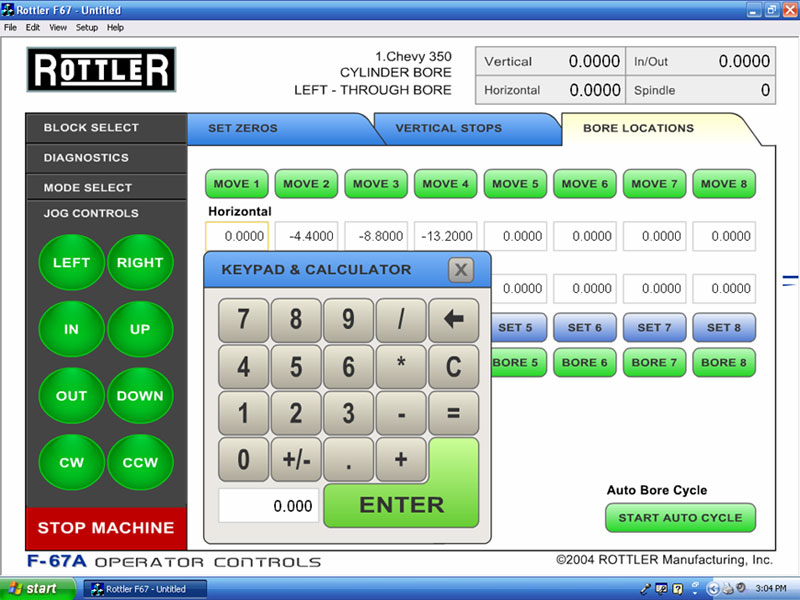

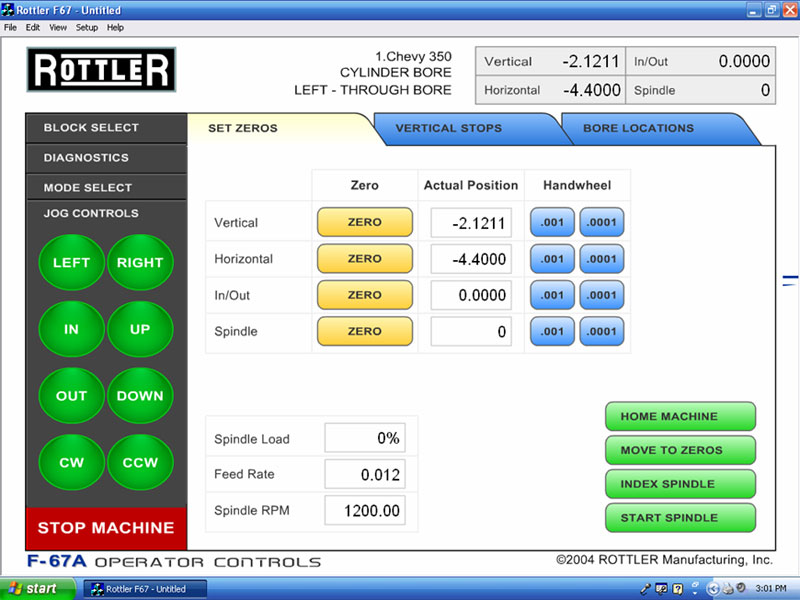

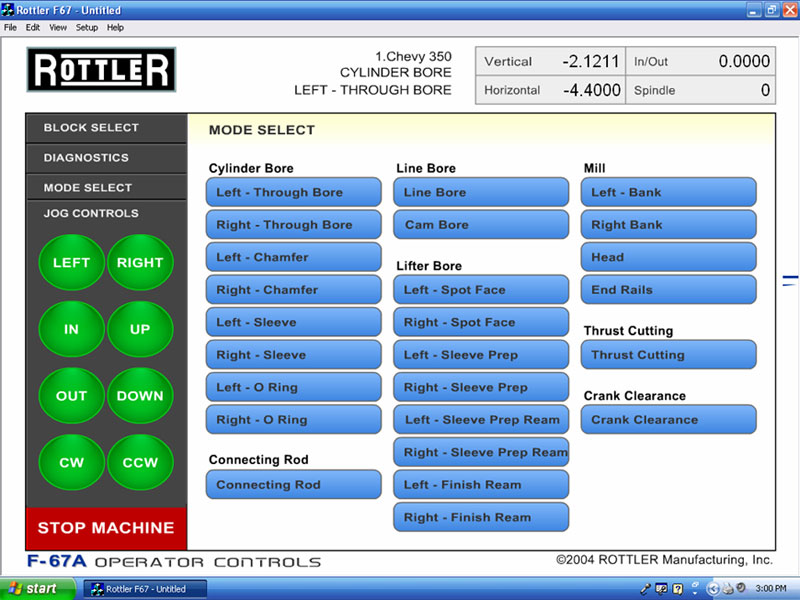

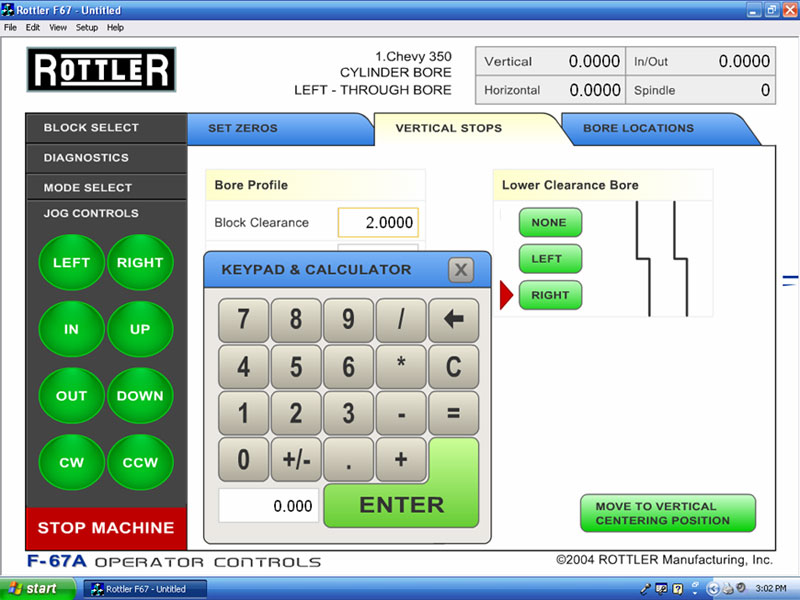

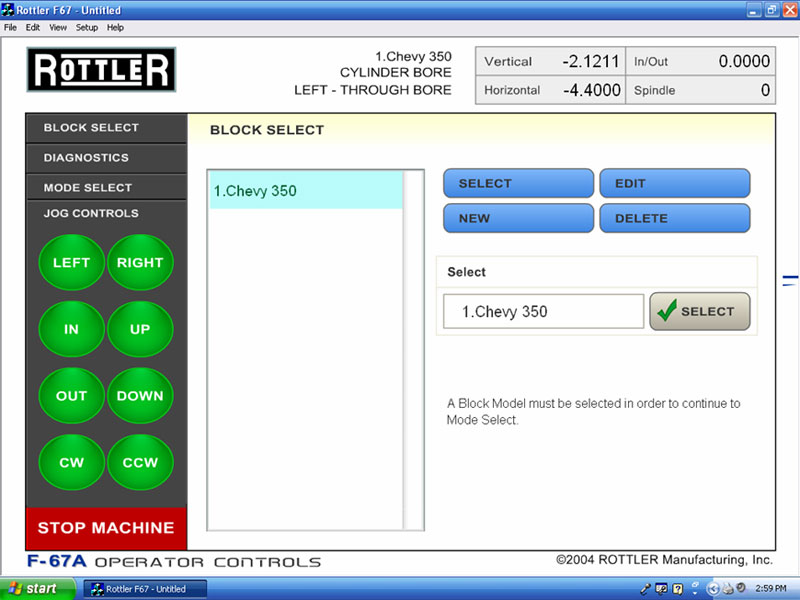

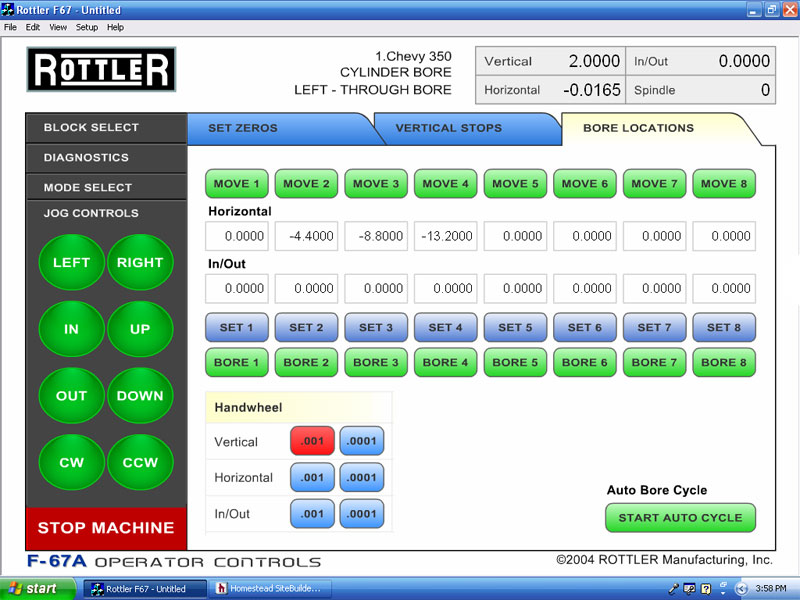

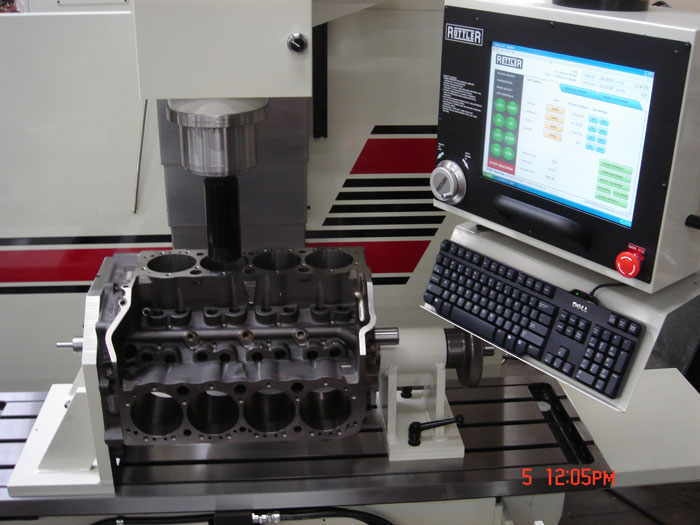

Touch Screen Controls
For fast, easy programming of machine.
Eye Level Control Pendant
For easy viewing and less floor cutter.
Manual Handwheel
Offers operator infinite control of machine movement in all axis for quick and easy setup.
New Motor Drive System
Offers you increased dependability and ease of service.
Automatic Lubrication System
For years of trouble free life and reduced wear.
Additional Materials
F69A Specifications
| Machine Specifications | American | Metric |
|---|---|---|
| Control | Automatic | Automatic |
| Touch Screen | 15″ | 381mm |
| Machine Height | 114″ | 2896mm |
| Table – Size | 59″ x 20″ | 1500 x 508mm |
| Table – T Slots | 5 | 5 |
| Travel – Horizontal (X Axis) | 40.5″ | 1028.7mm |
| Travel – In/Out (Y Axis) | 20.5″ | 520.7mm |
| Travel – Vertical (Z Axis) | 30.5″ | 744.7mm |
| Travel – Spindle Nose to Table | 10″ | 254mm |
| Travel – Spindle Center to Column | 20.9″ | 530mm |
| Spindle – Taper | CAT 40 | CAT 40 |
| Spindle – Diameter | 5.5″ | 140mm |
| Spindle – Rotation Speed | 0 to 4000 RPM | 0 to 4000 RPM |
| Spindle – Motor | 6 HP | 4.48 Kw |
| Motors – Type | AC Servo Brushless Motors and Axis Motors | AC Servo Brushless Motors and Axis Motors |
| Motors – Axis | 69in-lb | 7.8Nm |
| Cylinder Bore Range (with Optional Cutterheads) | 2″ – 5″ | 50.8 – 127mm |
| Line Bore Range (with Optional Cutterheads) | 1.9″ – 5.6″ | 48.2 – 142.2mm |
| Performance – Rapid Travel (X, Y, Z) | 400 I/min | 10160 mm/min |
| Performance – Feed Rate | .001″-.060″ per rev. | .02-1.5mm per rev. |
| Performance – Repeatability | /- 0.0002″ | / – .005mm |
| Dimensions – Floor Space Requirements | 90D x 123W” | 2286D x 3353Wmm |
| Dimensions – Shipping | 90D x 132W x 106″ H | 2286D x 2210W x 2896mm H |
| Machine Weight | 9000 lbs | 4091 kg |
| Electrical Requirements | 208-240V, 30A, 50/60Hz, 3/1Ph | 208-240V, 30A, 50/60Hz, 3/1Ph |
| Air Requirements | cfm @ 90 psi | l/min @ 6 bar |
| Paint Color Code | RAL9002 (Grey White) | RAL9002 (Grey White) |
