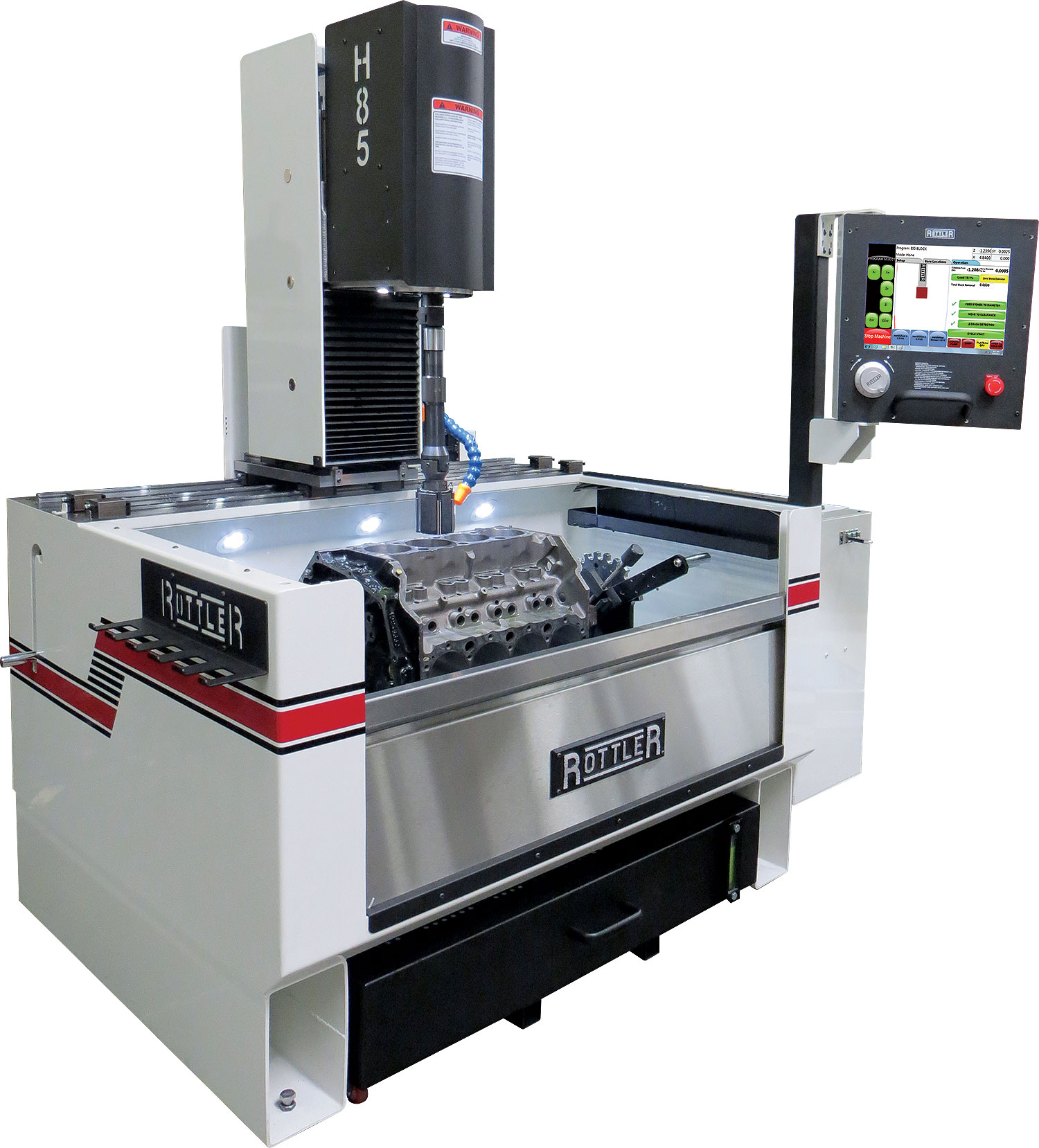

Rottler H85A CNC Automatic Vertical Honing Machine

Rottler H85A CNC Automatic Vertical Honing Machine
Stock #85New Machine; Call for Pricing

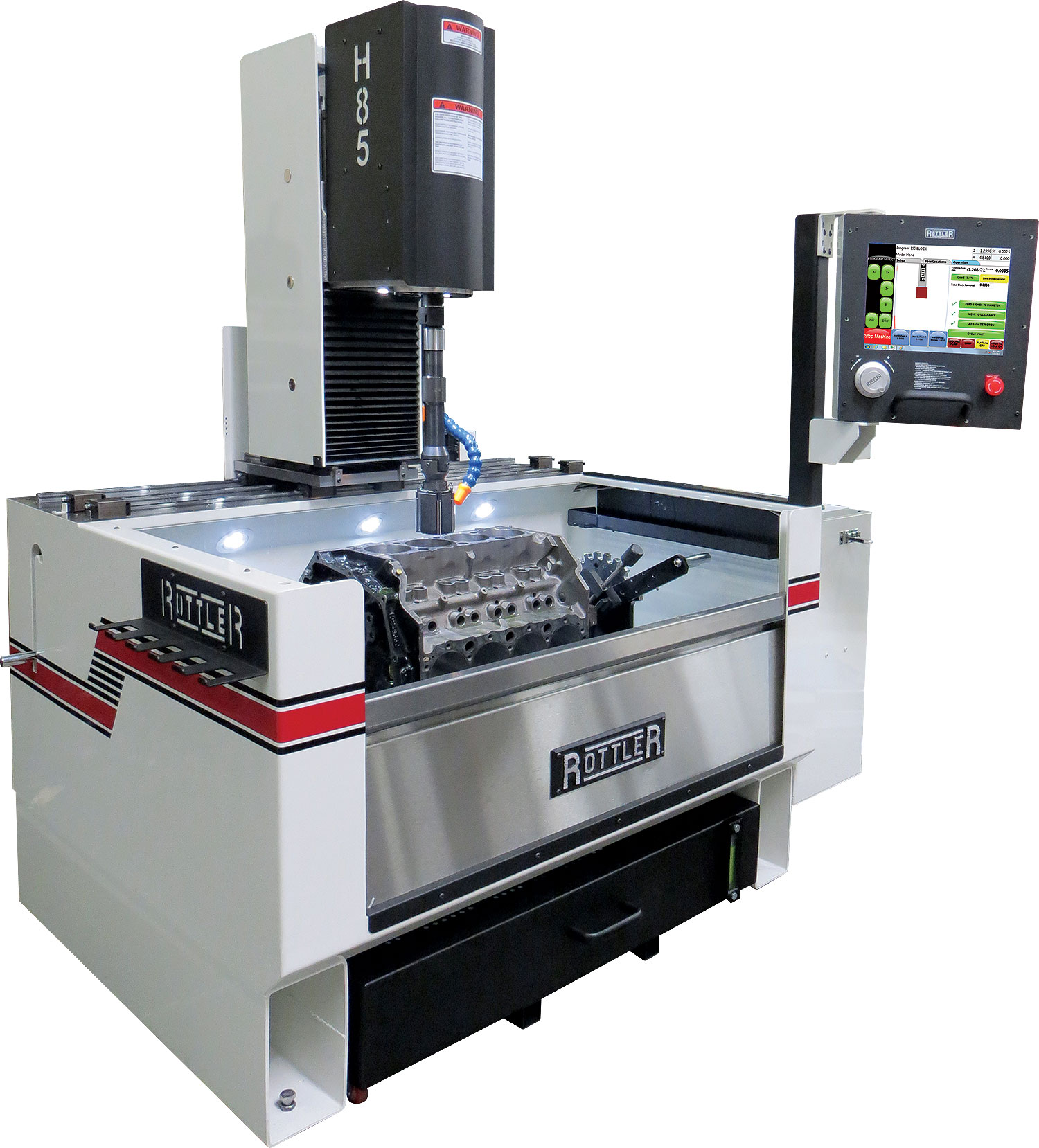

Rottler H85A CNC Automatic Vertical Honing Machine

Maximum length of cylinder 17"

Stroke length 19"



Machine Operations

  •  Cylinder Honing
  •  Liner Honing



PDF Resources

 H85A Brochure
 The NEW H80A Ad
 H85A Optional Equipment Parts Manual



Overview

Rottler H85A CNC Automatic Vertical Honing Machine offers true, constant and accurate crosshatch angle the entire length of the bore with machine feeding stones to specified load during honing process and withdrawing stones before stopping. Rottler understands surface finish is critical and it can be hard to replicate consistently block after block. The Rottler H85A accomplishes this with extreme reliability and can pay for itself in less than 5 years! *


  • Rottler Plateau Mode loads to proper stone pressure before starting rotation and counts down number of strokes.
  • Diamonds and CBN stones save money with built-in Crash Protection that prevents tearing up hone heads, stone holders and diamond/CBN abrasives.
  • Modern CNC Windows based software with online capabilities.
  • Save time maintaining coolant with superior filtration and roll out coolant tank.


* Pay back the cost of the machine in less than 5 years compared to traditional machines using stones and oil. Calculated considering labor saving (using Rottler CNC) and consumable savings (using diamond stones and water based coolant).



Features

Automatic Lower Crash Protection SystemMany Engine Blocks have interference in the lower area of the bores and can damage honing stones and holders. Everytime the H85A starts honing a cylinder, the machine will check bores for interference avoiding potential damage to honingstones and holders. Variances in lower bores are common. Rottler H85A Control senses lower bore interference prior torotation and stroking stroking motion starting at full power, eliminating any stone or holder damage.

Standard Equipment



  • Automatic Lower Crash Protection System – every time cycle start is activated, the machine will check that the stones will not interfere with lower bore before starting rotation and stroking preventing stone and stone holder damage.
  • Spindle Taper with Quick Change System - change hone heads in seconds without any wrenches
  • Automatic Honing Stone retract at End of Cycle – the machine will automatically retract the stones during last stroke so that the stones do not leave any scratches or marks in the bore.
  • Automatic Cross Hatch Angle System – the machine will automatically adjust parameters to programmed cross hatch angle and finish the bore to programmed angle.
  • Automatic Roughing and Finishing Load Sensing System - machine short strokes or dwells anywhere it senses a tight area.
  • Electronic Hand Wheel for lowering hone head into each bore
  • Automatic Stone Feed-out System - once hone head is positioned in the bore, the machine automatically expands stones and rotates slowly before starting hone cycle
  • Automatic Plateau Brush Finish Program - the machine automatically expands plateau brushes to programmed load and counts down number of plateau strokes, then withdraws the brushes and retracts to the clearance position.
  • Control and programming through 15" (400mm) CNC Touch Screen Control
  • Precision Display in .0001" (.002mm) resolution
  • Industrial PC with Windows Operating System
  • USB Flash Drive and port for file transfer
  • Remote training, service and support via internet connection to machine (required)
  • Operation in either American or Metric systems
  • Horizontal Movement (X Axis) - Left and Right Direction - 38" (965mm) - movement is manually on linear slideways
  • Horizontal Movement (Y Axis) - Front and Back Direction - 3" (75mm) - movement is manually on linear slideways
  • Vertical Movement (Z Axis) - Up and Down - 19" (483mm)
  • Stroking System - CNC SERVO Controlled High Pitch Ball Screw System
  • Infinitely Variable Stroke Speed Control - Variable from 0 to 1500IPM (38m/min)
  • Rapid Stroke System Acceleration - 250in/sec (6.35m/sec)
  • Spindle Rotation System - CNC SERVO Controlled High Torque Spindle Rotation System - 44 ft.lbs (60NM)
  • Infinitely Variable Spindle RPM Control - Variable from 0 to 400RPM
  • (2) Stone Trays for up to 6 stone holder sets with built-in Dial Bore Gage Holder
  • Hone Head Storage Rack for up to 5 Hone Heads
  • Coolant System - Large Capacity coolant tank 70 Gal (265 Liter) - tank is located under the machine on wheels and is removable for servicing from front or rear of machine
  • Magnetic system for primary filtering inside coolant tank. Magnets are removable for easy tank cleaning once tank is removed from under the machine
  • Replacable Cartridge Canister Filter System. Dual Gradient 50-5 Micron replacement filter cartridge keeps coolant and cabinet clean. Filter Cartridge 514-2-42C
  • Machine Cabinet finished in Baked Enamel Power Coated for easy cleaning and appearance
  • Operation, Programming and Spare Parts Manual - Digital
  • Paint Color Code: RAL9002 (Grey White)
  • Electrical requirements: 208/240V, 30A, 50/60Hz, 3Ph
  • Shipping weight 2300 lbs. (1,043 kg)
  • Shipping dimensions: 60 X 72 X 93" H (1524 X 2210 X 2337mm)
  • Prices (US Funds) FOB - EXW, Kent, Washington, USA



Control

Rottler Software is designed with Simplicity in mind. Conversational software allows operators to quickly and easily learn and create their own programs. It takes only a few minutes to create a new program for a new block then it is saved for future recall and use.

Specifications



H85A Machine Specifications American Metric
Control CNC Touch Screen
Diameter Range 1.9" - 7.38" 48.16 - 187mm
Workpiece Capacity - Length 55" 1400mm
Torque at Hone Head 585in.lbs 265NM
Stroker Motor Torque 88.5in.lbs 40NM
Stroke System Acceleration 200in/sec2 5m/sec2
Spindle - Motor Torque 114in.lbs 53NM
Spindle Stroke Speed 0-1500ipm 0-38m/min
Stroker Motor Power 3.3HP 2.47KW
Travel - Horizontal (X Axis) 38" 965mm
Spindle - Rotation Speed 1 to 400 RPM
Spindle - Motor 3.7 HP 2.77 Kw
Coolant Capacity 70 Gallons 265 Liters
Maximum Length of Cylinder 17" 432mm
Stroke Length 19" 483mm
Dimensions - Shipping 73D x 93W x 93" H 1854D x 2362W x 2362mm H
Machine Weight 3500 lbs 1588 kg
Electrical Requirements 208-240V, 25A, 50/60Hz, 3/1Ph
Paint Color Code RAL9002 (Grey White)
