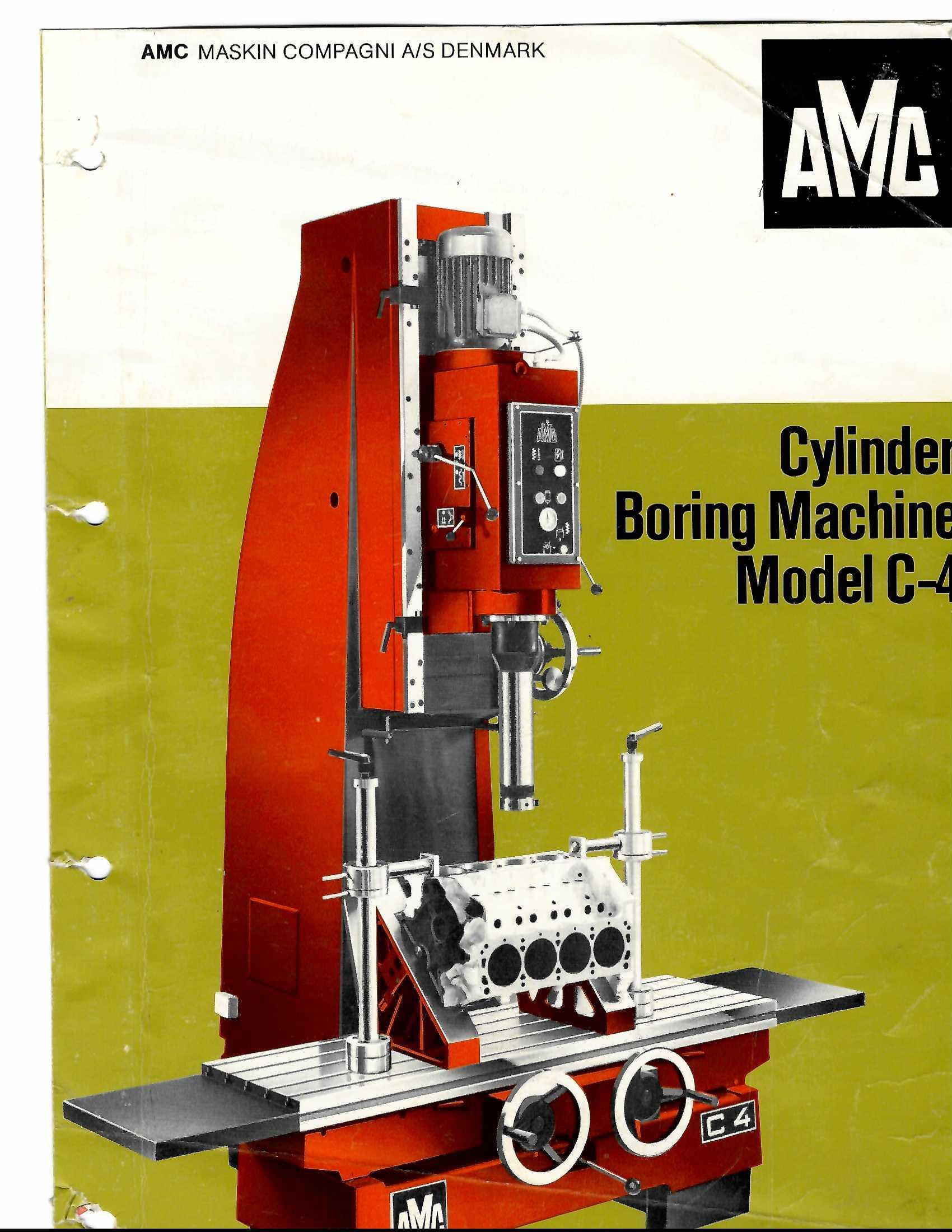

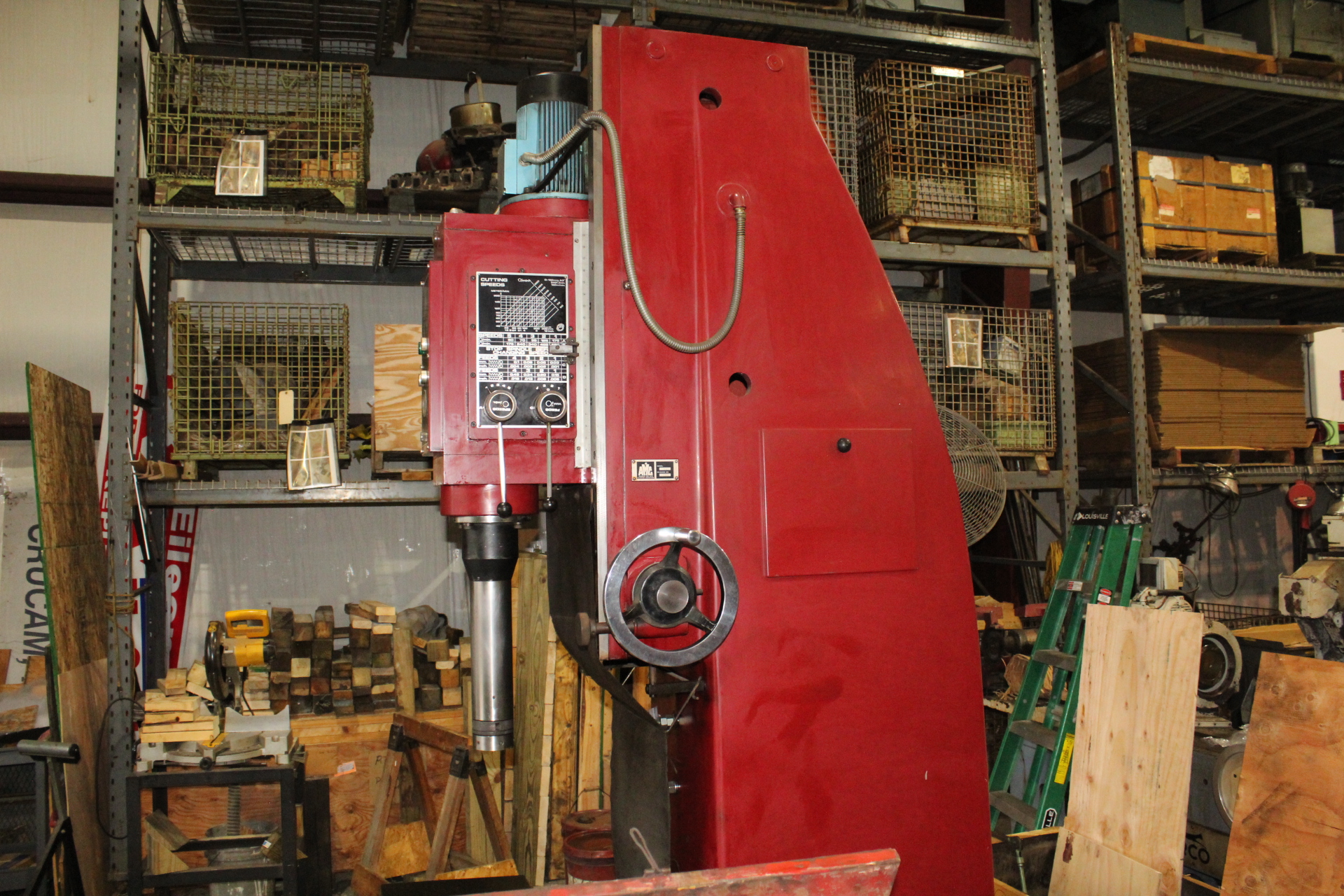

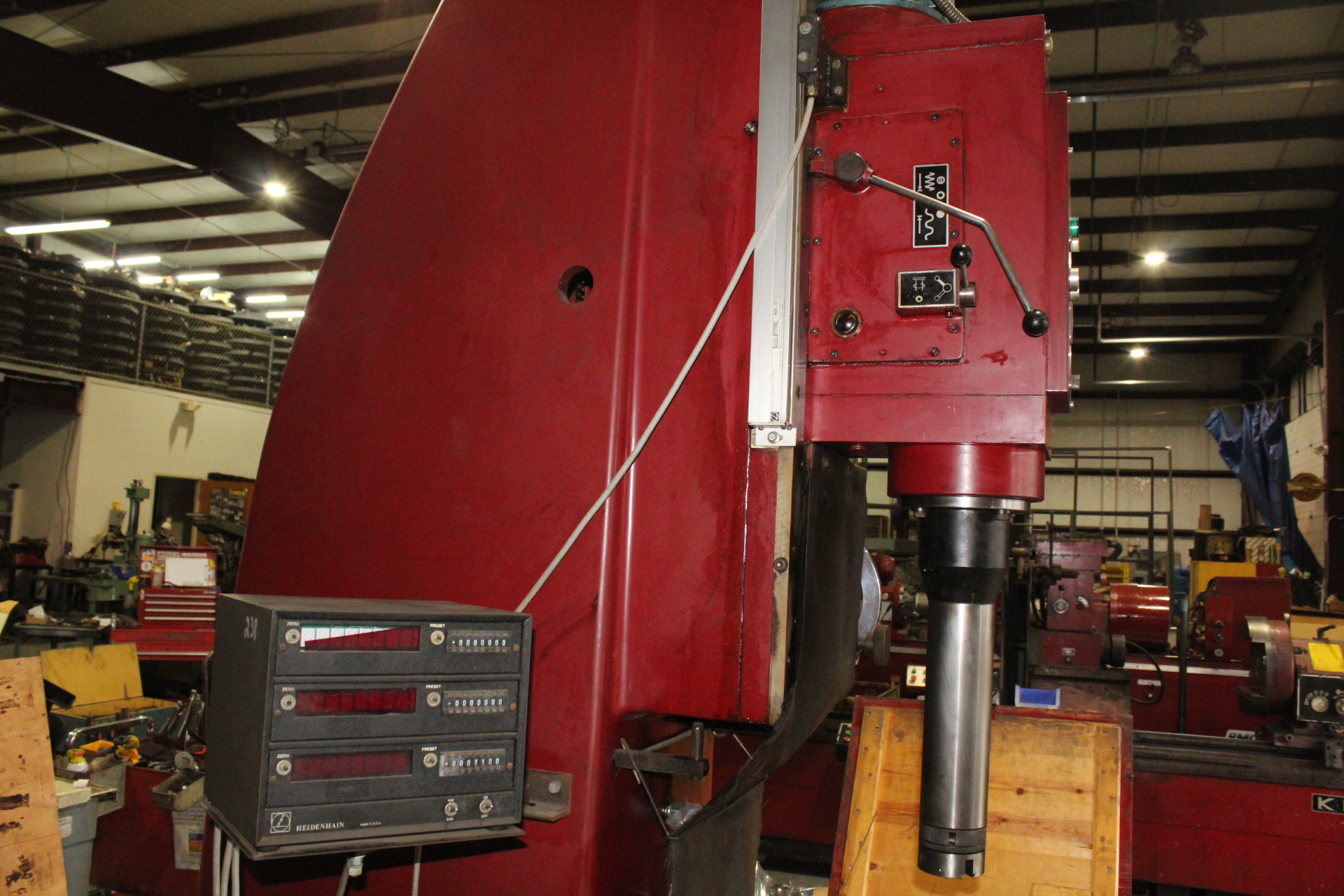

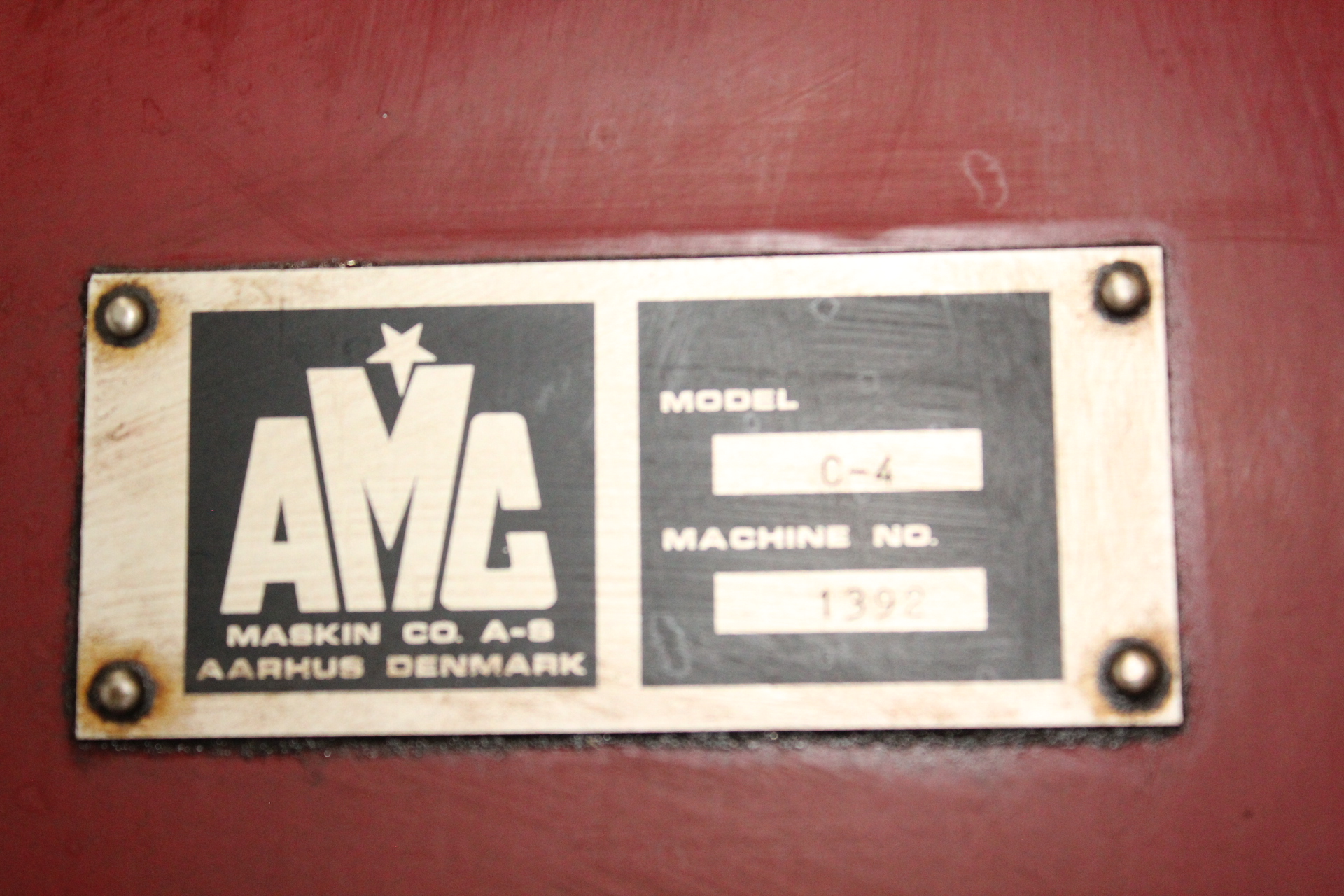

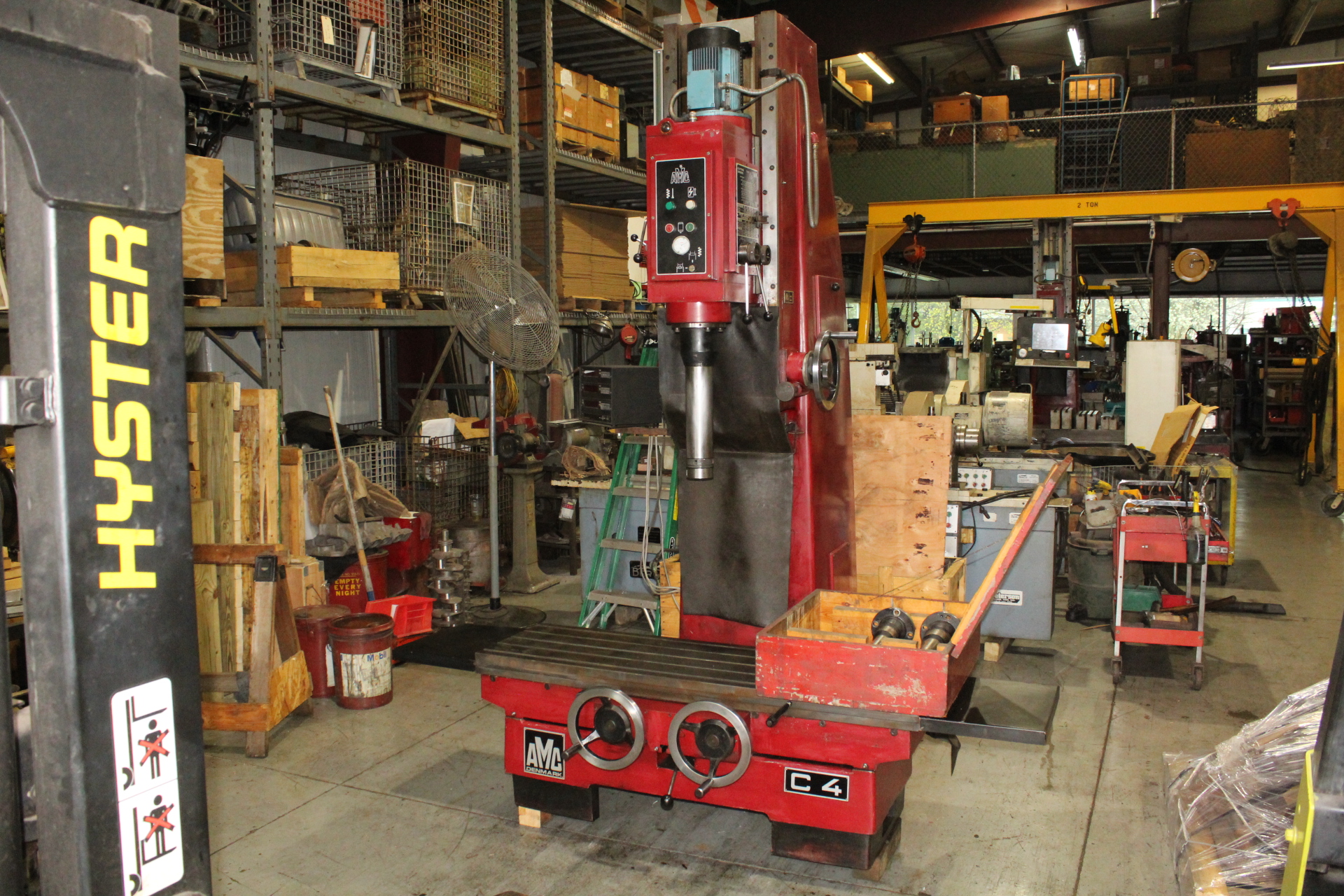

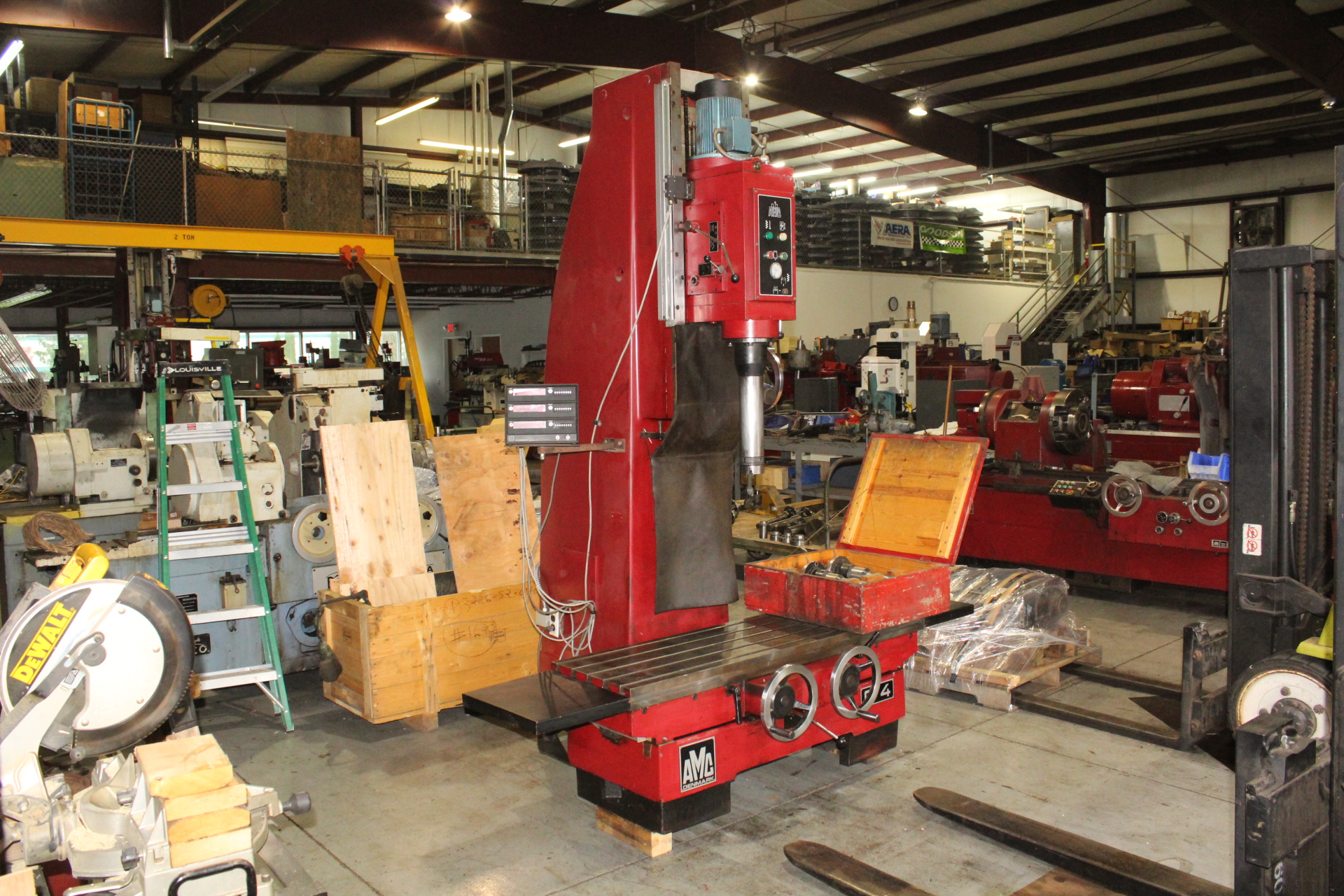

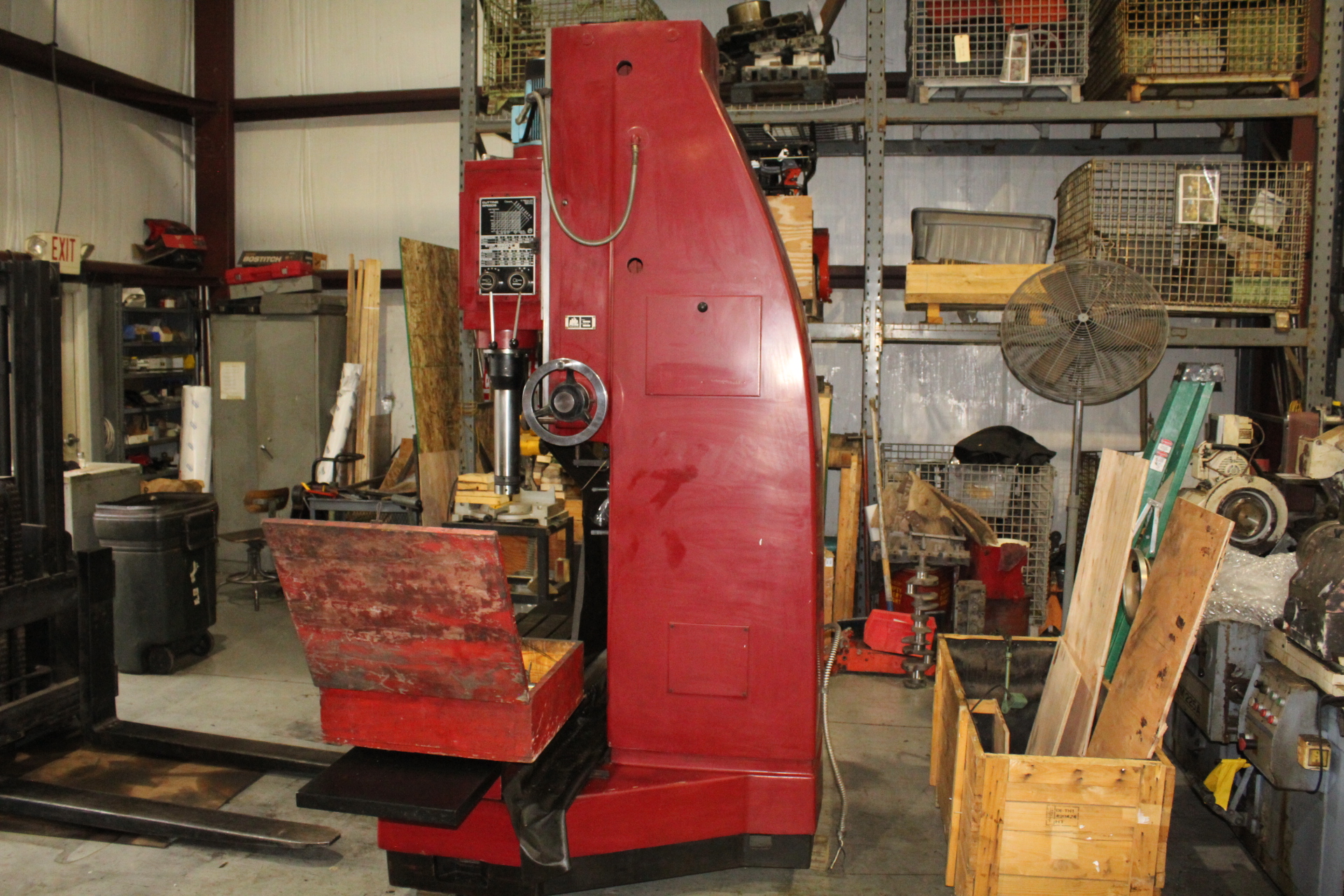

Amc Cylinder Boring Machine Model C-4

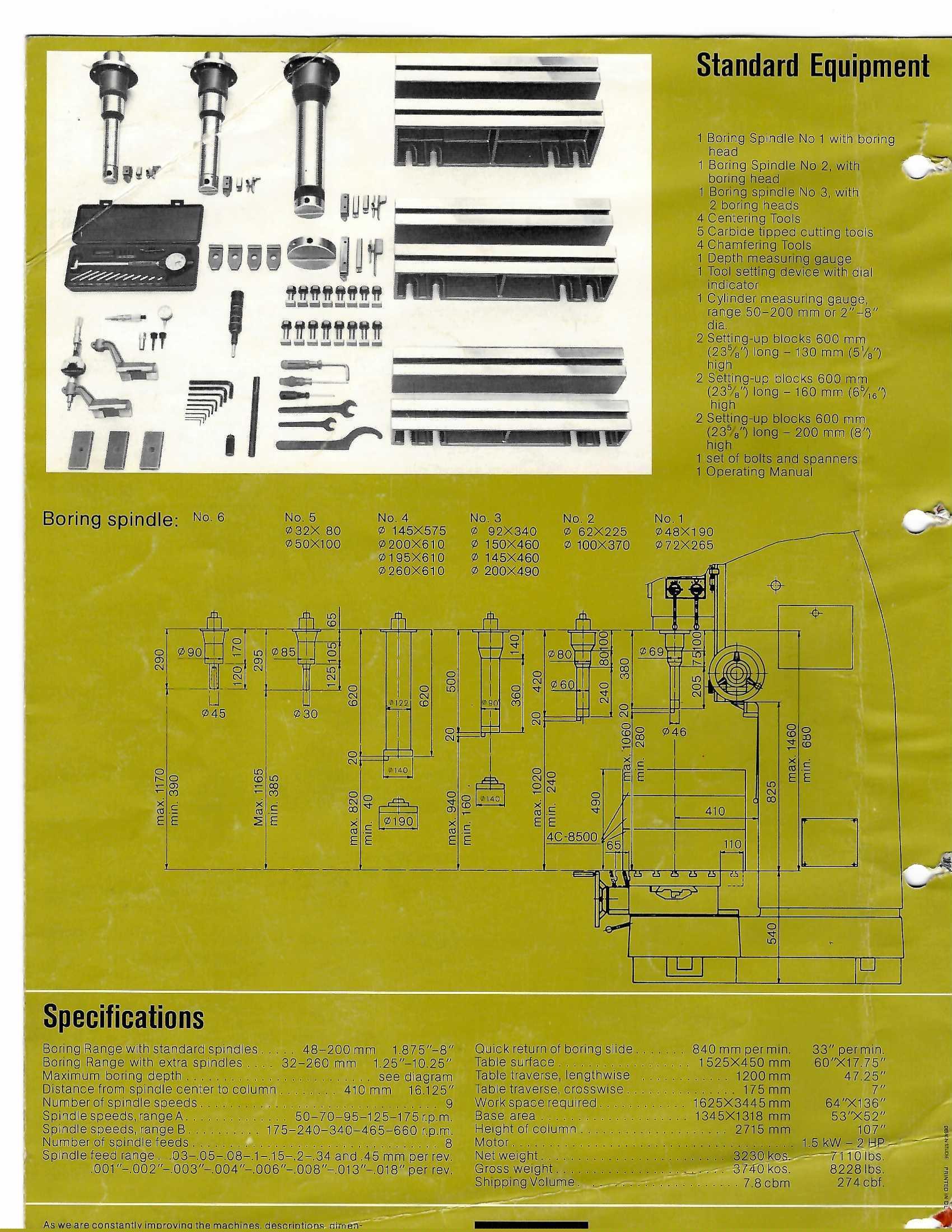

Specifications

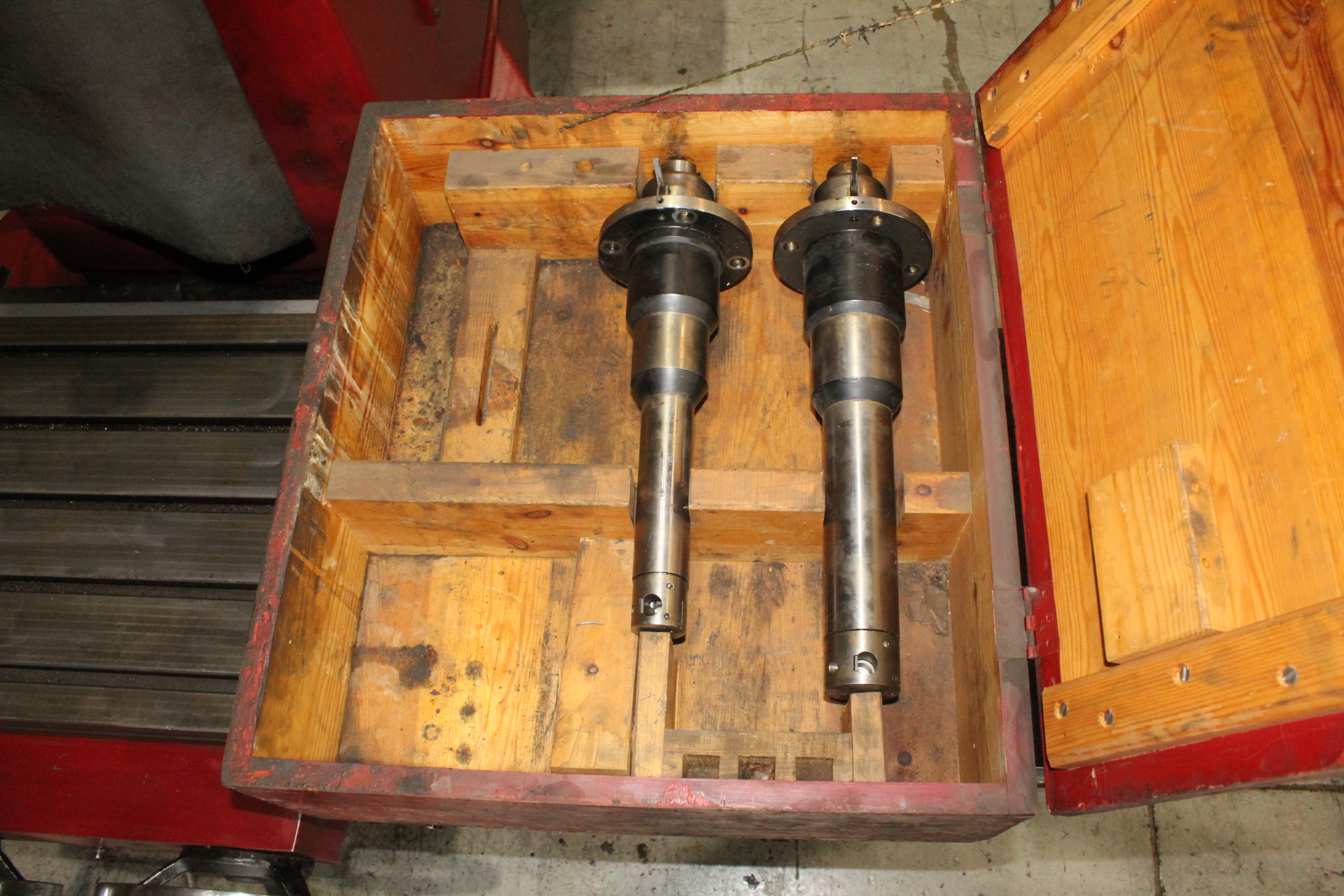

Boring Range w/ standart spindles: 48-200mm (1.875-8"). W/ Extra Spindles: 32-260mm (1.25-10.25")

Distance from spindle center to column: 410mm (16.125")

Number of spindle speeds: 9

Number of spindle feeds: 8

Quick return of boring slide: 840mm per min. (33" per min.)

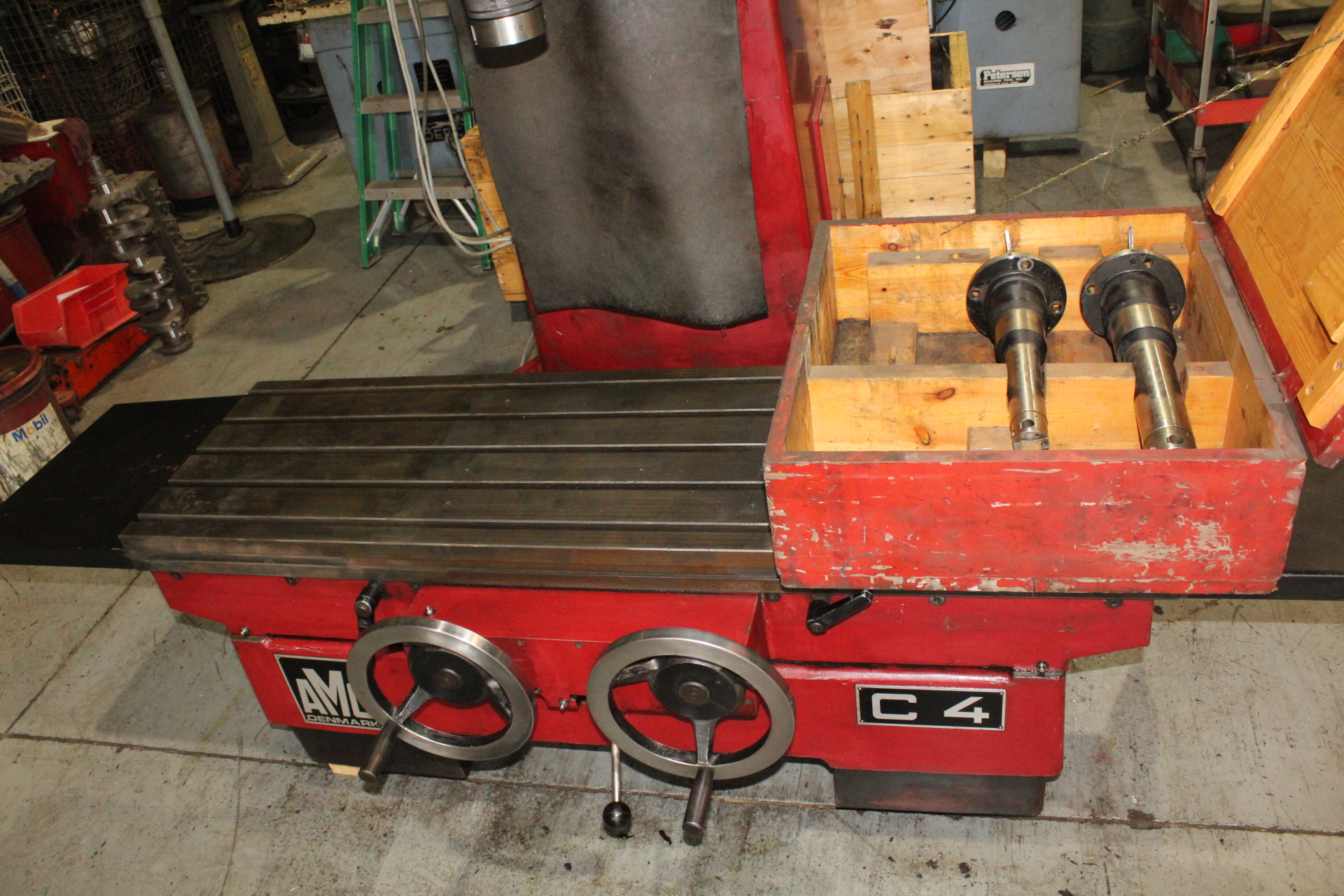

Table Surface: 1525 x 450mm (60x17.75")

Table Traverse (lengthwise): 1200mm (47.25")

Table Traverse (crosswise): 175mm (7")

Work Space Required: 1625 x 3445mm (64x136")

Base Area: 1345x1318mm (53x52")

Height of column: 2715mm (107")

Motor: 1.5 kW-2 HP

Weight: 3740 kos.   (8228 lbs)

Shipping Volume: 7.8 cbm (274 cbf)
