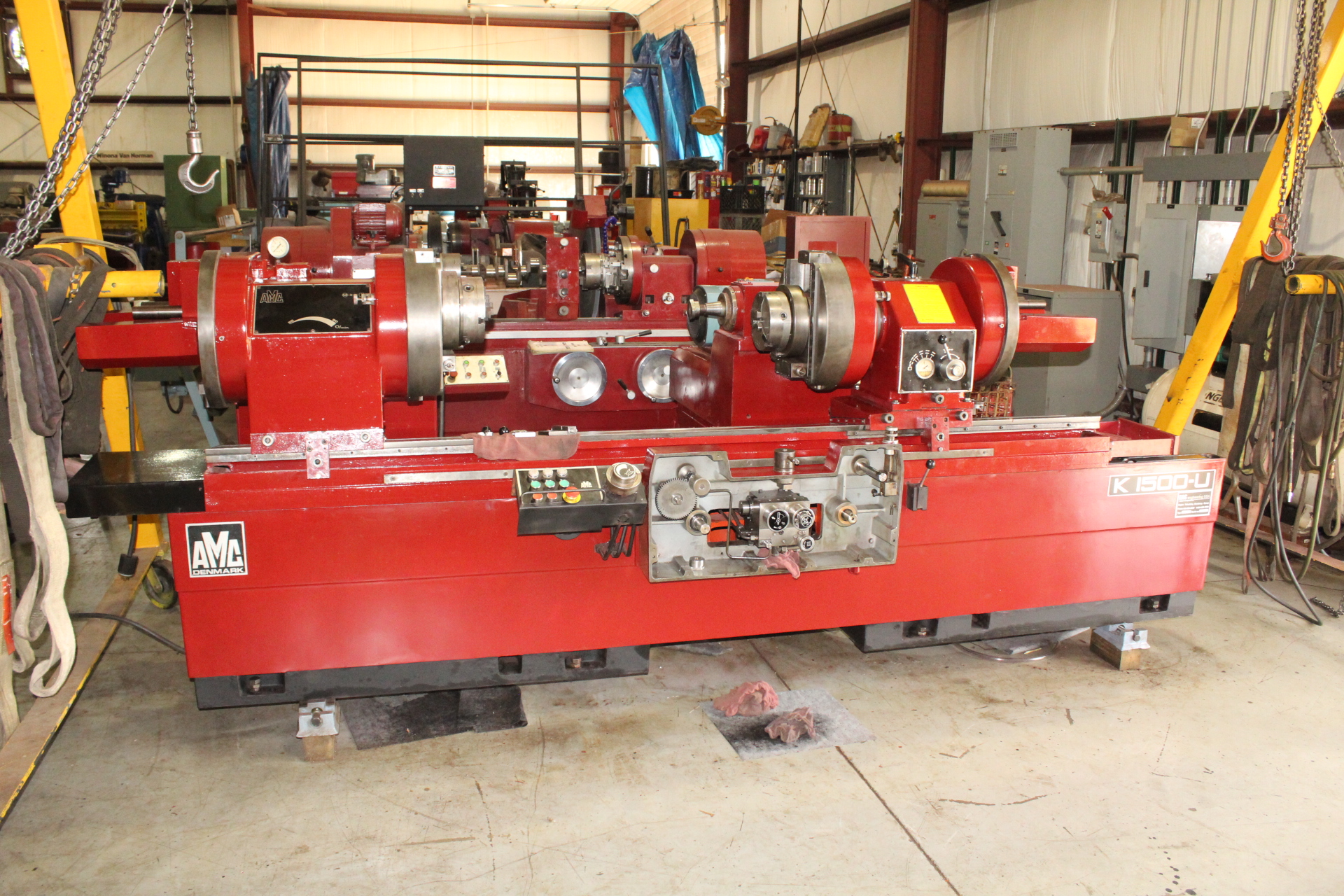

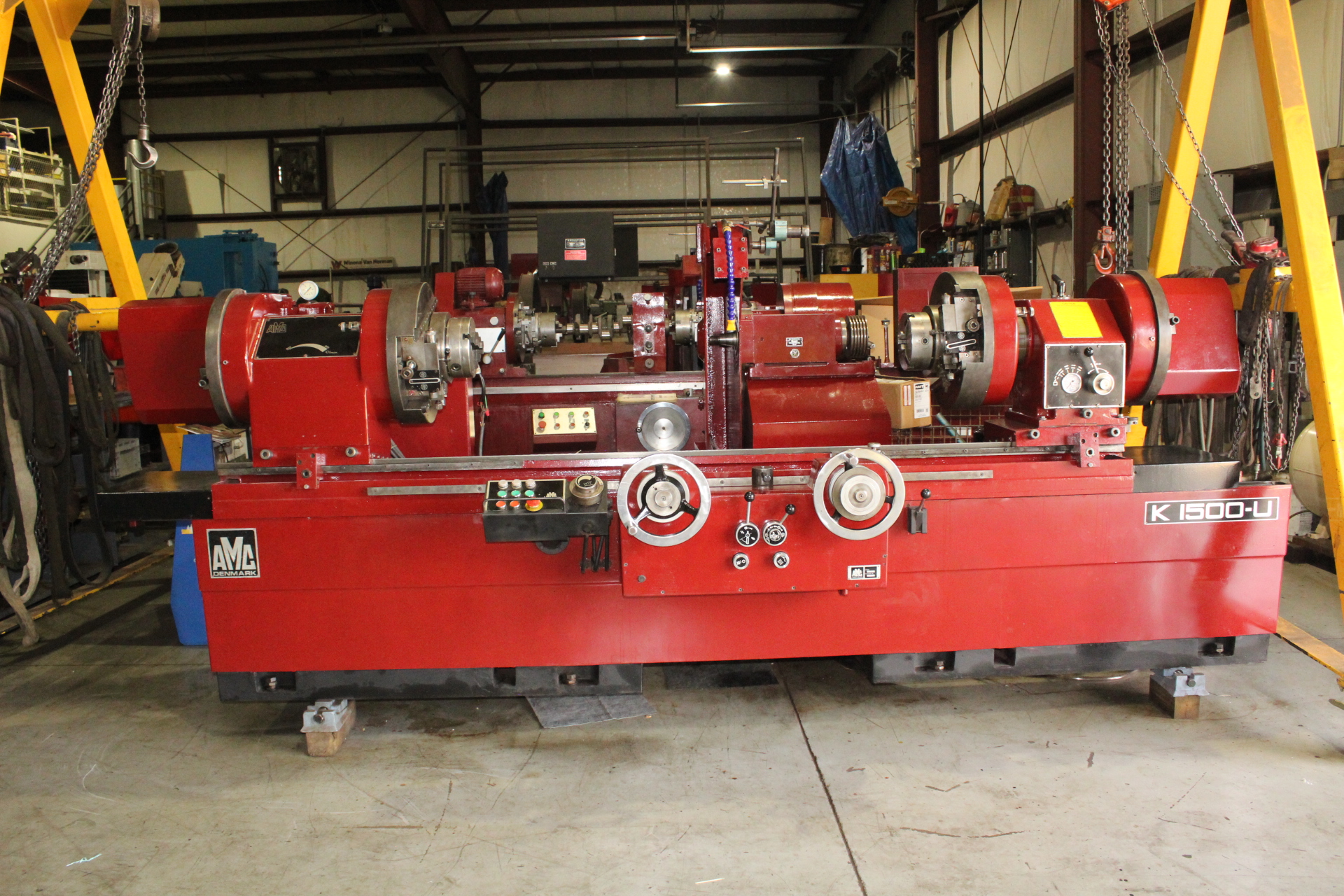

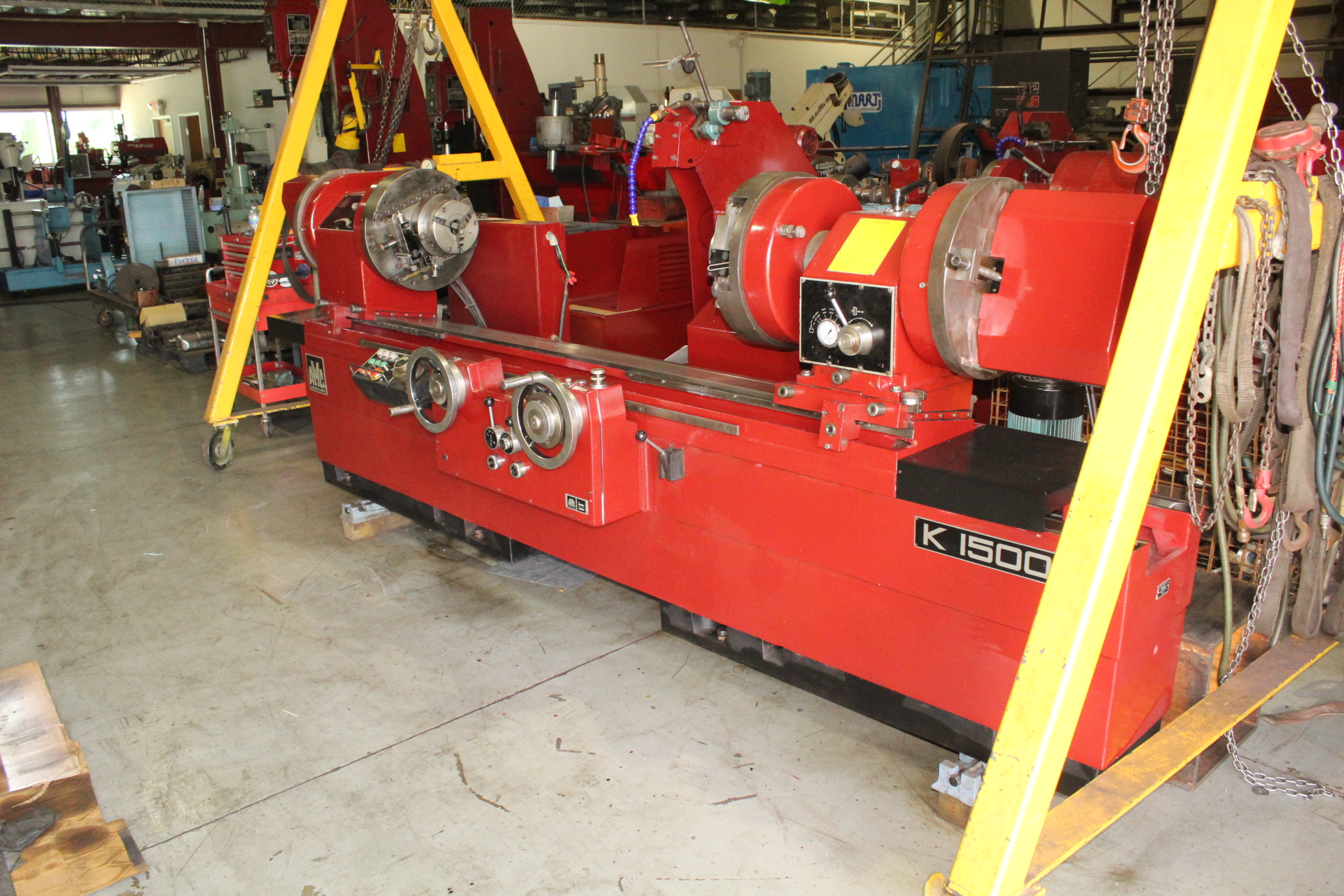

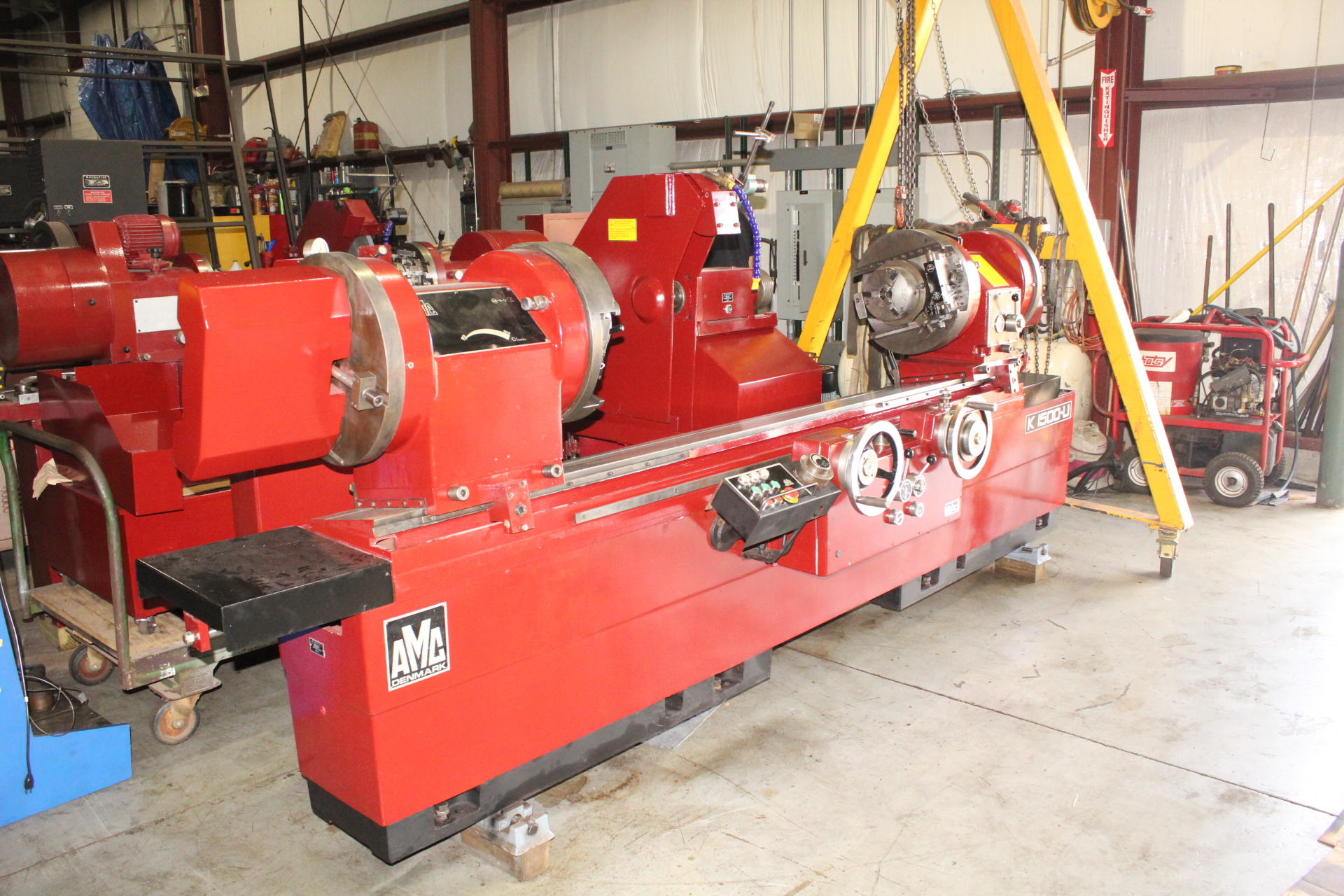

AMC K-1500U Crankshaft grinder

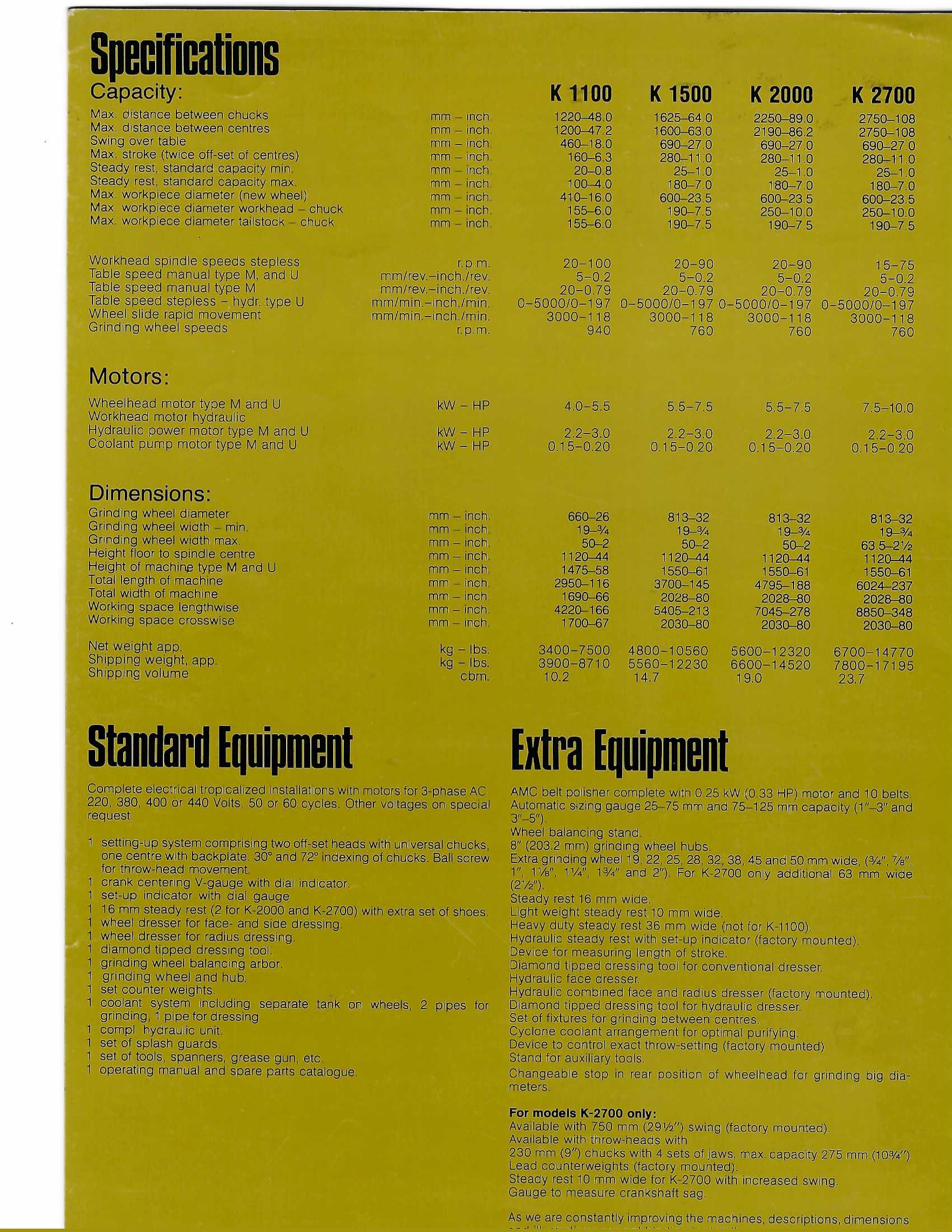

Specifications

Max Distance Between Chucks: 1625mm (48")

Max Distance Between Centers: 1600mm (63")

Swing over Table: 690mm (27")

Max Stroke (twice off-set centers): 280mm (11")

Steady Rest, standard capacity min: 25mm (1")

Steady Rest, standard capacity max: 180mm (7")

Max workpiece diameter: New wheel-600mm (23.5"). Workhead Chuck-190mm (7.5"). Tailstock Chuck- 180mm (7.5")

Grinding Wheel Speed: 760 r.p.m.

Dimentions: Lenth: 3700mm (145") Width: 2028mm (80")

Shipping Weight: 5560 kg (12230 lbs)
