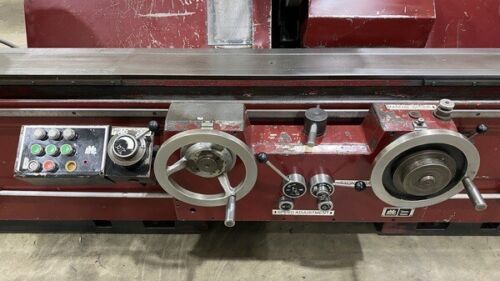

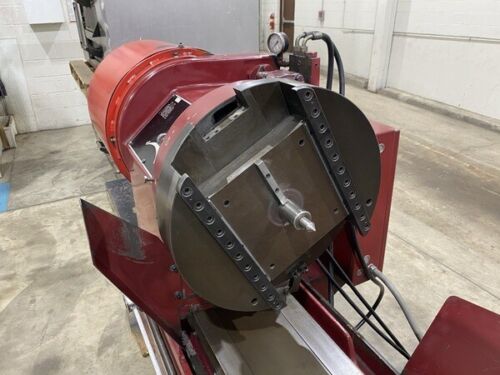

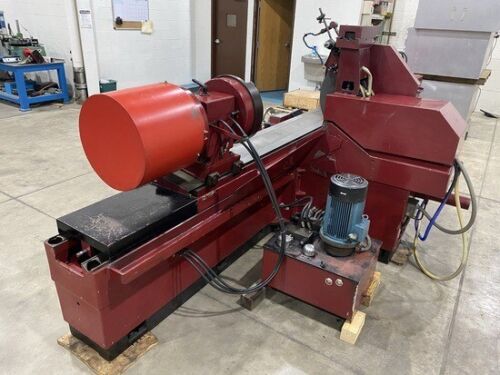

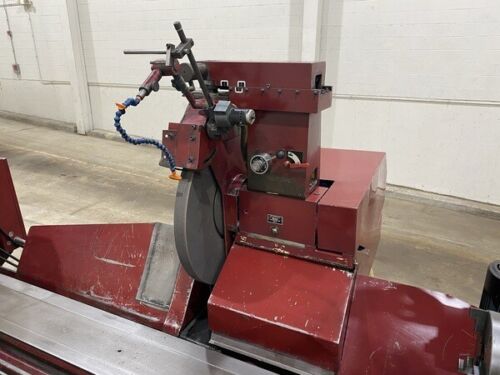

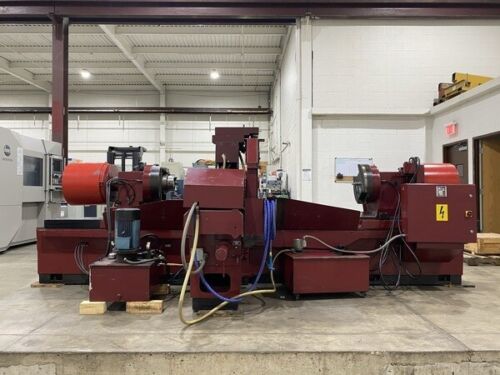

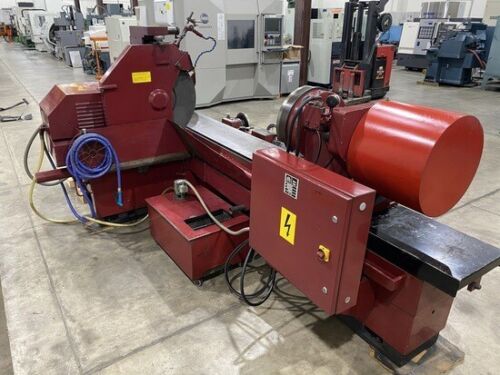

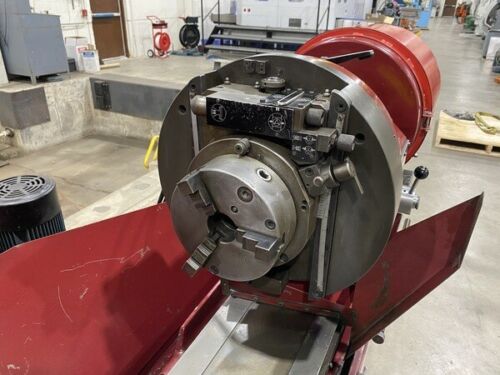

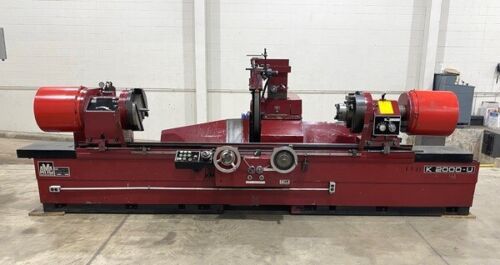

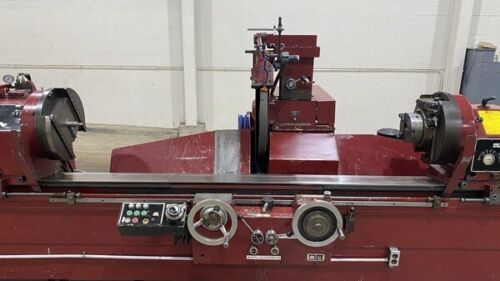

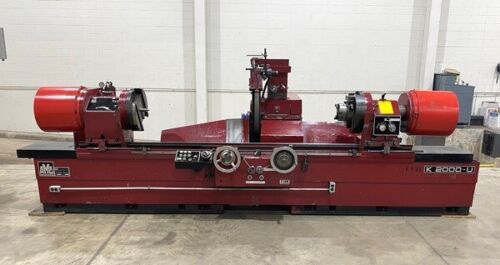

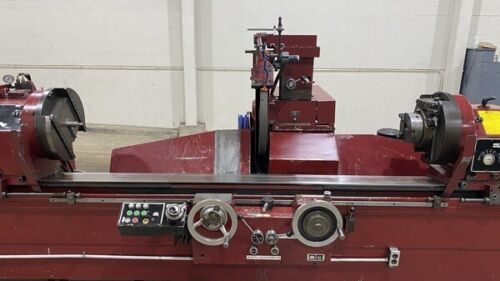

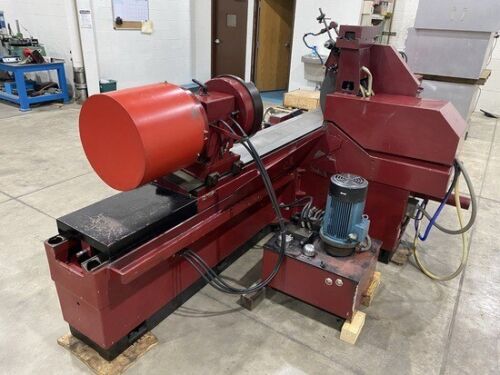

AMC K-2000U Automatic Crankshaft Grinder

AMC K-2000U Automatic Crankshaft Grinder
Stock #4338Used Machine; $24,500

Serial No. 4338



SPECIFICATIONS:

Distance Between Chucks - Maximum............89"

Distance Between Centers - Maximum............86"

Swing Diameter............27/29.5"

Stoke - Maximum............11"

Steady Rest (Standard Minimum Capacity)............1"

Steady Rest (Standard Maximum Capacity)............7"

Workpiece - Maximum (New Wheel)...........23.5"

Workpiece Diameter with Chucks - Maximum...........10".

Weight Between Chucks - Maximum............2,200 Lbs.

Workpiece Rotate Stepless............ 15-90 RPM

Table Speed Manually............0.2 In./Rev

Table Speed Stepless............0-158 In./Min.

Wheel Slide Rapid Movement............188 In./Min.

Grinding Wheel Speed............760 RPM

Grinding Wheel Motor............7.5 HP

Workhead Motor (Hydraulic Motor for U only)............5.5 Gal./Min.

Hydraulic Power Pump (U Only)............3 HP

Coolant Pump............0.21 HP

Grinding Wheel Diameter............32"

Grinding Wheel Width - Minimum............0.75"

Grinding Wheel Width - Maximum............2"

Height of Floor to Spindle Center............44"

Dimensions - Approximate............188.8" x 80" x 61" (H)

Floor Plan............277.4" x 80"

Weight - Approximate............12,320 Lbs.



*Preliminary Specifications Subject to Verification
