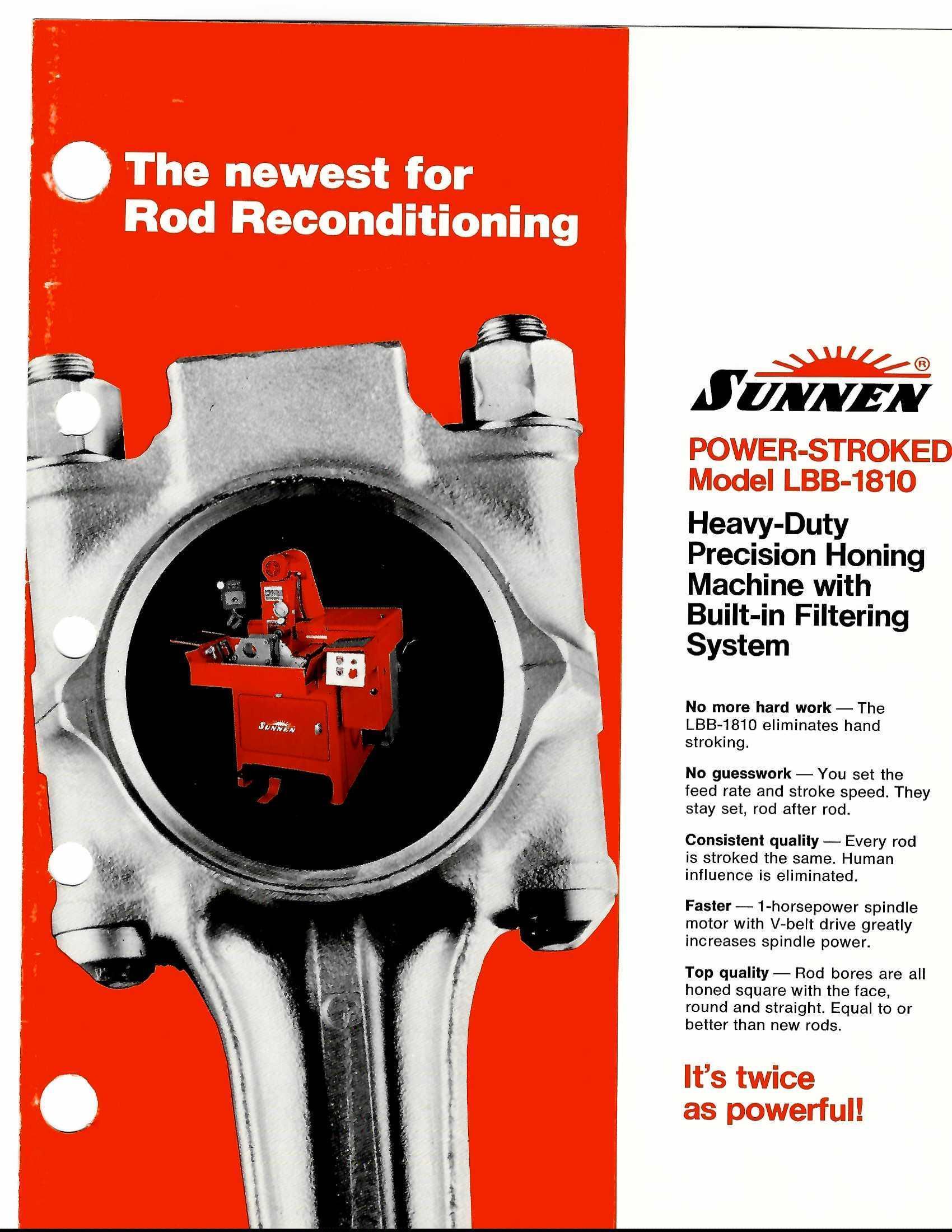

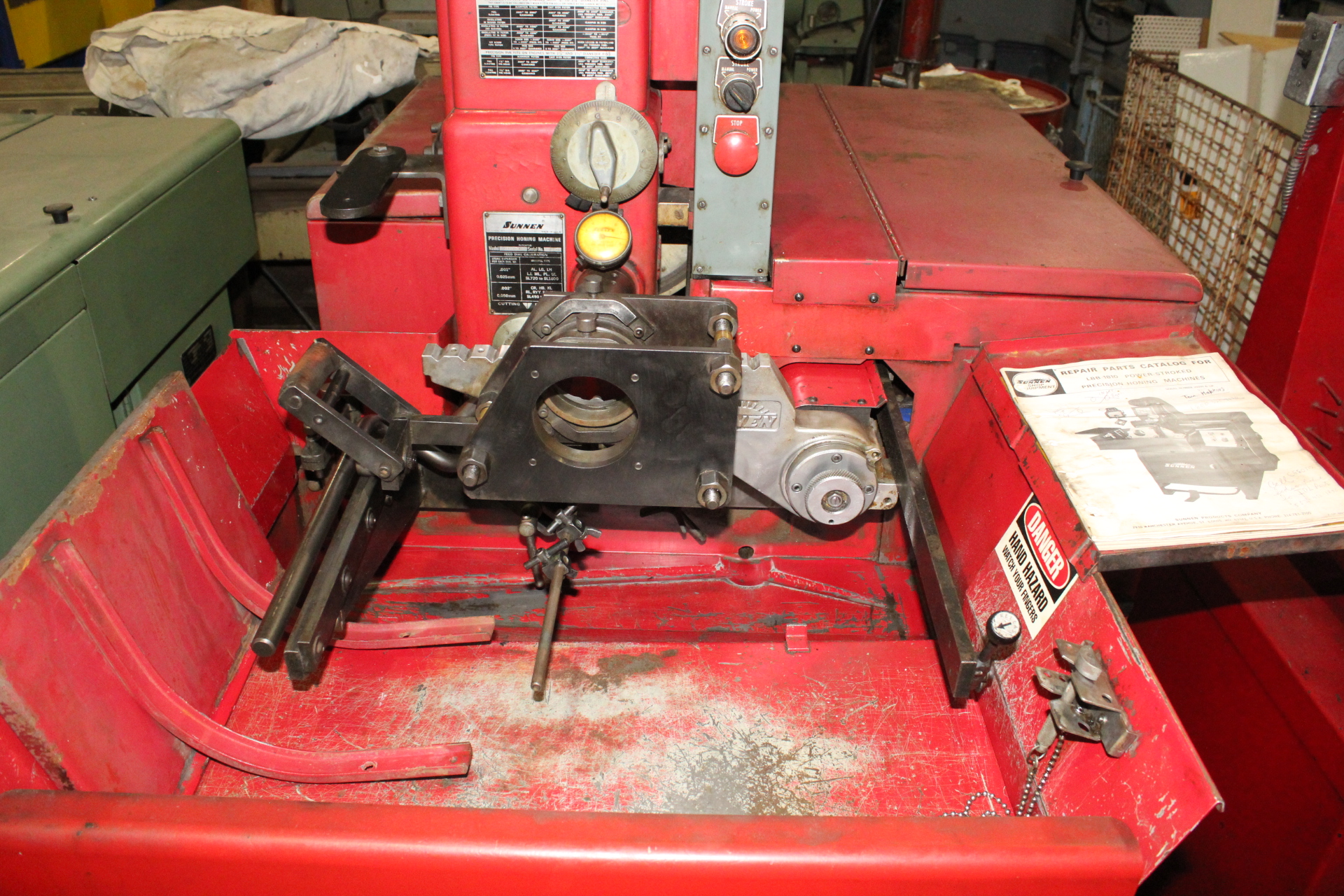

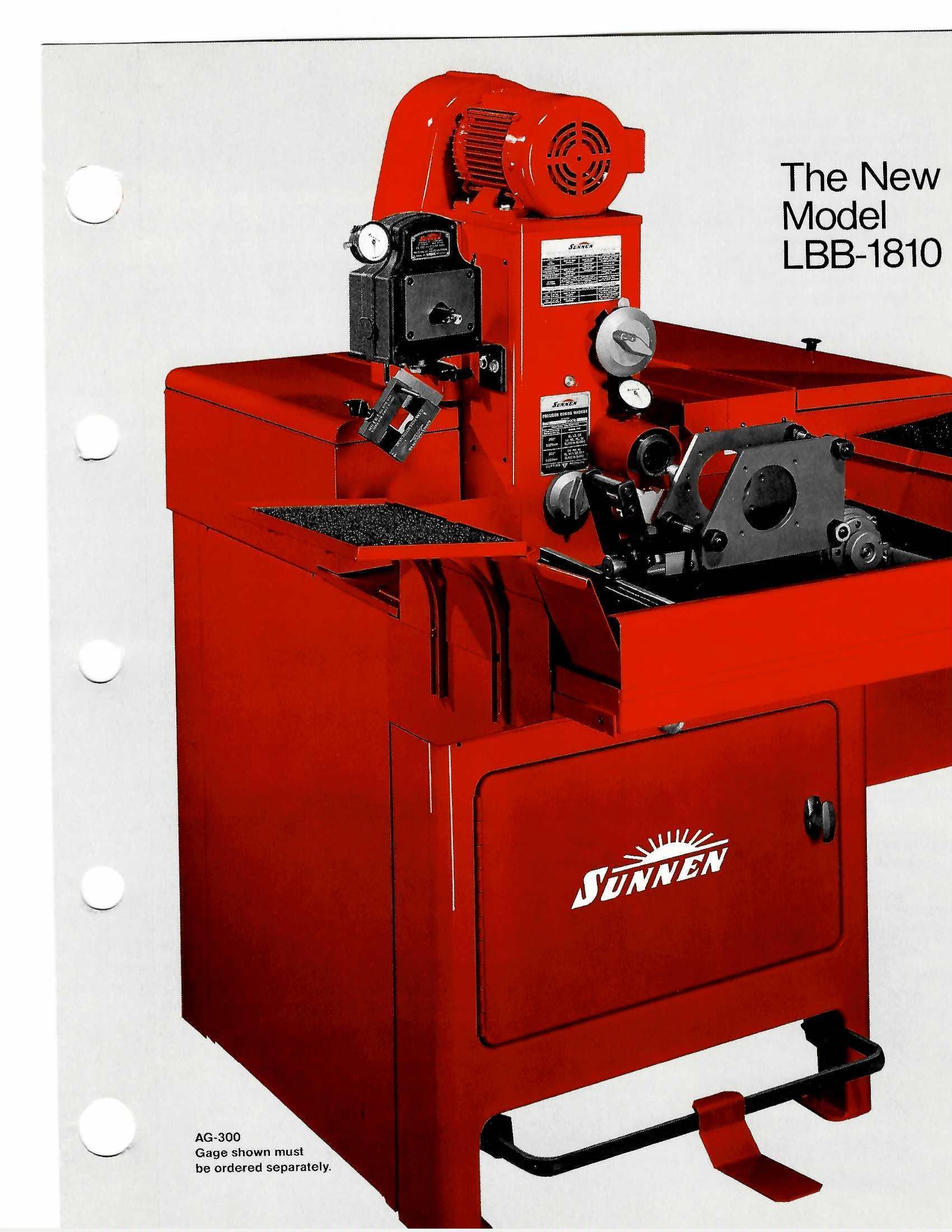

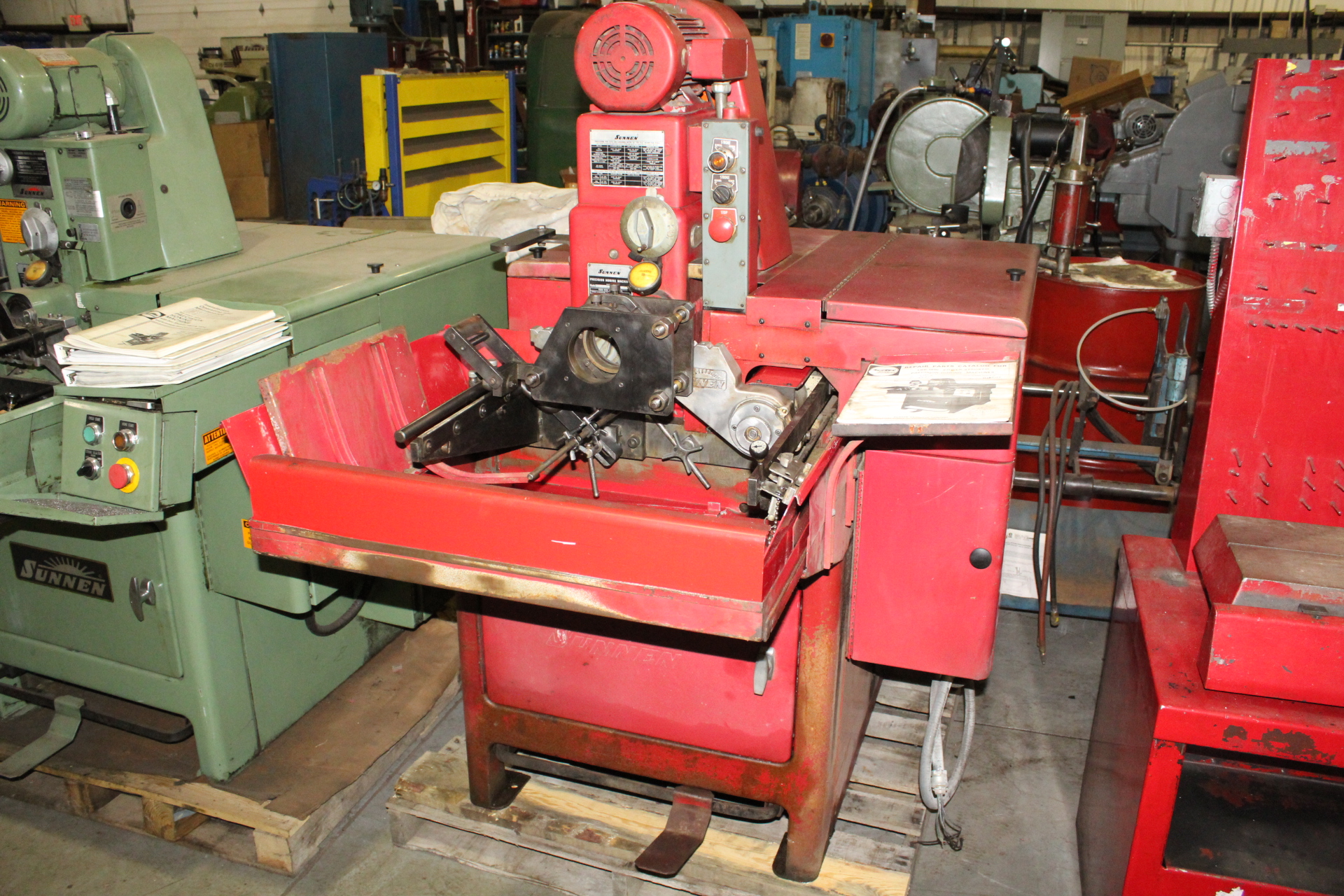

Sunnen LBB-1810 Honing Machine

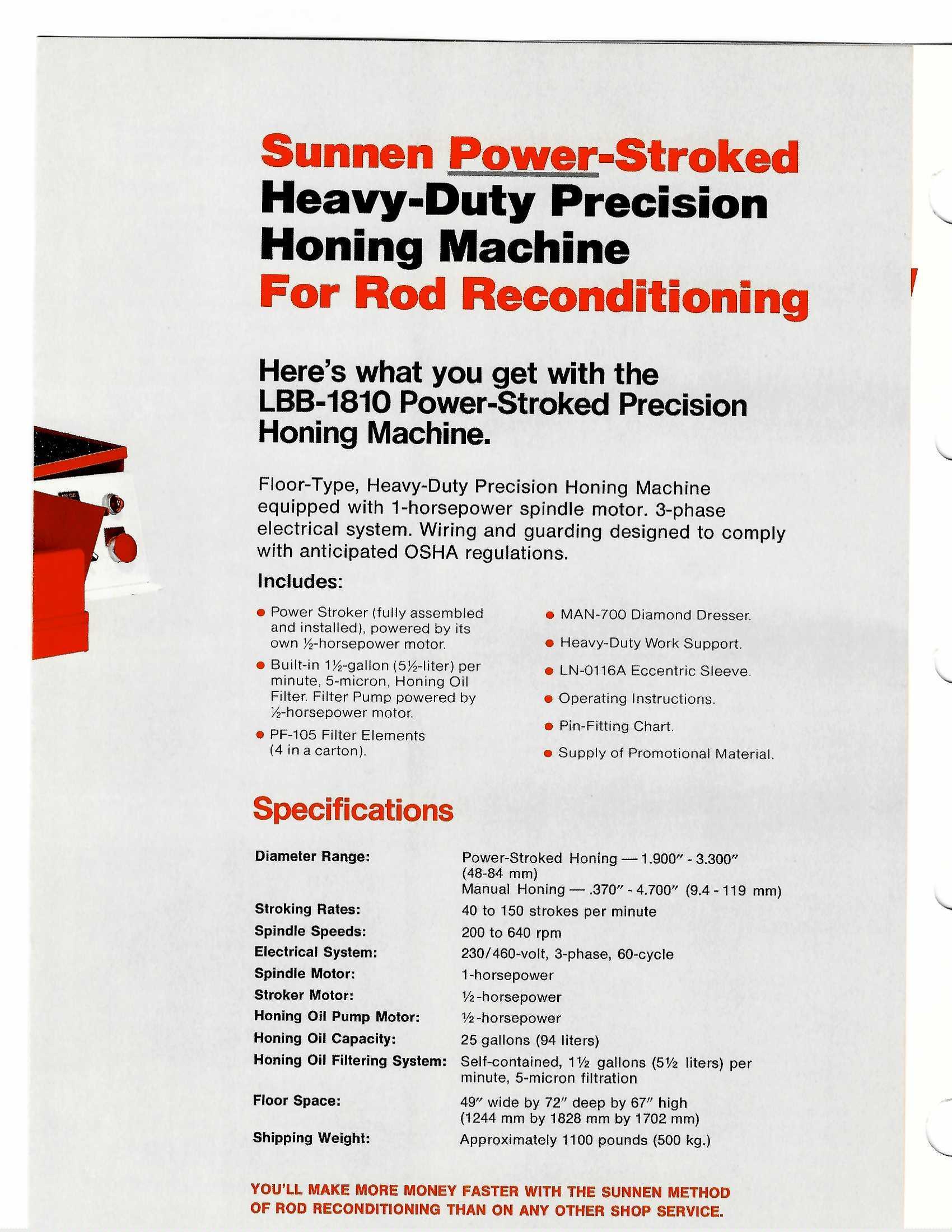

Specifications

Range: Power-stroked honing: 1.900" -3.300"

              Manual honing: .370" - 4.700"

Stroking Rates: 40- to 150 strokes per minuet

Spindle Speeds: 200 to 640 rpm

Electrical system: 230/460- volt, 3-phase, 60-cycle

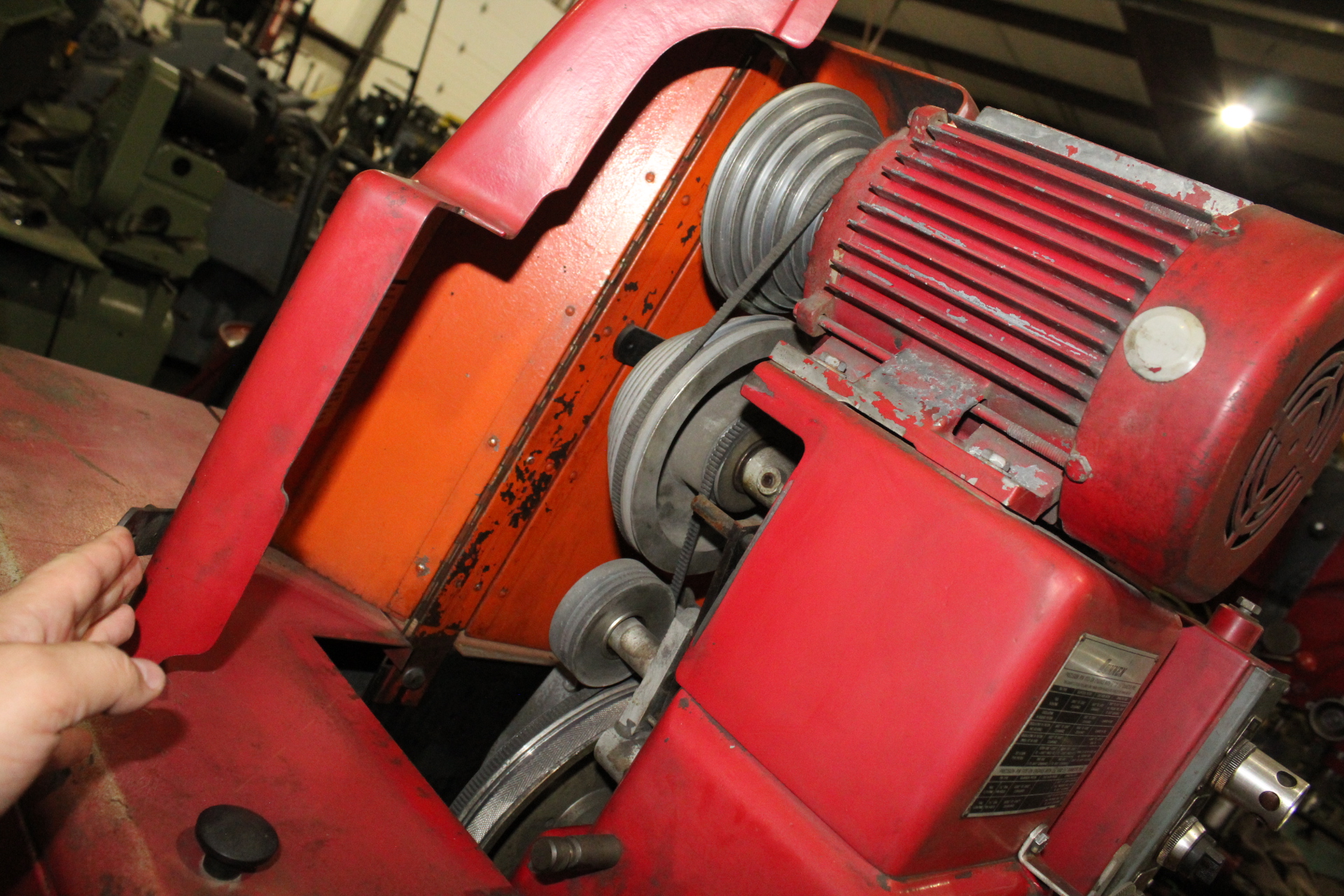

Spindle motor: 1- horsepower

Stroker Motor: 1/2- horsepower

Honing oil pump motor: 1/2- horsepower

Honing oil capacity: 25 gallons

Honing oil filtration system: self contained, 1-1/2 gallons per minuet, 5-micron filtration

Floor space: 49" wide x 72" deep x 67" high (1244mm x 1828mm x 1702mm)

Shipping Weight: Approximately 1100 lbs. (500 kg.)
