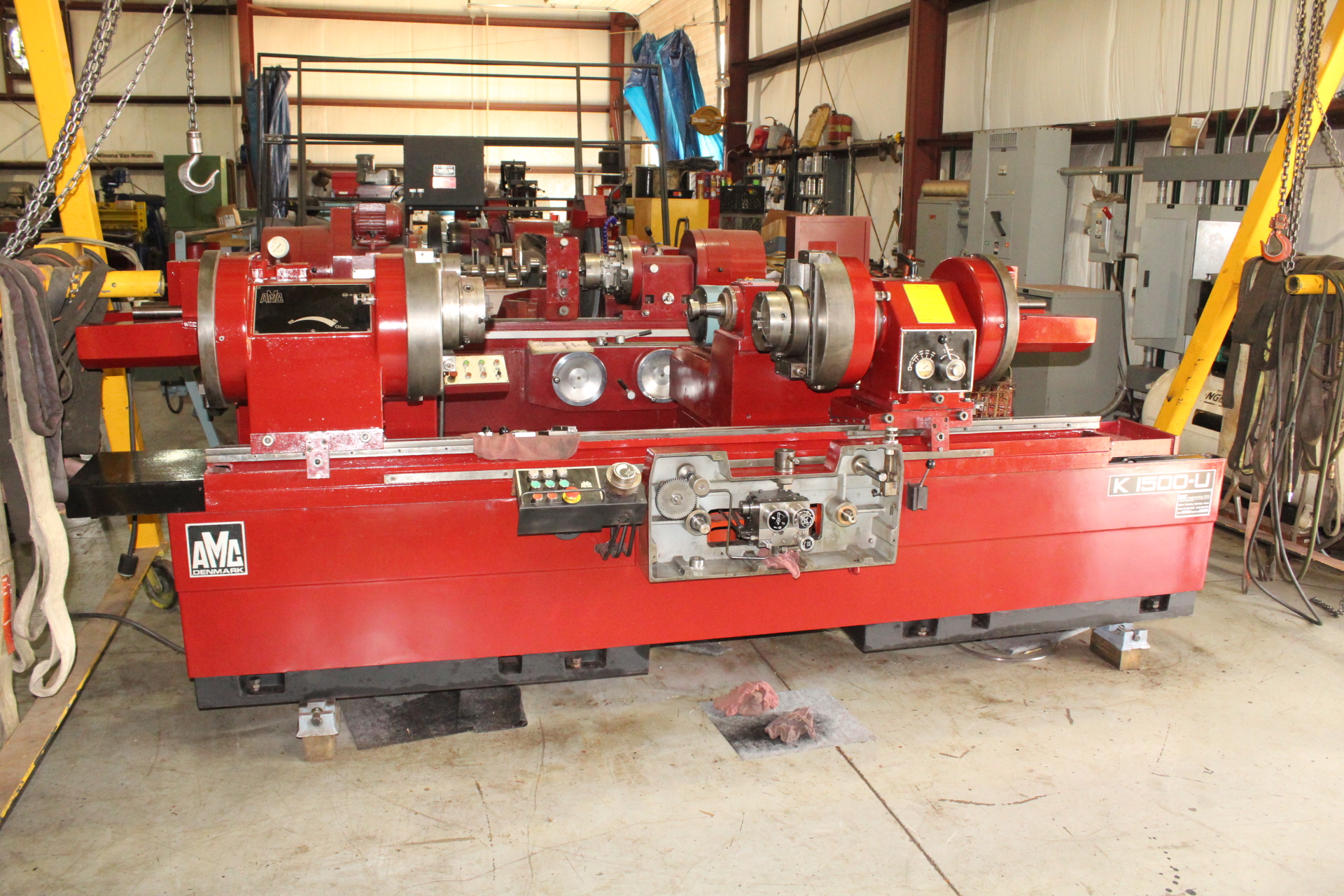

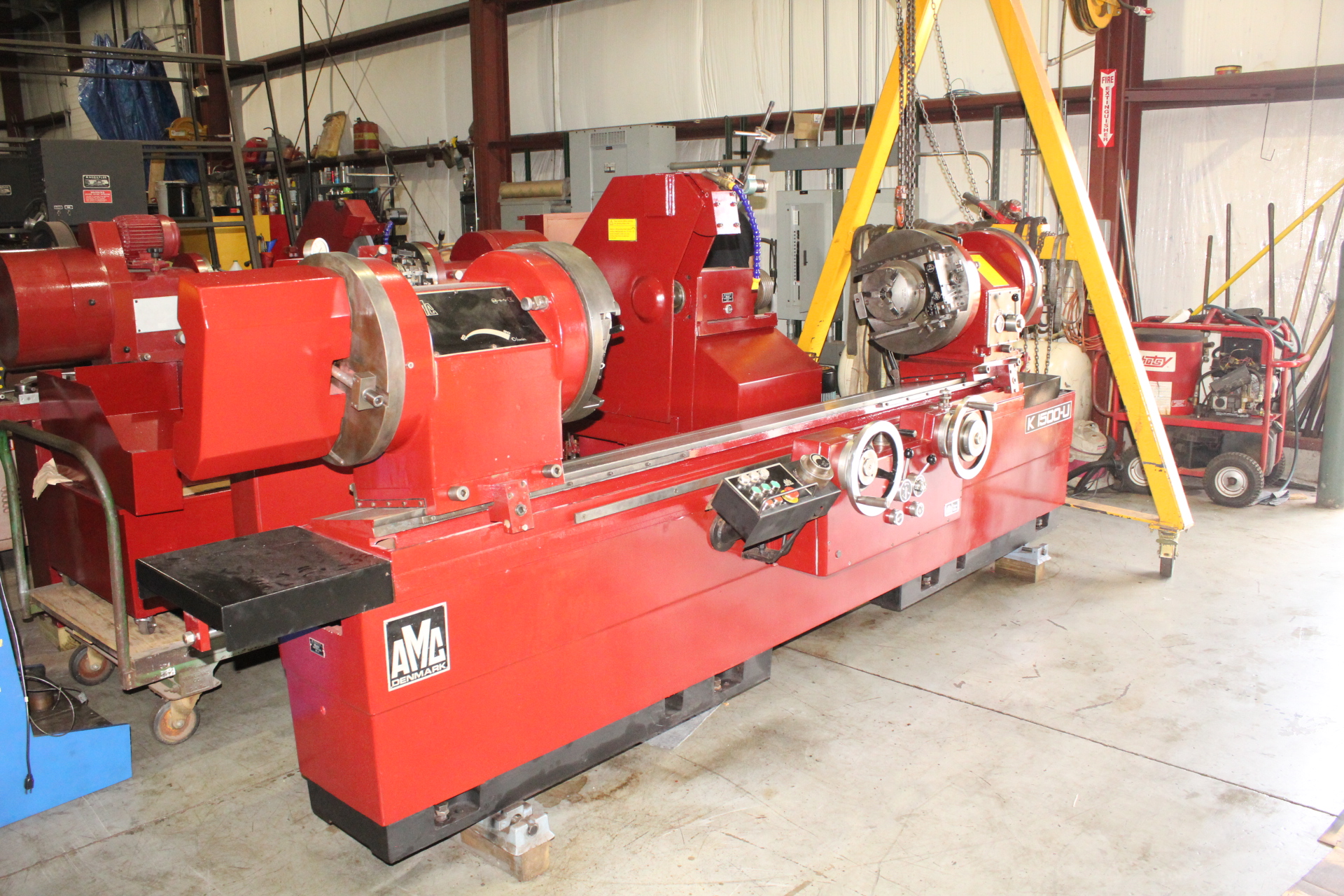

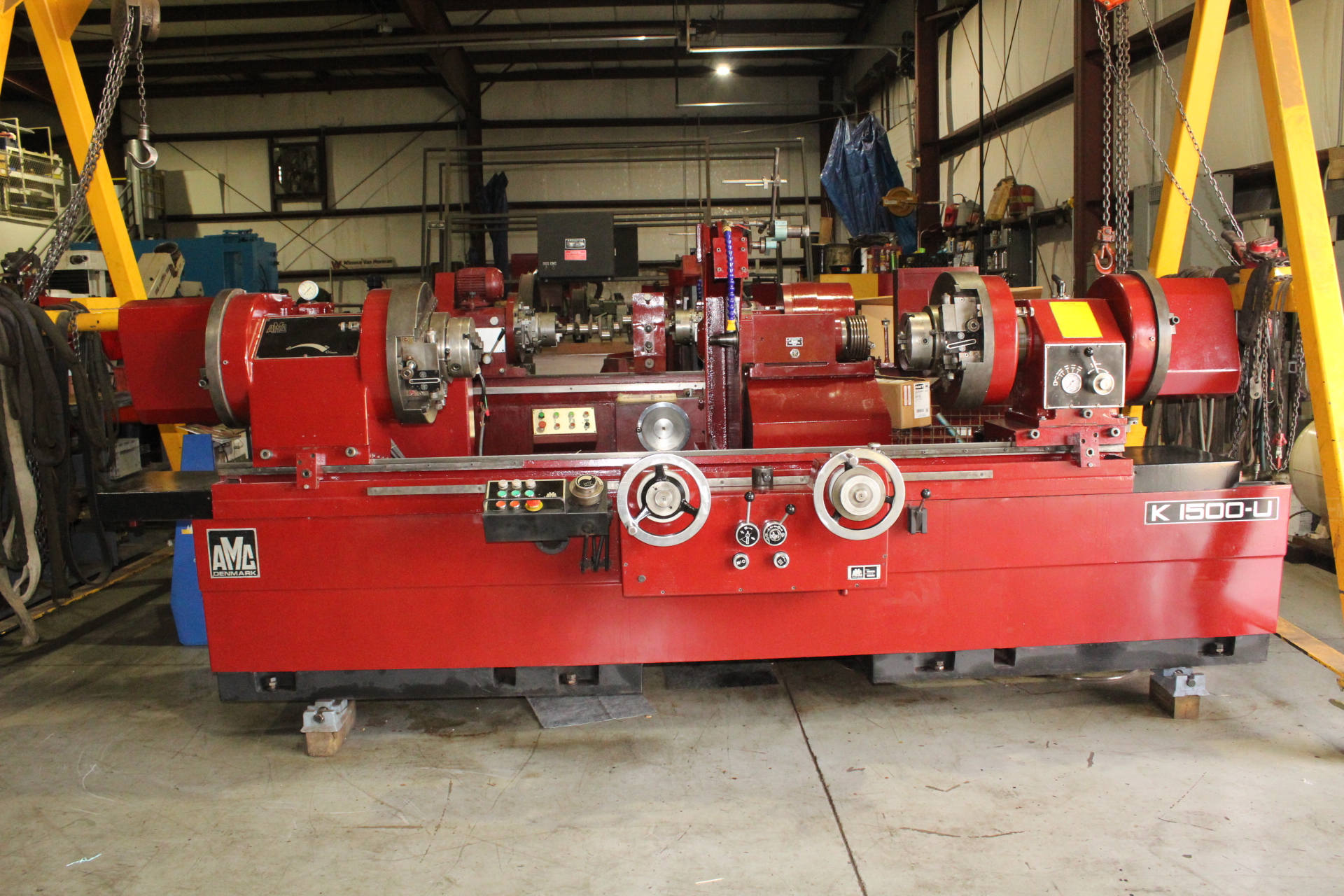

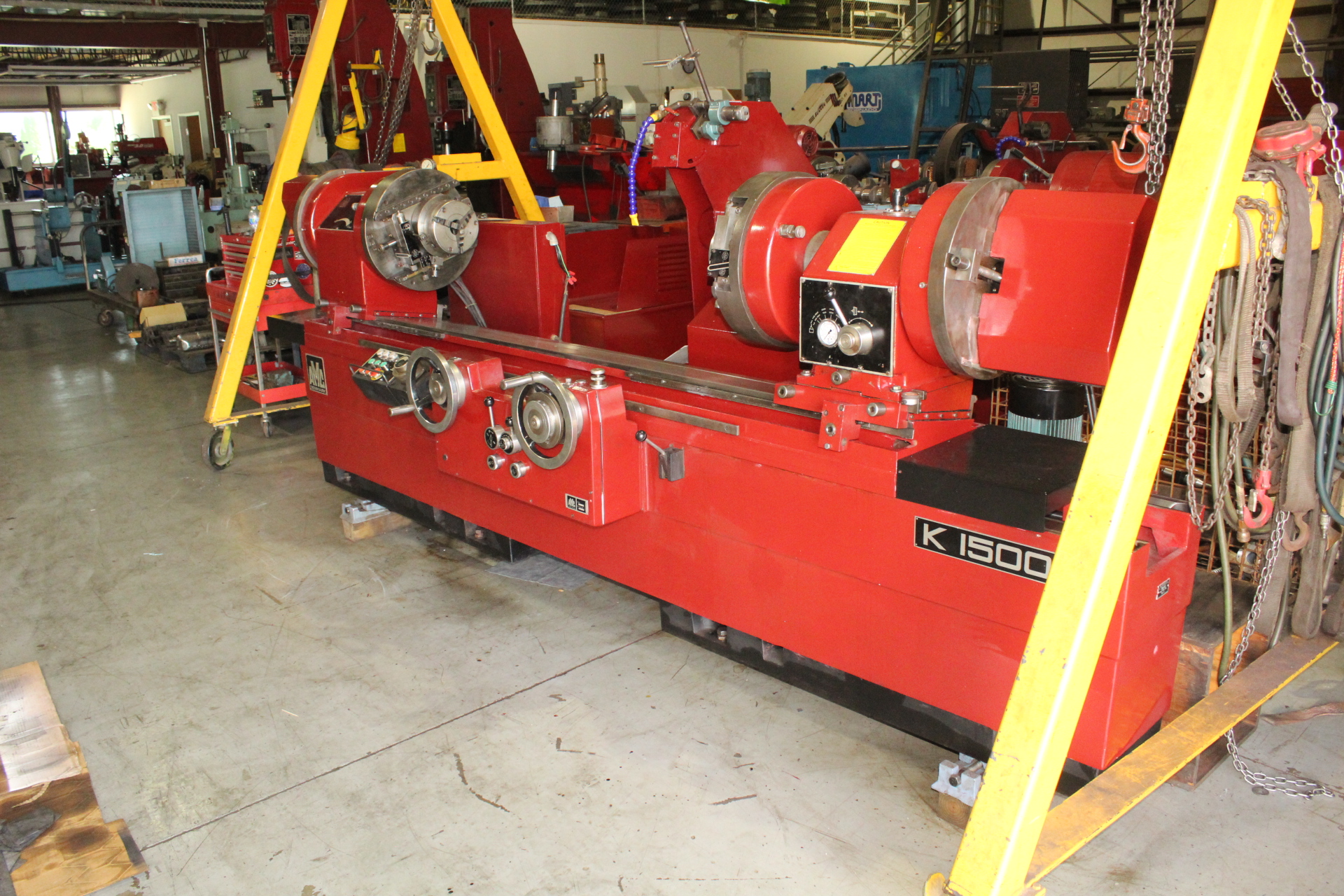

AMC K-1500U Crankshaft grinder

Specifications

Max Distance Between Chucks: 1625mm (64")

Max Distance Between Centers: 1600mm (63")

Swing over Table: 690mm (27")

Max Stroke (twice off-set centers): 280mm (11")

Steady Rest, standard capacity min: 25mm (1")

Steady Rest, standard capacity max: 180mm (7")

Max workpiece diameter: New wheel-600mm (23.5"). Workhead Chuck-190mm (7.5"). Tailstock Chuck- 180mm (7.5")

Grinding Wheel Speed: 760 r.p.m.

Grinding wheel diameter: 813mm (32")

Grinding wheel width (min): 19mm (.75")

Grinding wheel (max): 50mm (2")

Machine Dimensions

Lenth: 3700mm (145")

Width: 2028mm (80")

Height floor to spindle centre: 1120mm (44")

Height of machine type M and U: 1550-61

Working space of machine lengthwise: 5405mm (213")

Working space crosswise: 2030mm (80")

Weight

Net Weight: 4800 kg (10560 lbs)

Shipping Weight, app: 5560 kg (12230 lbs)

Shipping Volume: 14.7 cbm.
