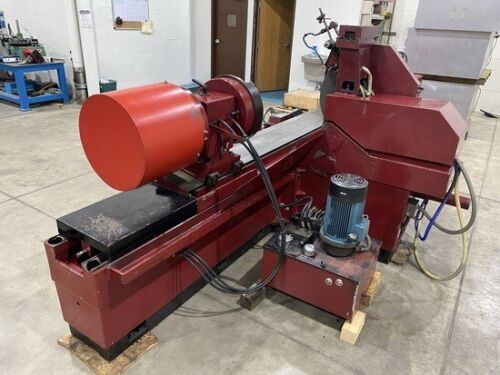

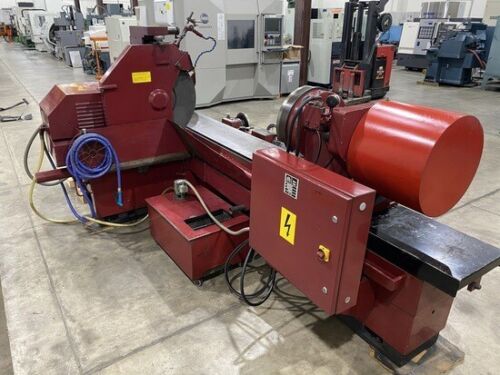

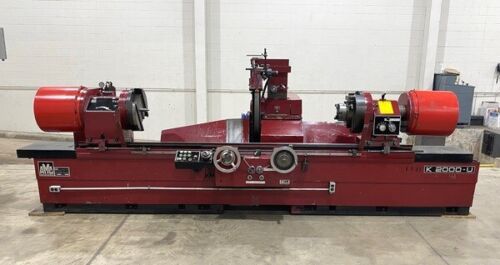

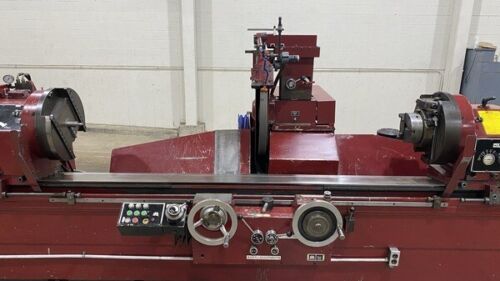

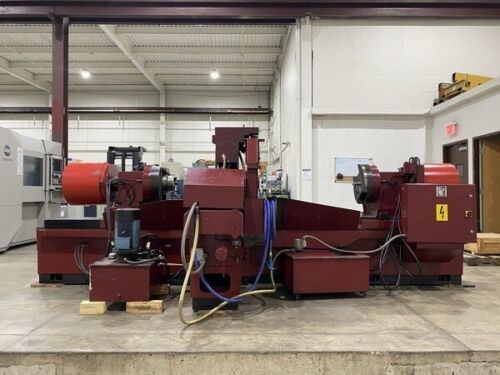

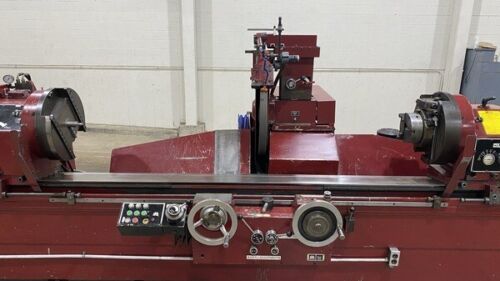

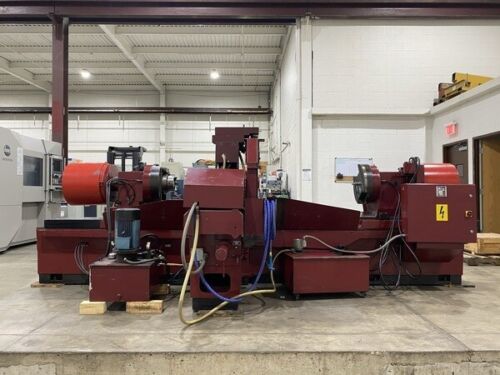

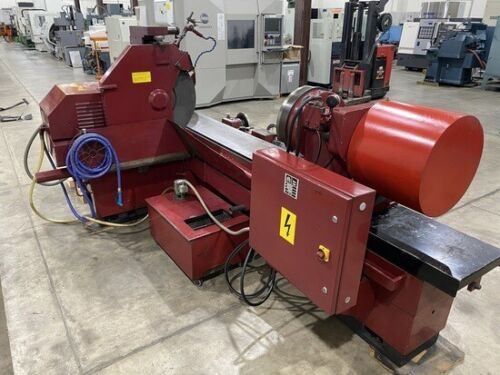

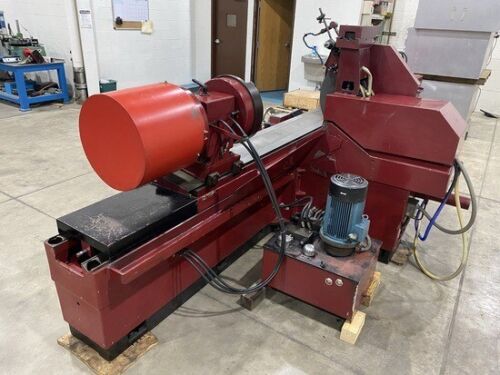

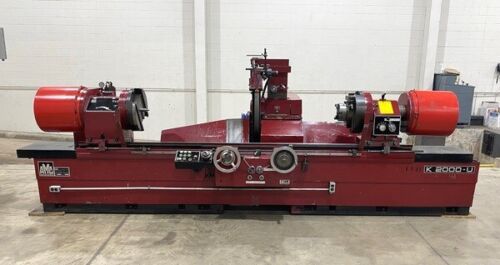

AMC K-2000U Automatic Crankshaft Grinder

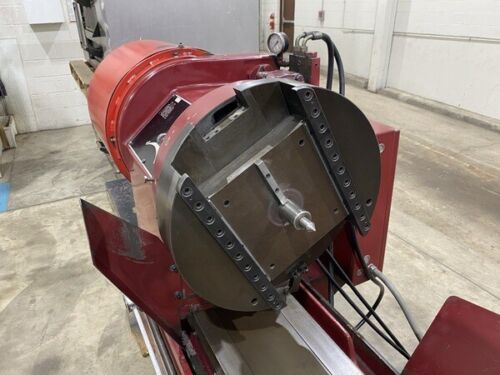

This machine is missing the headstock stroke setting hardware.

At the current condition, this machine can only be used as O.D. or mains grinding only.

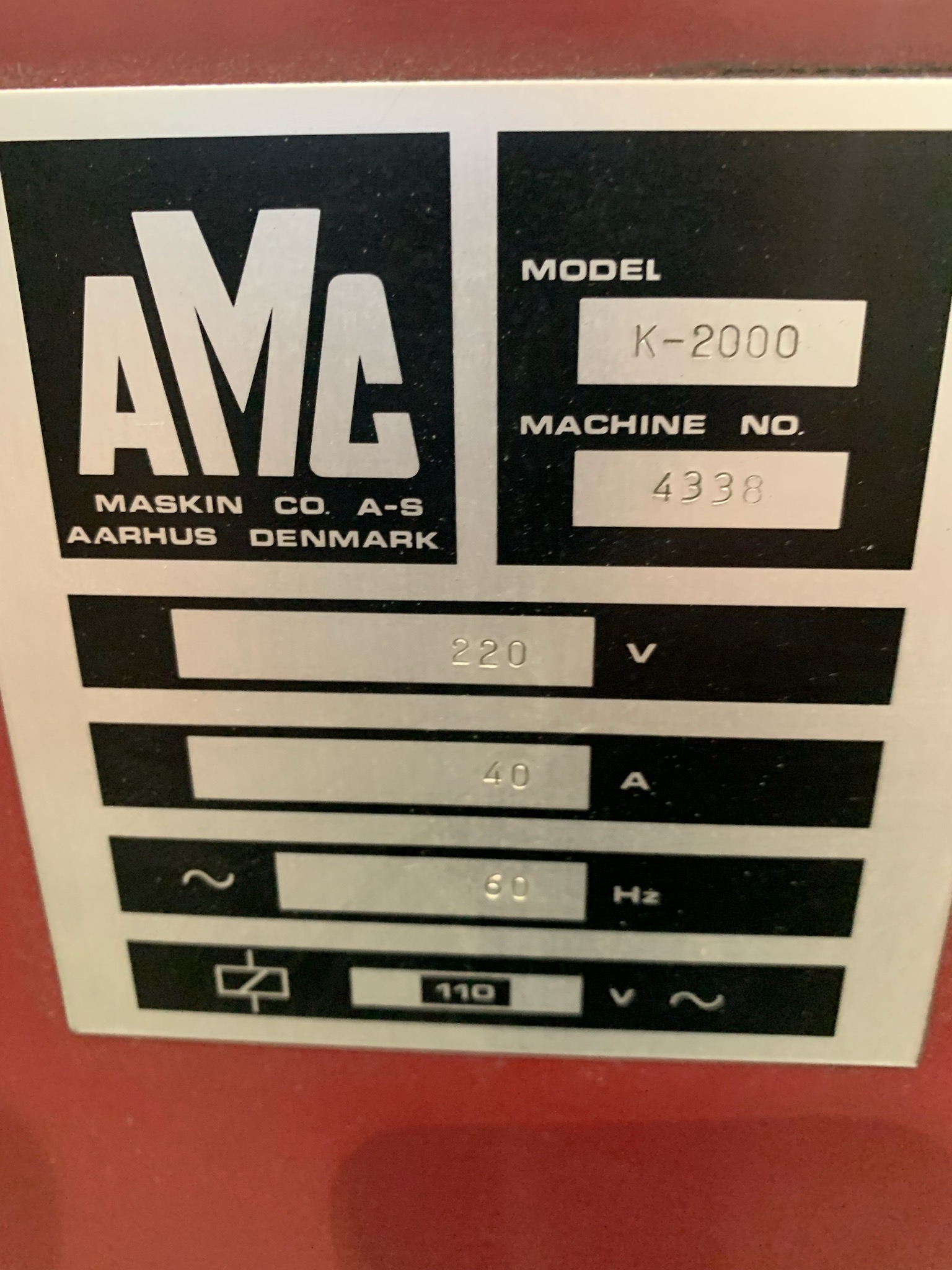

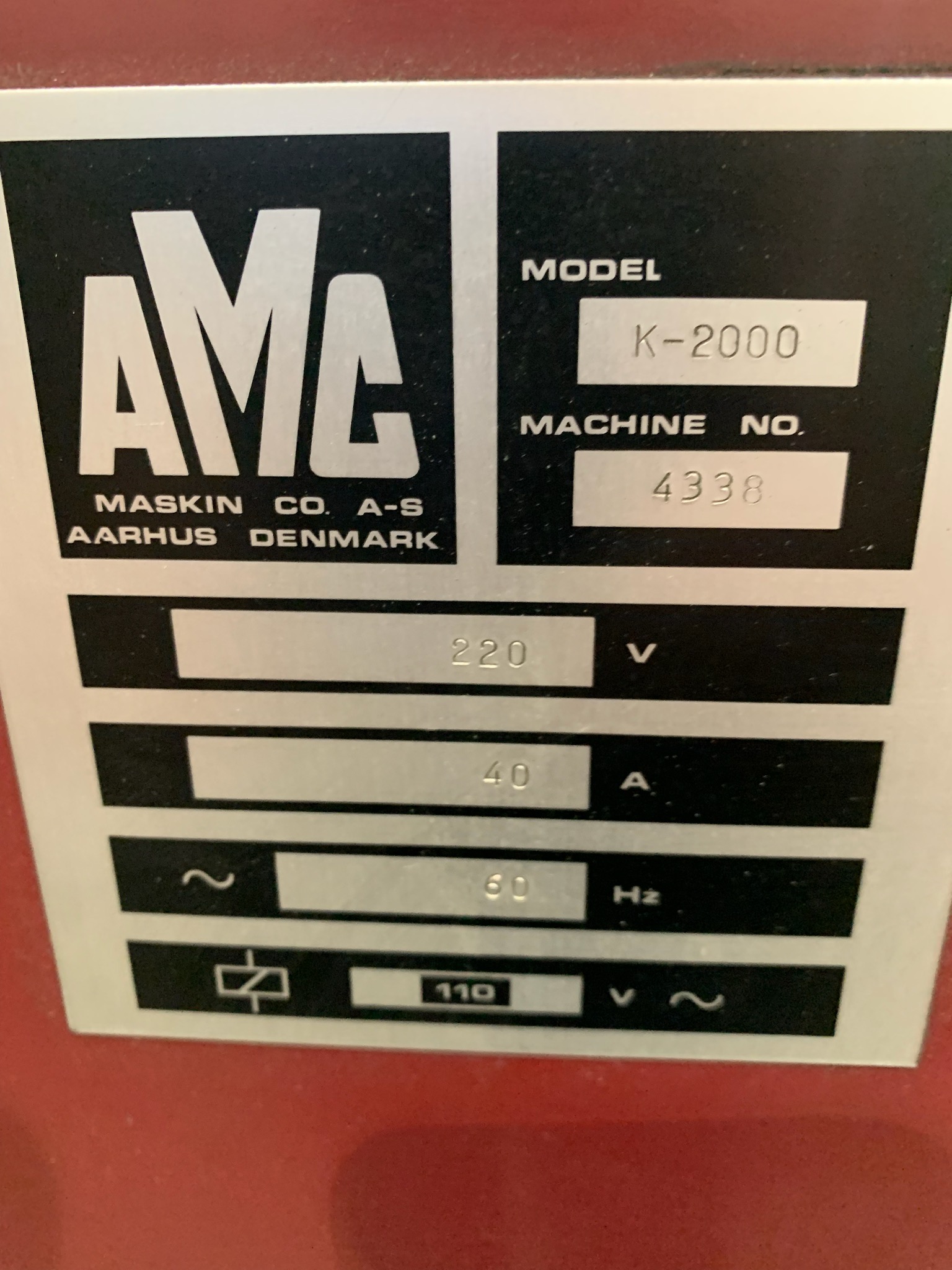

Serial No. 4338



SPECIFICATIONS:

Distance Between Chucks - Maximum............89"

Distance Between Centers - Maximum............86"

Swing Diameter............27/29.5"

Stoke - Maximum............11"

Steady Rest (Standard Minimum Capacity)............1"

Steady Rest (Standard Maximum Capacity)............7"

Workpiece - Maximum (New Wheel)...........23.5"

Workpiece Diameter with Chucks - Maximum...........10".

Weight Between Chucks - Maximum............2,200 Lbs.

Workpiece Rotate Stepless............ 15-90 RPM

Table Speed Manually............0.2 In./Rev

Table Speed Stepless............0-158 In./Min.

Wheel Slide Rapid Movement............188 In./Min.

Grinding Wheel Speed............760 RPM

Grinding Wheel Motor............7.5 HP

Workhead Motor (Hydraulic Motor for U only)............5.5 Gal./Min.

Hydraulic Power Pump (U Only)............3 HP

Coolant Pump............0.21 HP

Grinding Wheel Diameter............32"

Grinding Wheel Width - Minimum............0.75"

Grinding Wheel Width - Maximum............2"

Height of Floor to Spindle Center............44"

Dimensions - Approximate............188.8" x 80" x 61" (H)

Floor Plan............277.4" x 80"

Weight - Approximate............12,320 Lbs.
