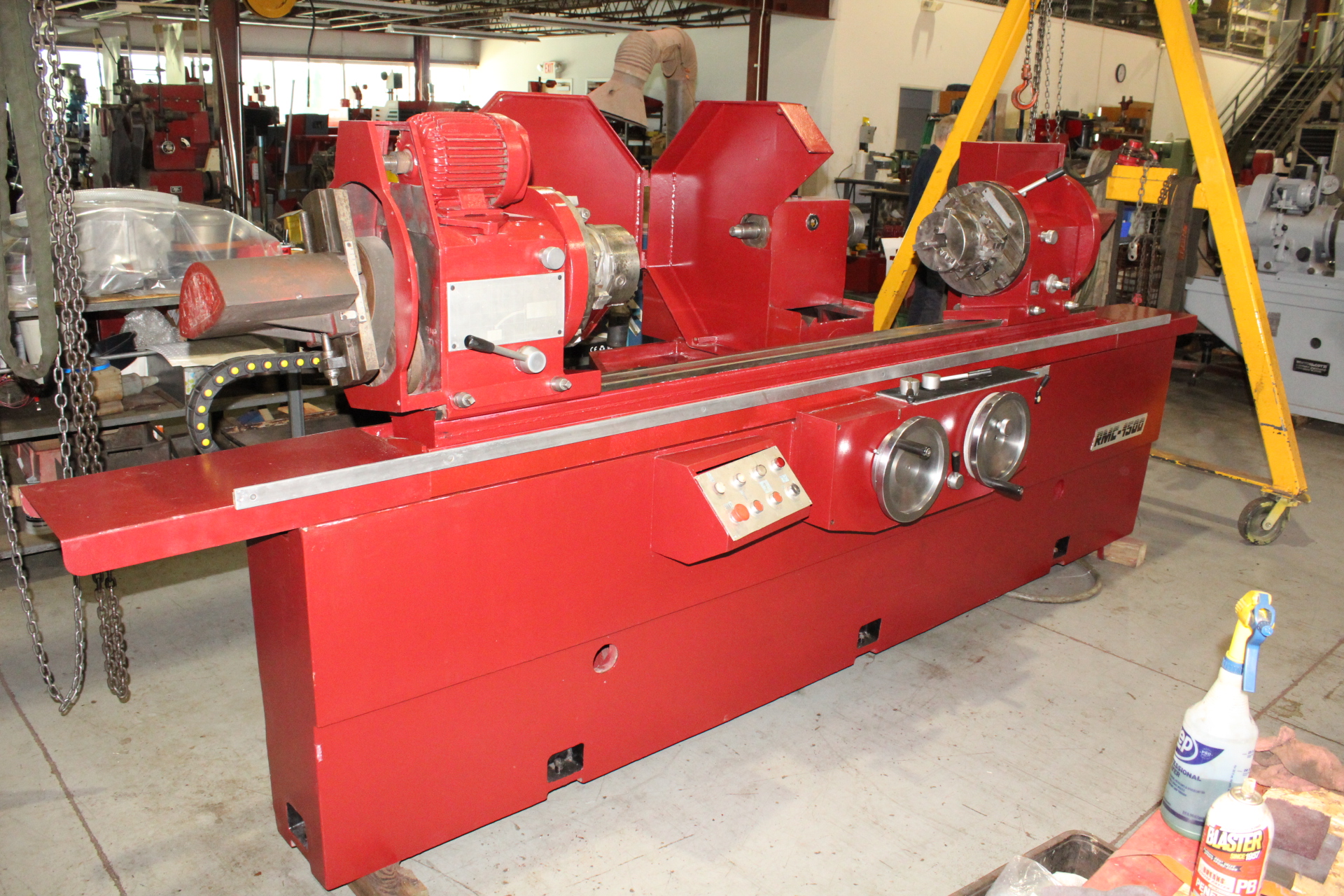

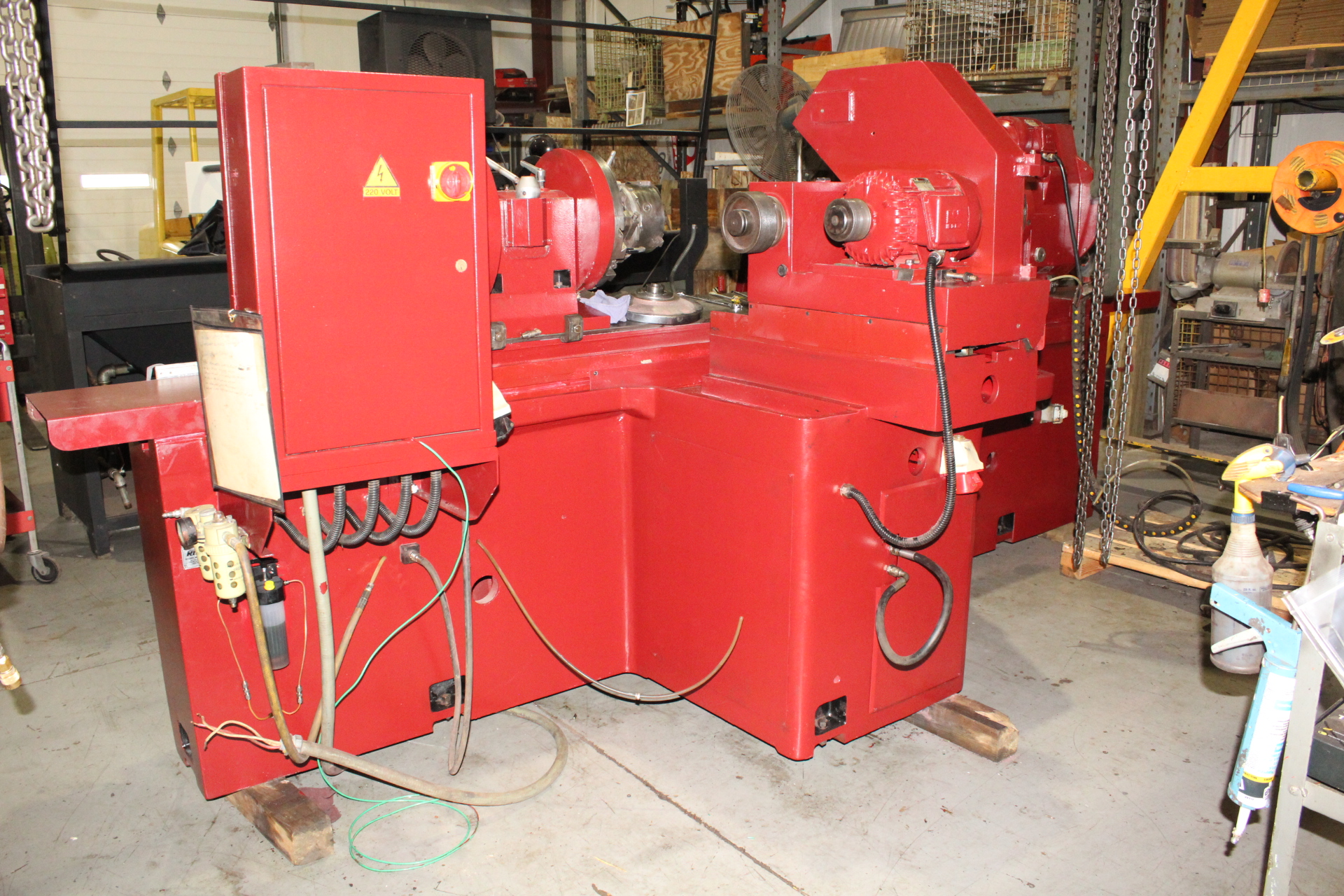

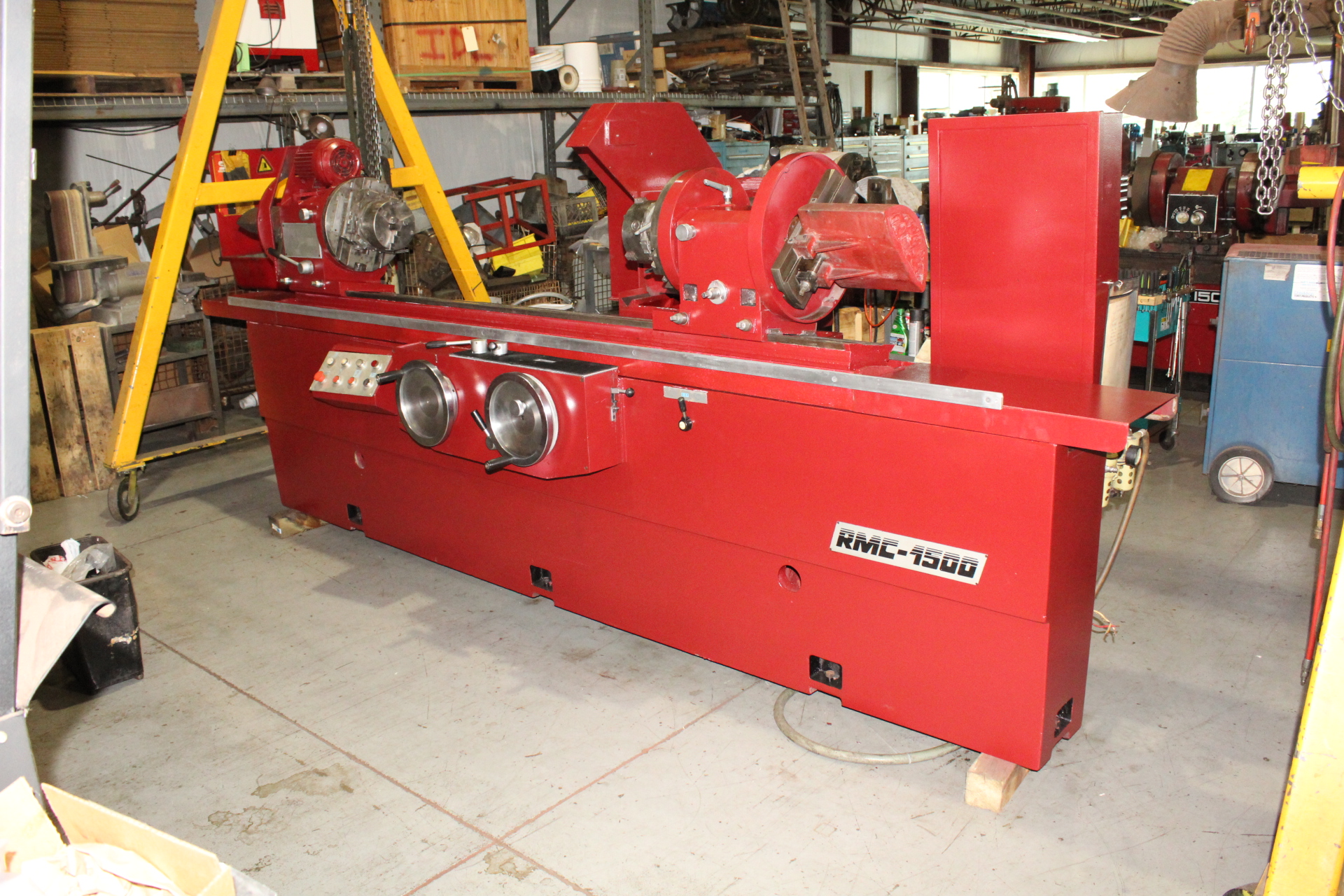

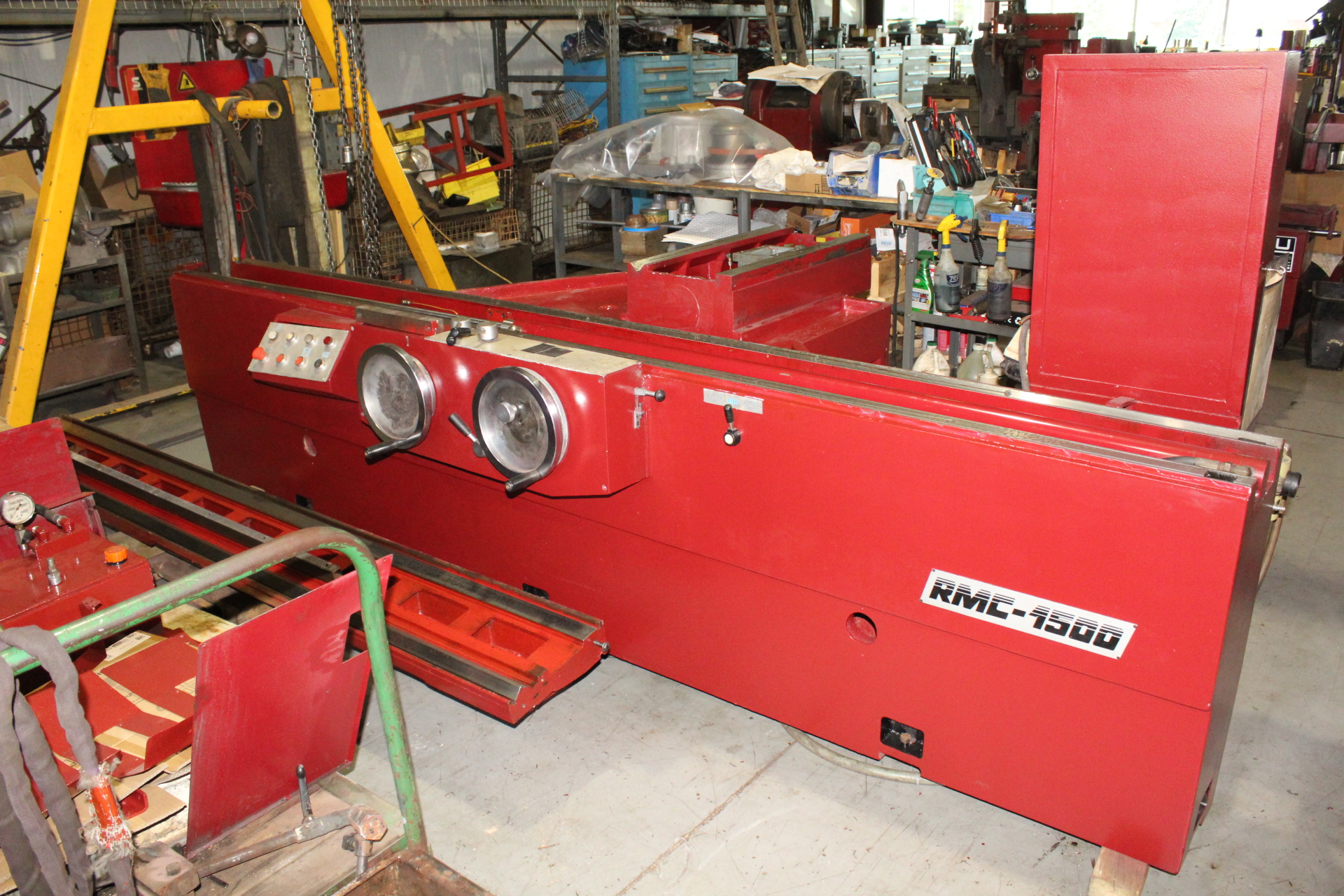

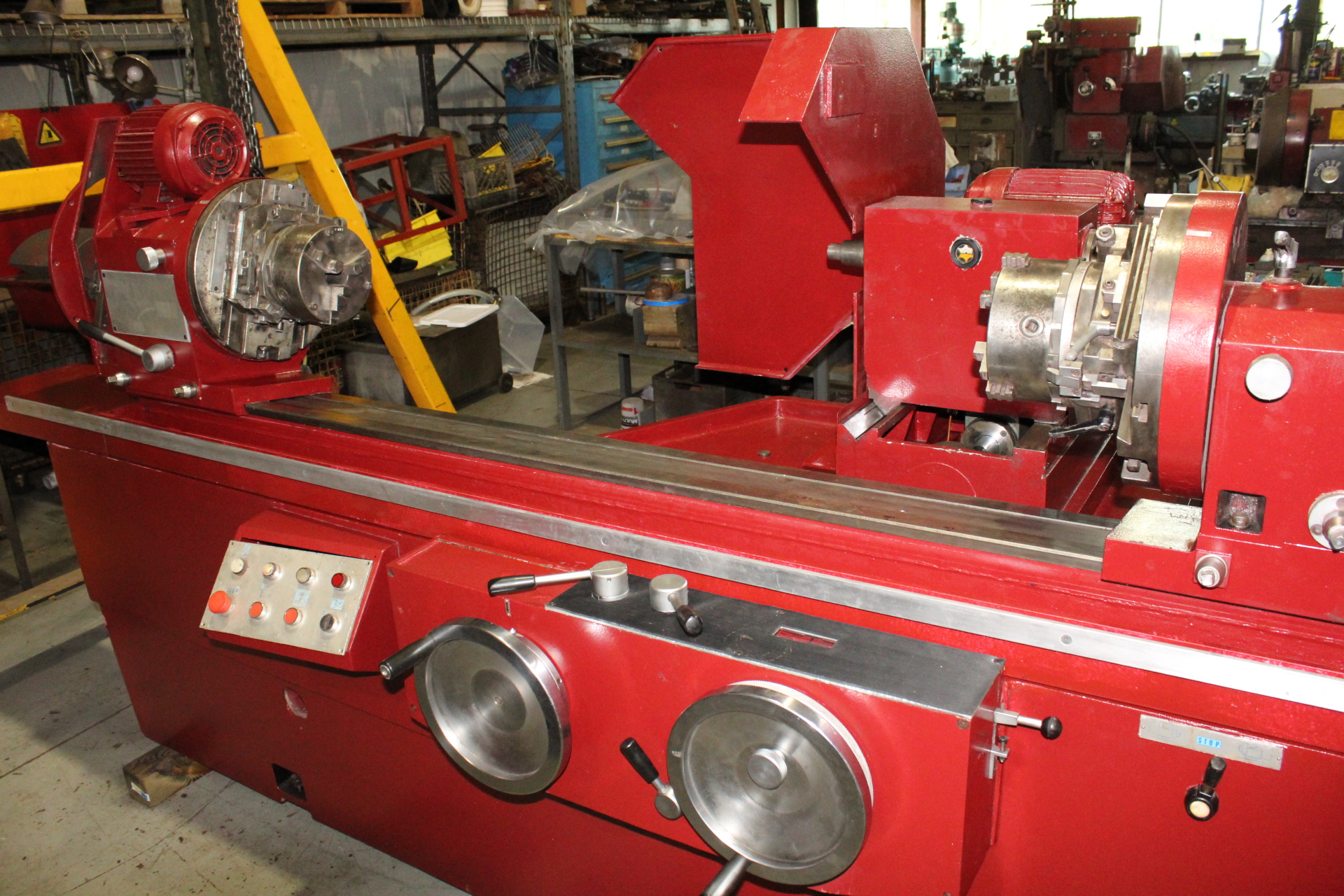

RMC 1500 Crankshaft Grinder

Specifications

Distance Between centers: 63"

Distance Between Chucks: 61"

Height of centers over table: 9.8"

Swing over Table: 19.7"

Max offset of centers: 4.0"

Max Grinding diameter: 8.1"

Fast Hydraulic wheelhead traverse: 4.5"

Hand wheelhead feed distance: 6.5"

Hand wheelhand feed graduations: .0002"

Wheelhead feed per revolution: .04"

Fast Hyraulic table Traverse: 118 in./min.

Grinding wheel speeds: 900-1000 r.p.m.

Max grinding wheel diameter: 28"

Max Width of grinding wheel: 2.75"

Diameter of chucks: 7.1"

Chuck hold diameter: 8.6"

Steady rest capacity: 1-3"

Workhead spindle speeds: 20-30-40-60 r.p.m.

Max weight on centers: 440 lbs

Max weight on rests: 1100 lbs

Wheelhead motor: 7 HP

Workhead spindle motor: 3/4-1 HP

Hydraulic power motor: 1 HP

Cooling pump: 1/12 HP

Lenght: 153"

Width: 59"

Height: 66"

Workspace required: 219x55"

Approximate net weight: 7273 lbs

Approximate shipping weight: 8378 lbs

Shipping box size: 142x64x 70"
