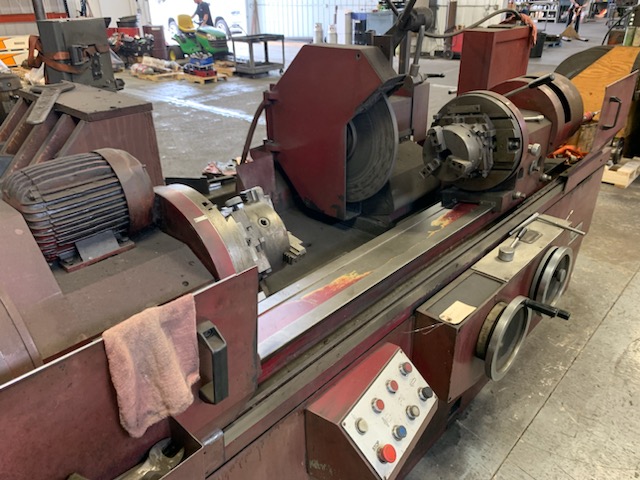

Robbi/RMC-1200 Crankshaft Grinder

Technical Specifications

- Distance between centers: 51.9"

- Distance between chucks: 51.2"

- Height of centers over table: 8.6"

- Swing over table: 17.3"

- Max offset of centers: 3.1"

- Max grinding diameter: 7.1"

- Fast hydraulic wheelhead traverse: 3.1"

- Hand wheelhead feed distance: 5.9"

- Hand wheelhead feed graduations: .0002"

- Wheelhead feed per revolution: .04"

- Table traverse handwheel revolution: 7/16"

- Fast hydraulic table traverse: 118" per min

- Grinding wheel speeds: 1000-1150 r.p.m.

- Max grinding wheel diameter: 24"

- Max width of grinding wheel: 2.5"

- Diameter of the chucks: 6.3"

- Chuck hold diameter: 7.8"

- Steady rest capacity: 1-3"

- Workhead spindle speeds: 35-70 r.p.m.

-Hydraulic power motor: 3/4 HP

- Cooling pump: 3/4 HP

- Lenght: 129"

- Width: 53"

- Height: 61"

- Workspace required: 181x59"

- Approximate net weight: 6173 lbs.

- Approximate shipping weight: 7055 lbs.
