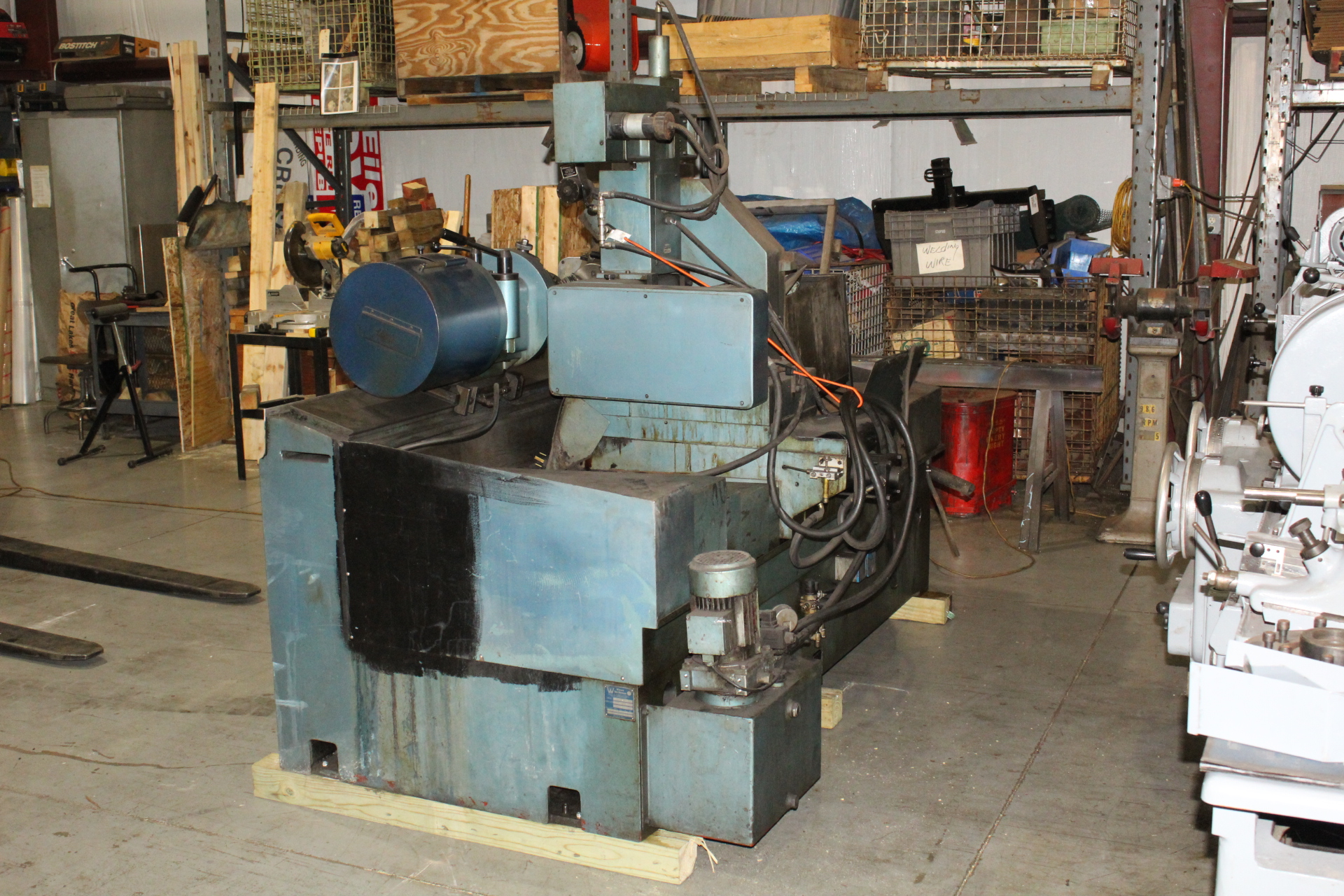

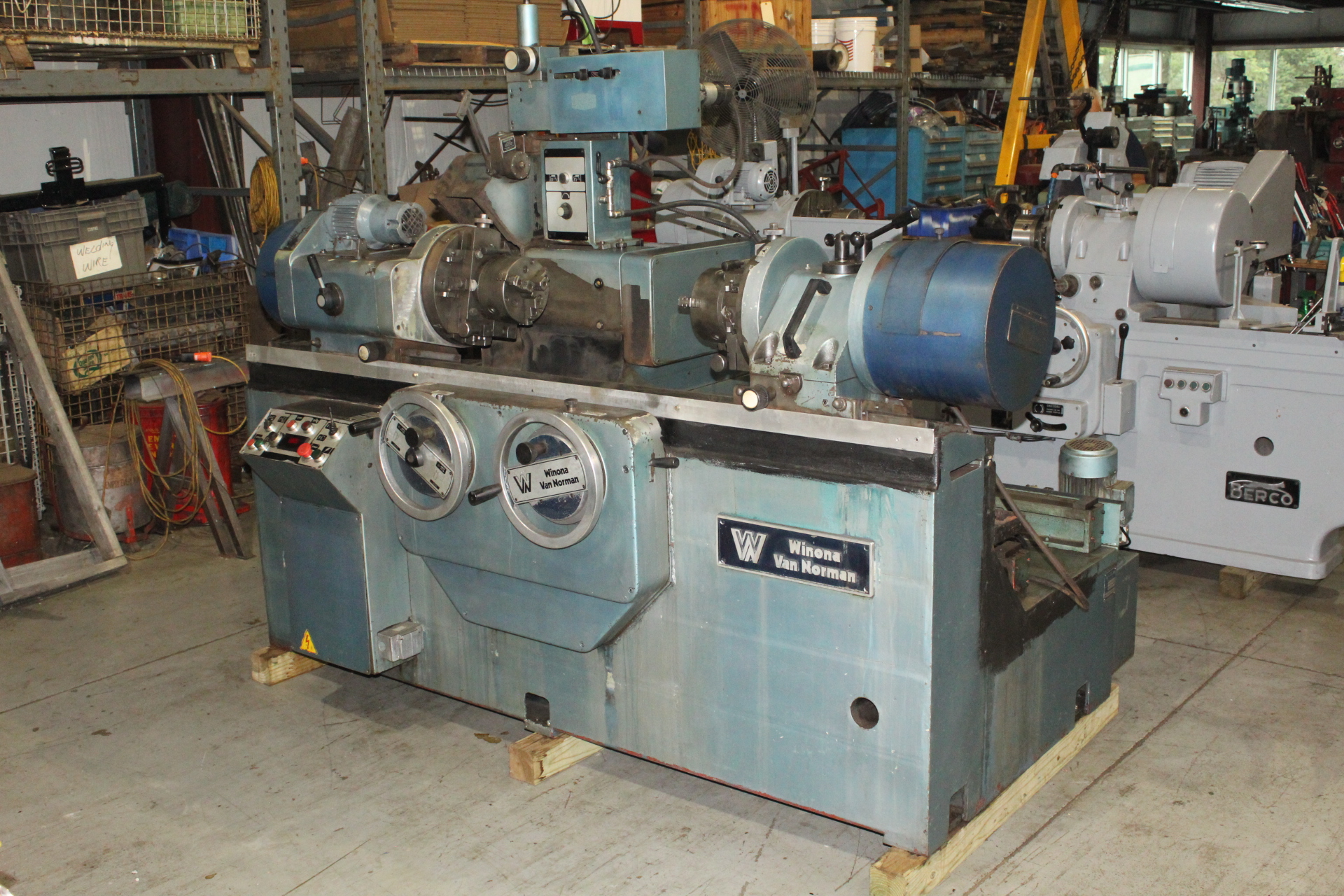

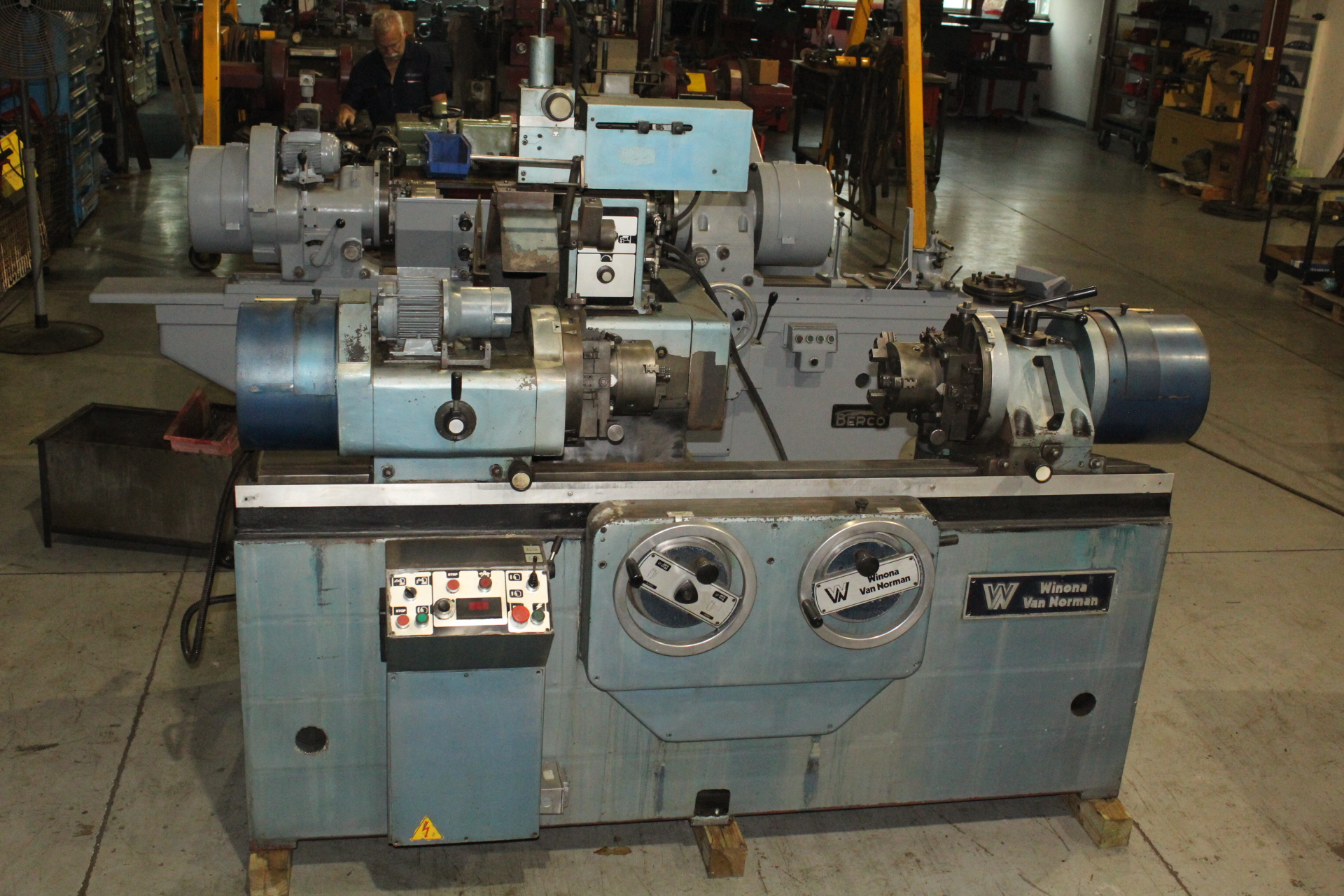

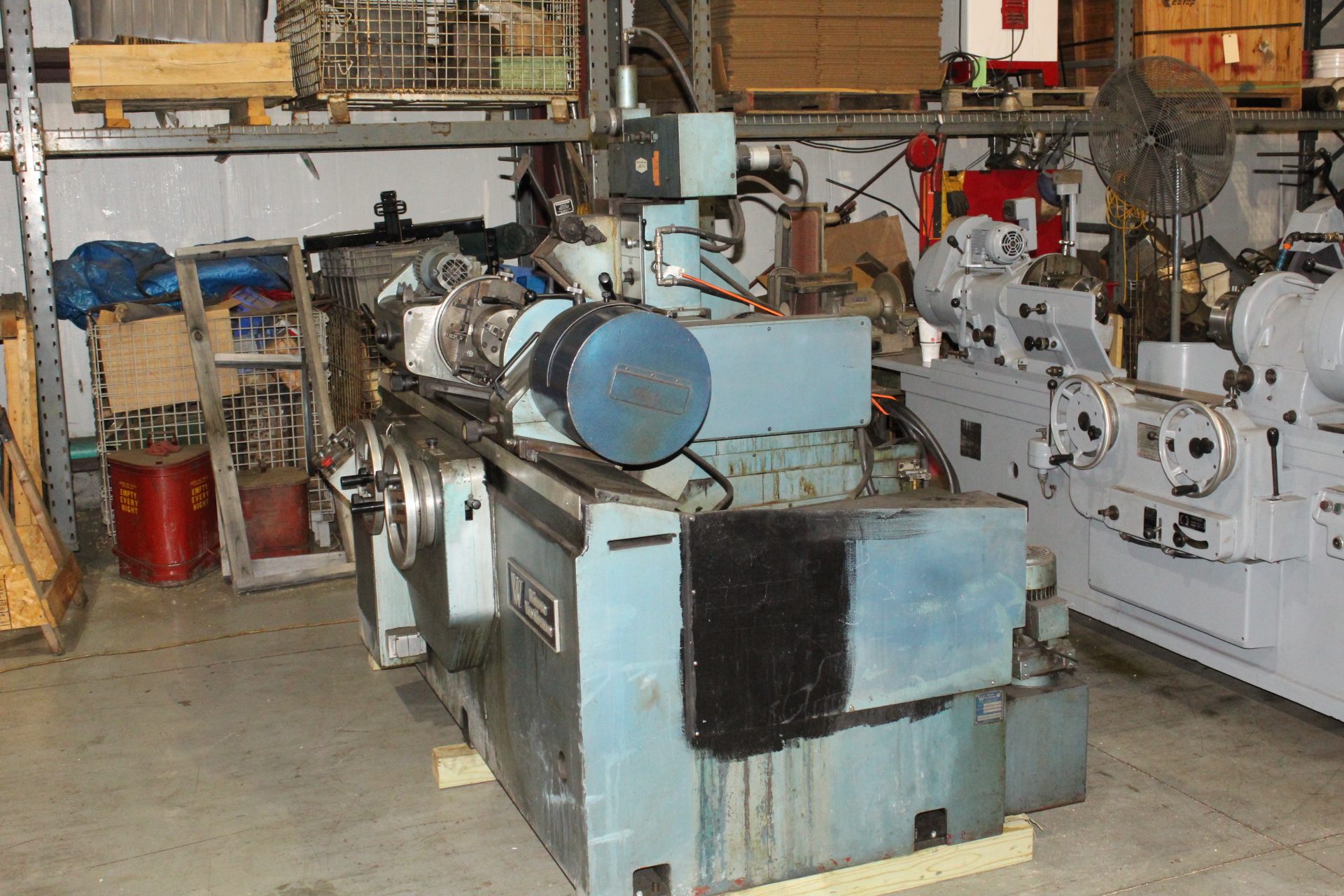

Winona Van Norman CG 210 Crankshaft Grinder

CG210
Used Machine; Call for Pricing

Specifications

Wheelhead motor- 5.5 HP

Headstock- .75 HP

Height of centers on table- 8.265 in (210mm)

Max distance between centers- 41.328 in (1050mm)

Max distance between self centering chucks- 38 in (965)

Diameter of grinding wheel- 24 in (610mm)

Max grinding wheel thickness- 1.968 in (50mm)

Diameter of Chucks- 6.875 in (175mm)

Fast grinding wheel in-feed- 4.718 in (120mm)

Fine grinding wheel in-feed- 5.890 in (150mm)

Grinding wheel traverse per turn of handwheel, course- .875 in (22mm)

Grinding wheel traverse per turn of handwheel, fine- .937 in (6mm)

Grinding wheel in-feed per turn of handwheel- .046 in (1mm)

Headstock variable speed- 0-120 RPM

Lenght- 90.546 in (2300mm)

Width- 65.734 in (1670mm)

Height- 59.046 in (1500mm)

Weight- 5511 lbs (2500 kg)
