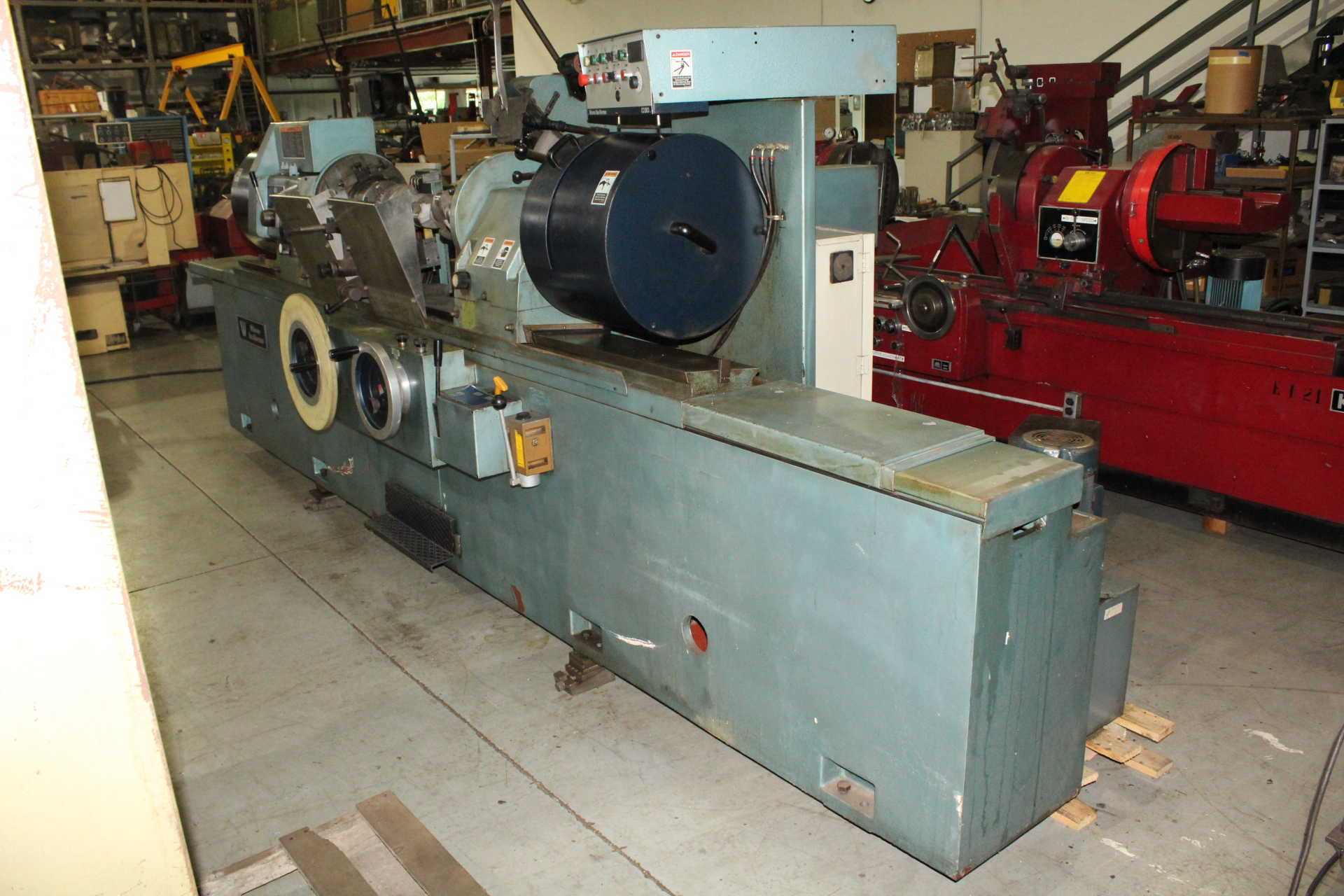

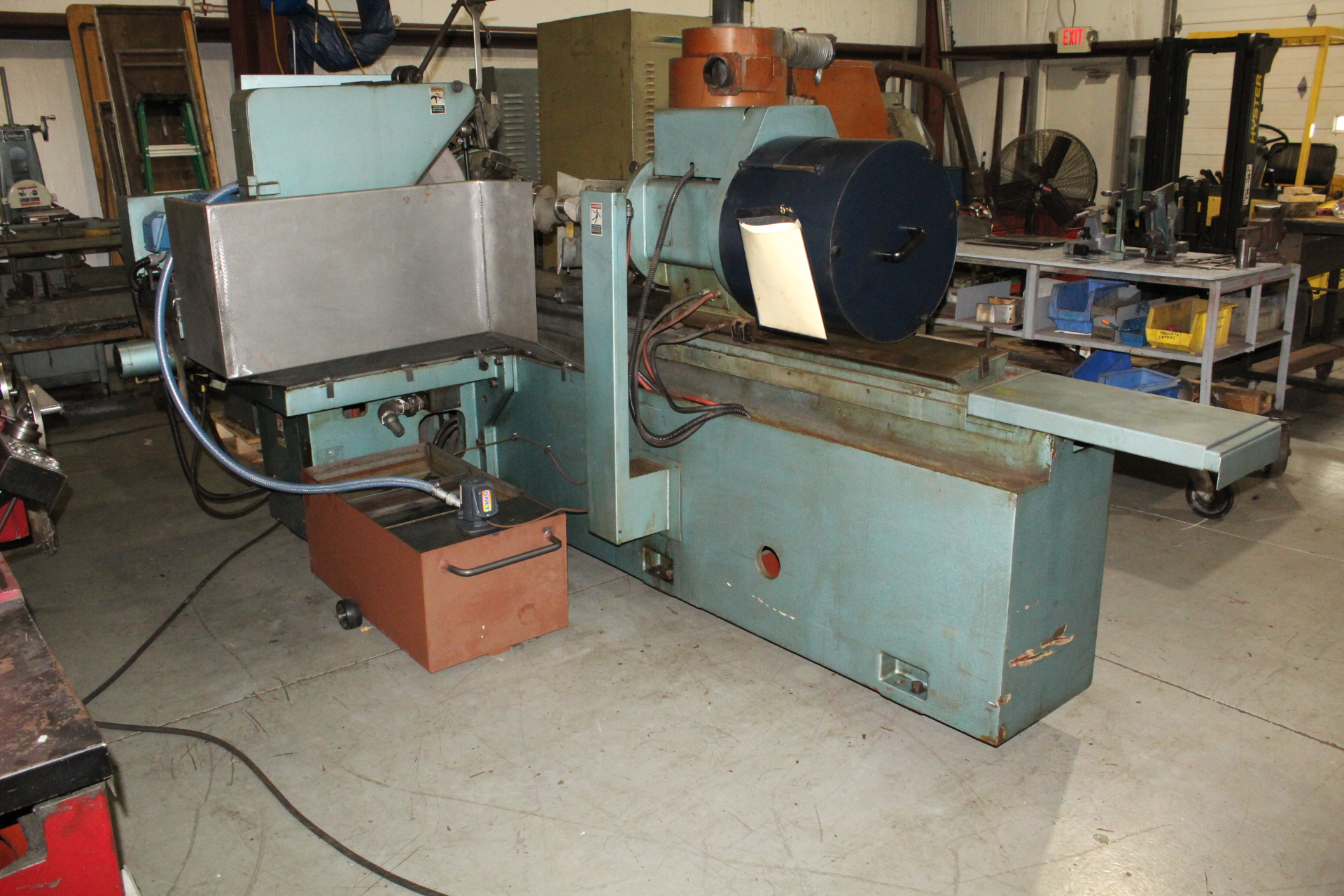

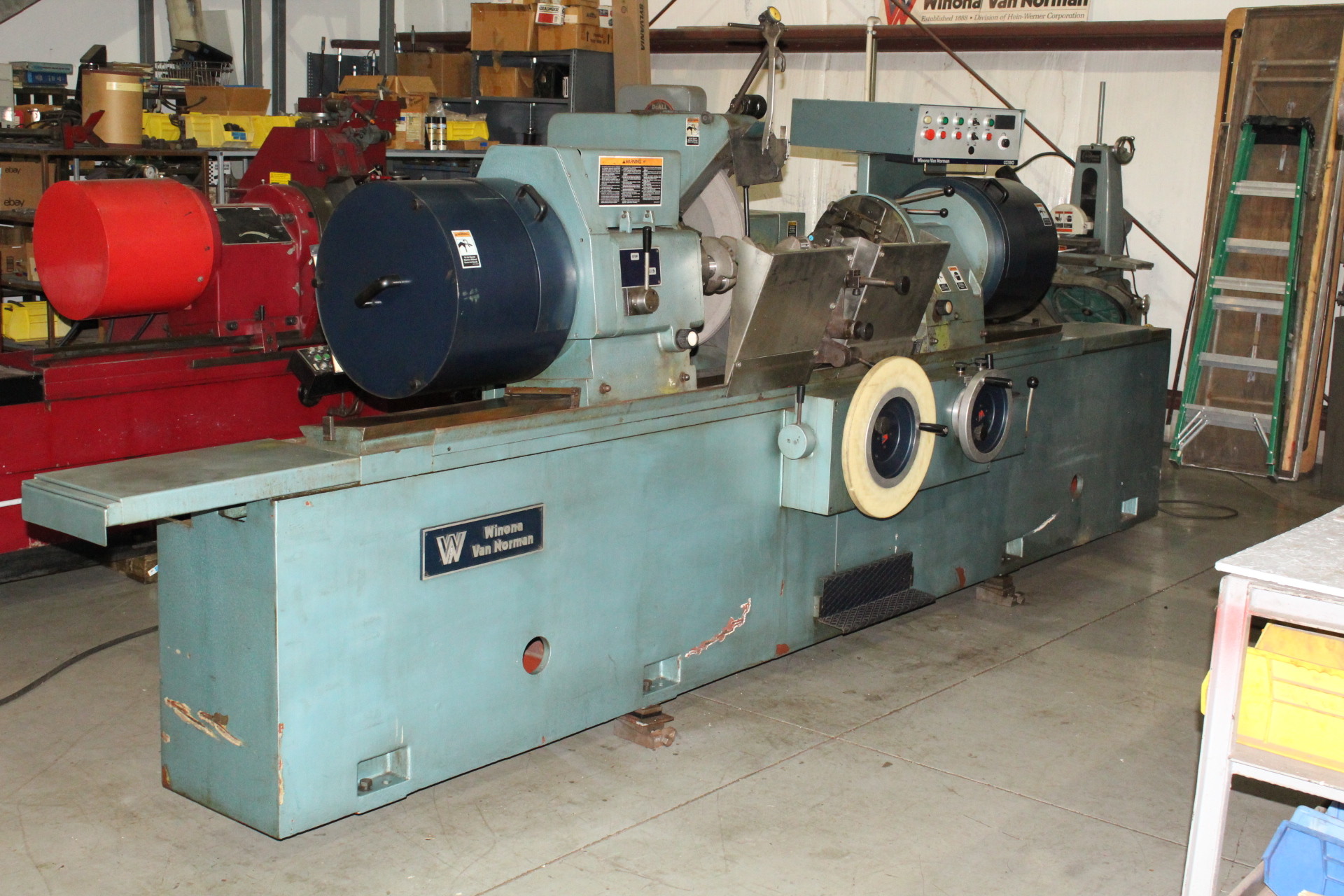

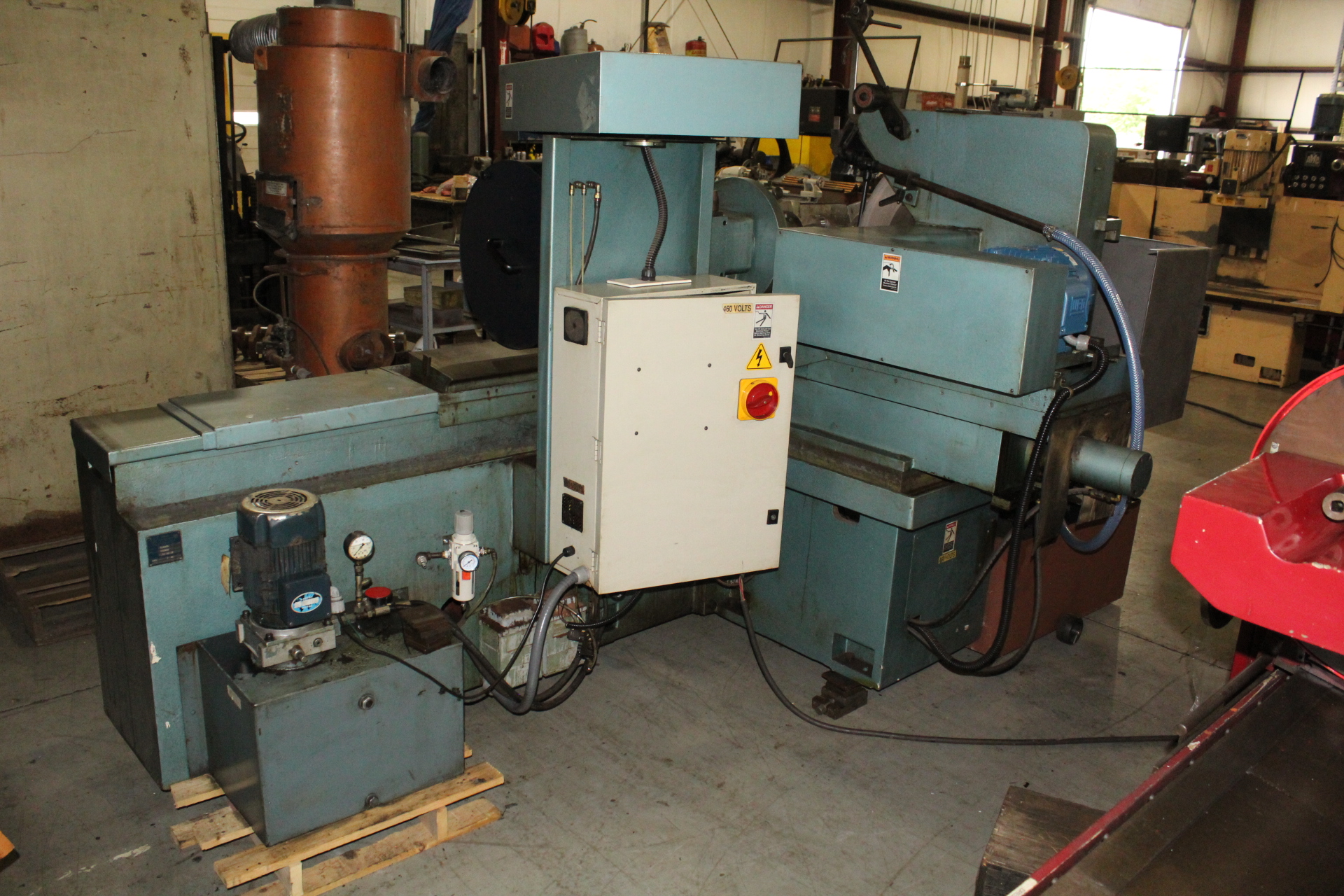

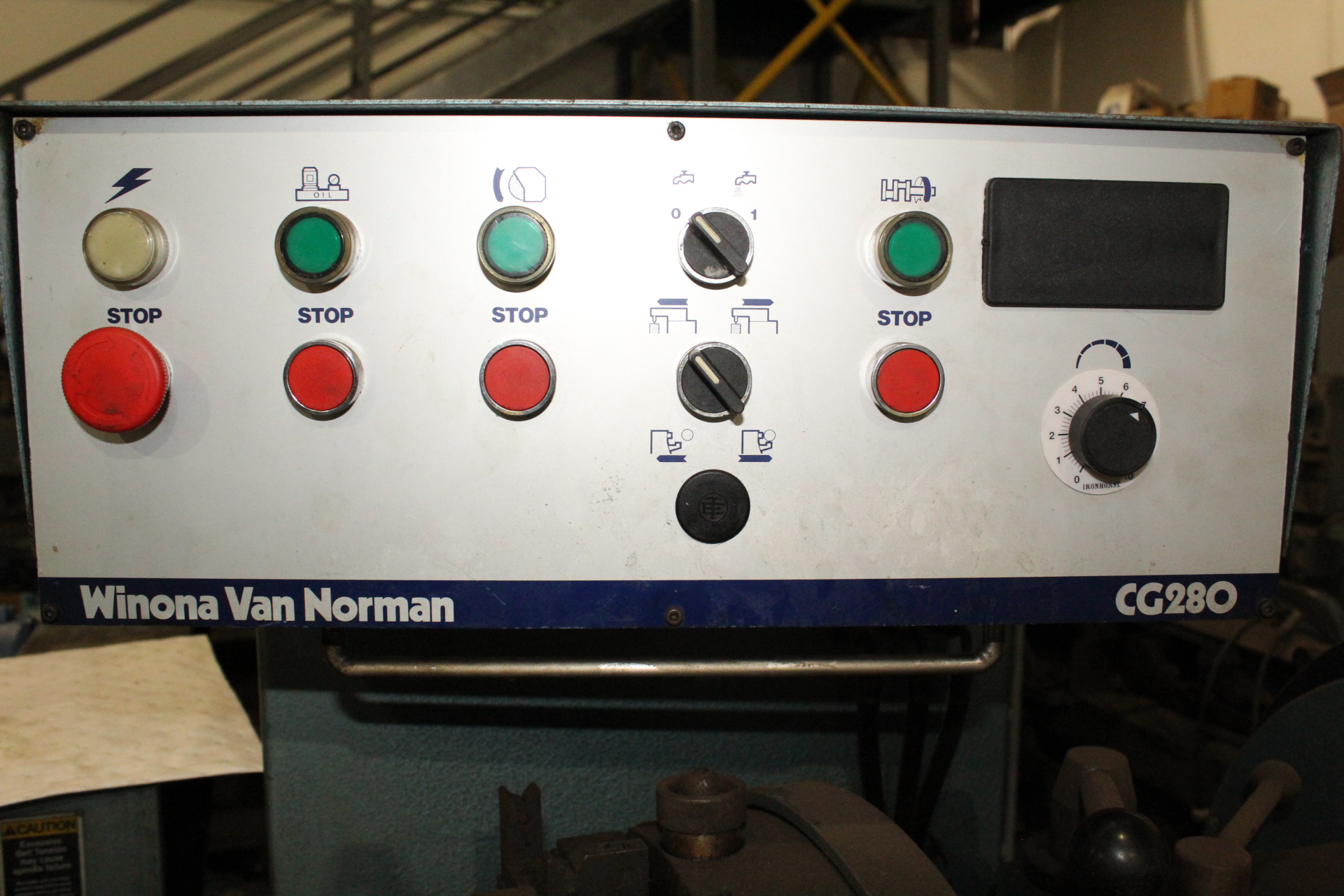

Winona Van Norman CG-280 Crankshaft Grinder

Specifications

Maximum Crankshaft size : 78"x23.8 (1981 x 604 mm)

Maximum distance between chucks: 78" (1981mm)

Height of centers on table: 11.9" (302mm)

Maximum swing over table: 23.8" (604mm)

Maximum head offset: 5" (128)

Grinding wheel diameter: 32" (813mm)

Maximum grinding wheel width: 2.4" (61mm)

Chuck diameter: 8" (203mm)

Workpiece rotation speeds: 0-90 RPM

Wheelhead Motor: 10 HP

Headstock Motor: 2 HP

Machine Lenth: 256" (6500mm)

Machine Width: 80" (2032mm)

Machine Height: 63" (1600mm)

Machine Weight: 10,700 lb (4853kg)

Domestic ship. Wt.: 11,300 (5126kg)
