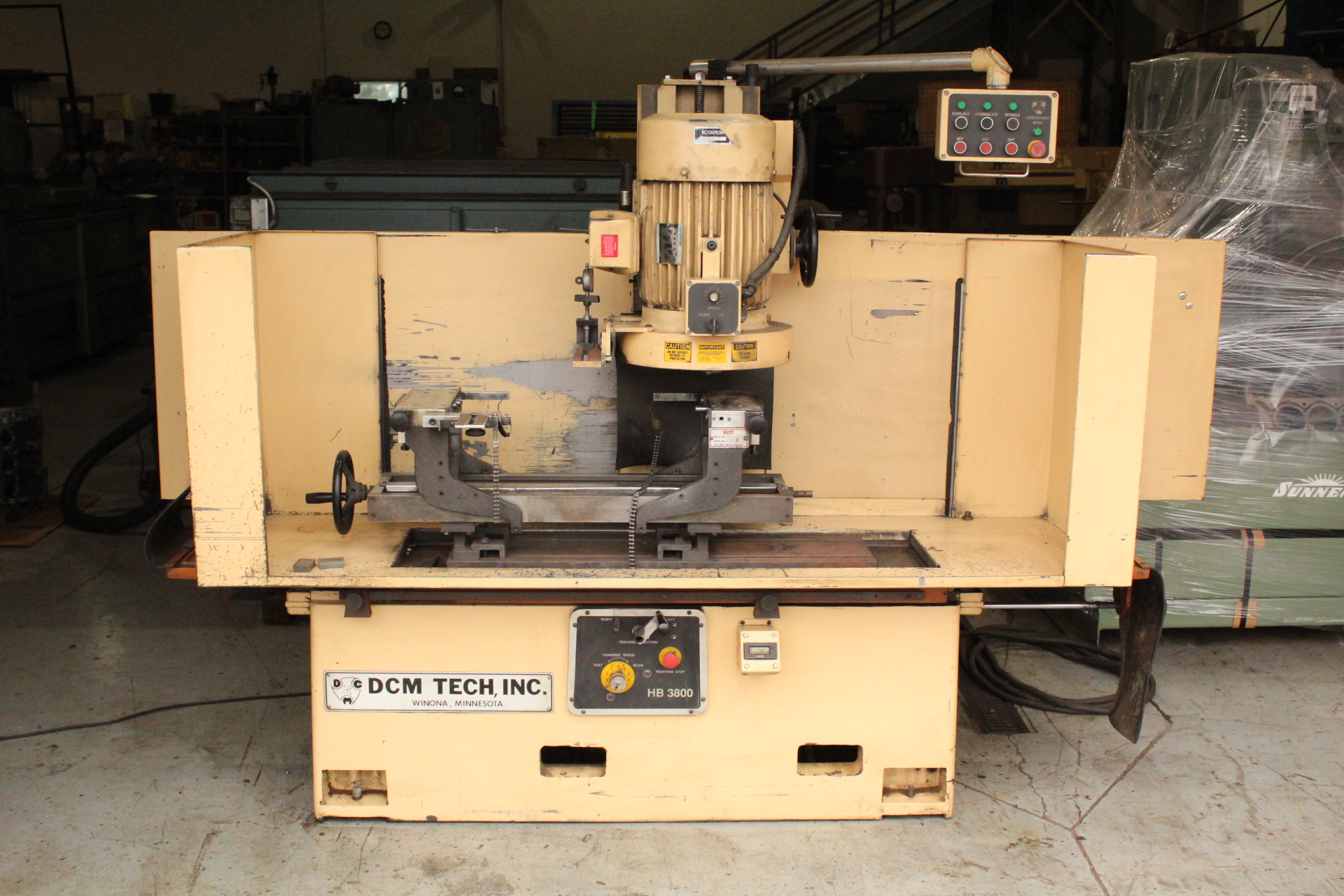

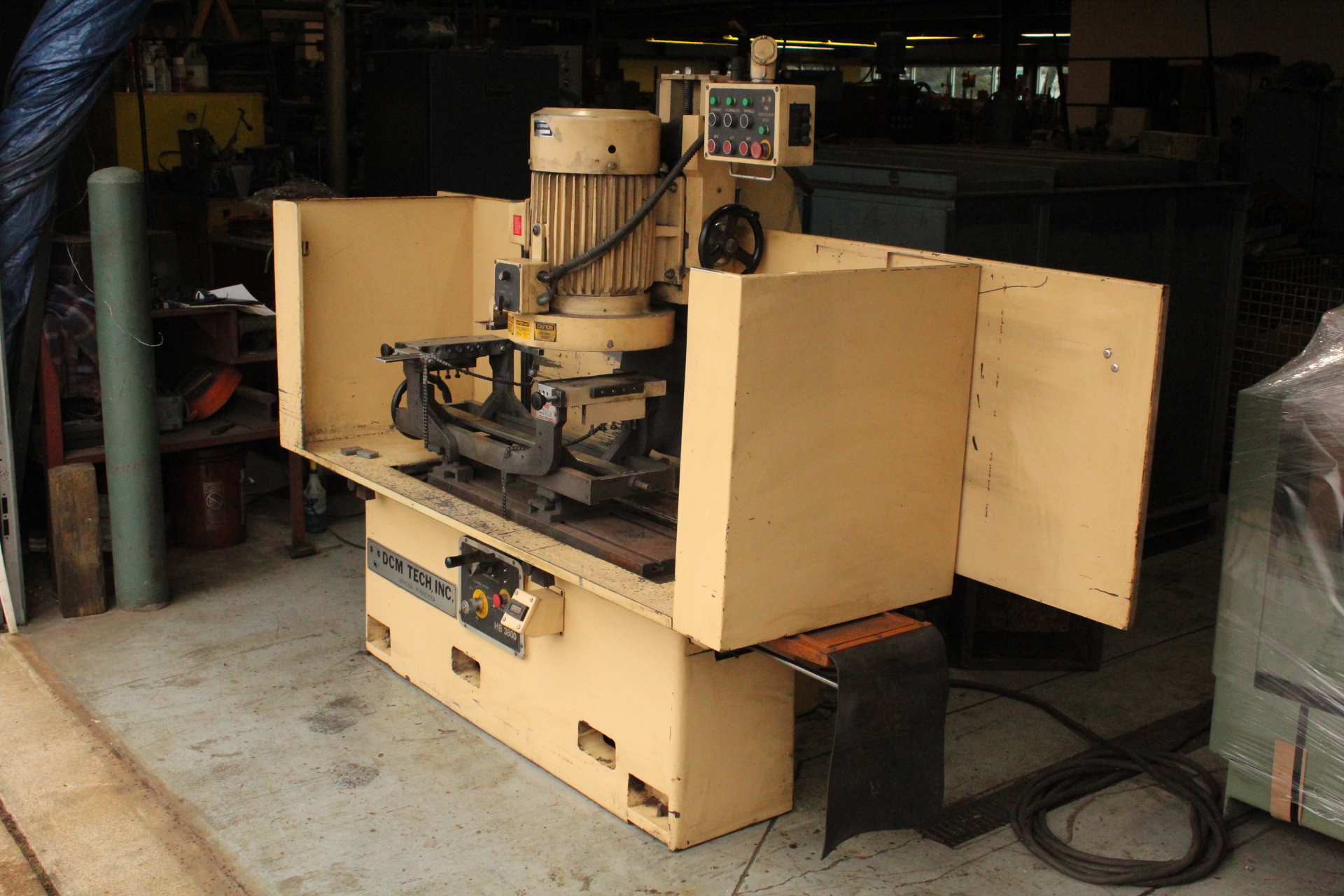

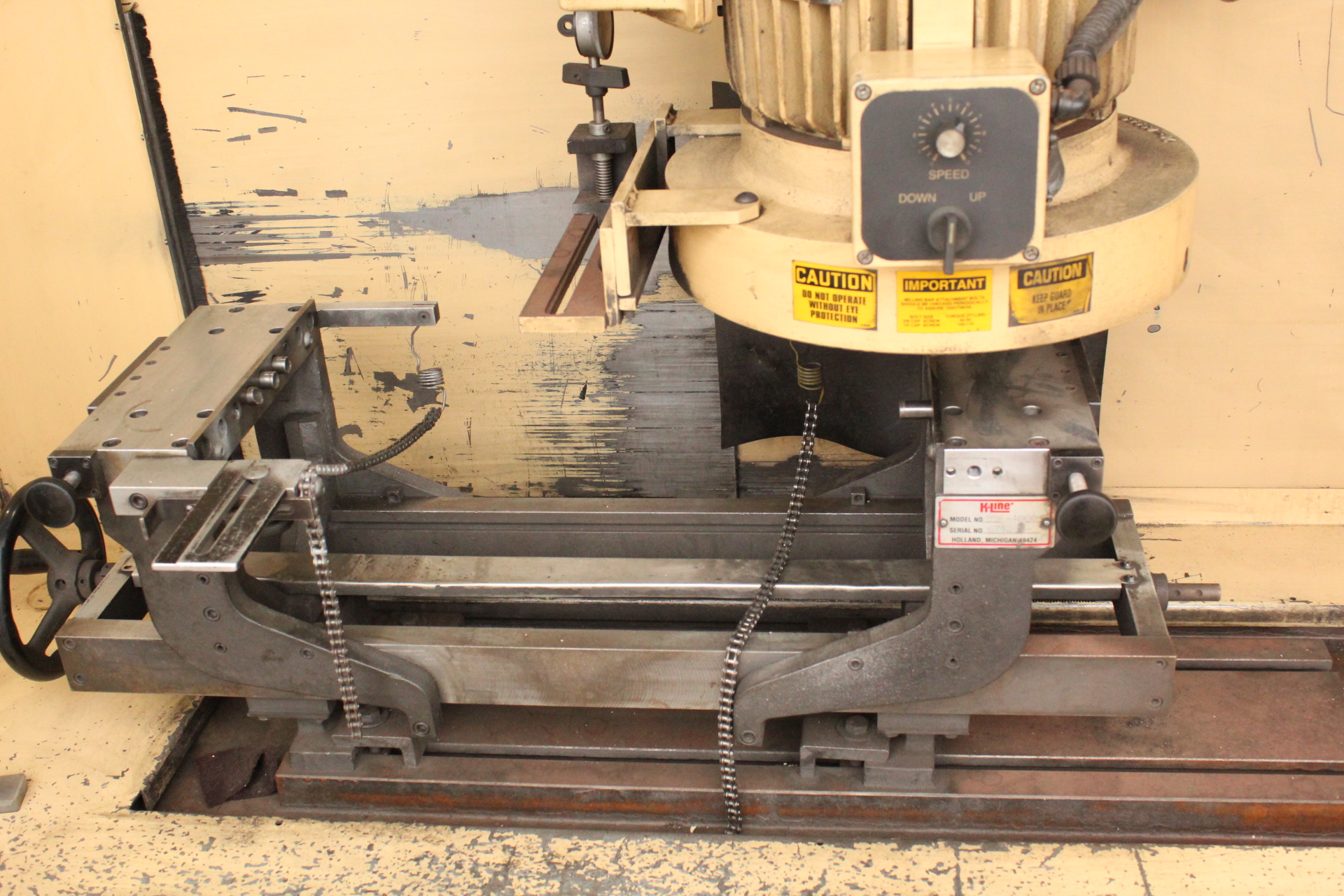

DCM HB-3800 Head & Block Resurfacing Machine with Winfield Fixture

Stock #3800Used Machine; $19,500


Table Travel: 46-1/2"

Max. Ht. Table to Seg Grinding wheel: 24-7/8"

Max. Ht. Table to CBN Tool (mill Only Mach.): 25-1/4"

Max. Workpiece Length: 38"

Max. Workpiece width (Table at Center): 14"

Physical Dimentions (Table to Center): 90"L x 42" W x 74" H

Min. Req. Flr. Space (operator not included): 42"x140"

Spindle Motor: 7.5 HP Variable speed

Power column

Hyd. Pump: 1/2 HP

Submersible Coolant Pump: 1/6 HP

Control Voltage: 115v

Standard machine power: 230v

Machine Net Wt. 3050 Lb

Machine Shipping Weight: 3300 Lb
