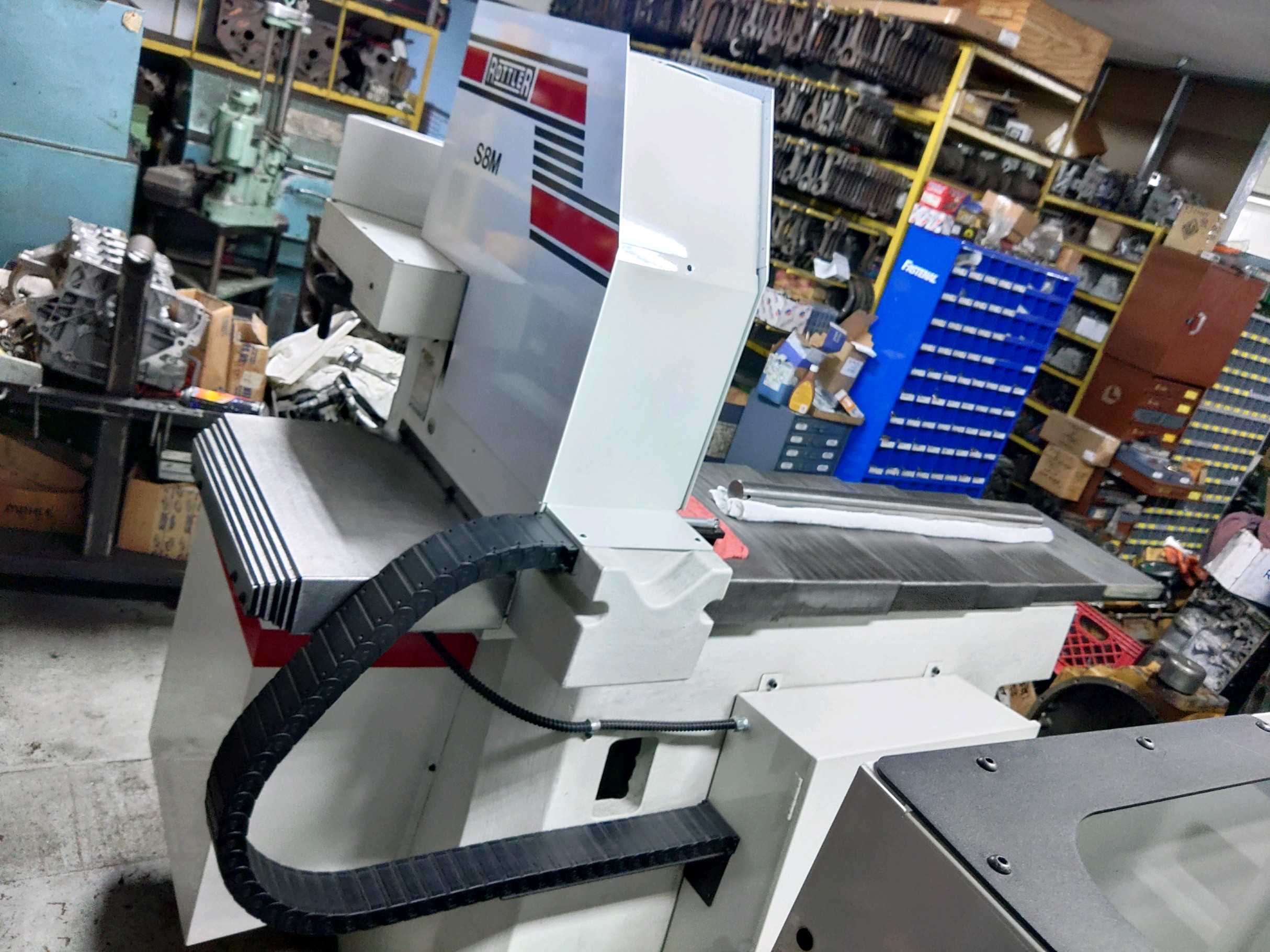

Rottler S8M-CBN Surfacer
The S8M is designed to surface large diesel heads, blocks and manifolds.
All SM Series machines use the same tooling and fixturing for quick, rigid setup
and versatility. Fine surface finishes are easily obtained with both variable speeds and
feeds as standard equipment.
Specifications:
Model: S8M
Date of MFG: 01/16
Cutter Diameter: 16” Std/18" Opt / 420mm Std/460MM Opt
Cutter Travel Horizontal: 50” / 1275mm
Cutter Travel Vertical: 6” / 150mm
Max. Distance - Cutting Inserts to Machine Base : 25” / 635mm
Spindle Speeds Variable RPM: 350-1800
Spindle Feeds Variable per Rev: .001”-.080” / .025-2mm
Rapid Traverse Rate per Min: .160” / 4mm
T Slot Table Size: 54” x 21” / 1370mm x 530mm
Floor Space Required: 85” x 46” / 2160mm x 1170mm
Electrical Requirement:
Full Load:15A
Voltage Range: 208-240V, 1 Phase, 50/60 Hz
Air Requirement : .5 cfm @100PSI 6 bar
Shipping Weight: 4,100lbs / 1864kg
