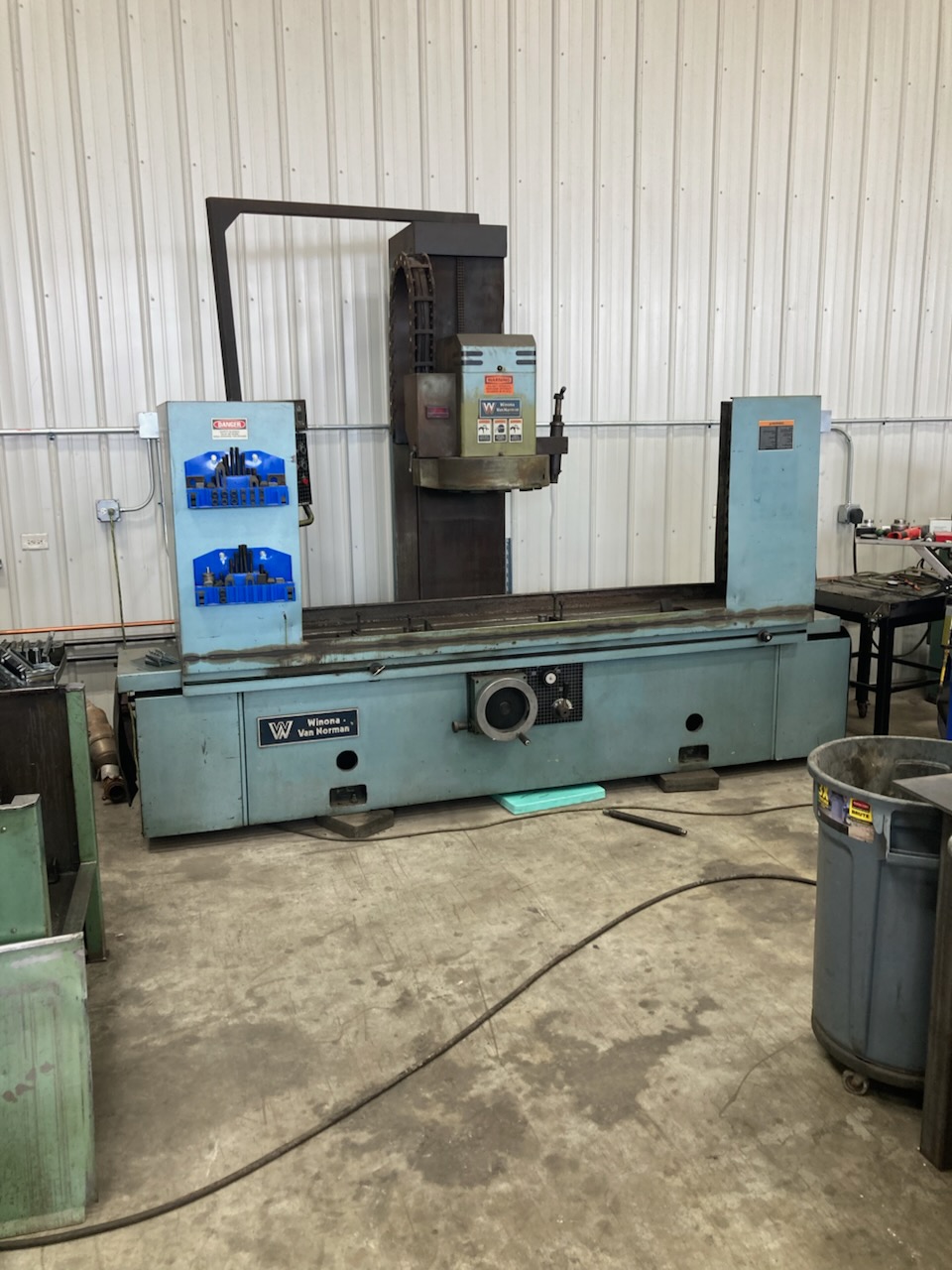

Winona Van Norman SM6000C Surface Grinder

Specifications

Machine Length: 126"

Machine Width: 51"

Machine Height: 91"

Work Space required: 17.5' x 5'

Max Height of work Piece: 37.8"

Max Width of work Piece: 17.75"

Max Length of Work Piece: 66.5"

Table Travel: 74.8"

Table Traverse Rate: 0-236 IPM

Wheelhead Vertical Travel: 25.5"

Wheelhead Speed: 175-350-1400 RPM

Wheelhead Downfeed: 0-0.002"

Grinding Wheel: 17.75"

Grinding Head motor: 10 H.P

Electrical: all voltages and frequencies available.

Net Weight: 6100 lb

Shipping Weight: 6600 lb
