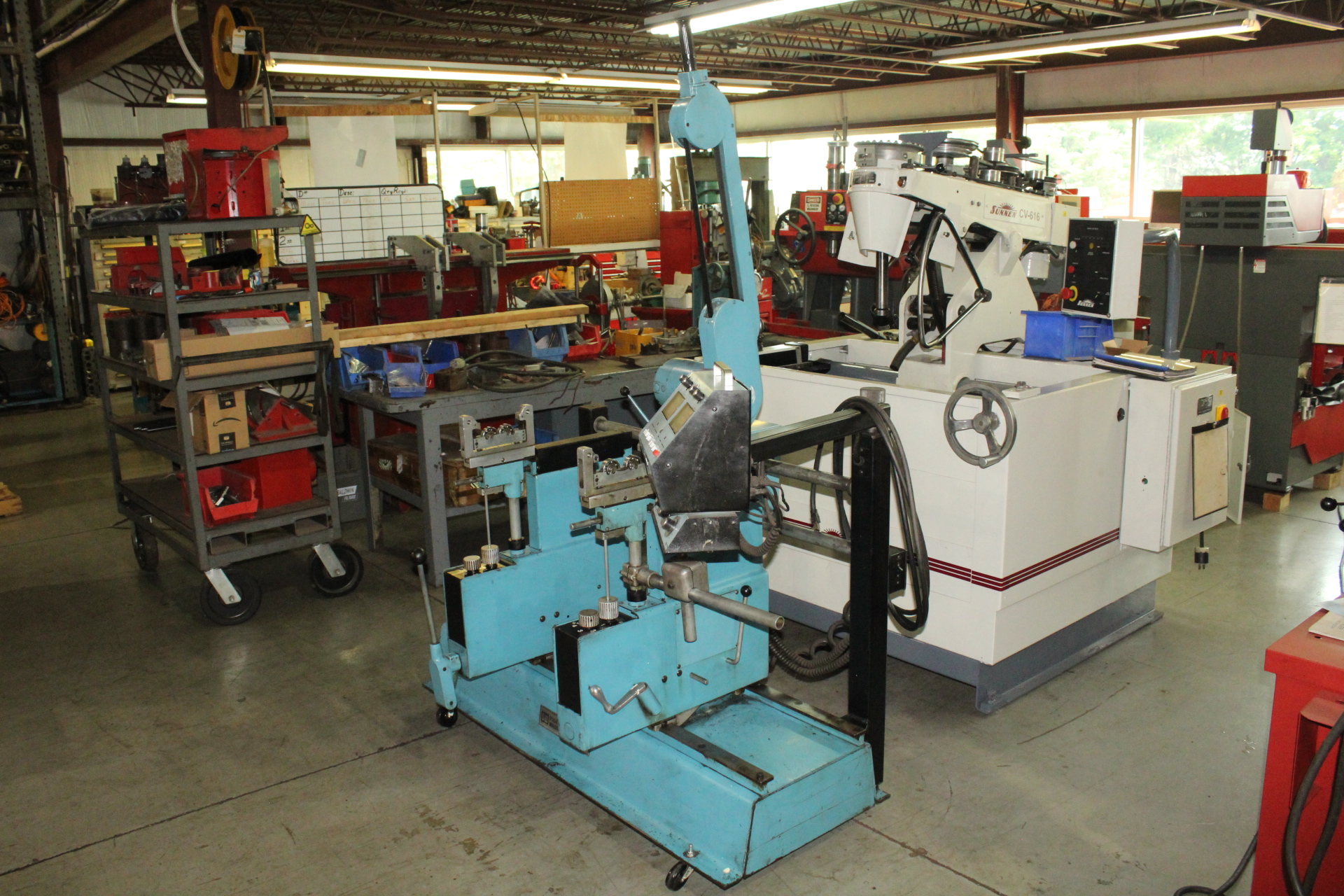

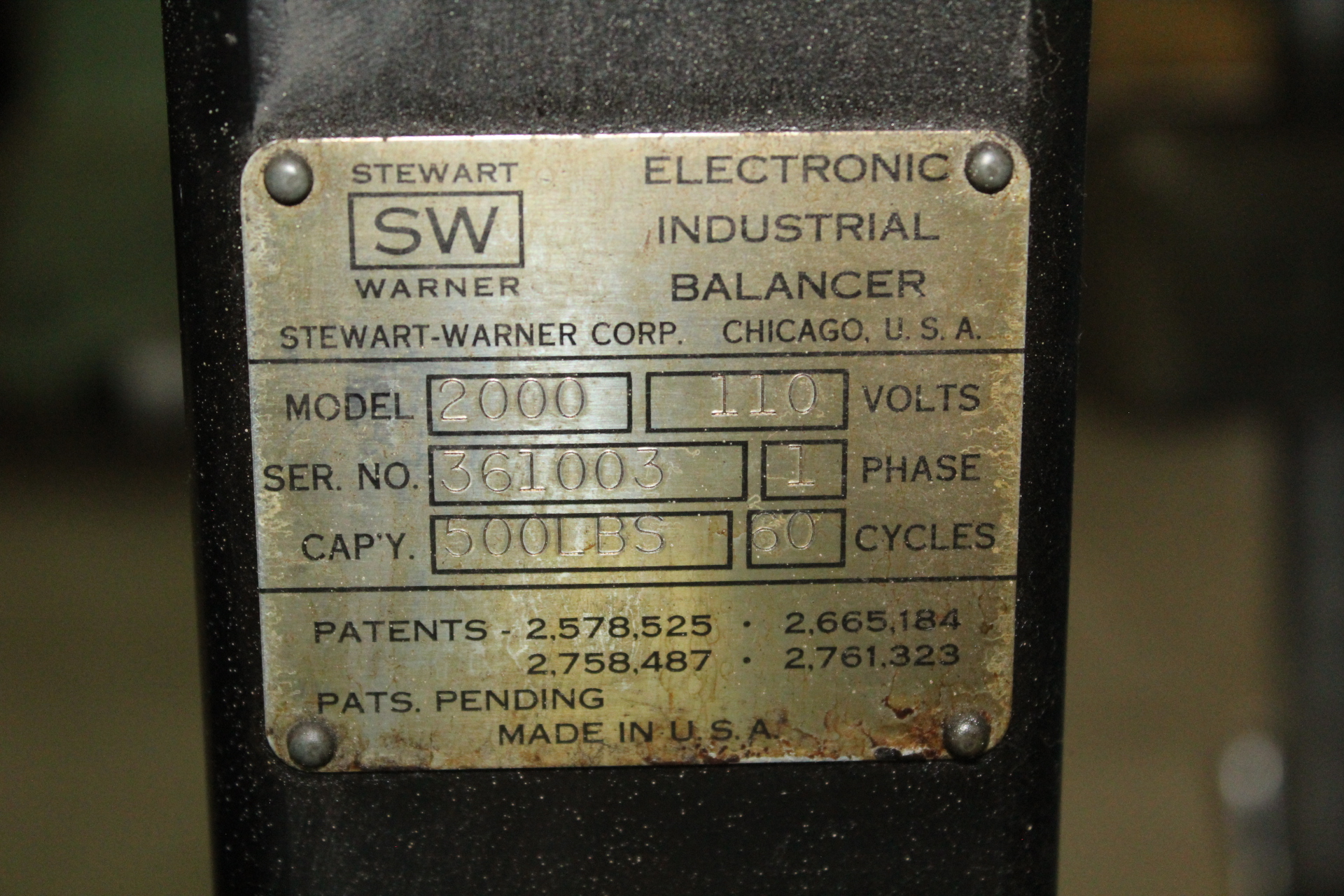

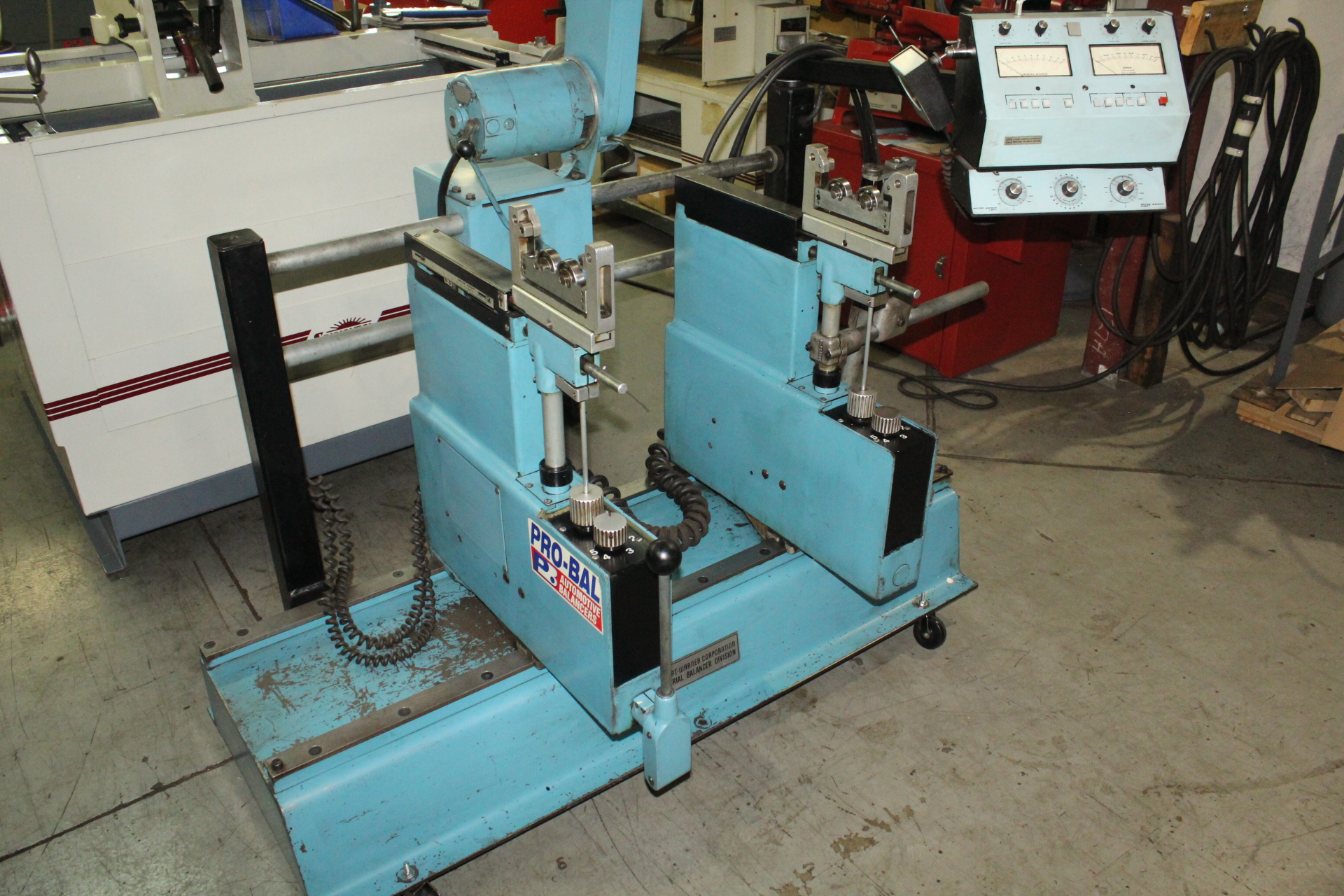

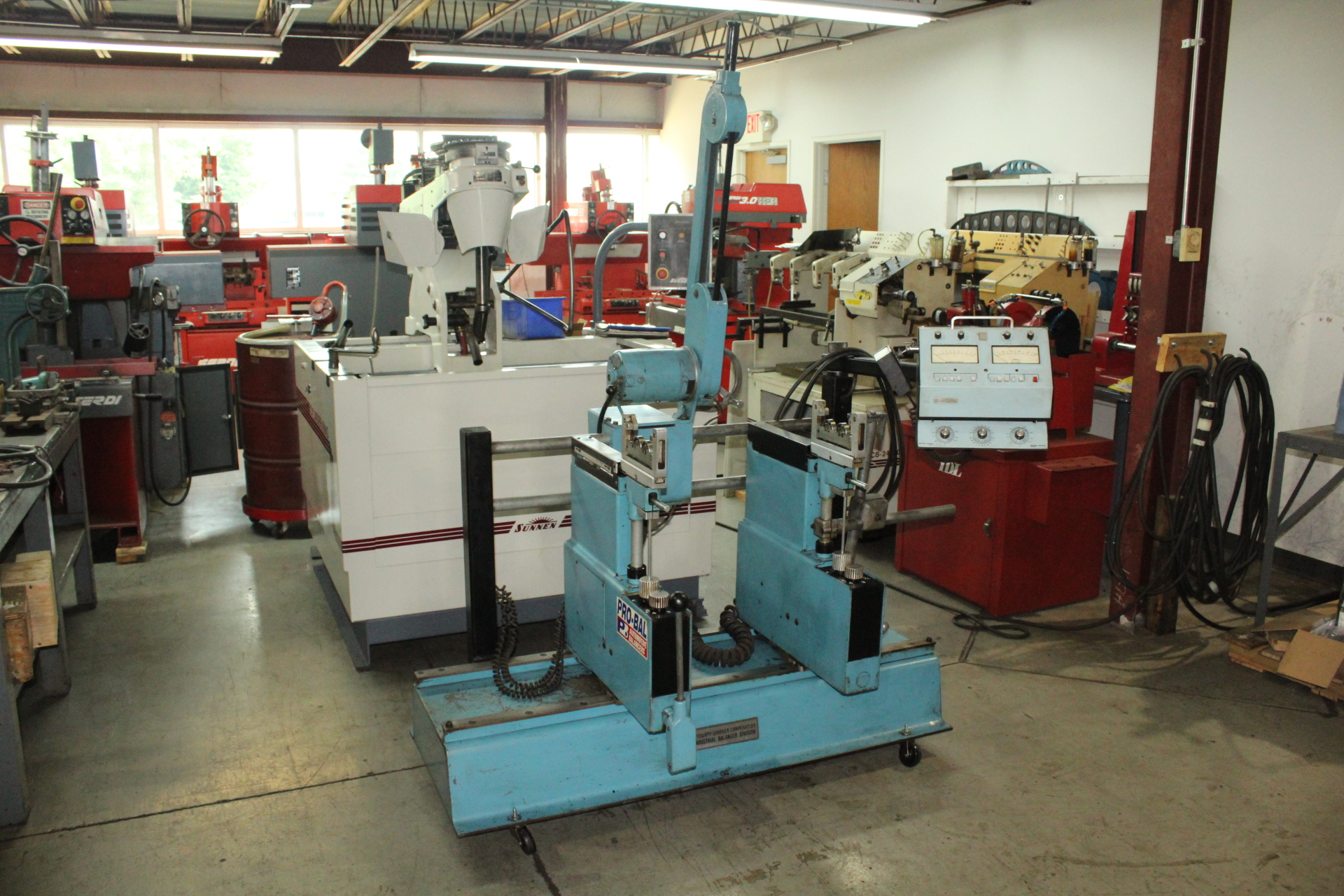

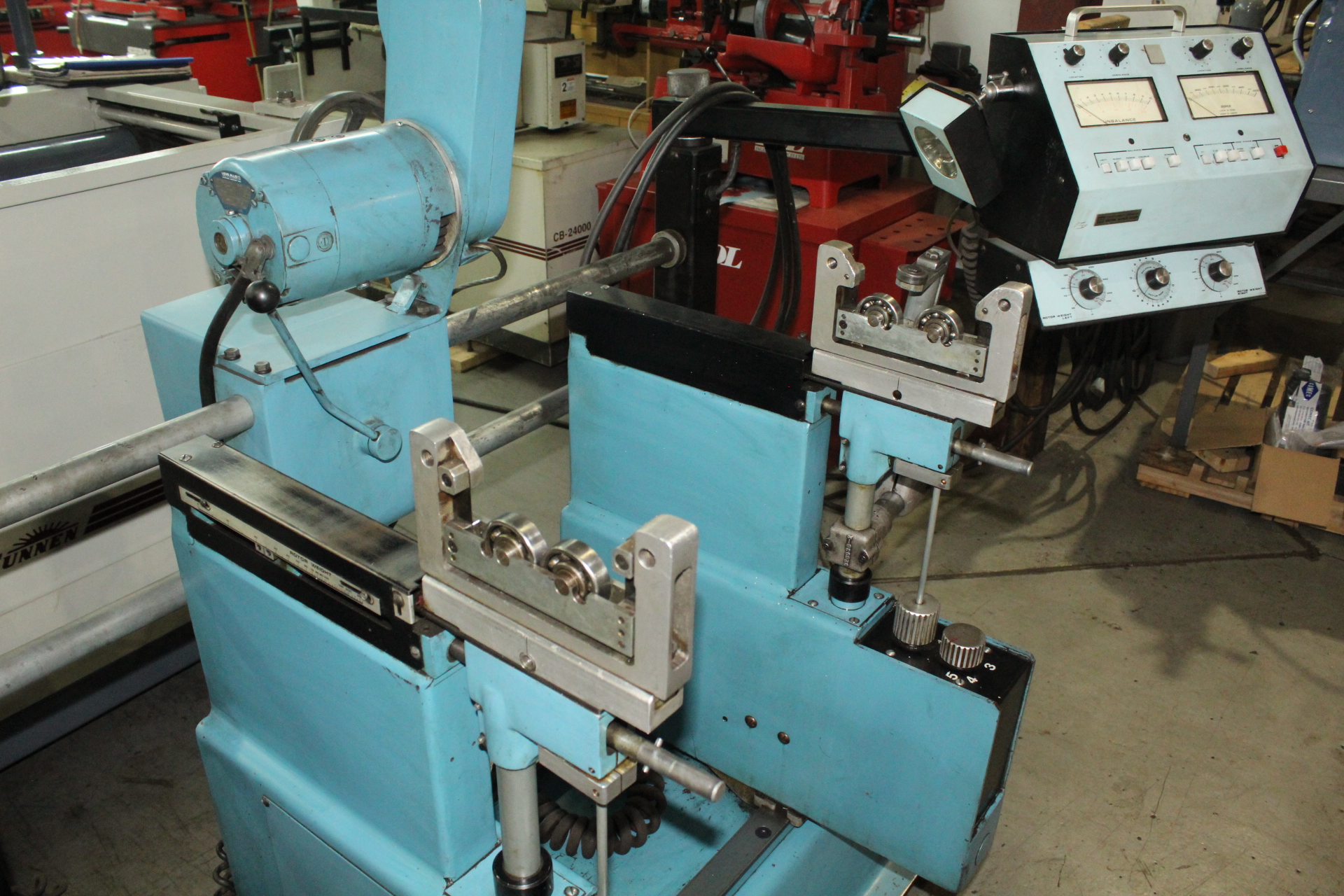

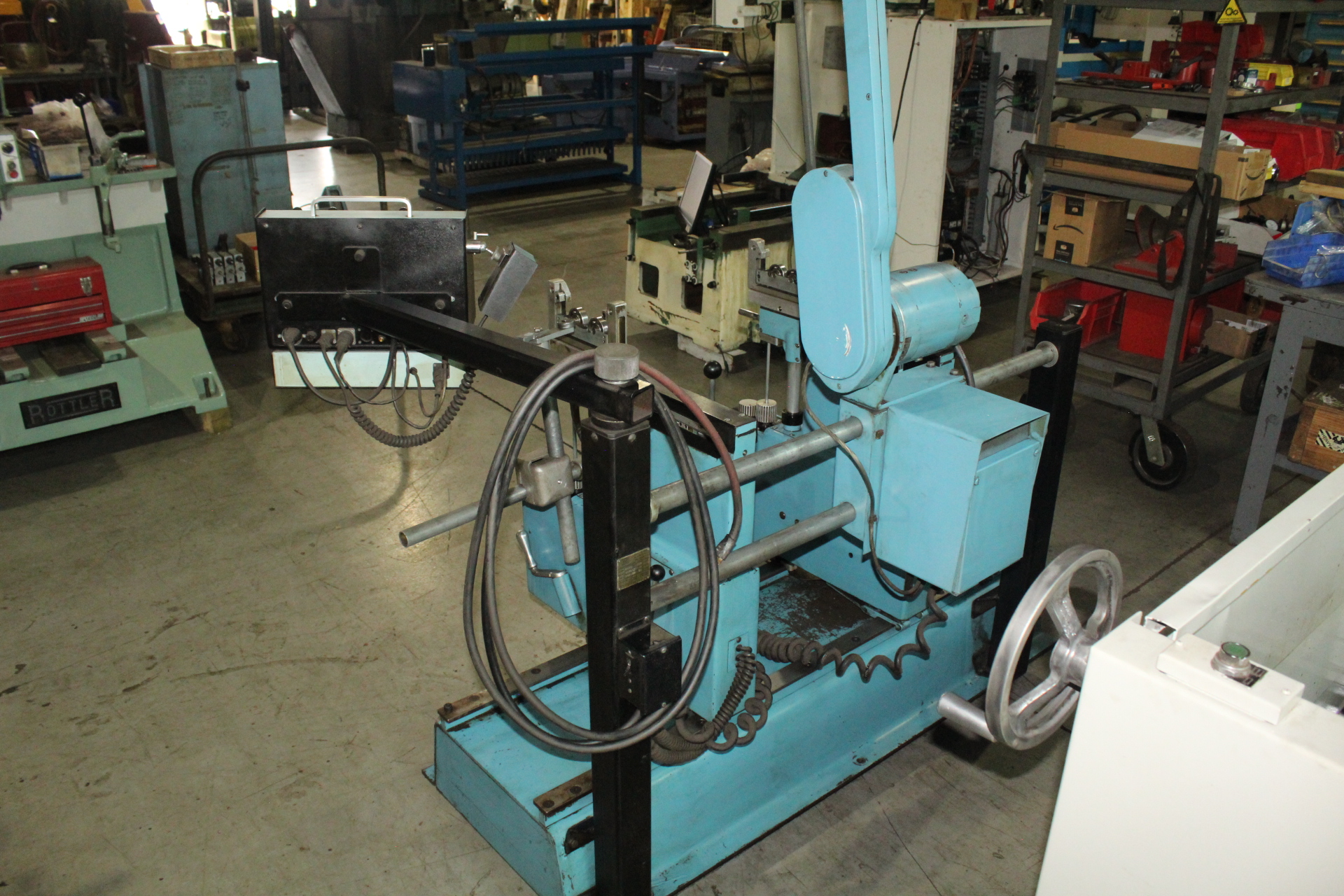

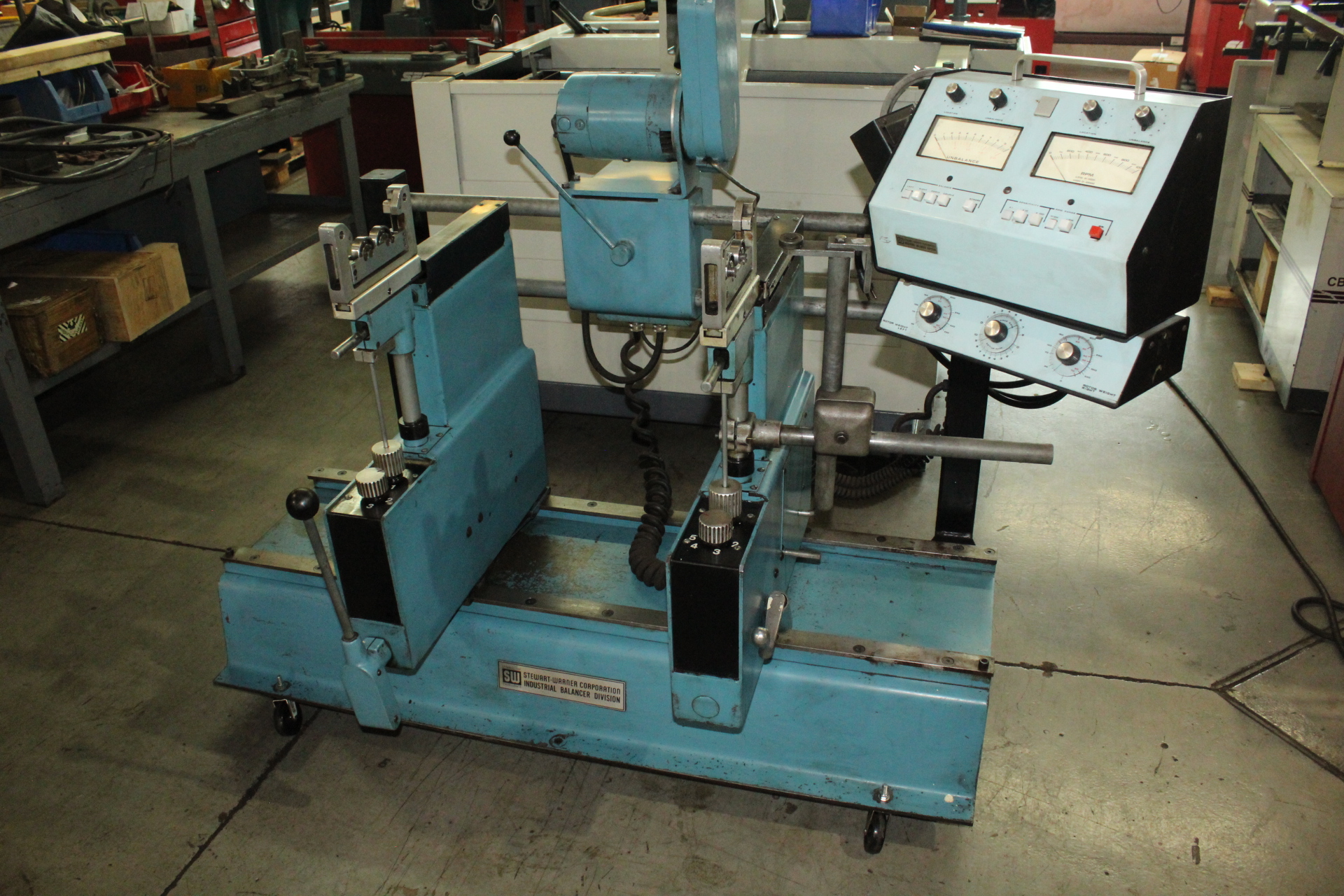

Stewart-Warner Balancer Series 2000

Specifications

Roto weight Range: 1-500 lbs

Rotor Length range between support bearings: 4.5"-55"

Diametral range between support bearings: 1/2"-43"

Drive Diameter Capacity: 24"

Drive Belt Speed: 0-2400 fpm

Normal balancing speed: 450 rpm

Power requirments: 15 amps, 110V single phase 60 hz, AC

Sensitivity (minimum unbalance detected): .000020" peak to peak

Cradle base length: 5'

Suggested installation space: 4' x 8'

Shipping weight: 1000 lbs

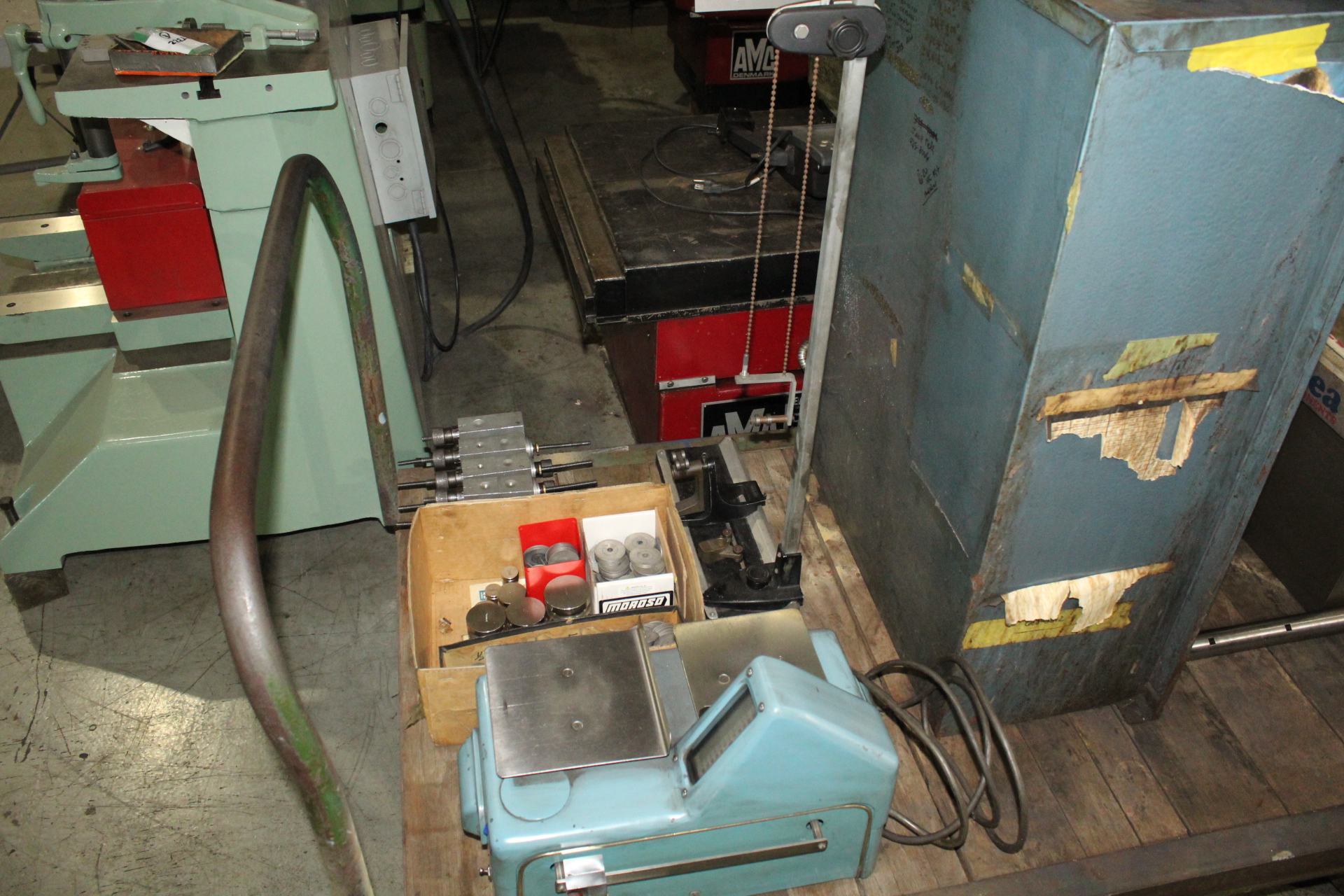

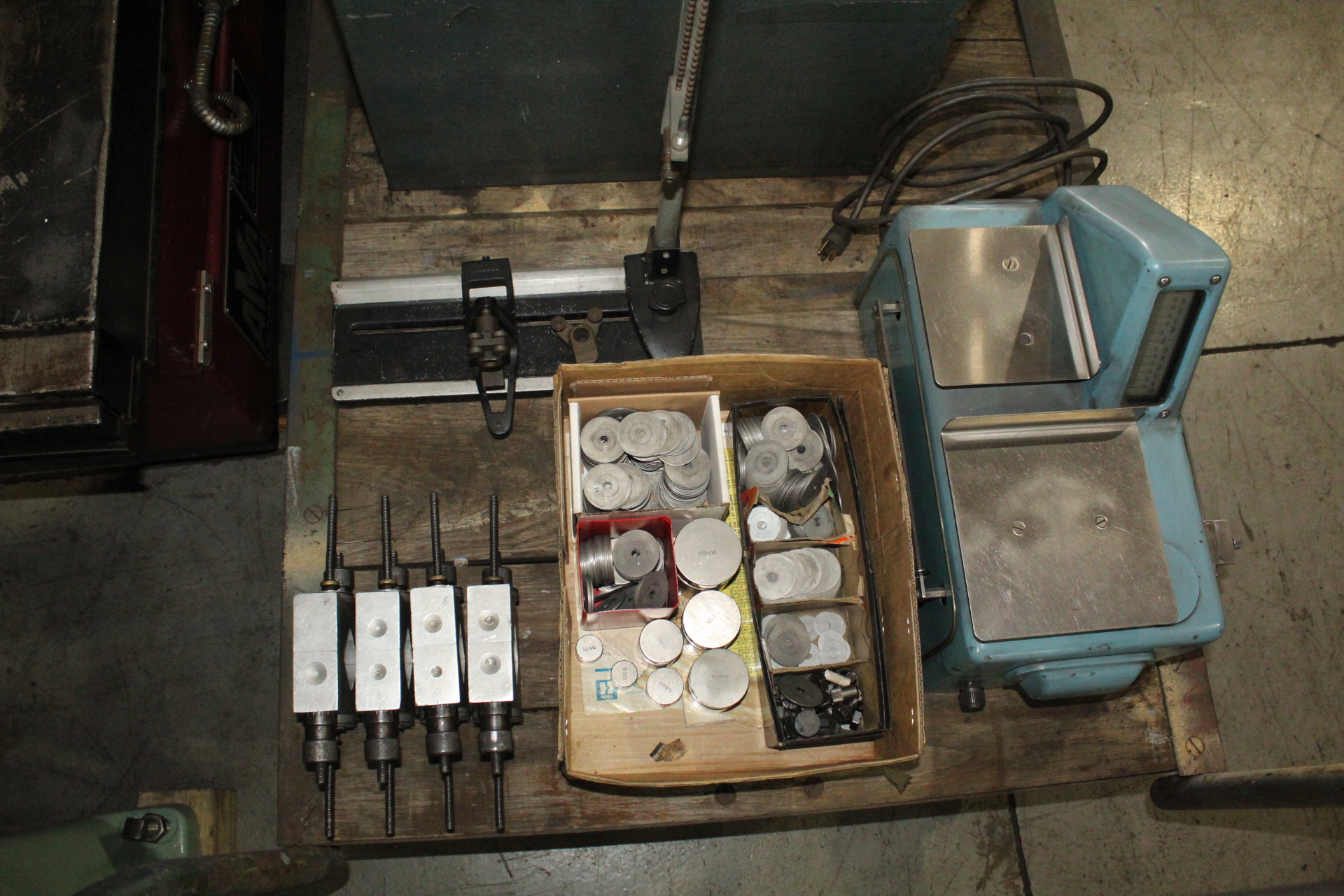

Comes with scale, rod hanging device and V8 Bobweights.
