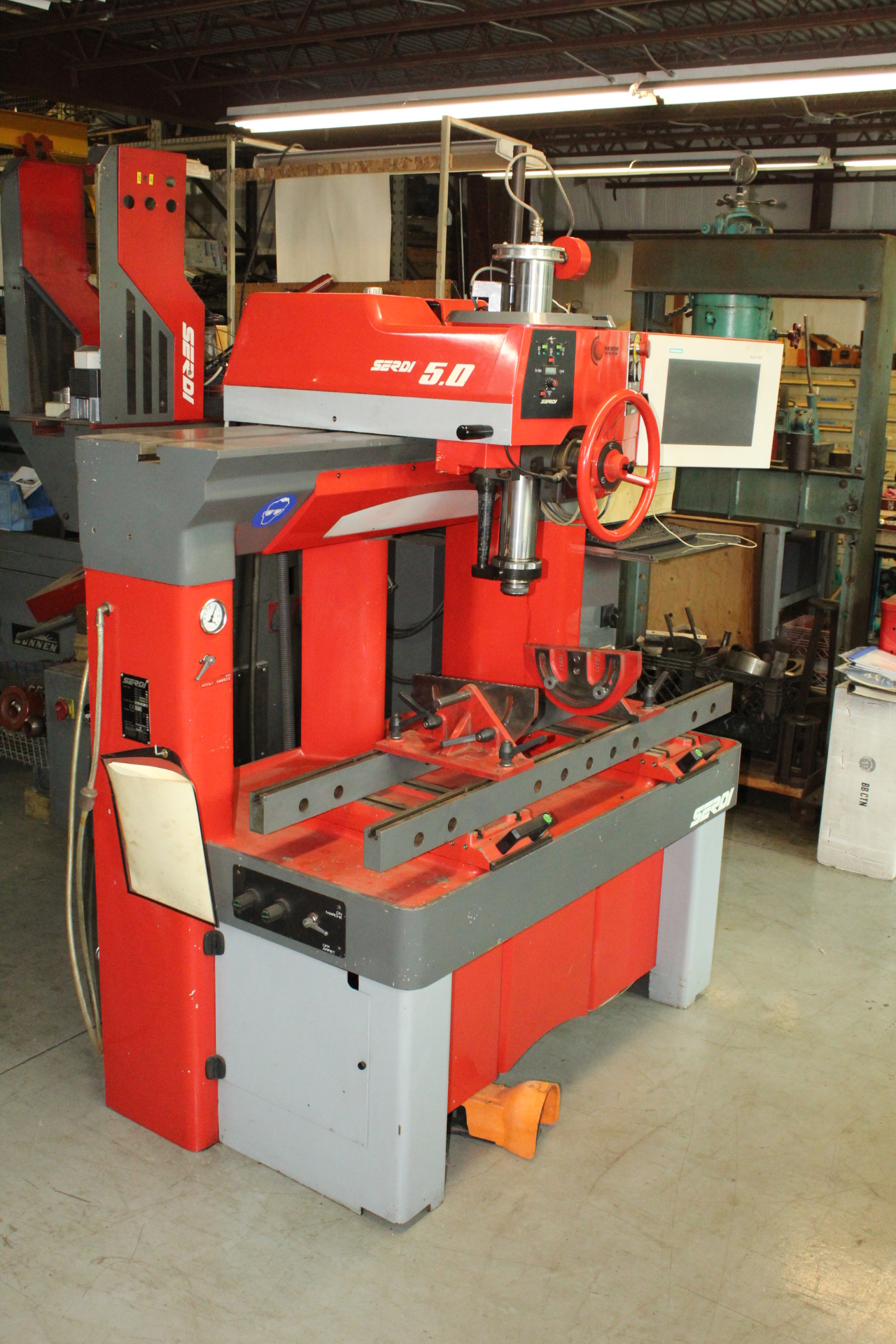

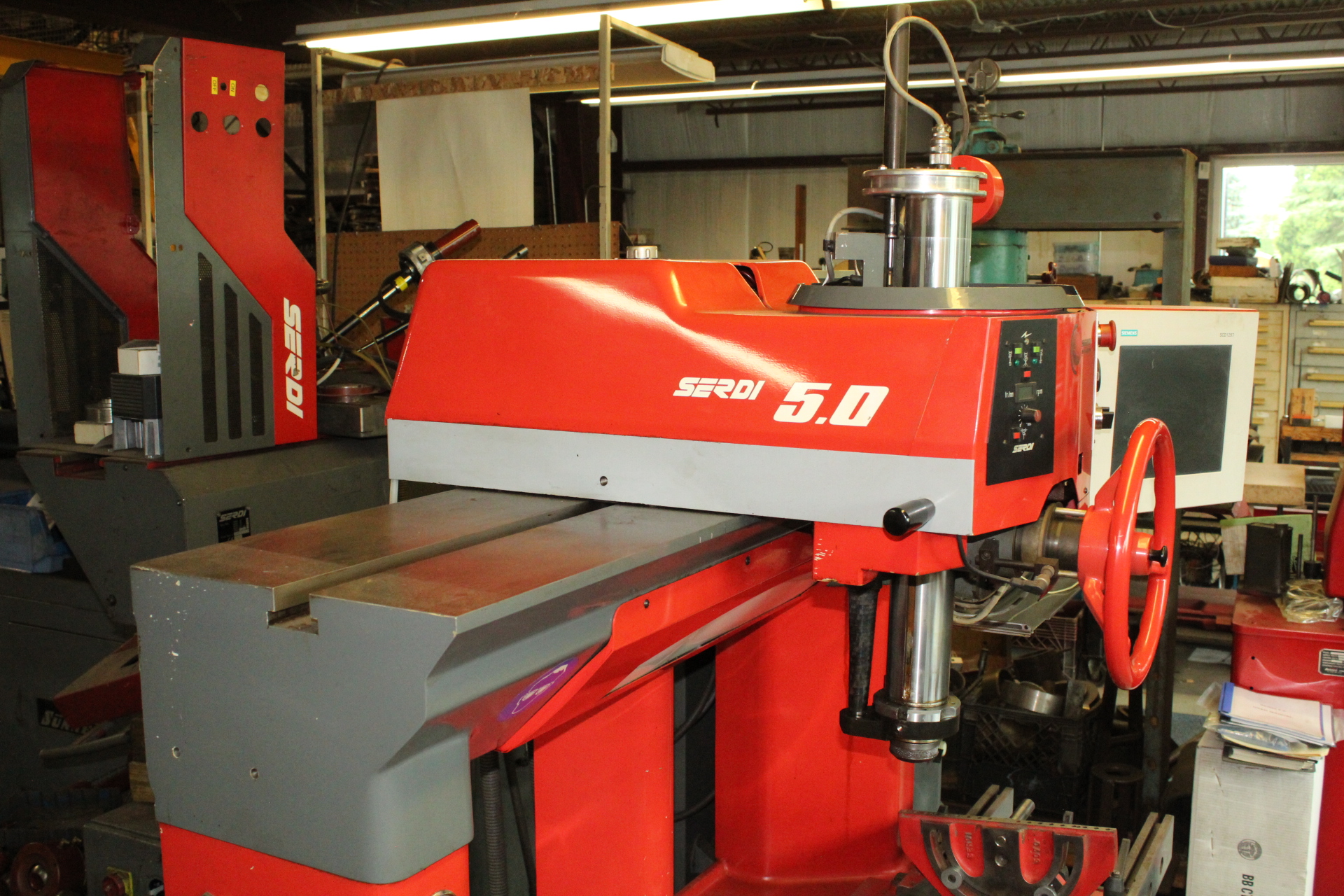

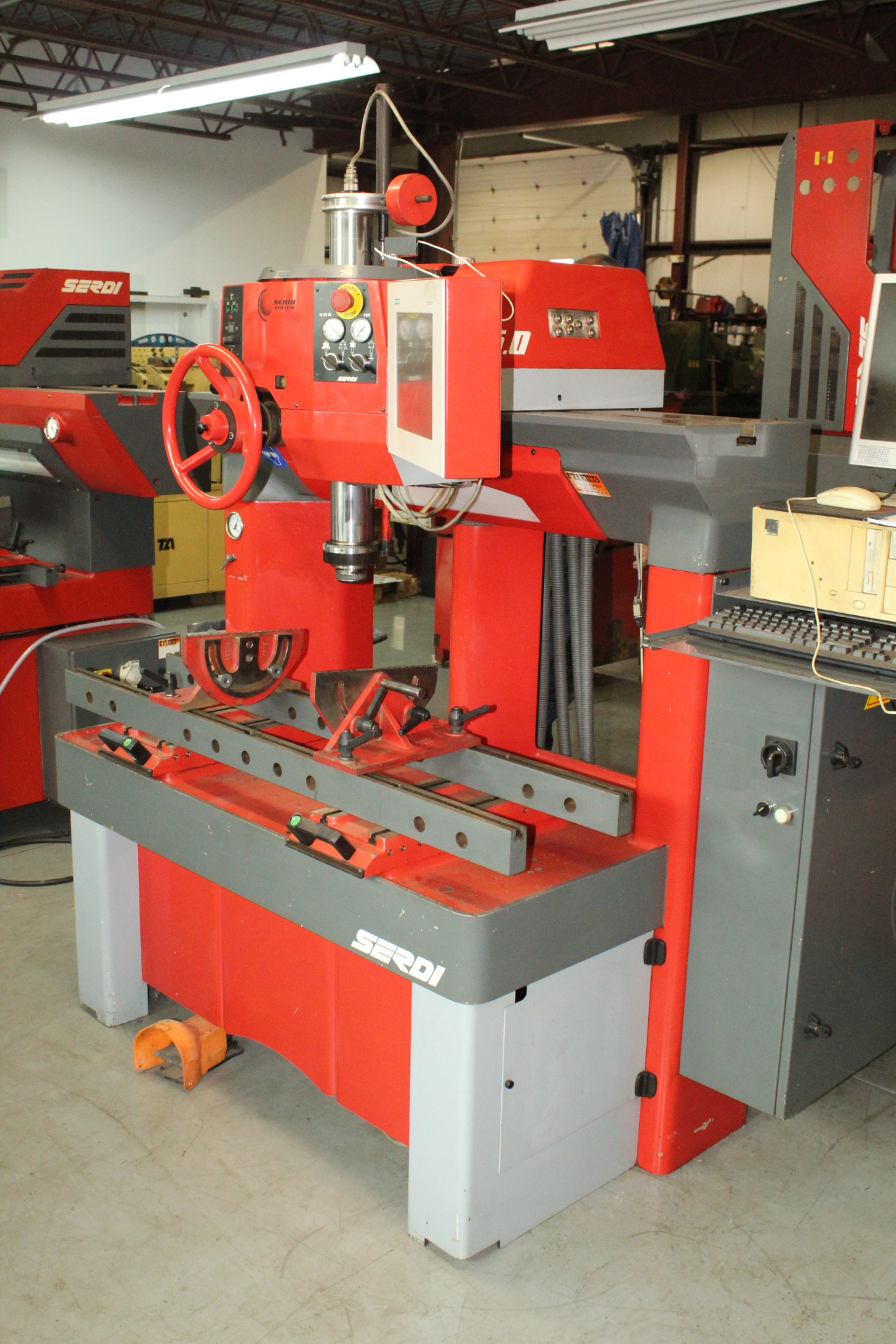

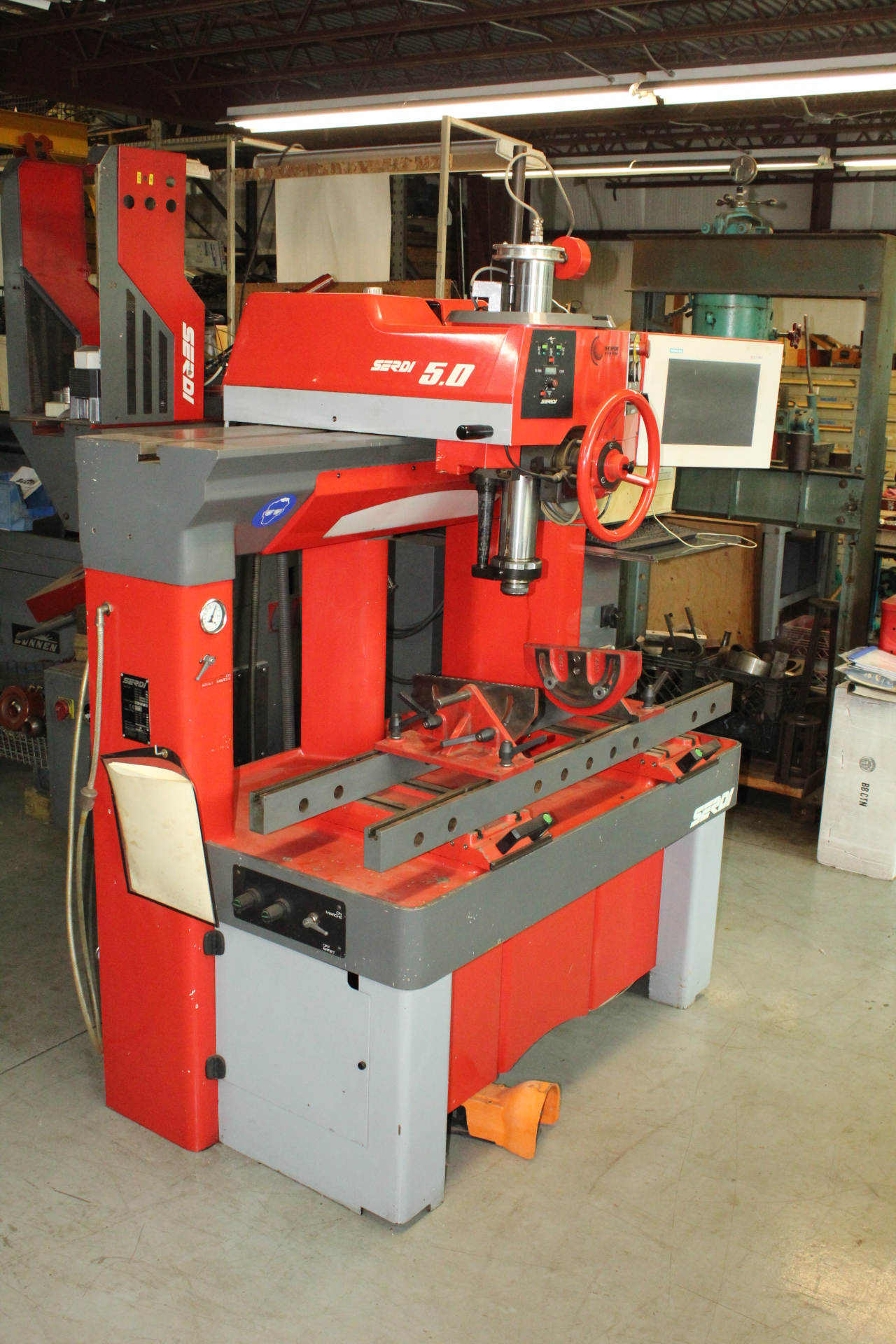

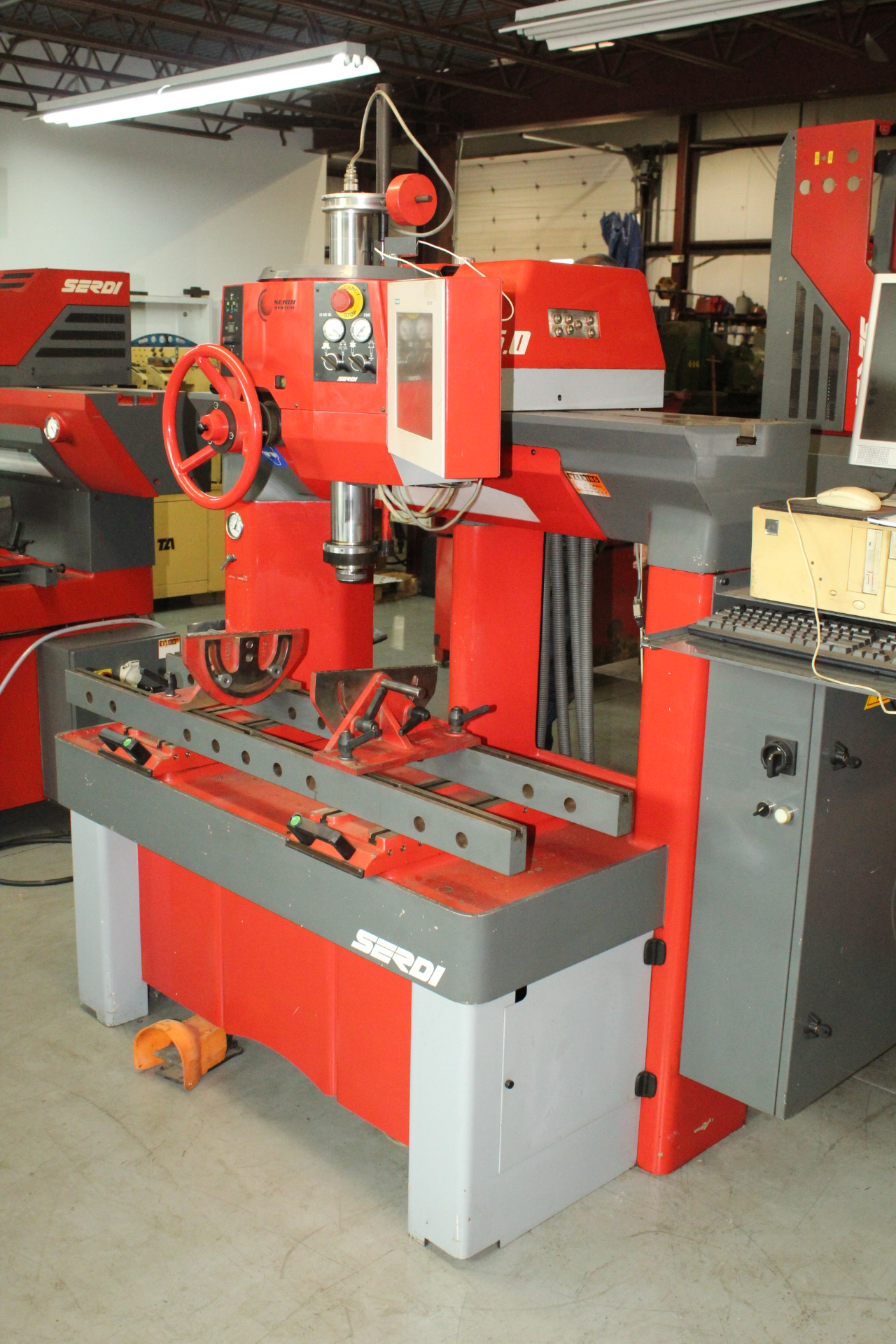

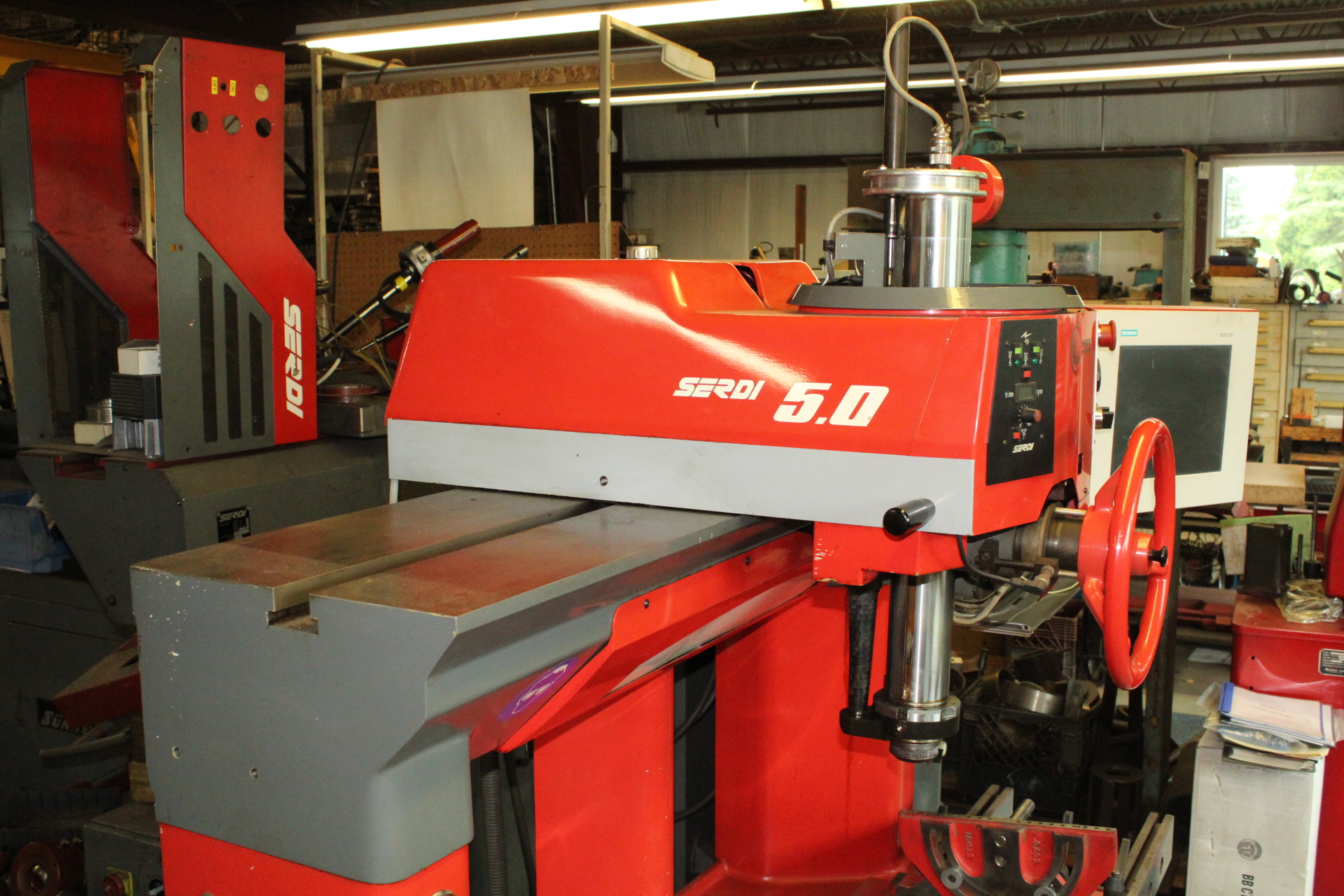

Serdi 5.0 Valve Guide and Seat Machine

Specifications

Machine Dimensions

• Length: 2300mm/90.6 inch
• Width: 1150mm/45.3 inch
• Height: 2200mm/86.6 inch

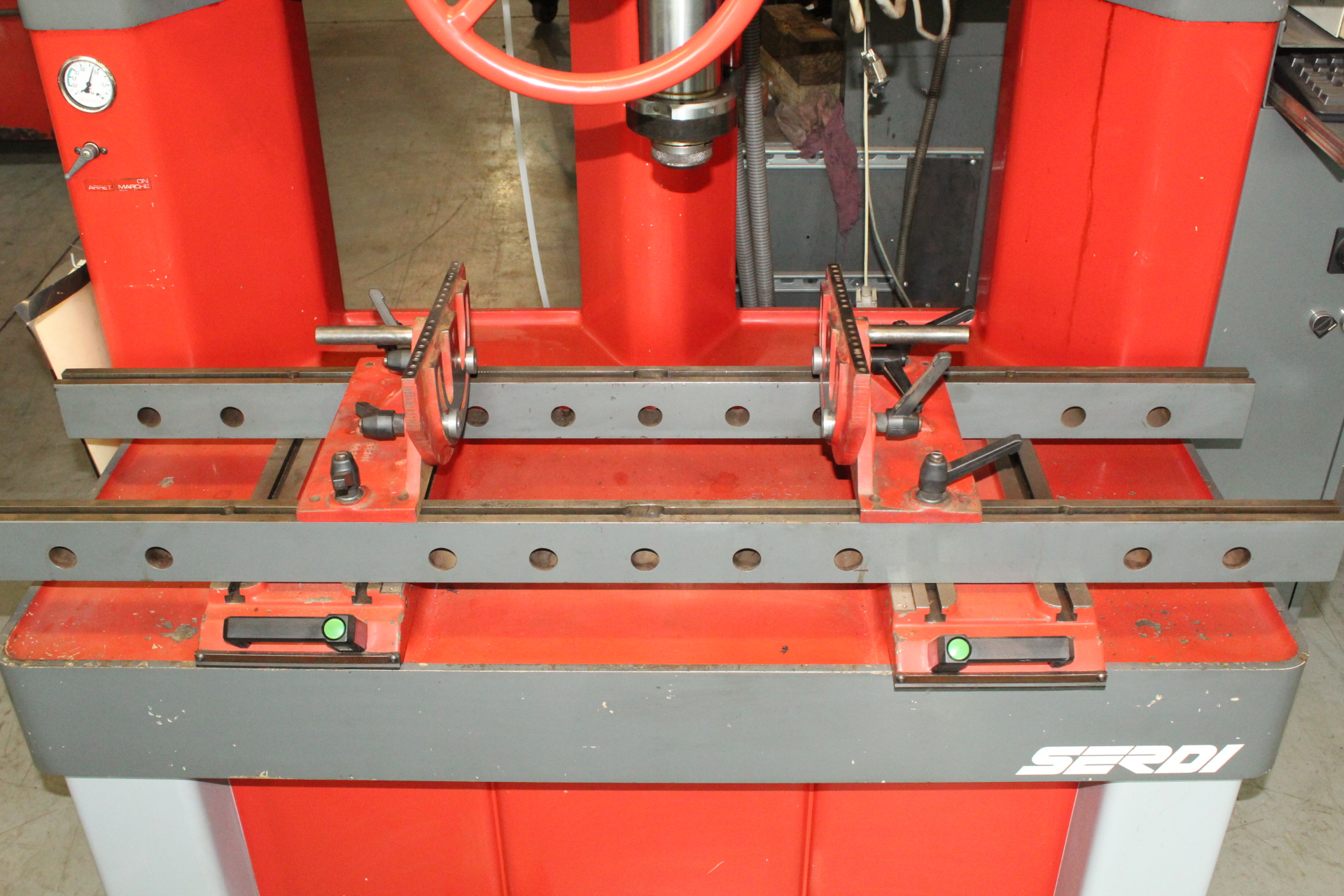

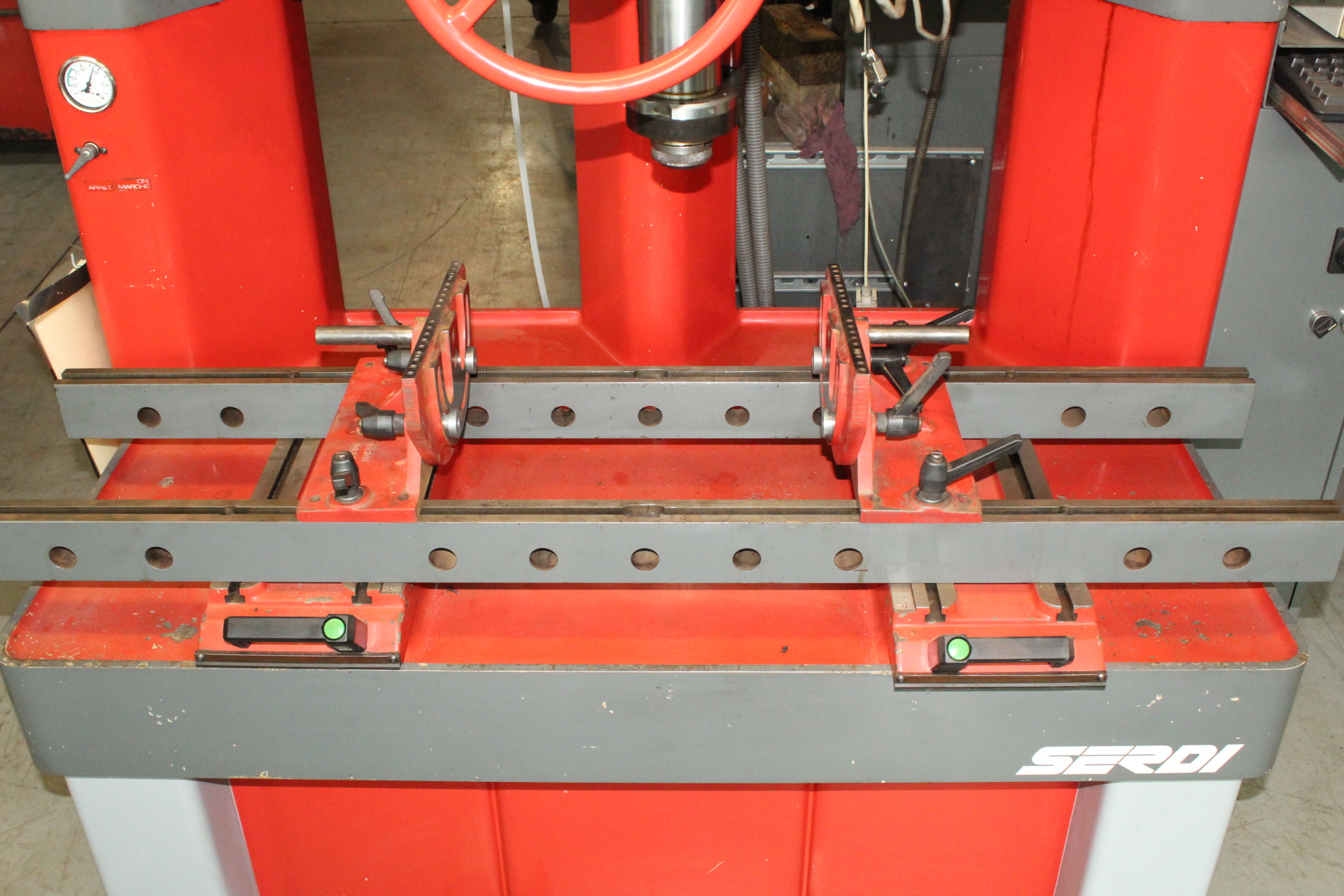

Max Cylinder Head Dimensions

• Length: unlimited
• Width: 500mm/16.7 inch
• Height: 160mm/17.7 inch
• Crosswise table slide: 160mm/ 6.3 inch

Workhead Travel

• Lengthwise: 980mm/38.6 inch
• Crosswise: 40mm/1.6 inch
• Spere-cylinder travel: 9mm/0.4 inch

Spindle

• Max spindle inclination: 5 degrees
• Spindle travel: 200mm/8 inch
• Spindle motor power: 2200 W
• Max. Torque: 44 Nm
• Spindle Rotation Speed: 60-1200 RPM

Connections

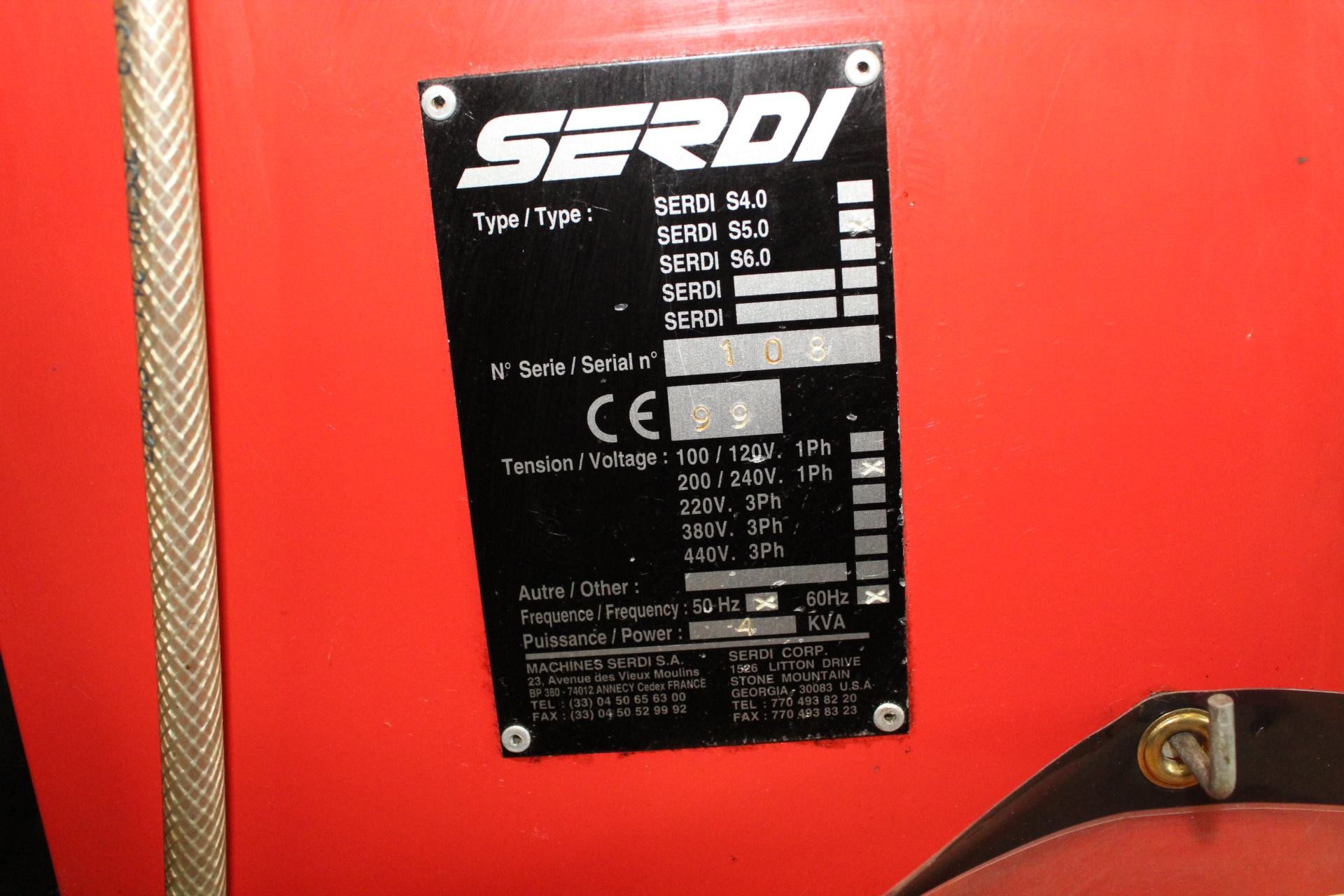

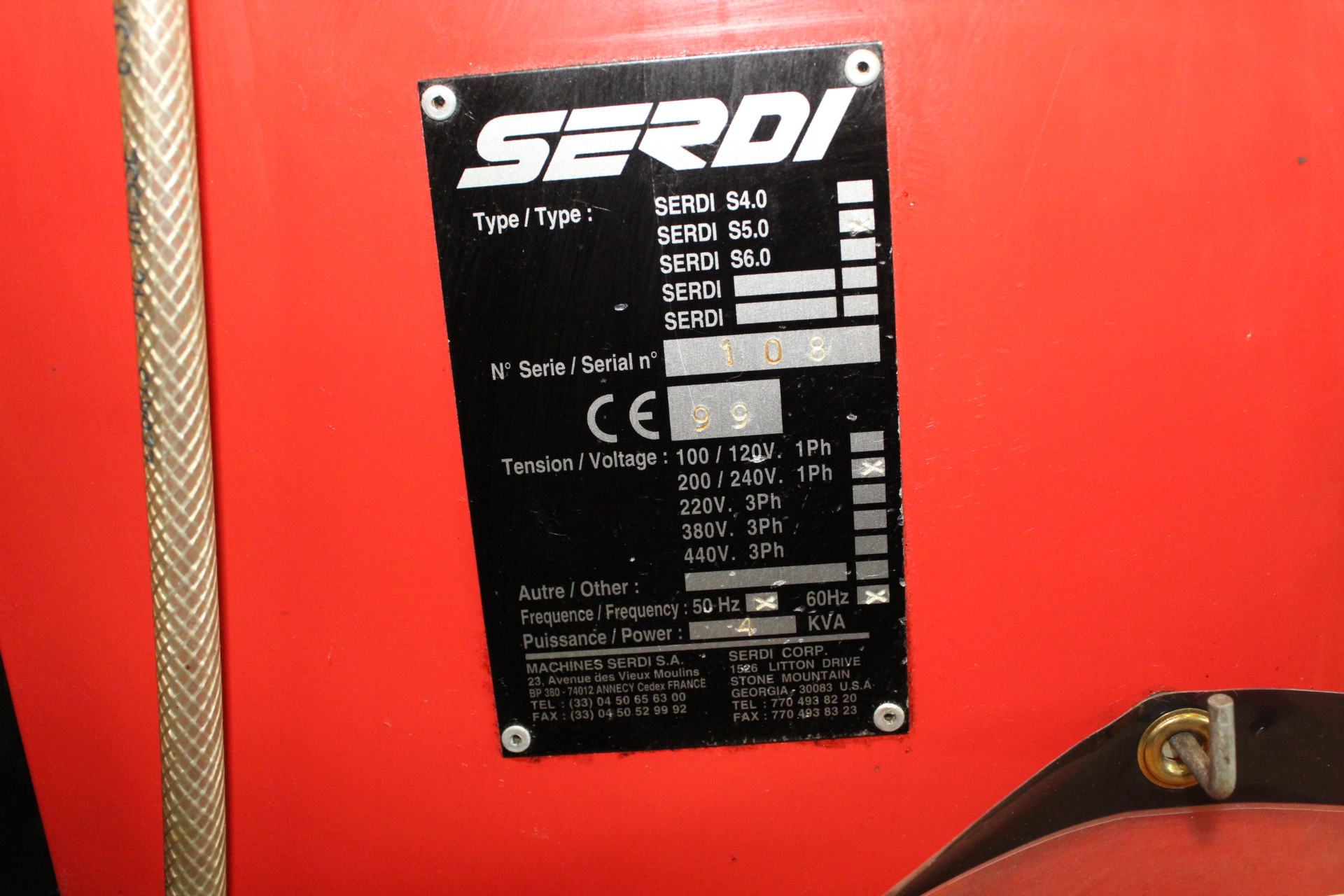

• Power Supply: 4kVA-230V-AC-1Ph-50/60Hz
• Pneumatic supply: 6 bar/ 87 psi
• Max. airflow: 15 CFM
• Level of noise: 400 RPM= 72 dba, 1200 RPM=82 dba

Net Weight: 1500 KG/3300 lbs
