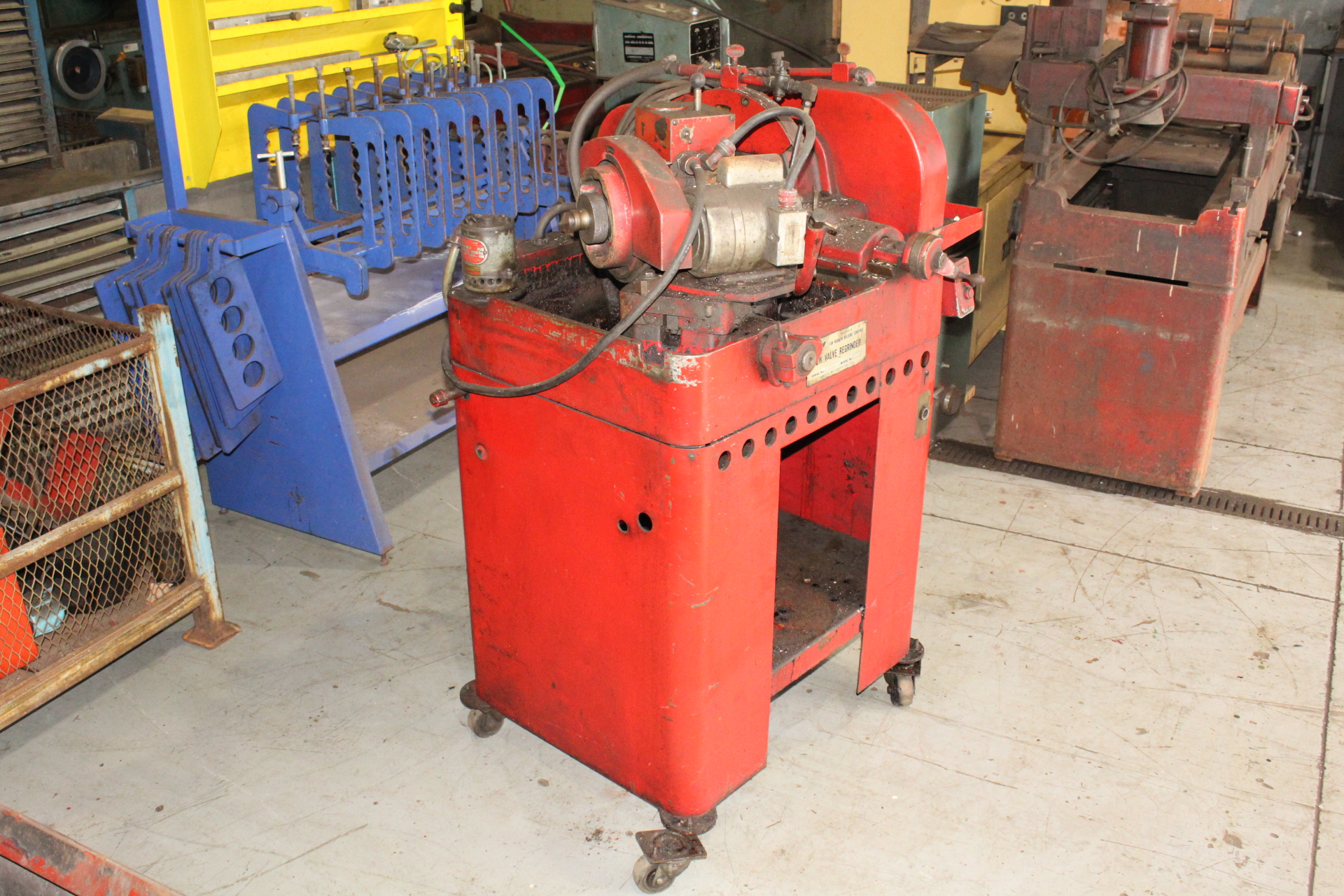

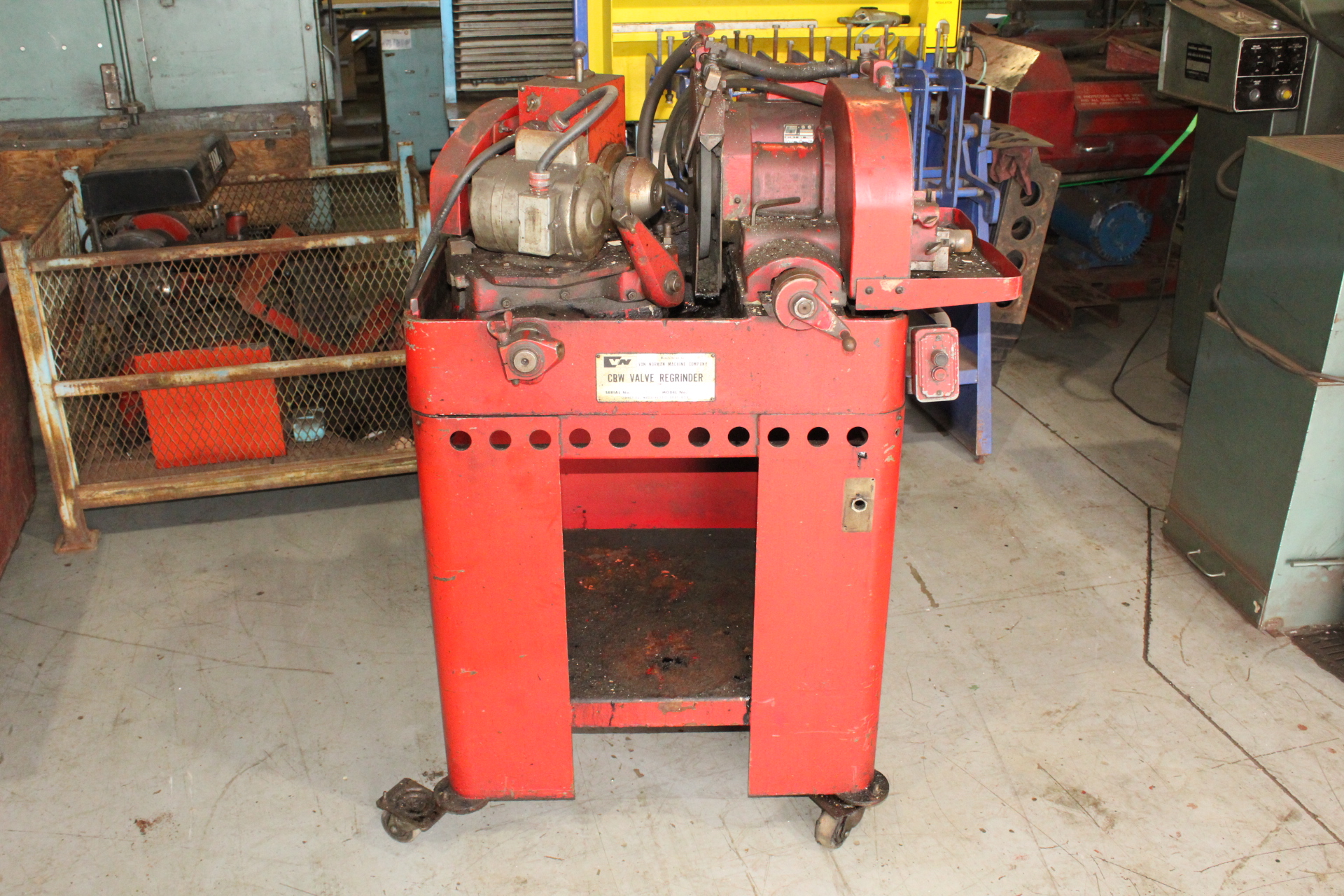

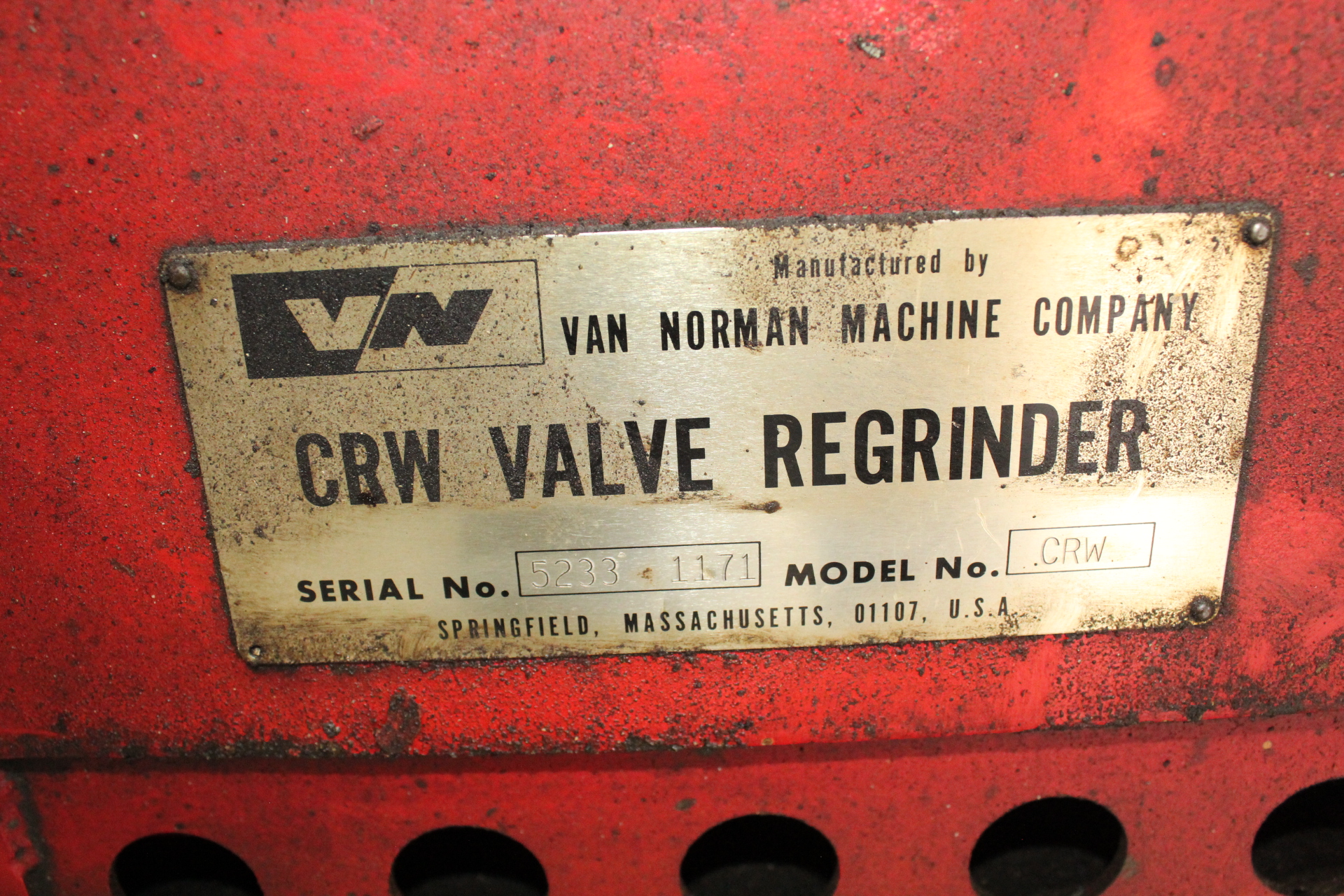

Van Norman CRW Valve Regrinder

Stock #1401Used Machine; $2,500

Specifications

Collet Capacity-  1/64" to 1"

Collet Accuracy- .001"

Valve head diameter capacity- 5"

Valve head angles- 15 Degree to 45 degree

Valve face grinding diameter- 12"

Butt End Grinding wheel diameter- 10"

Workhead motor- 1/6

Workhead speeds- 160 and 220

wheelhead motor- 3/4 H.P

Cooland pump motor- 1/30 H.P

Coolant Capacity- 6 gals.

Workhead bearing area- 39 square inches

Wheelhead slide bearing area- 63 square inches

Height floor- 26" x 32"

Weight Net- Approx. 825 lbs

Weight Gross- Approx. 945 lbs

Weight boxed for Export- Approx. 1075 lbs

Dimentions boxed for Export- 50" x 46" x 61"
