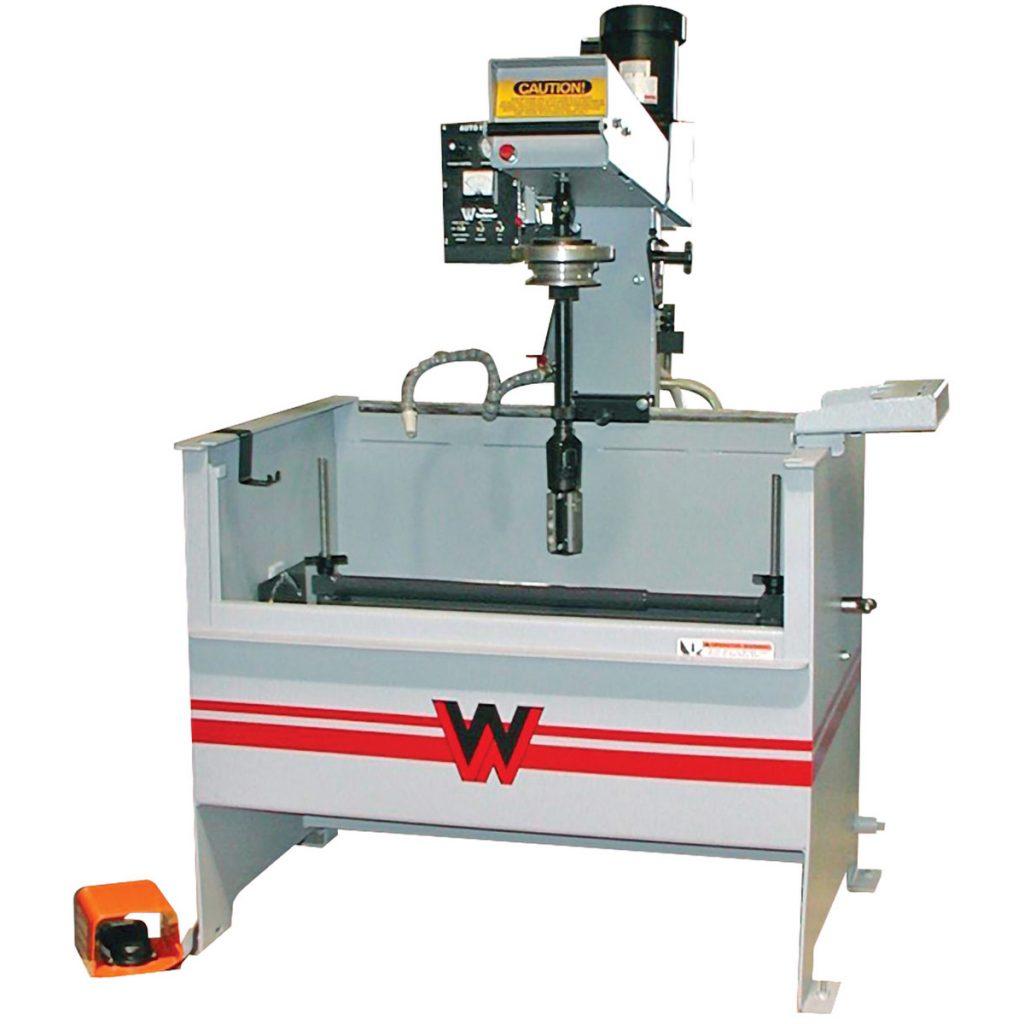

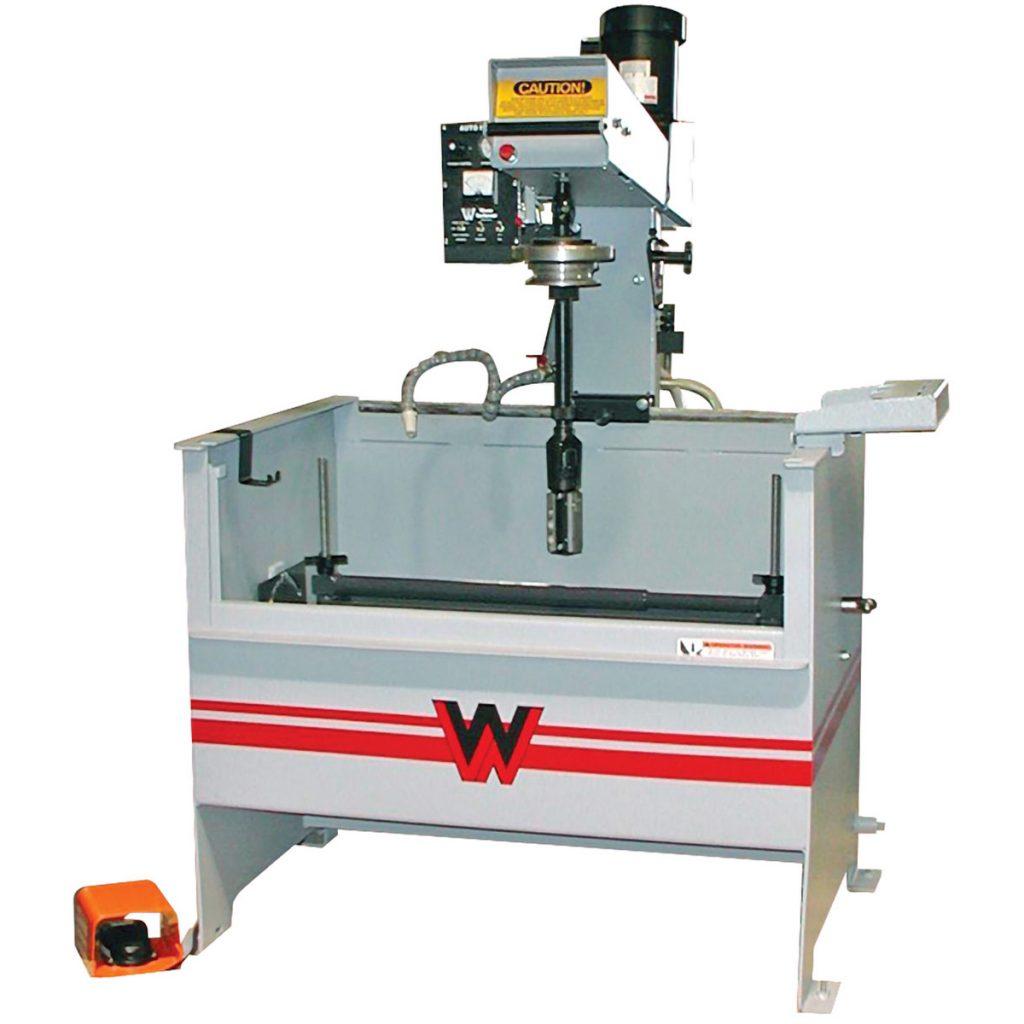

Winona Van Norman PS2300D Power Stroke Hydraulic Honing Machine

Stock #23000New Machine; Call for Pricing

A true power stroke machine with power assist. A power stroke hone is a machine that uses a rotating abrasive tool to refine and perfect the internal surface of cylinder bores. It is designed to improve the geometric accuracy and surface finish of the bores to achieve precise tolerances and optimal conditions for piston movement and sealing.

Operations

The PS2300D gives you a consistent RMS surface finish and hones most small engine and motorcycle cylinders in just a few minutes, and V-8 automotive blocks in 15 to 20 minutes.

Small engines and motorcycle cylinders are easy to set up and hone with the standard small engine fixture.

You can hone blocks up to 34” long in the roll over cradle and do 90°, 60°, and inline blocks without any special adapters.

Specifications

Drive Motor : 1/2 HP

Electrical : 110 Volt required

Stroke : adjustable to 12″ (304mm)

Honing Range : 1.75″-5.5″ (44.45-139mm)

Air : 100 PSI (3CFM)

Machine Lenght : 41″ (1524mm)

Machine Depth : 48″ (1372mm)

Machine Height : 75″ (1905mm)

Machine Weight : 900lbs (409kg)

Shipping weight : 1079lbs (490kg)

Block Lenght : 34″ (863mm)

Reservoir Capacity : 8 Gallons

Technical Specifications

Maximum Block Length 34 in / 863 mm

Maximum Stroke with Powered Feed 12 in / 304 mm

Honing Range with Standard Equipment 1.75-5.5 in/ 44.45-139 mm

Hone Motor 0.5 HP

Coolant Capacity 8 Gal.

Air Requirement 100 PSI 3 CFM

Length 41 in / 1524 mm

Width 48 in/ 1372 mm

Height 75 in/ 1905 mm

Approx. Machine Weight 900 Ibs./ 409 kg

Approx. Shipping Weight 1079 Ibs./ 490 kg

Standard Tooling includes:

Part No. Item

2343 : Parallel Riser Set

2432 : Quick Clamp Knobs

2127 : Clamp Rods

6256 : V-Block Adjustable Clamp Bar

6119 : Bore Gauge Bracket

811020 : Friction Feed Hone Head

2482 : Counter Weight

866889 : Friction Feed Unit

2163-1 : Honing Oil 5 Gallons

6068-4 : Honing Stone Tray

819132 : Universal Joint

867143 : Oil Filter

3333 : Inline Block Clamp

6393 : Parallel Block

6098 : 2-Cylinder fixture Plate

6113 : Small engine Fixture Plate (Upper)

6112 : Small engine Fixture Plate (Lower)

713005 : Power Foot Switch

1313 : Work Light

6300 : Oil Pump

867971 : 150 Grit Honing Stone Set 2.7-4.1″ (69-104mm) diameter

863358 : 220 Grit Honing Stone Set 2.7-4.1″ (69-104mm) diameter

867972 : 280 Grit Honing Stone Set 2.7-4.1″ (69-104mm) diameter
