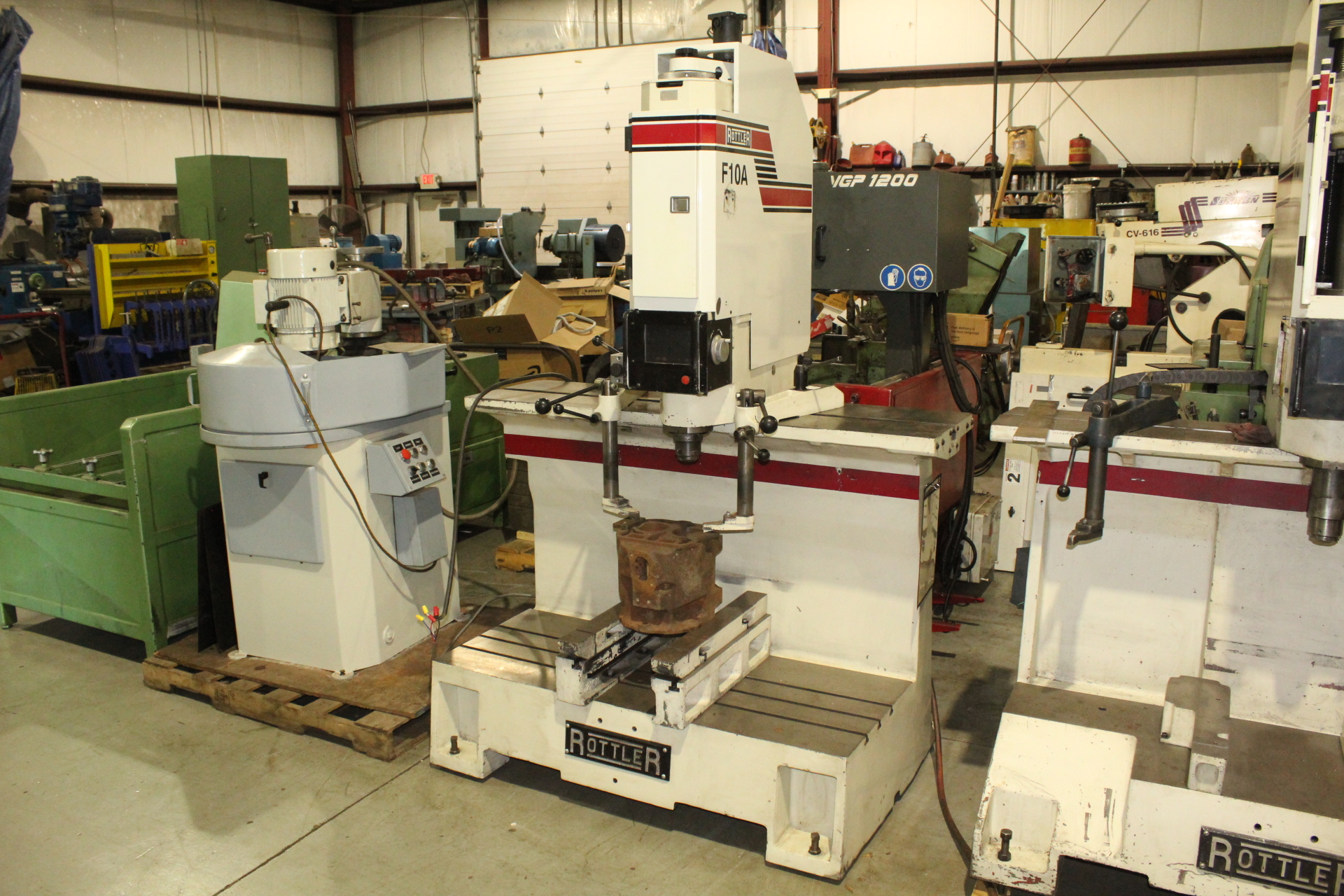

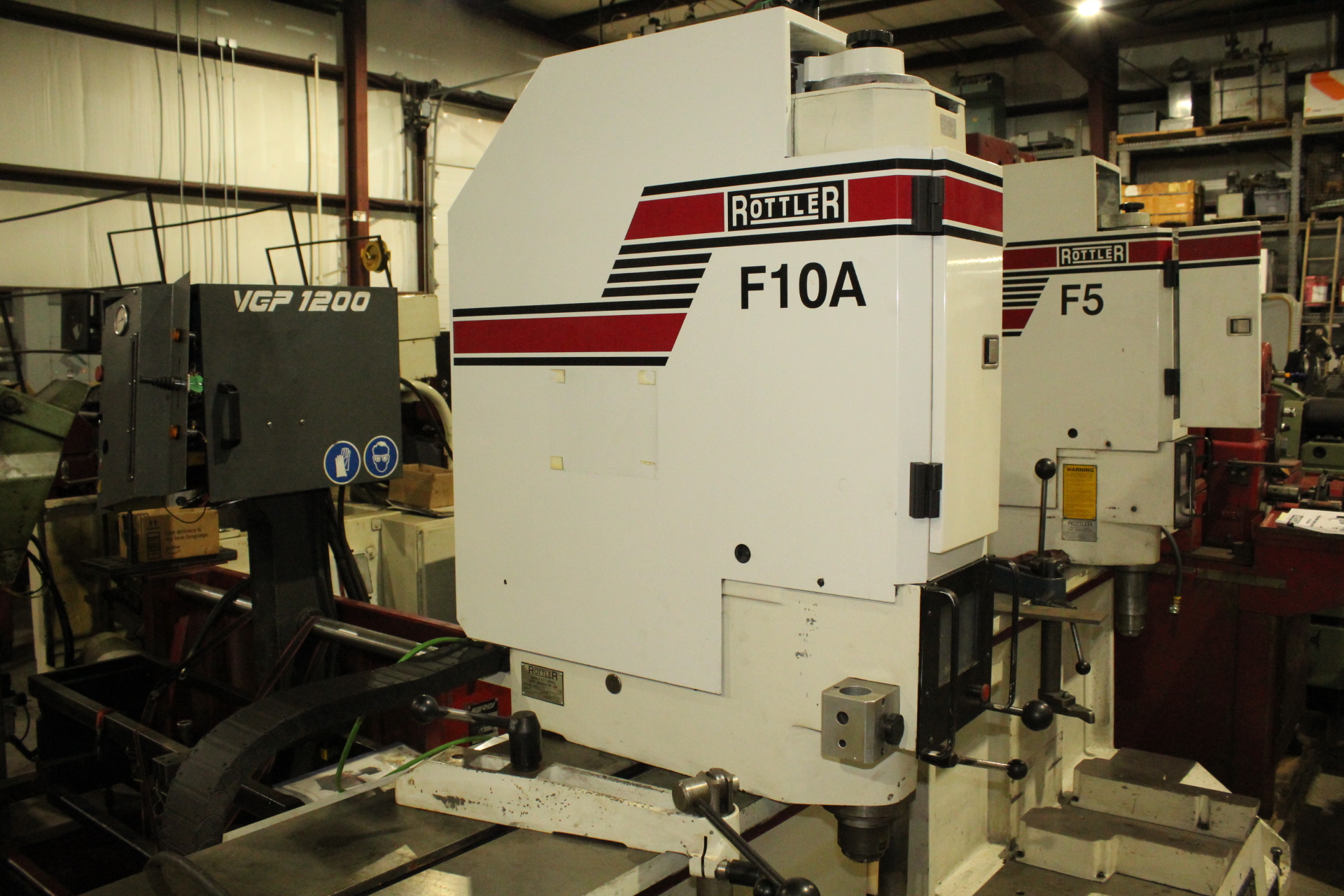

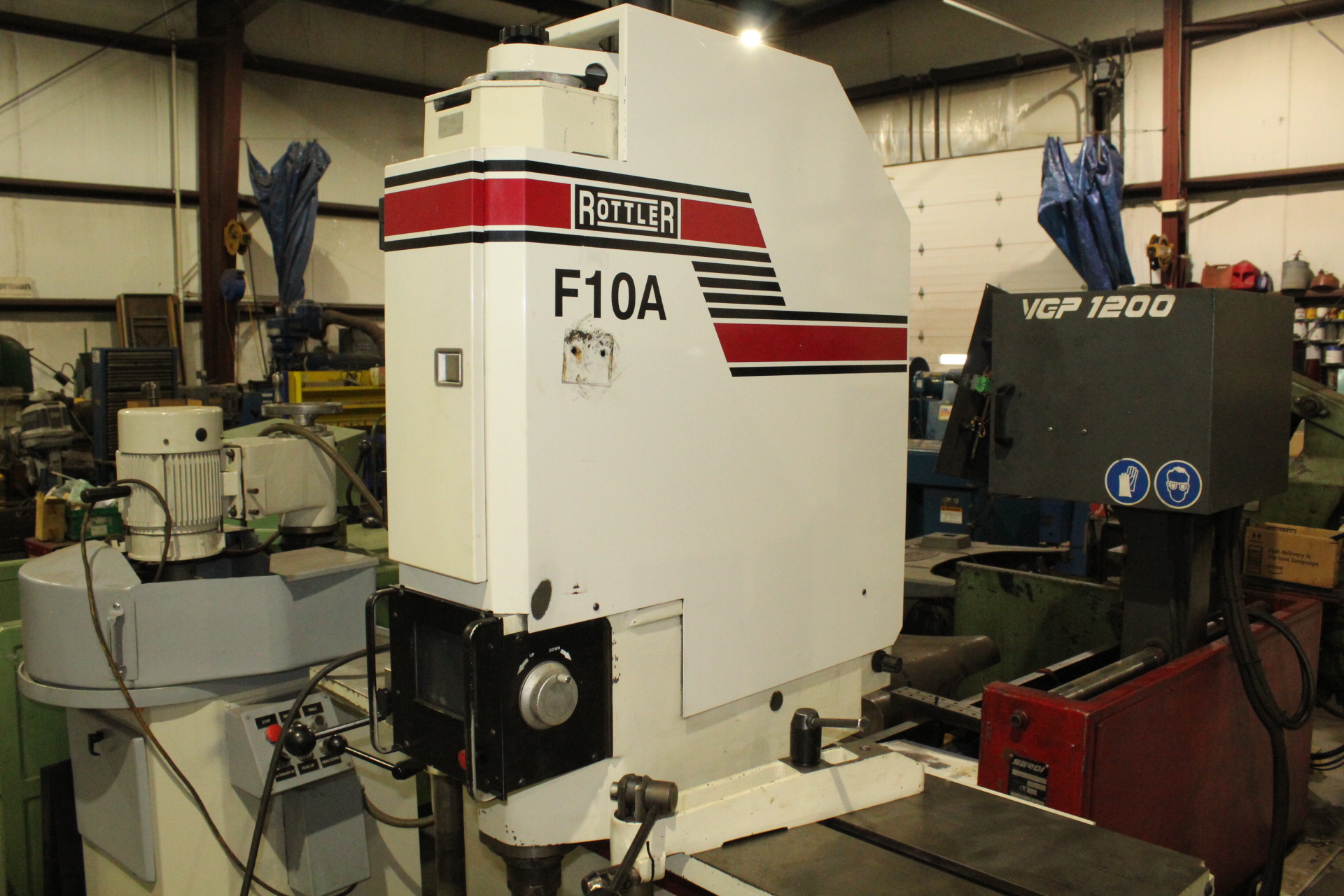

Rottler F10A Cylinder Boring Machine

This heavy-duty machine was designed for small- to large-capacity machine work.Large sleeve cuts can be taken at high spindle RPMs, and in many blocks, one pass sleeve cuts are possible to increase productivity. Programmable counterboring operations eliminate guesswork and provides added timesaving. The massive one piece Meehanite, stress-releived, precision machind base casting allows the fixturing of large diesel blocks such as Cummins 855, Detroit 12V71, Mercades 444V12 and odd jobs such as gear cases and connecting rods. The FA machines can also handle small jobs down to 1.5"(38mm) bore diameter with optional cutterheads.

Specifications

Capacity: 1.5"-9" (38-228mm)

Spindle Diameter: 3.25" (82.5mm)

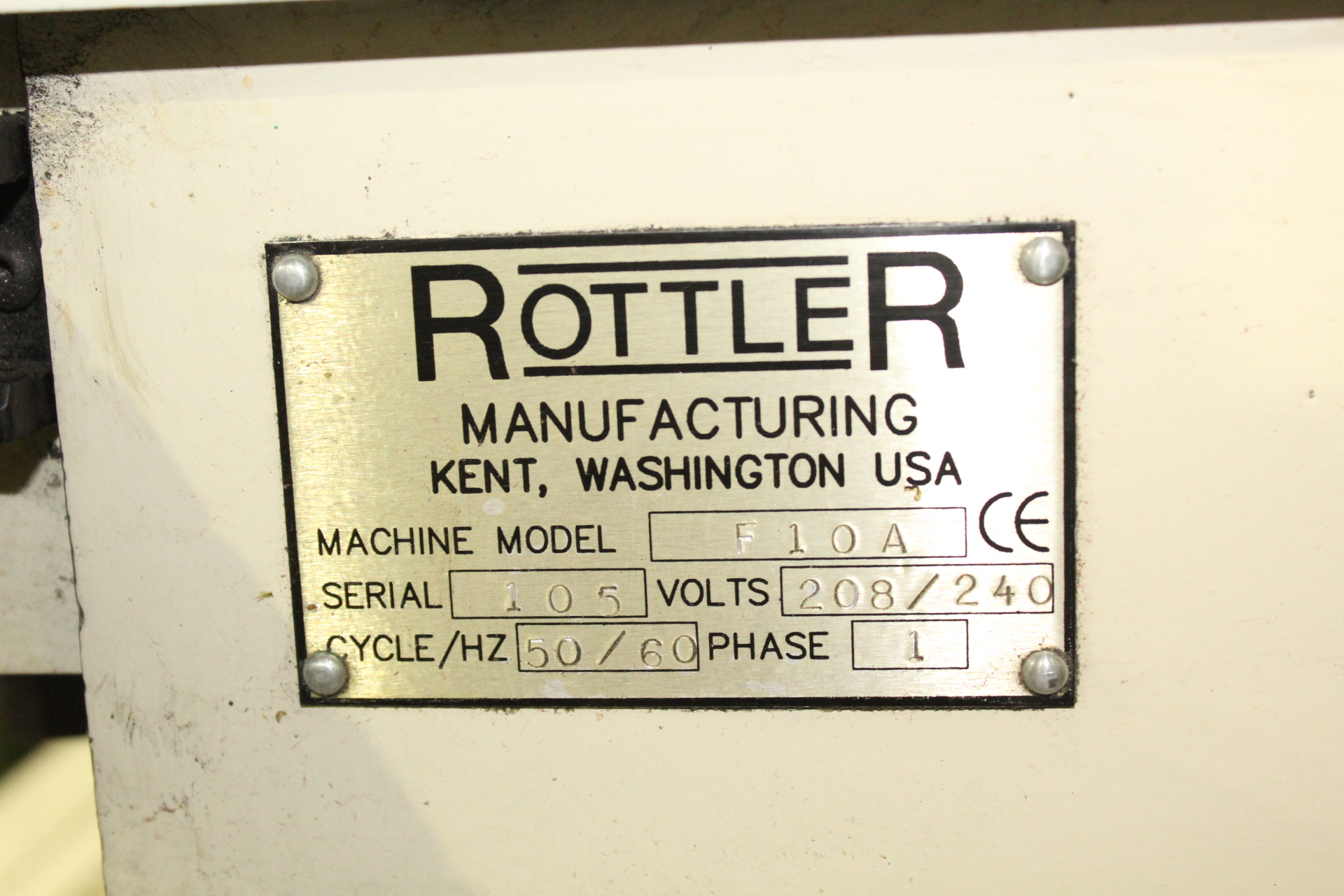

Brand: Rottler
Model: F10A
Type: Automatic Boring and Sleeving Machine
Control: Automatic CNC

Touch Screen - 4.5” (114 mm)
Spindle Travel (Vertical) - 15” (381 mm)
Workhead Travel (Horizontal) - 50” (1270 mm)

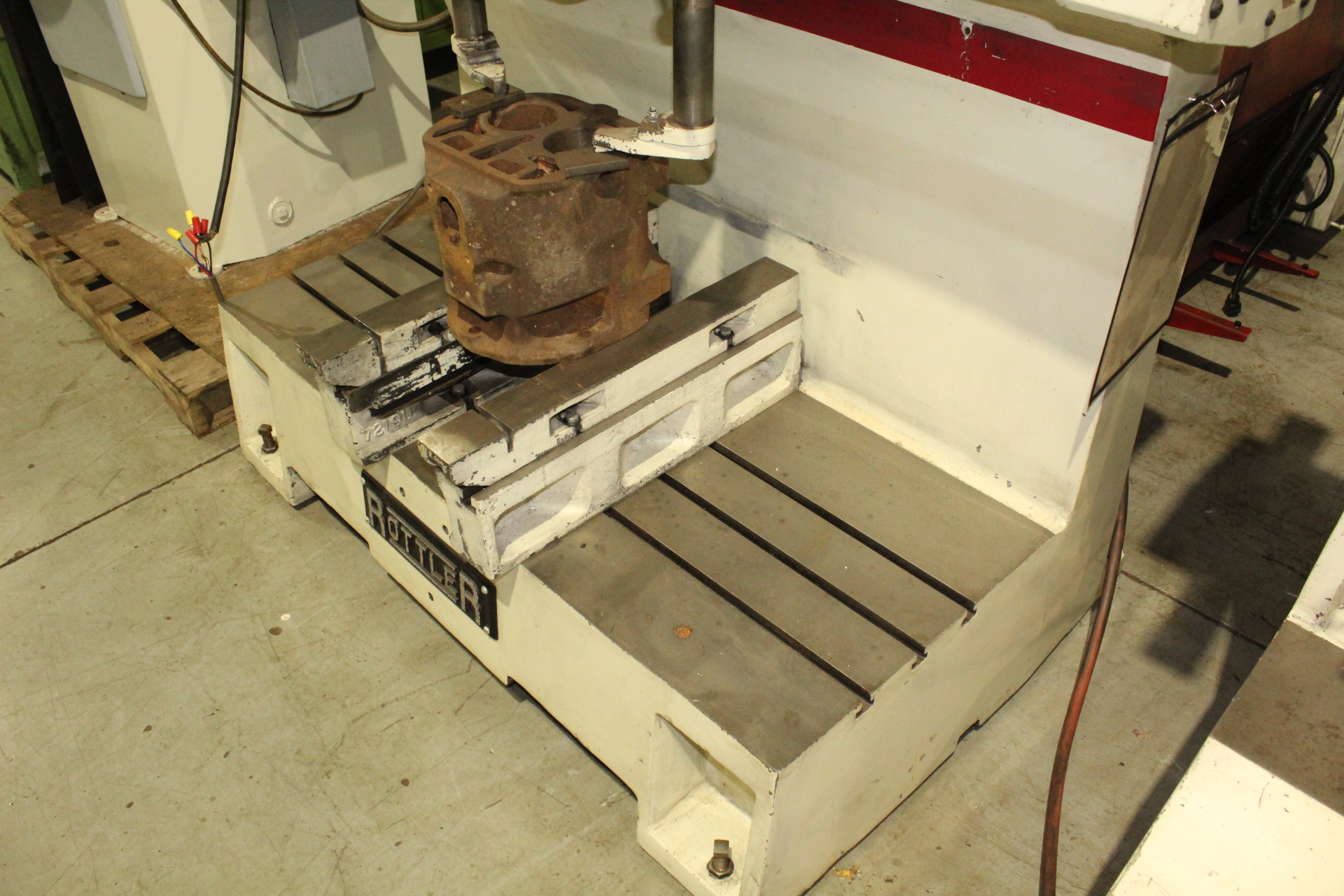

Table - Size - 54" x 21" (1370 x 530 mm)
Travel - Spindle Nose to Table - 26” (670 mm)
Spindle - Rotation Speed - 100 to 1200 RPM
Spindle - Motor - 3.3 HP 2.5kW HP

Feed per Revolution:
Programmable Feed Rates - .001" - .012"
Programmable Feed Rates - .025 - .300 mm

Electrical Requirements - 208-240V, 30A, 50/60Hz, 1Ph
Air Requirements - 1 cfm @ 90 psi 28 l/min @ 6 bar

Dimensions - Machine - 45” D x 61” W x 80" H
Dimensions - Shipping - 78D x 93W x 93" H
Machine Weight - 4,500 lbs
