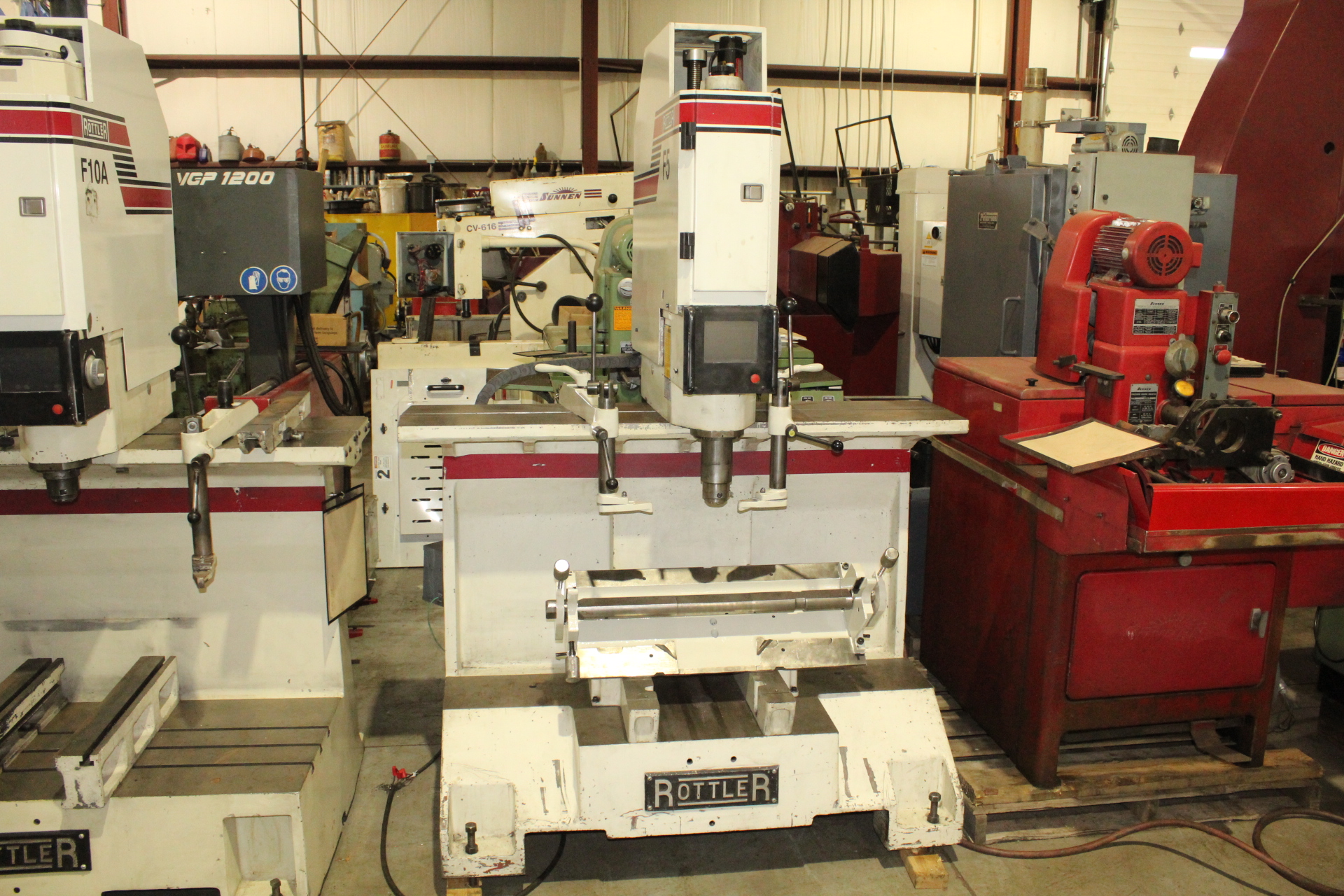

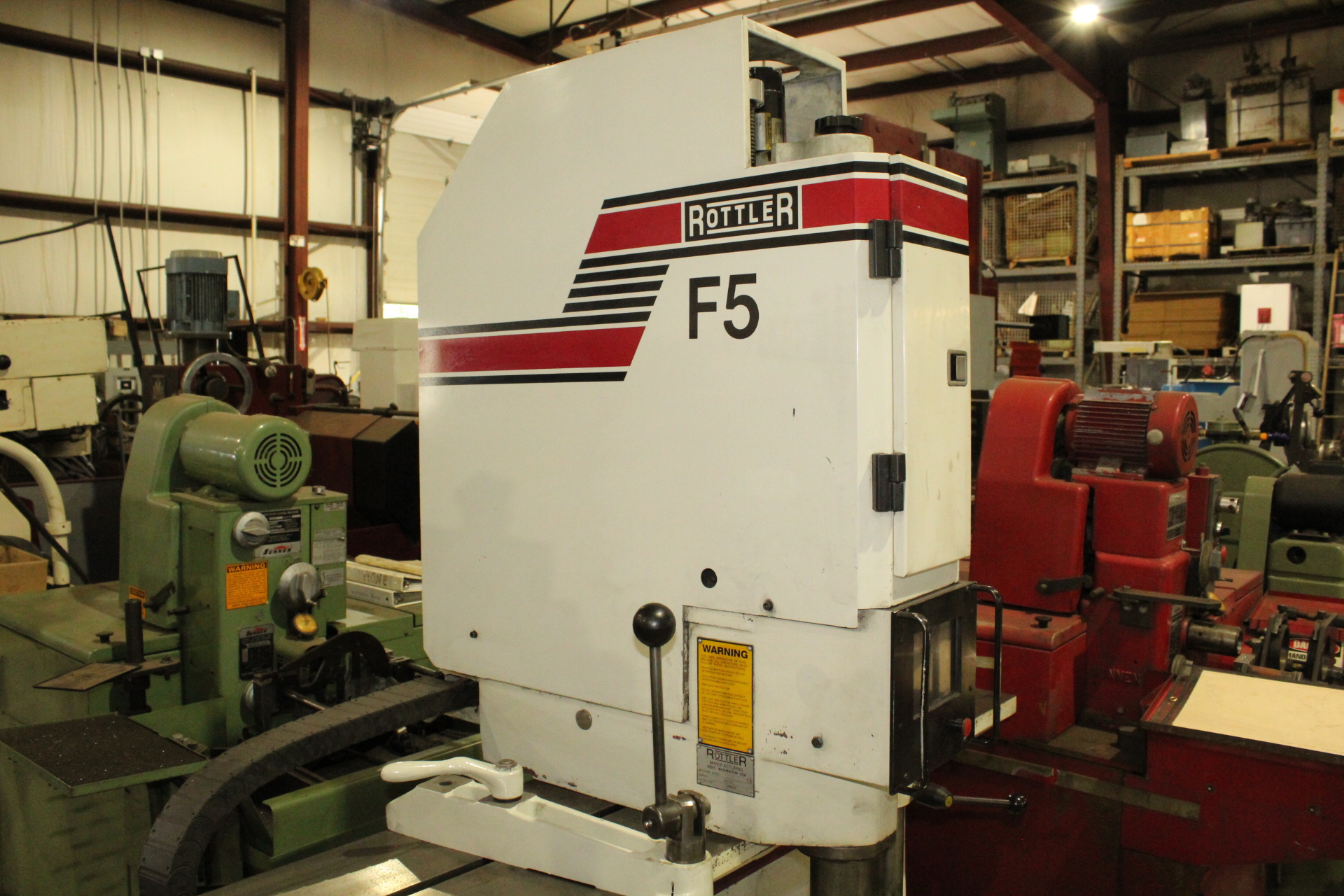

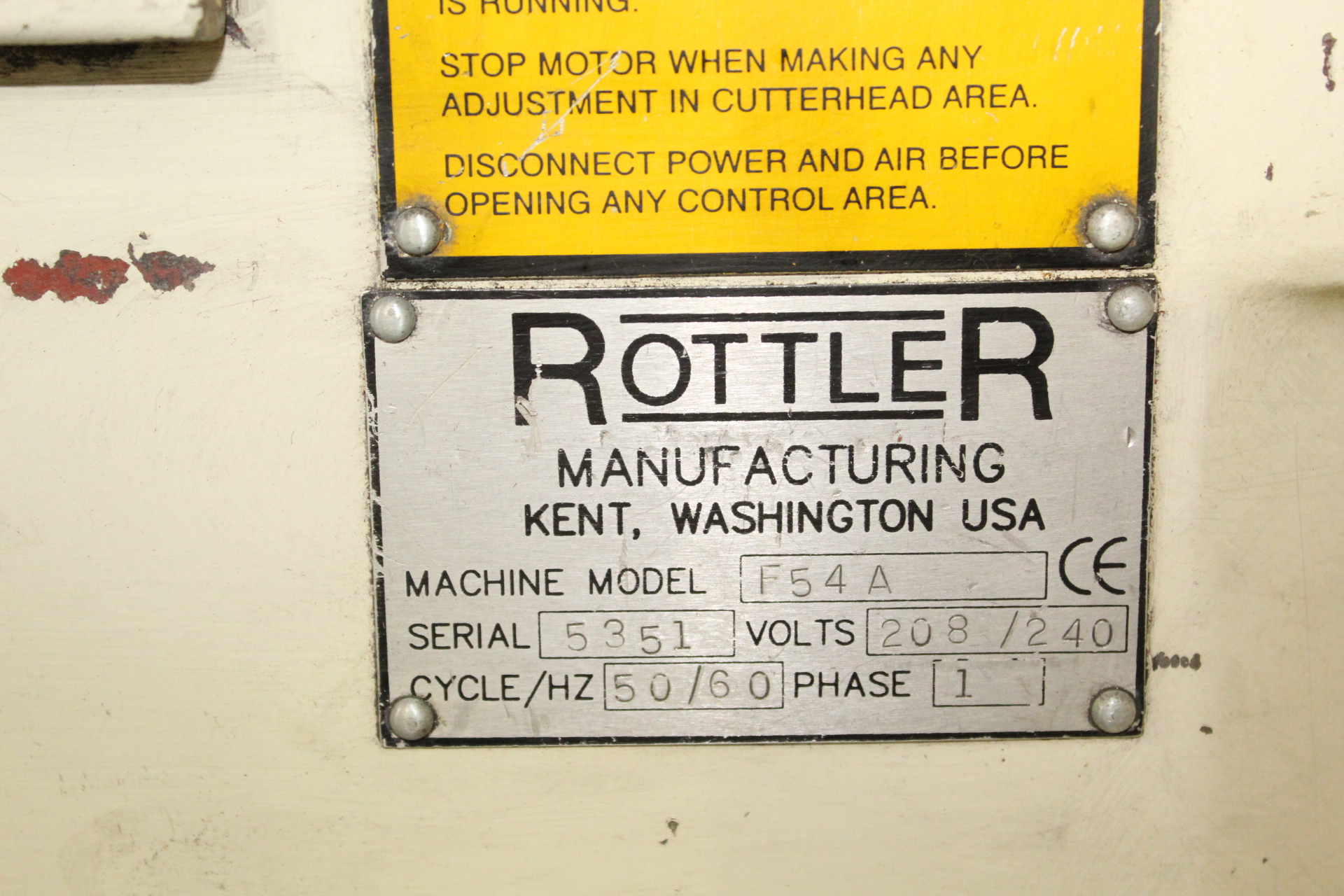

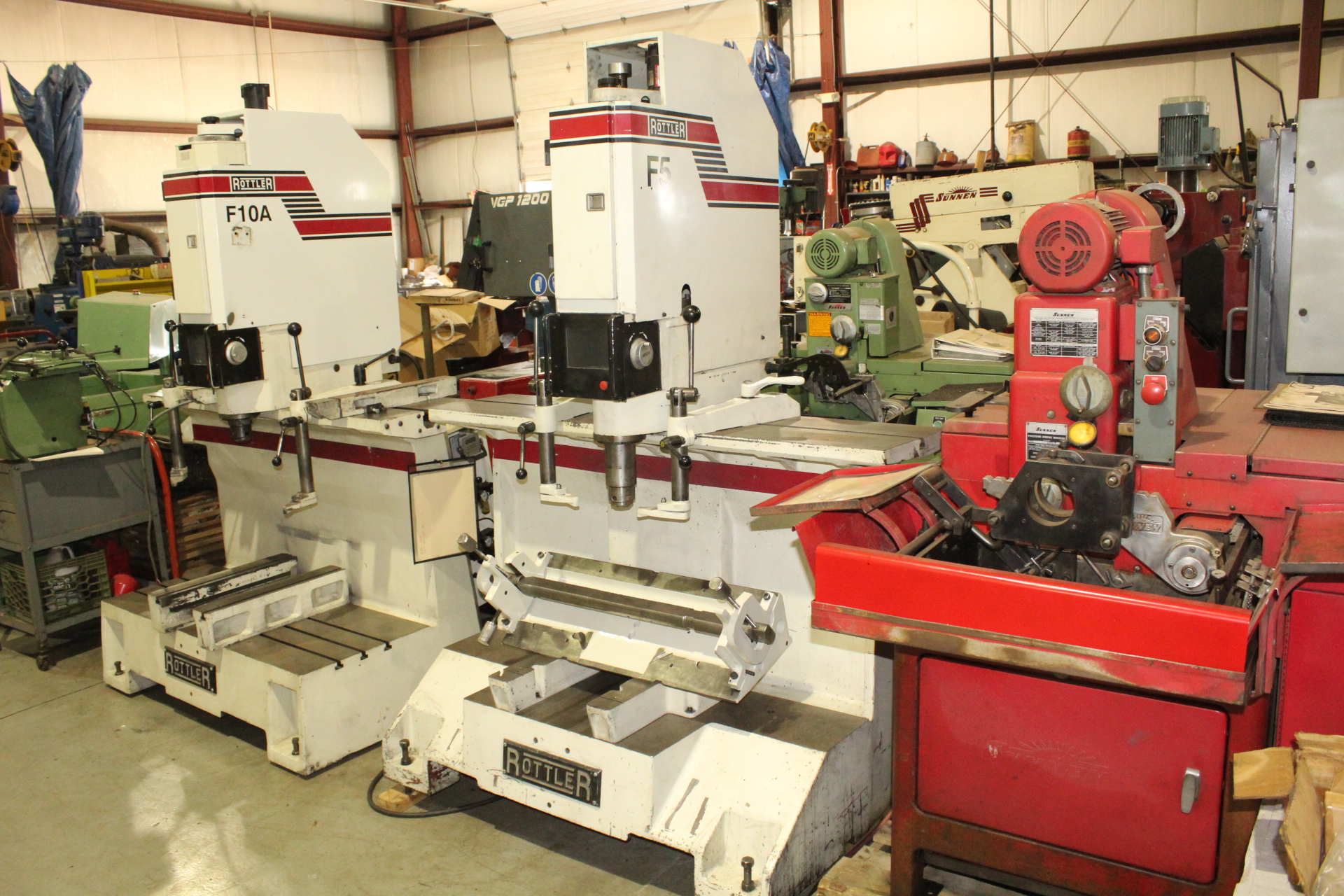

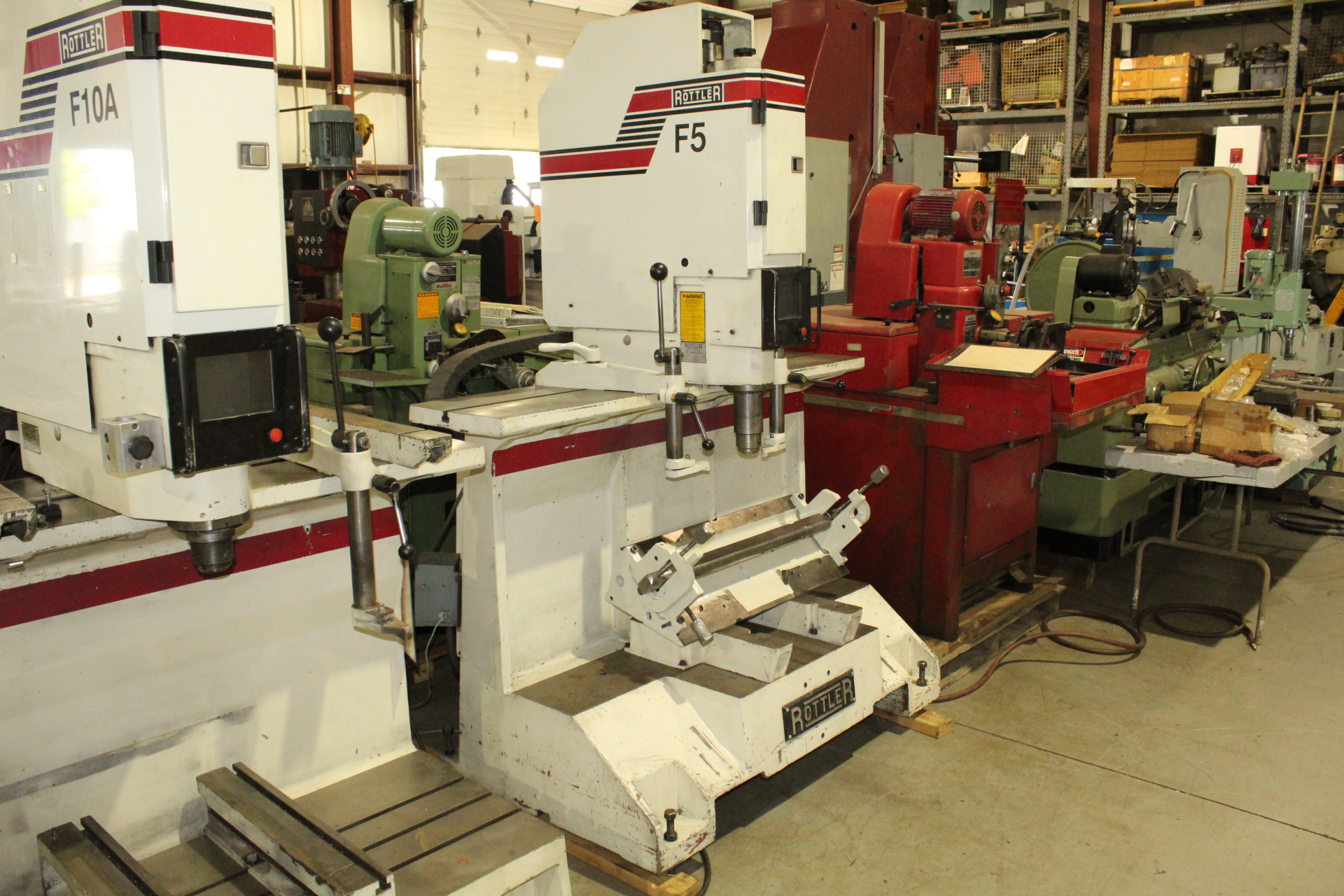

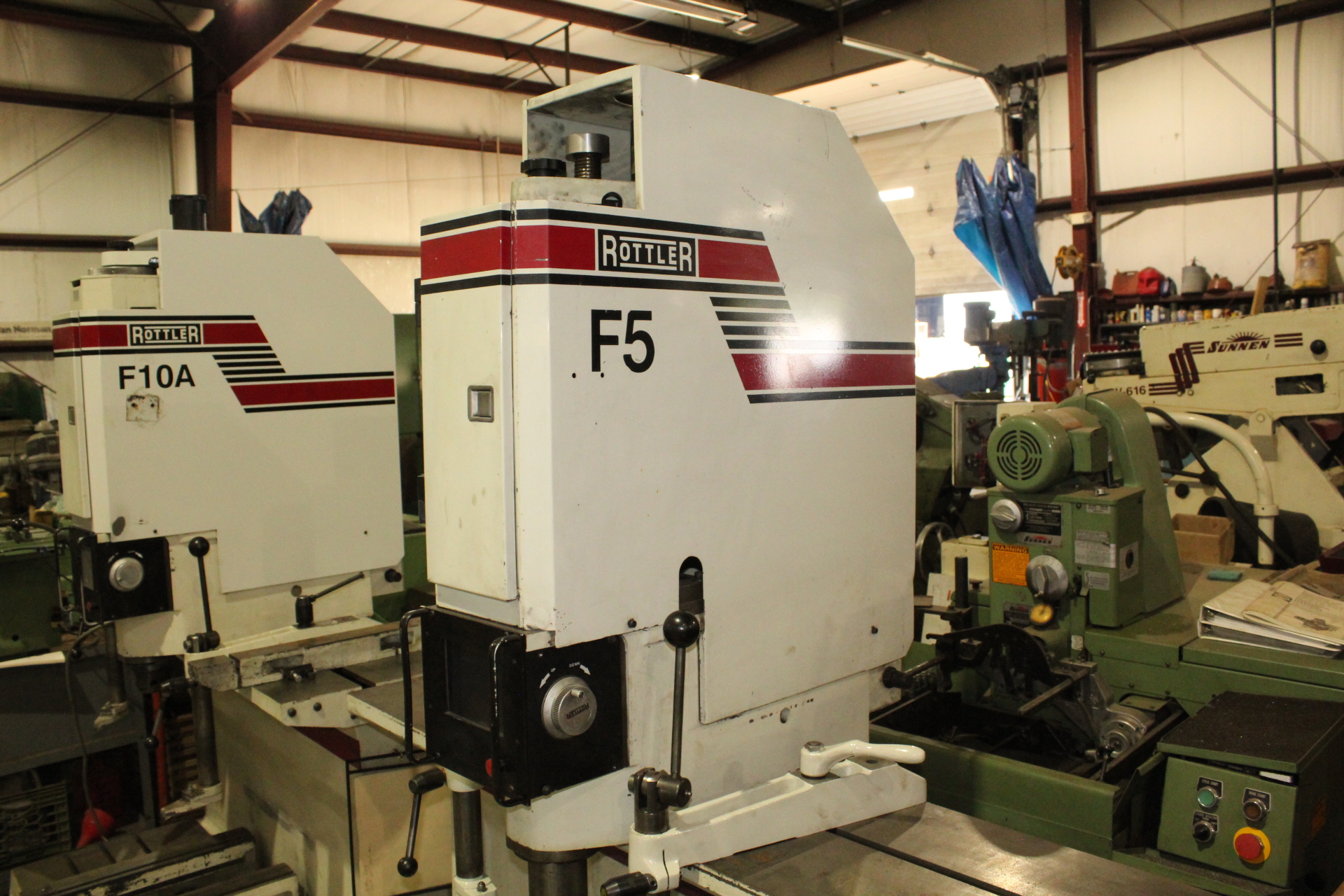

Rottler F54A Cylinder Boring and Honing Machine

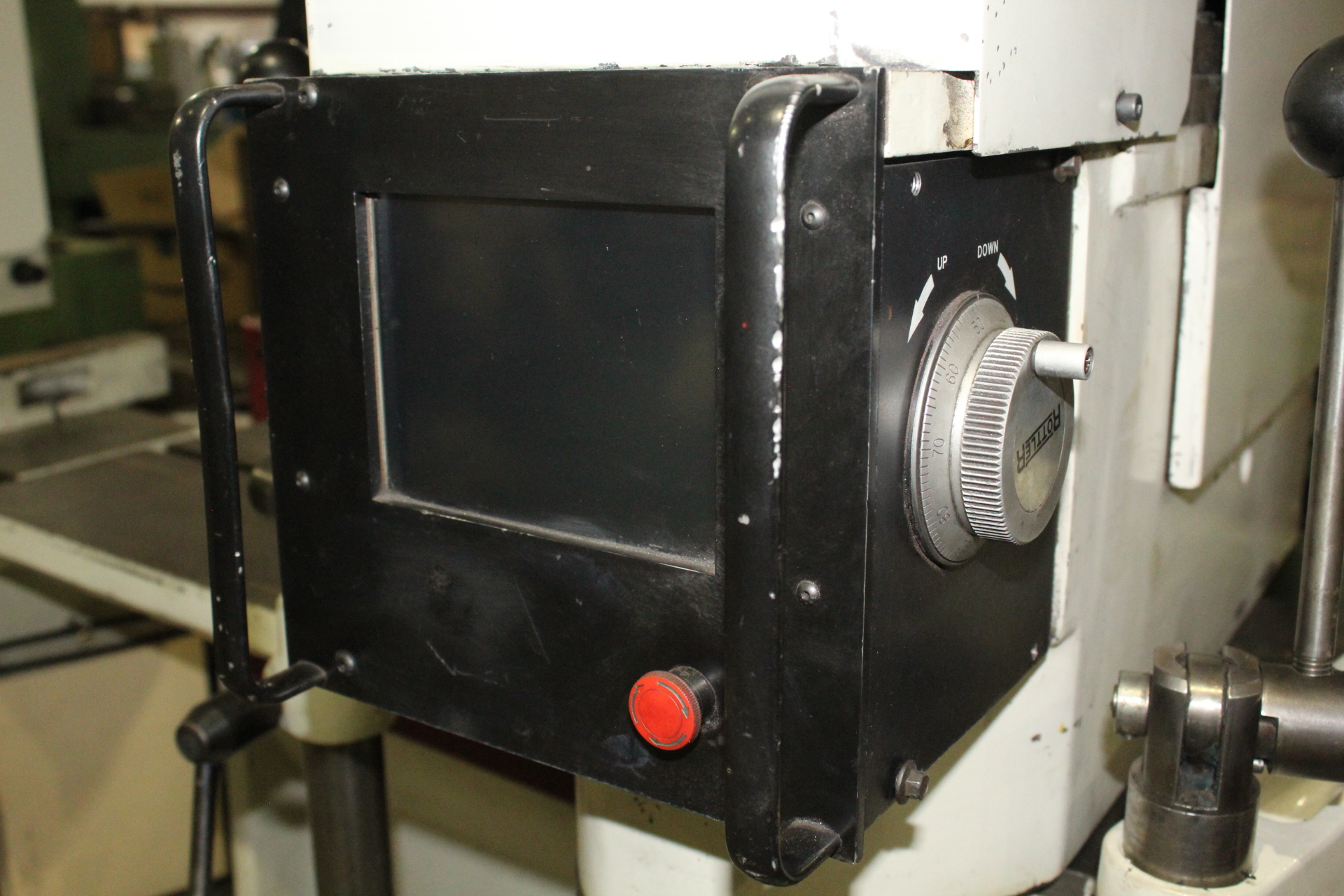

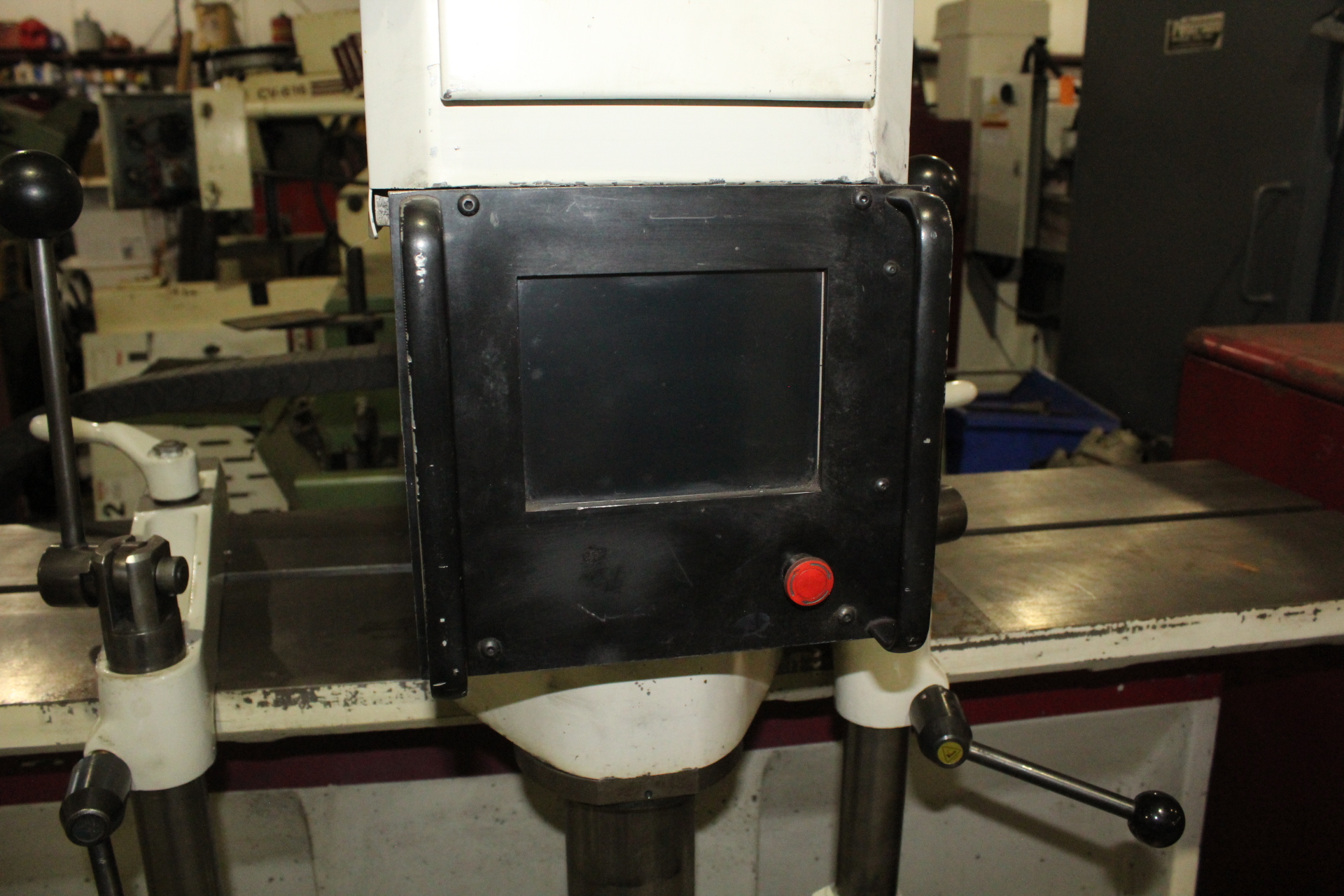

Updated control

control was updated by Rottler

Includes:

V-Block Fixture

The model F54A is a precision, single point, high speed boring machine. The F54A can be equipped with tooling and accessories for re-boring most American passenger car and truck engines, in-lines as well as 60 and 90 degree V-types.

The F54A machines can be easily tooled to machines a wide range of engines, including European and Asian.

The machine is designed to maintain the alignment of cylinder bores to the Pan Rails and Main Bearing bore locations, as was done in the original factory machining. This overcomes the many inaccuaracies and out-of-alignment problems associated with the clamping of portable boring bars to the cylinder head surface of the blocks.

Convenient controls, fast block clamping, air floated Spindle Base positioning and clamping, means conciderable savings in floor to floor time and operator involvement .

Specifications:

Capacity: 1.5"-9" (38-228mm)

Spindle Diameter: 3.25" (82.5mm)

Brand: Rottler
Model: F10A
Type: Automatic Boring and Sleeving Machine
Control: Automatic CNC

Touch Screen - 4.5” (114 mm)
Spindle Travel (Vertical) - 15” (381 mm)
Workhead Travel (Horizontal) - 50” (1270 mm)
Travel - Spindle Nose to Table - 26” (670 mm)
Spindle - Rotation Speed - 100 to 1200 RPM
Spindle - Motor - 3.3 HP 2.5kW HP

Feed per Revolution:
Programmable Feed Rates - .001" - .012"
Programmable Feed Rates - .025 - .300 mm

Electrical Requirements - 208-240V, 30A, 50/60Hz, 1Ph
Air Requirements - 1 cfm @ 90 psi 28 l/min @ 6 bar

Dimensions - Shipping - 78D x 93W x 93" H
