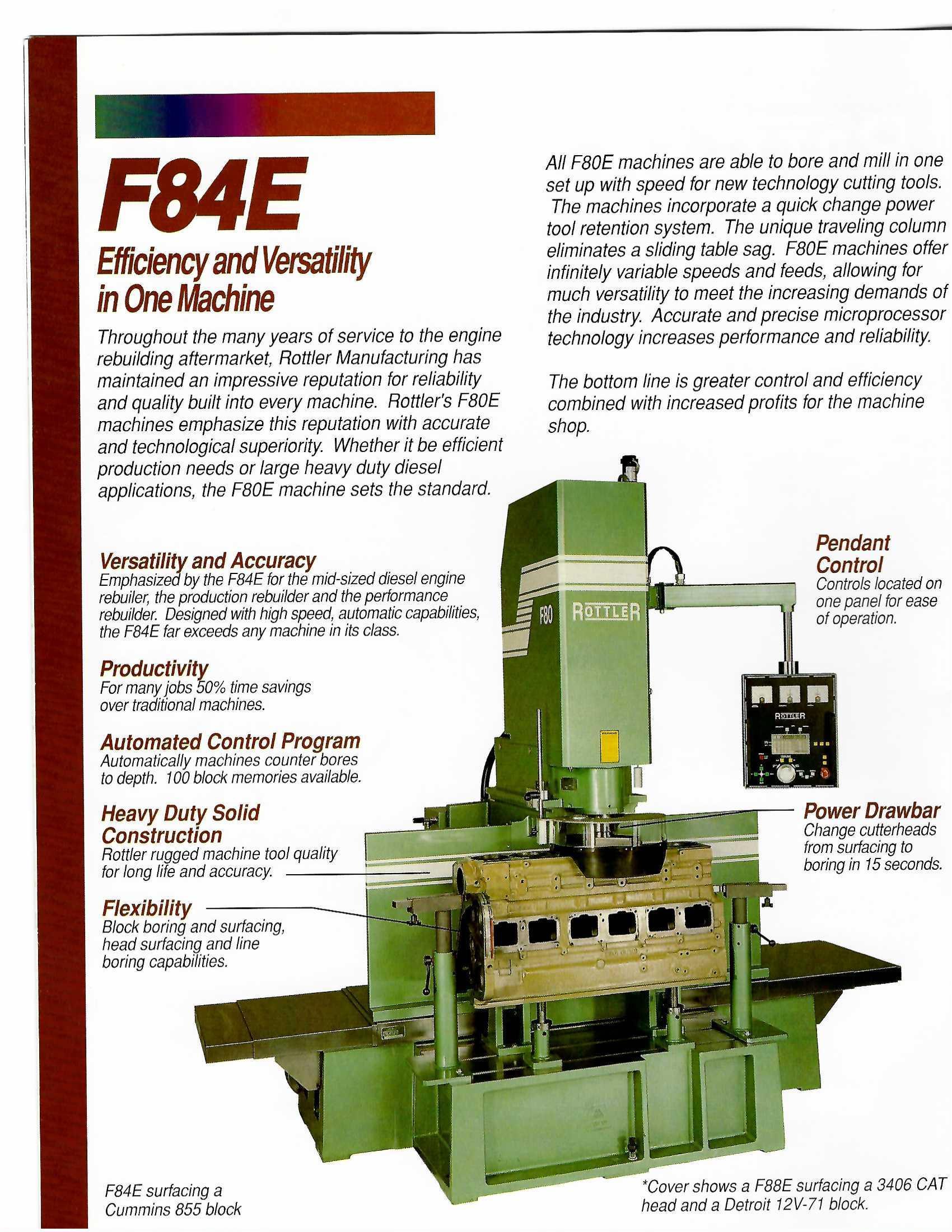

Rottler F84E Boring Machine

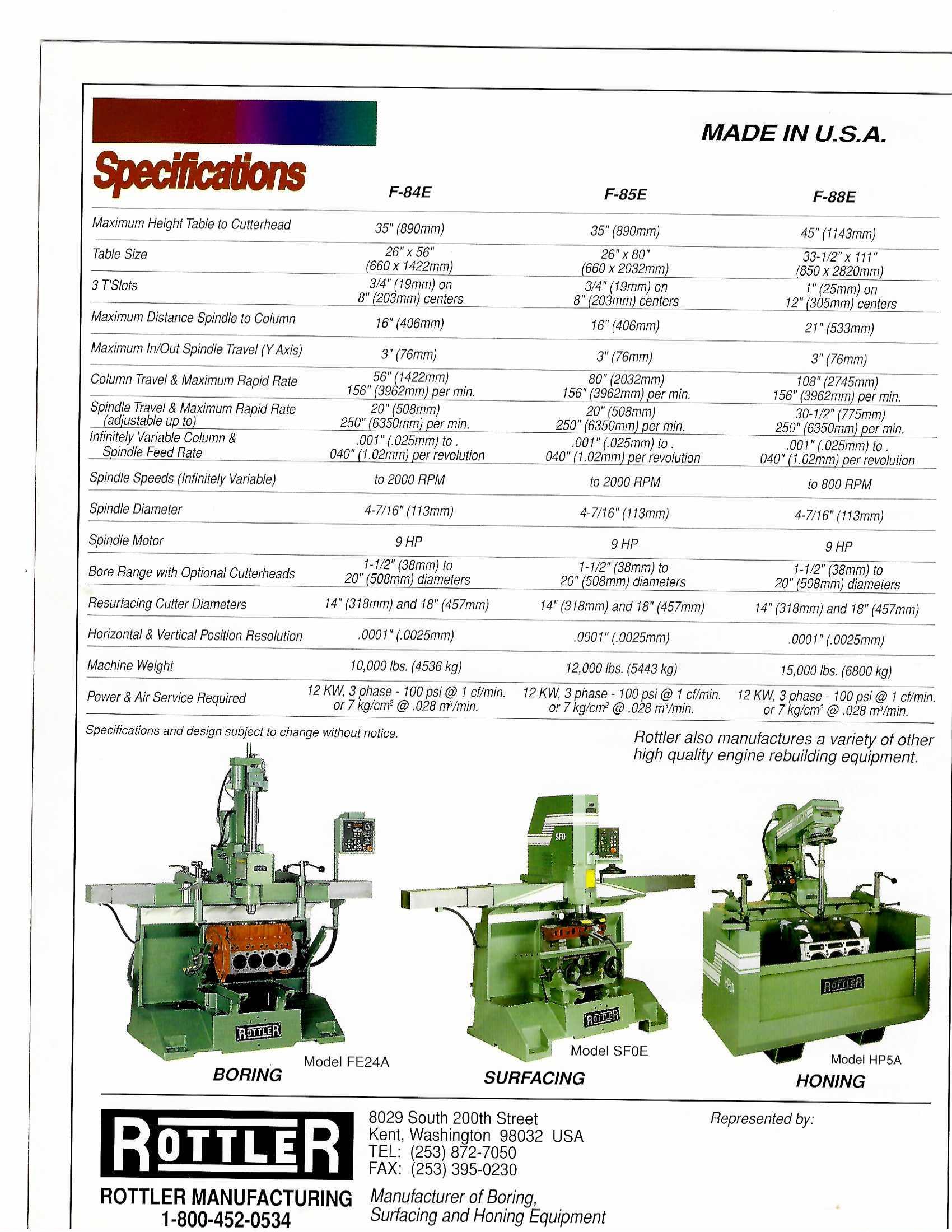

Specifications

Max Height table to cutterhead: 35"

Table Size: 26" x 56"

Max disyace spindle to column: 16"

Max In/OUT spindle travel (Y axis): 3"

Column Travel & max rapid Rate: 20" Adjustable up to 250"

Infinitely Variable Column & speed rate: .001" to .040" per revolution

Spindle Speeds: to 2000 RPM

Spindle Diameter: 4-7/16" (113mm)

Spindle Motor: 9 HP

Bore Range with Optional cutterheads: 1-1/2 to 20"

Rewsurfacing Cutter Diameters: 14" and 18"

Horizontal & Vertical Position Resolution: .0001"

Machine Weight: 10000 (4536 kg)

Power & Air surface required: 12 KW, 3 phase - 100 psi @ 1 cf/min.
